2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Parts & Accessories
Description
CCP-3-60CF

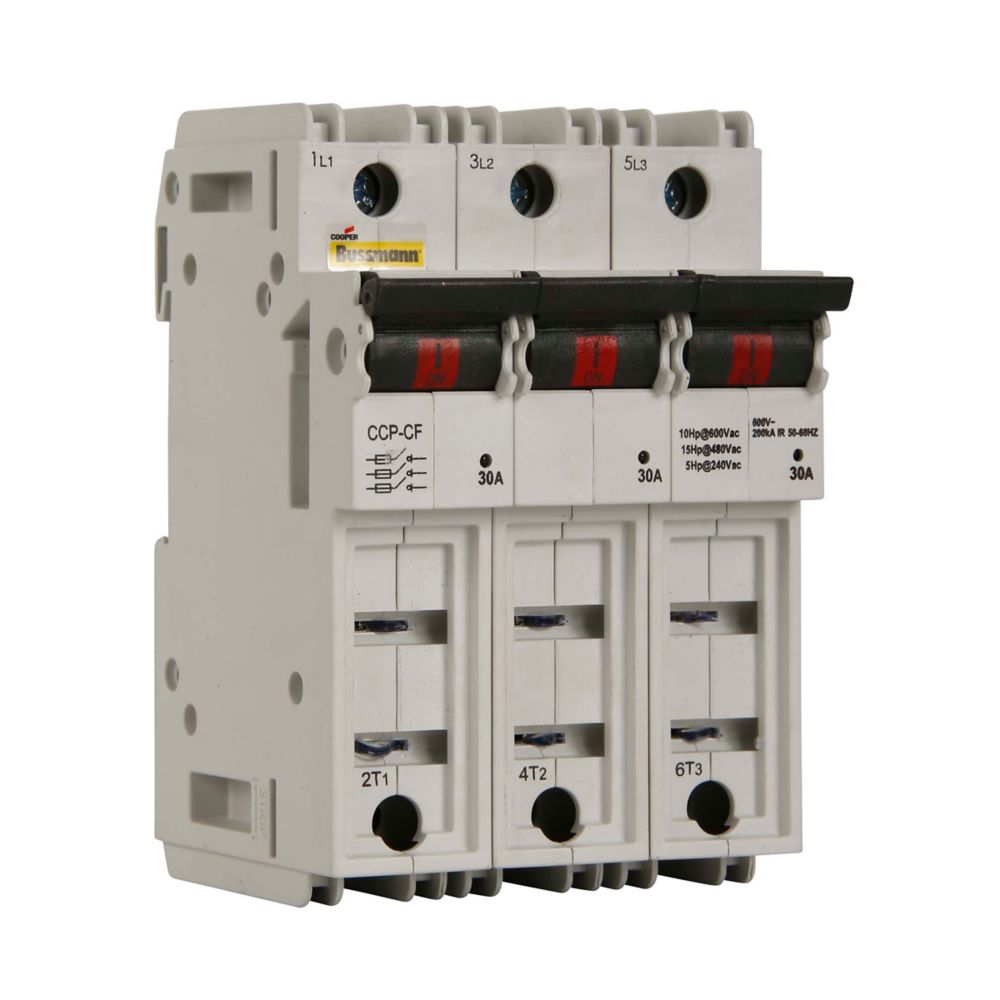

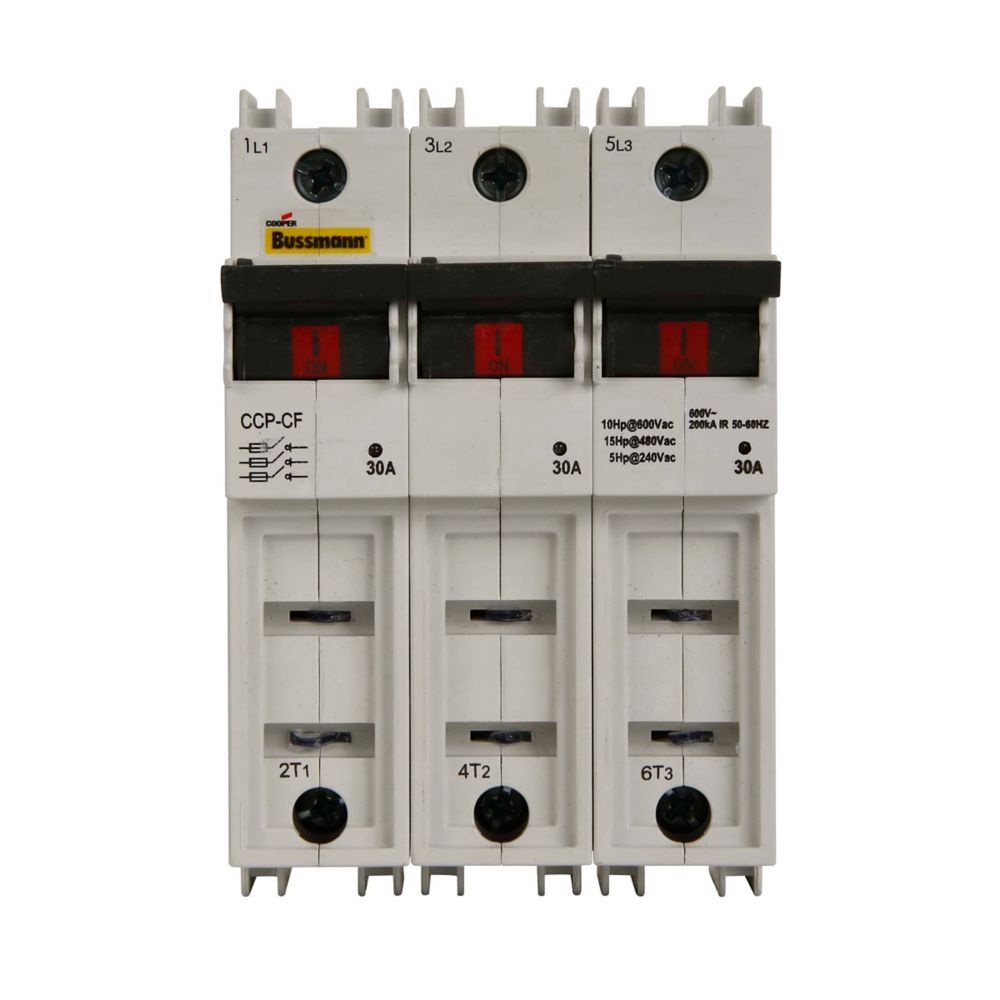

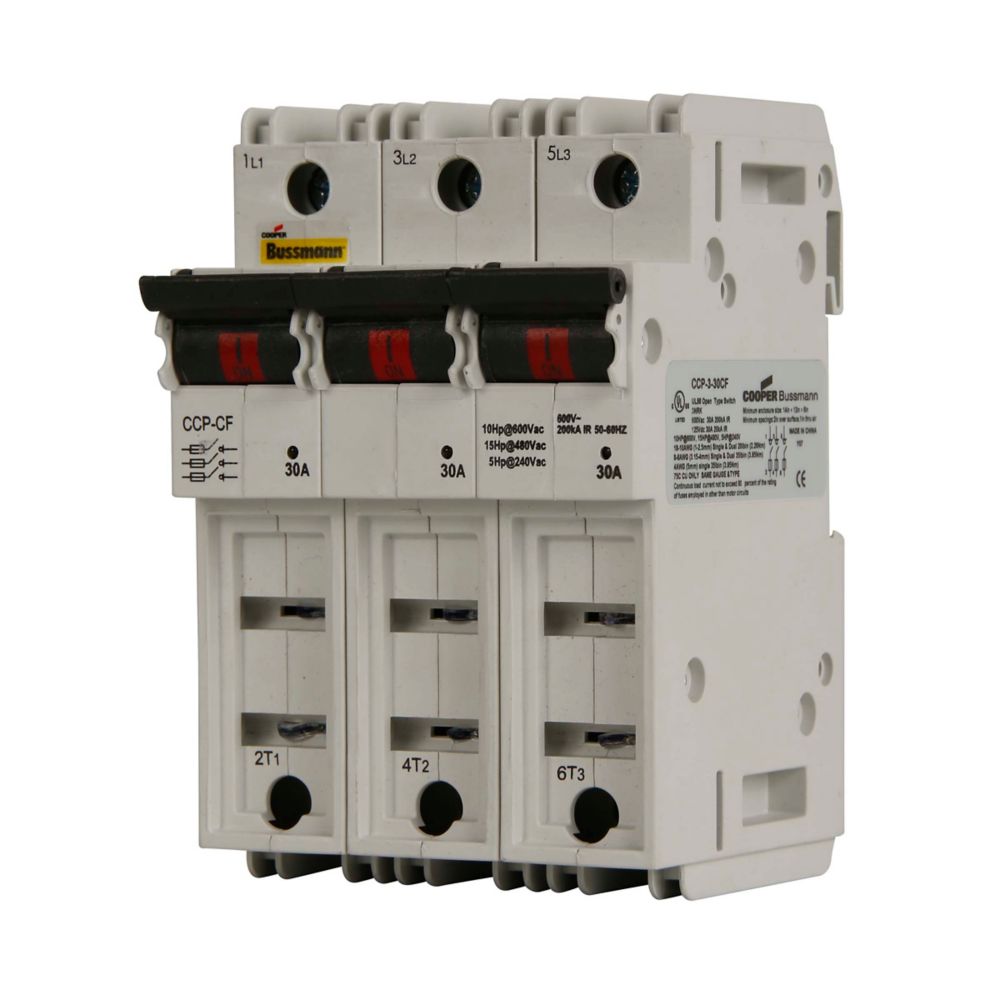

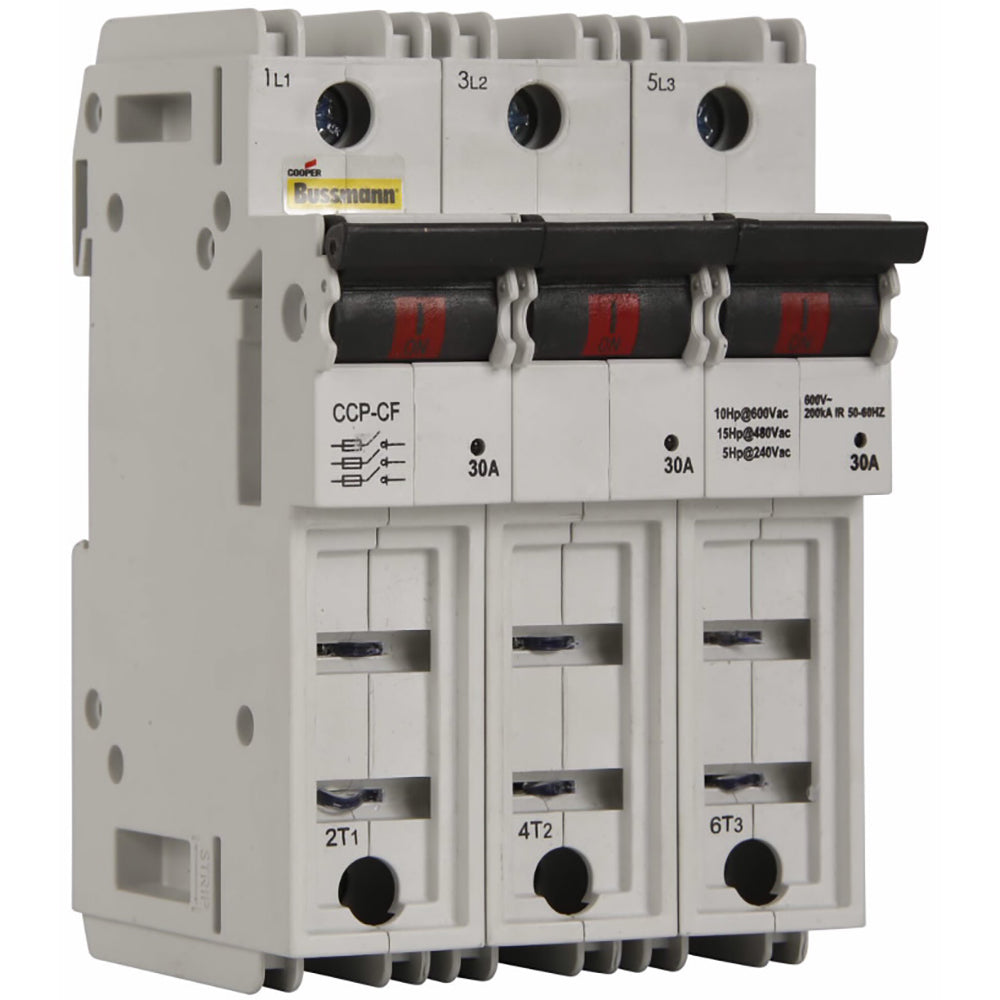

CCP-3-60CF is a three-pole, 60A, 600VAC/125VDC compact circuit protector fusible disconnect switch from Eaton Bussmann Series, designed for quick and safe circuit protection in residential, commercial, and industrial applications.
This UL98-listed switch features a compact CCP frame, DIN rail mounting, and accepts CUBEFuse™ fuses for reliable performance. It is engineered for easy installation and maintenance, with a robust design that supports a wide range of electrical systems.
-
Key Specifications
- Amperage: 60A
- Voltage: 600VAC, 125VDC
- Poles: 3
- Mounting Type: DIN Rail
- Interrupt Rating: 200 kA (short-circuit rating)
- Series/Frame: Bussmann CCP
- Trip Unit: Not applicable (fusible disconnect)
- Certifications: UL98 Listed, cULus 22.2, RoHS
- Fuse Type: CUBEFuse
- Wire Size: 4 AWG
- Operating Temperature: -20 to 75°C
- Dimensions: 4.5 x 3 x 3 inches (approximate)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CCP-3-60CF
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Switch
- Item Subcategory : Parts & Accessories
- Section : Compact Circuit Protector (CCP)
- Family : Class CC
- Type : CCP
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
- Compatible Frames : SGLA
Product Data
- UPC : 05171220151
- GTIN : 00051712201513
- Dimensions : 3.65 in x 3.14 in x 2.07 in (Length/Depth x Height x Width)
- Weight : 0.92
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
