CCMR012 - Littelfuse CCMR Class CC 12A 600V Time Delay Fuse

CCMR012

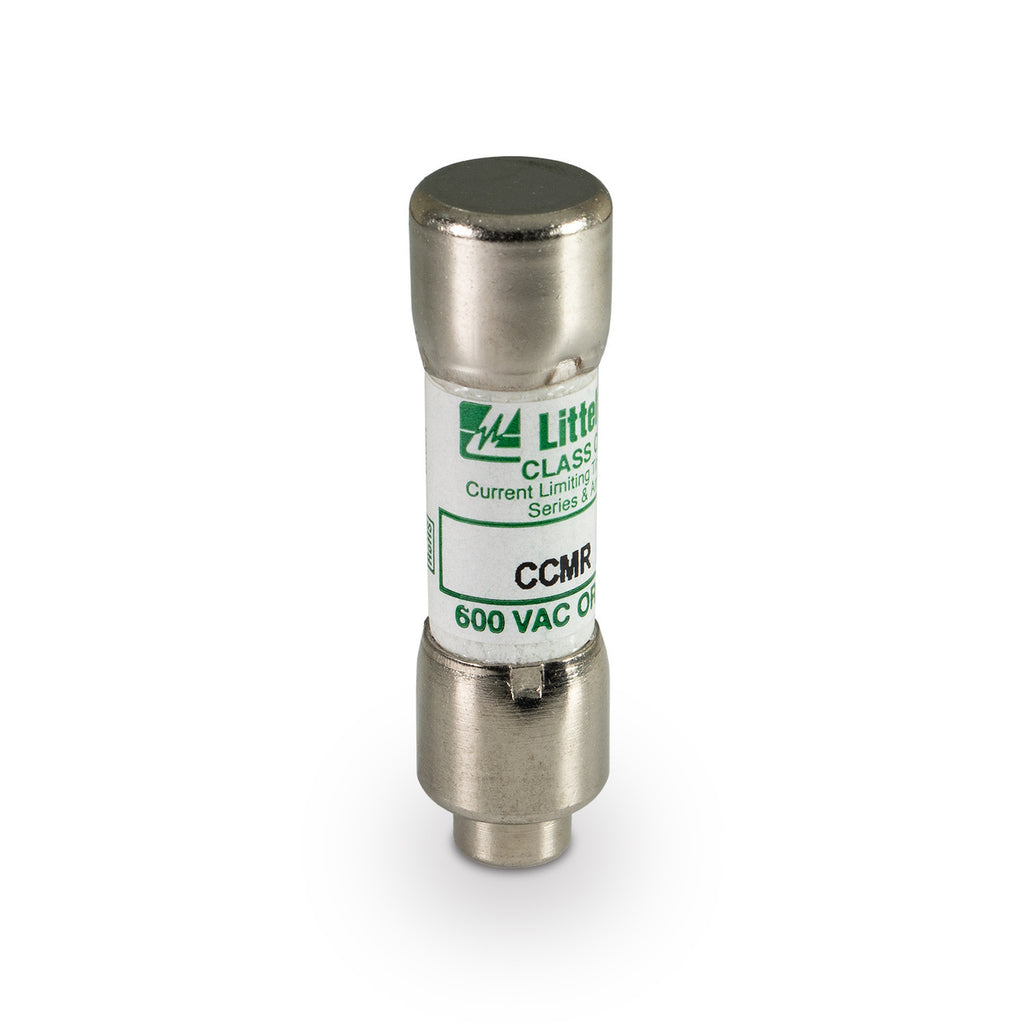

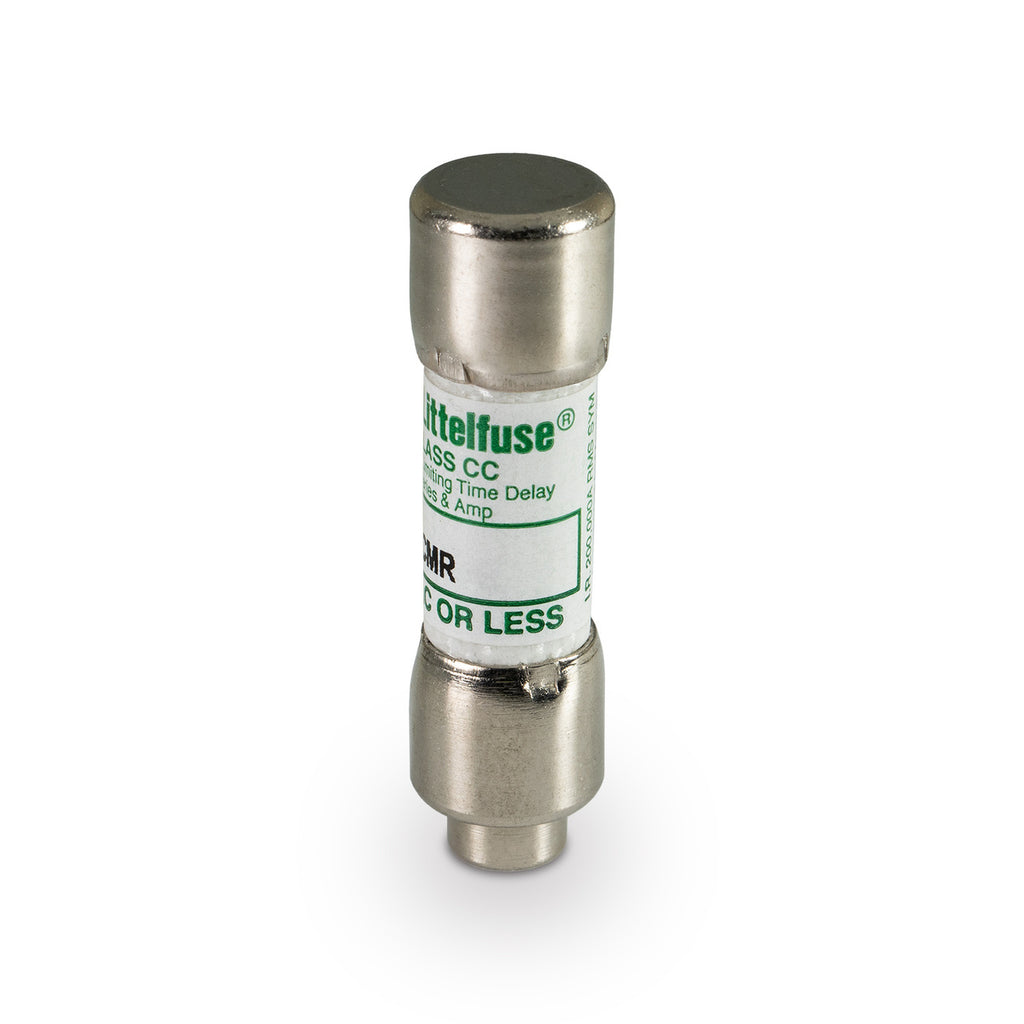

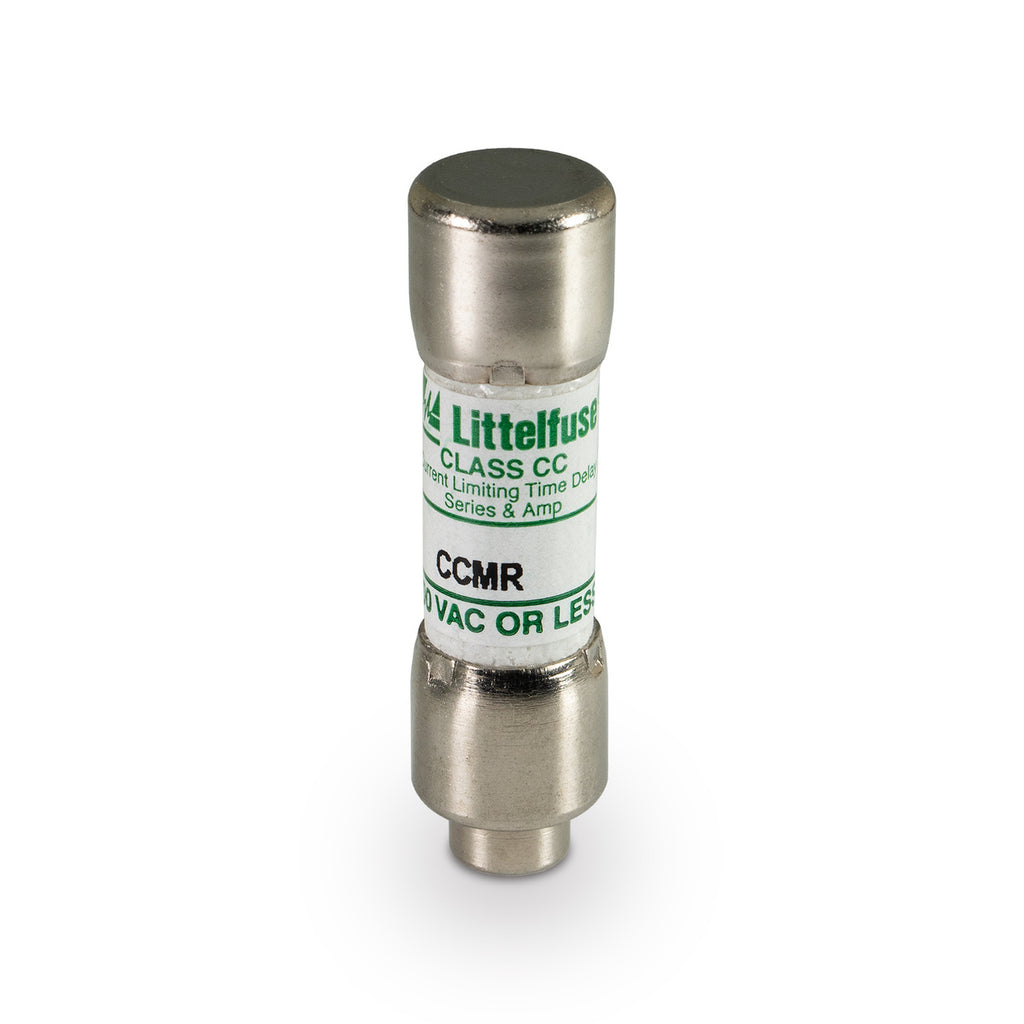

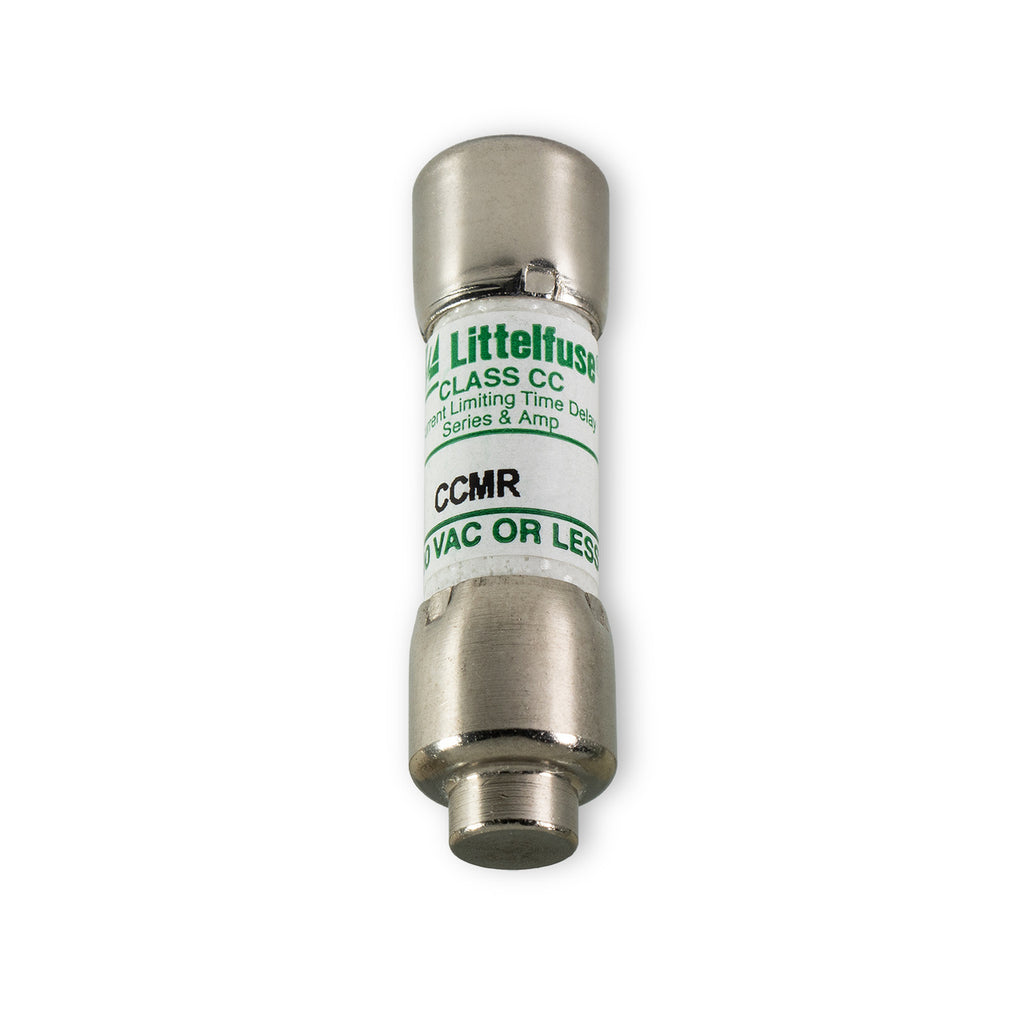

CCMR012 is a Class CC dual-element, time-delay fuse rated for 12 Amps at 600VAC and 500VDC, designed for motor and motor branch circuit protection applications. The Littelfuse POWR-PRO advanced technology provides superior current-limiting protection with an interrupting rating of 200 kA at 600VAC and 20 kA at 500VDC. This cartridge-style fuse features ferrule terminals and measures 0.41 inches in diameter by 1.5 inches in length, making it the smallest footprint 600V UL-listed branch circuit fuse available. The time-delay characteristic eliminates unnecessary downtime from power surges while providing Type 2 No Damage protection for both NEMA and IEC motor circuit components.

• Amperage Rating: 12 Amps
• Voltage Rating: 600VAC, 500VDC
• Class: CC
• Interrupting Rating: 200 kA at 600VAC, 20 kA at 500VDC
• Type: Dual-Element, Time-Delay
• Terminal Connection: Ferrule
• Body Style: Cartridge
• Physical Dimensions: 0.41 in Dia x 1.5 in Length
• Certifications: UL 248-4, CSA LR29862, CE Certified
• Applications: Motor protection, motor branch circuits, contactor protection
• Technology: POWR-PRO with extreme current-limiting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CCMR012
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : CCMR Series – Class CC Dual-Element, Time-Delay Fuses
• Type : CCMR Series – Class CC Dual-Element, Time-Delay Fuses
• Voltage : 600
• Amperage : 12
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Class Rating : CC/CD
• Barrels : 1

Product Data

• UPC : 079458968354
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 2
• Certification : CE, UL 248/248-4, UL Listed, CSA Certified, RoHS
