Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
CCMR005

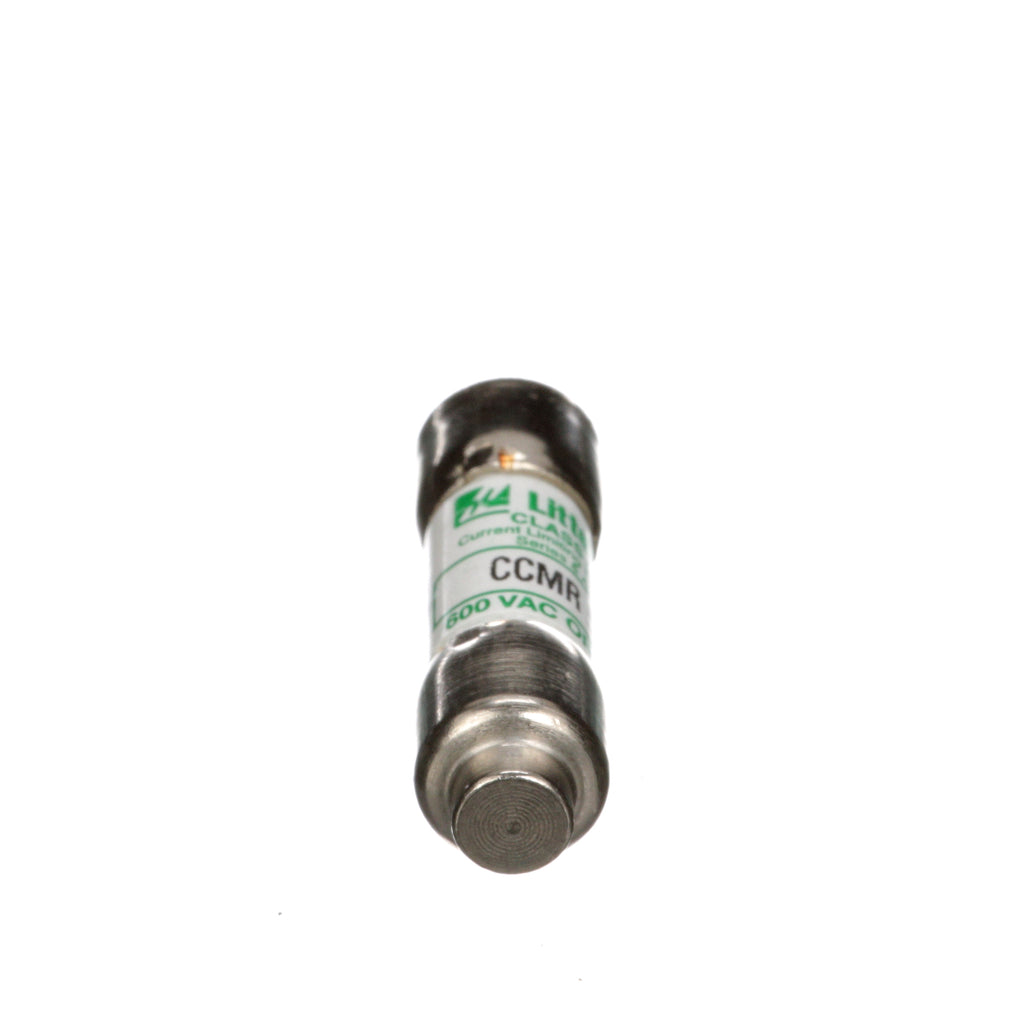

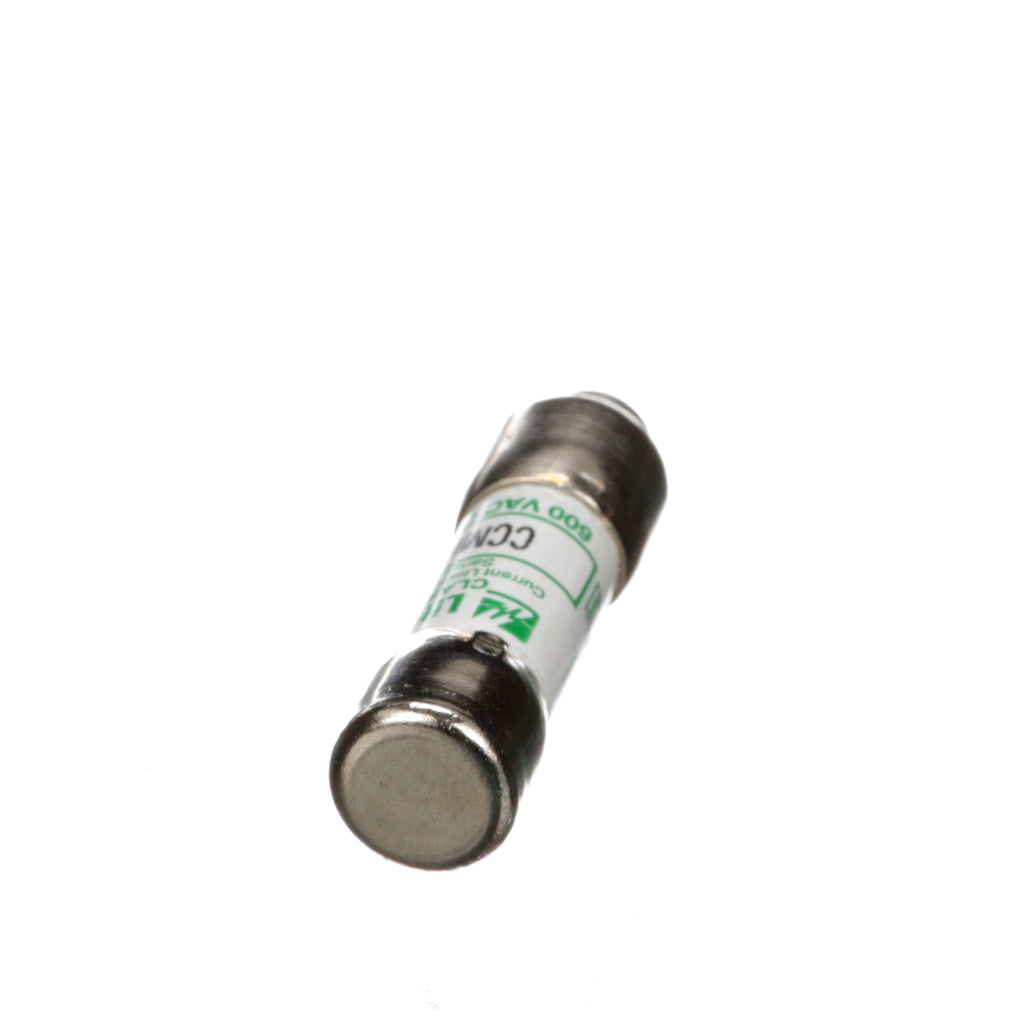

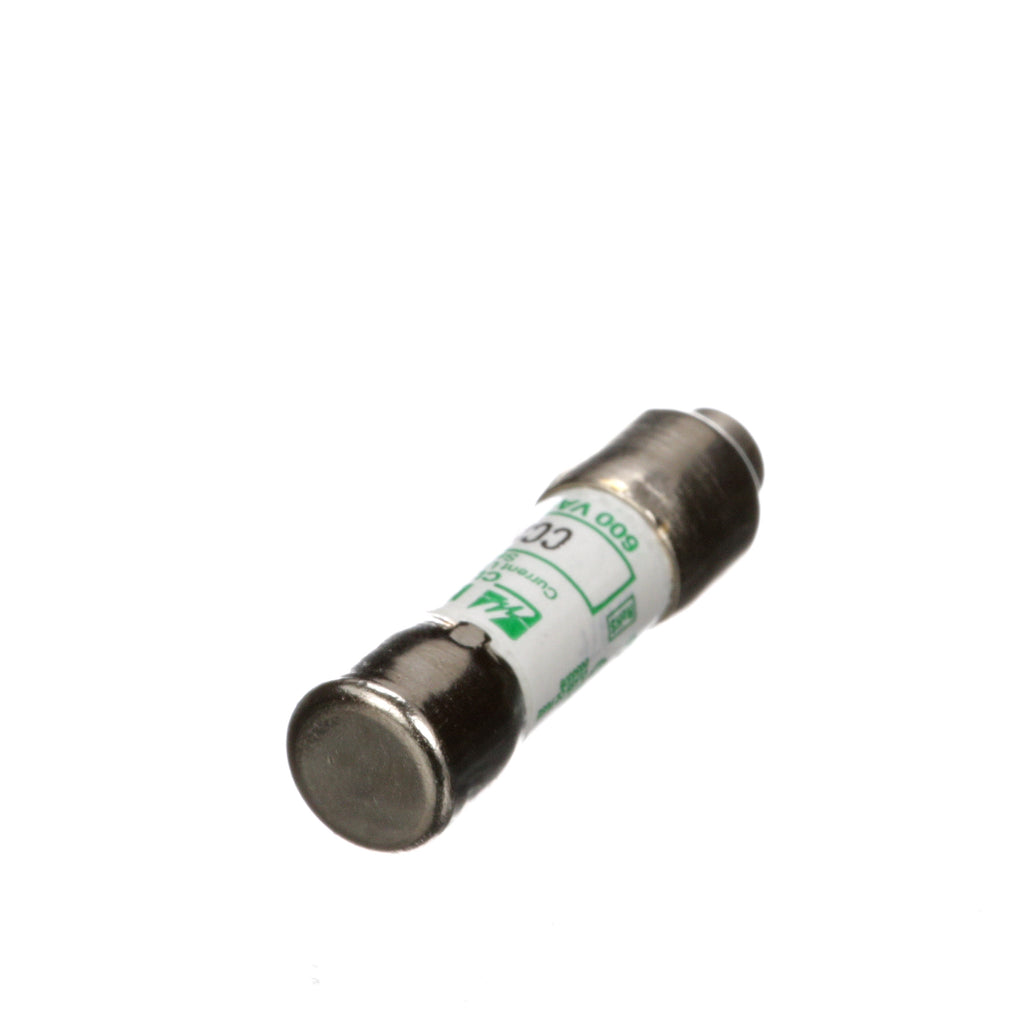

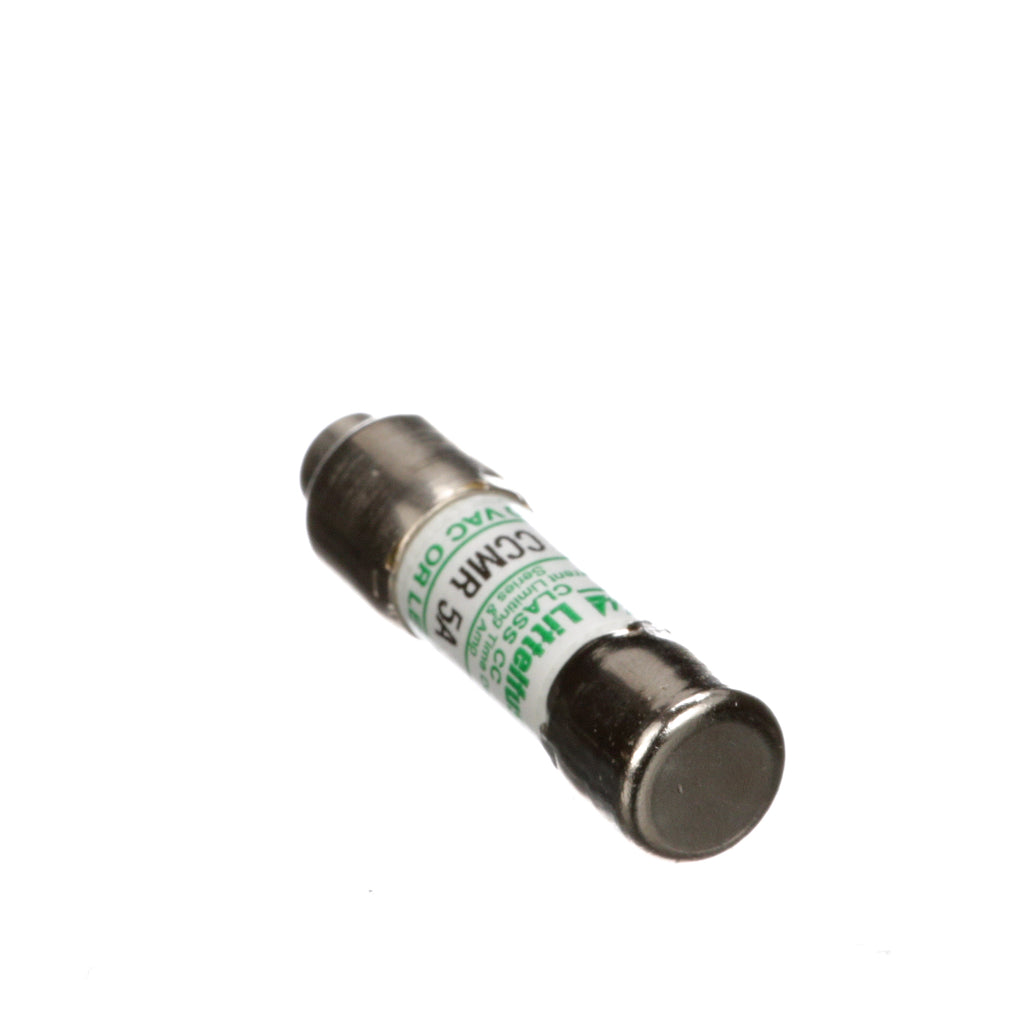

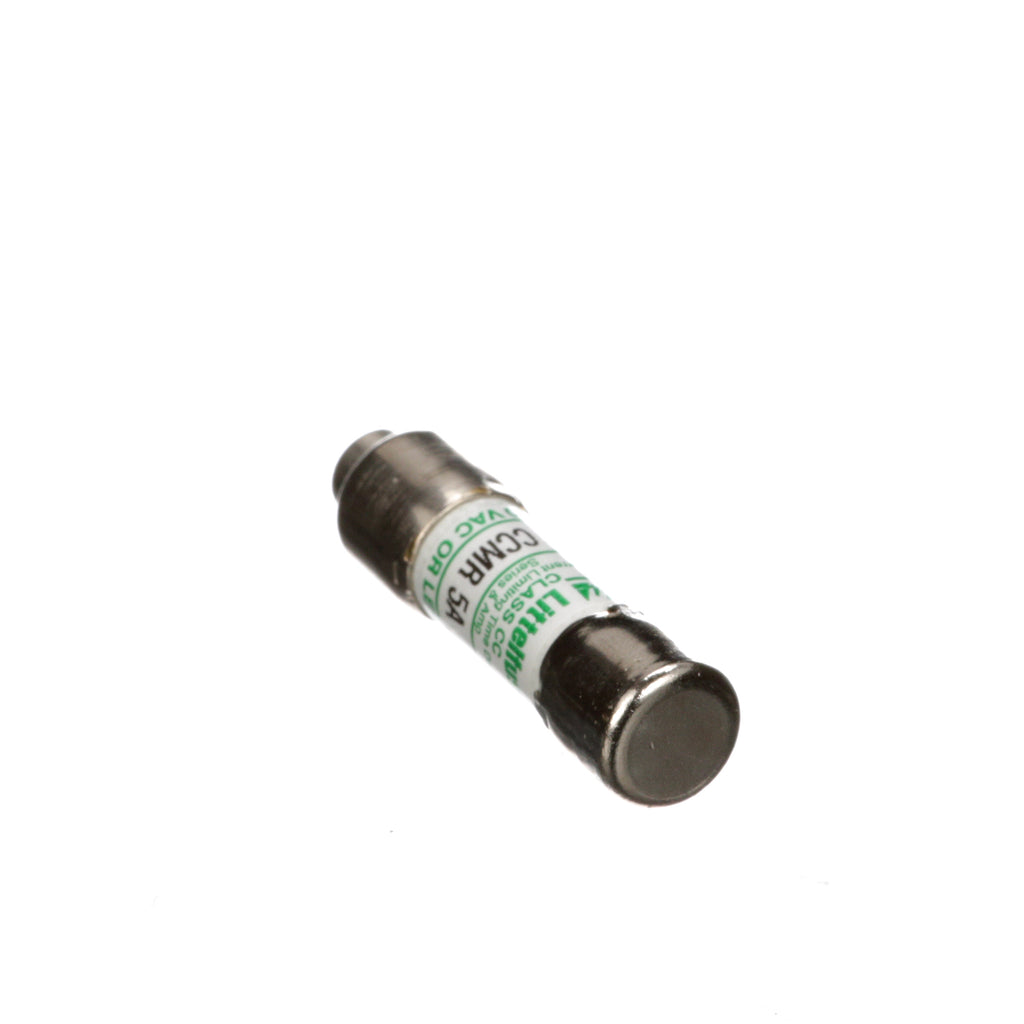

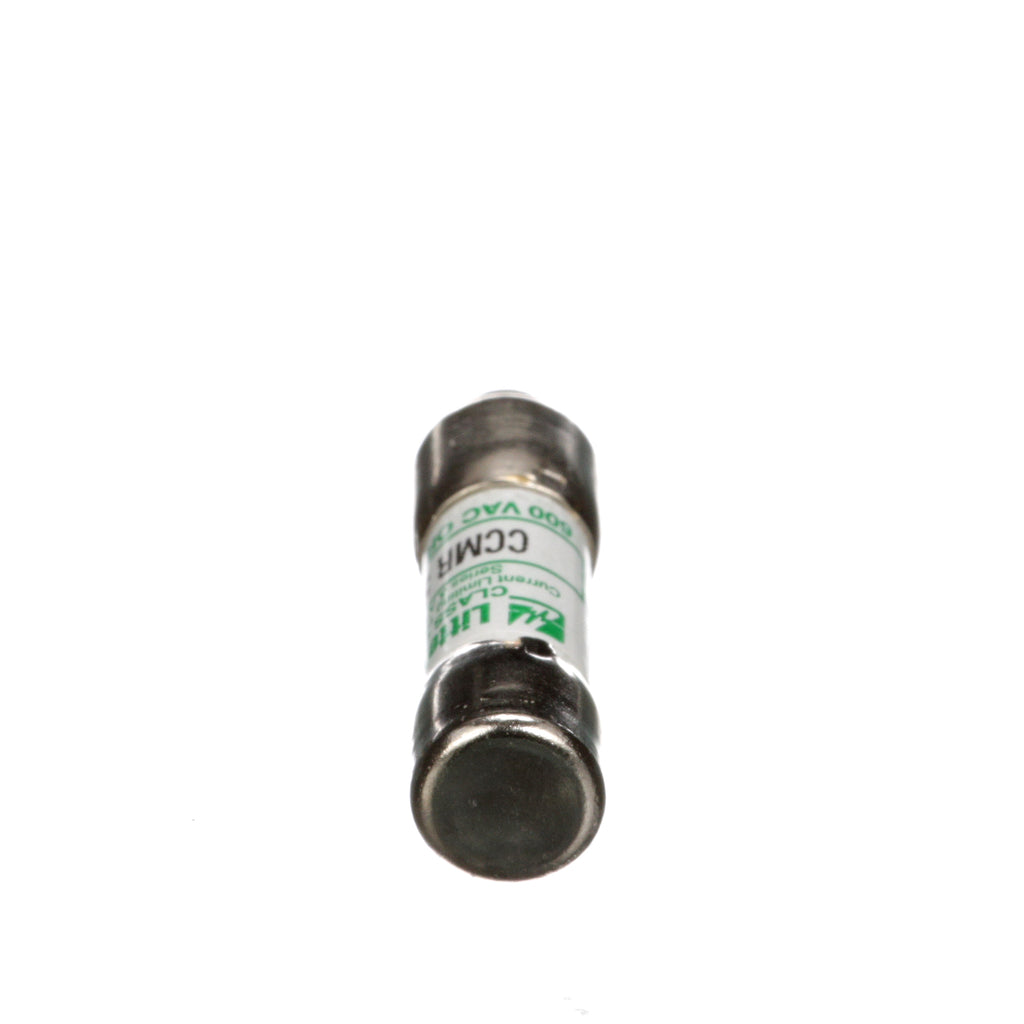

CCMR005 is a Littelfuse Class CC 5 Amp time-delay fuse designed for reliable motor and branch circuit protection. This dual-element fuse features advanced POWR-PRO® technology for superior current-limiting and time-delay performance, making it ideal for applications requiring protection against sustained starting currents and power surges. The CCMR005 fuse is engineered for use in motor circuits up to 40 hp, offering Type 2 "No Damage" protection for both NEMA- and IEC-type components. Its compact design and high interrupting rating ensure dependable operation in demanding industrial environments.
- Part Number: CCMR005
- Manufacturer: Littelfuse
- Series: CCMR
- Class: Class CC
- Amperage Rating: 5 Amps
- AC Voltage Rating: 600 VAC
- DC Voltage Rating: 250 VDC
- Interrupting Rating: 200 kA @ 600 VAC
- DC Interrupting Rating: 20 kA
- Response Time: Time-Delay
- Element Type: Dual-Element
- Mounting Type: Fuse Block / Clip / Holder
Specifications
- Part Number: CCMR005
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CCMR Series – Class CC Dual-Element, Time-Delay Fuses
- Type : CCMR Series – Class CC Dual-Element, Time-Delay Fuses
- Voltage : 600
- Amperage : 5
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- UPC : 079458968262
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 2
- Certification : CE, UL 248/248-4, UL Listed, CSA Certified, RoHS
