Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
CCMR-.800

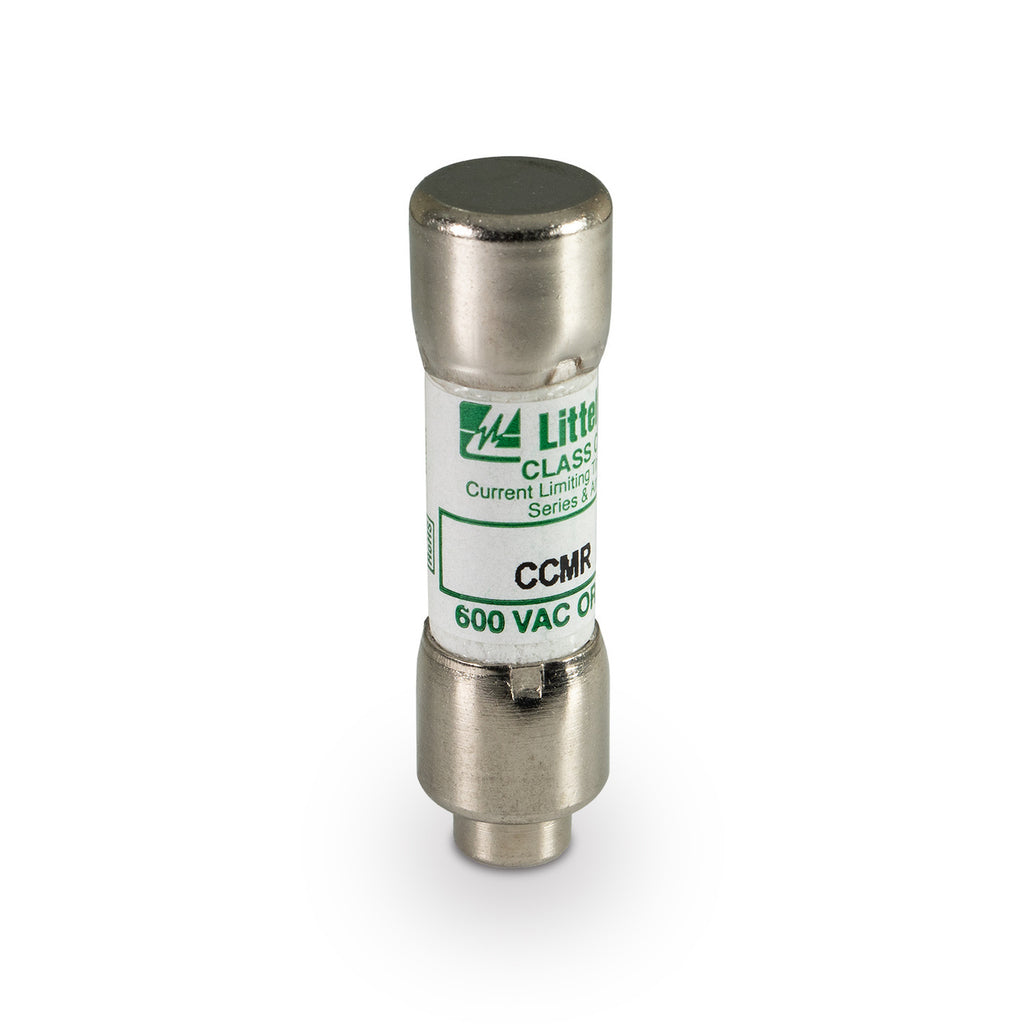

CCMR.800 is a Littelfuse Class CC fuse providing 0.8 ampere current rating with 600 volts AC and 250 volts DC voltage ratings.This dual-element, time-delay fuse features POWR-PRO® technology for superior motor protection with extremely current-limiting characteristics and Type 2 "No Damage" protection. It is designed for motor and branch circuit protection with a compact 13/32 inch by 1 1/2 inch size and meets UL Class CC standards.
- Amperage: 0.8 Amp
- Voltage Rating: 600 VAC / 250 VDC
- Fuse Type: UL Class CC
- Dual Element Time-Delay
- POWR-PRO® Performance
- Extremely Current Limiting
- Type 2 "No Damage" Protection
- Compact Size: 0.41" x 1.5"
- Non-Indicating
- RoHS Compliant
Specifications
- Part Number: CCMR-.800
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- GTIN : 00079458968101
- Weight : 2
