Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
CCMR-.600

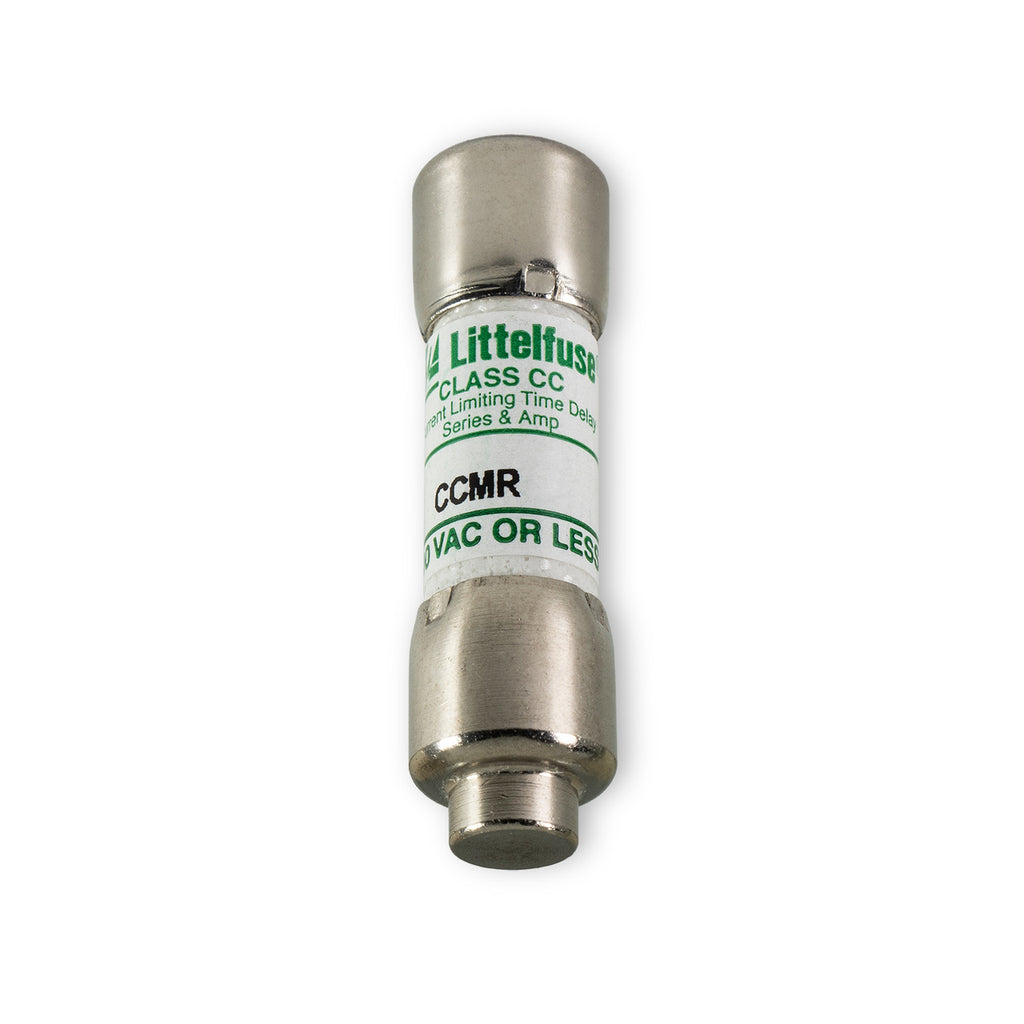

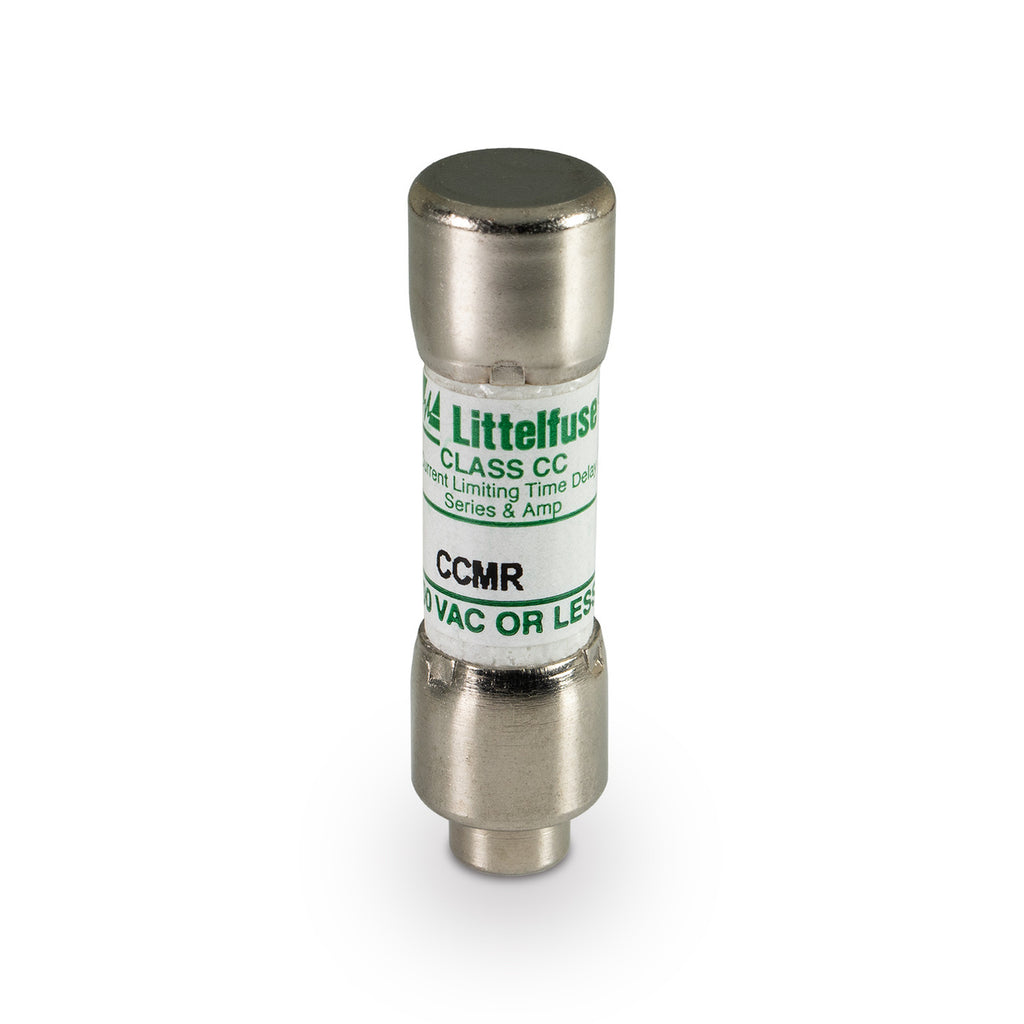

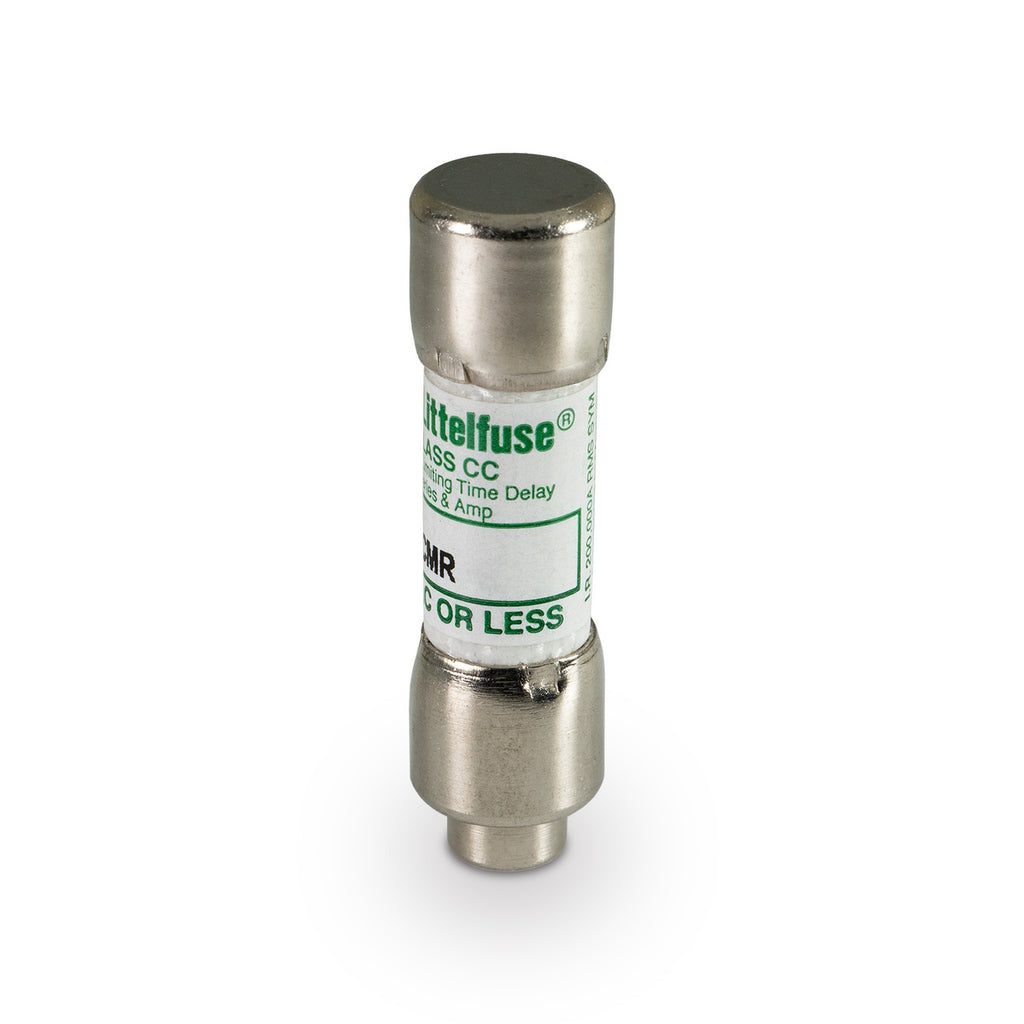

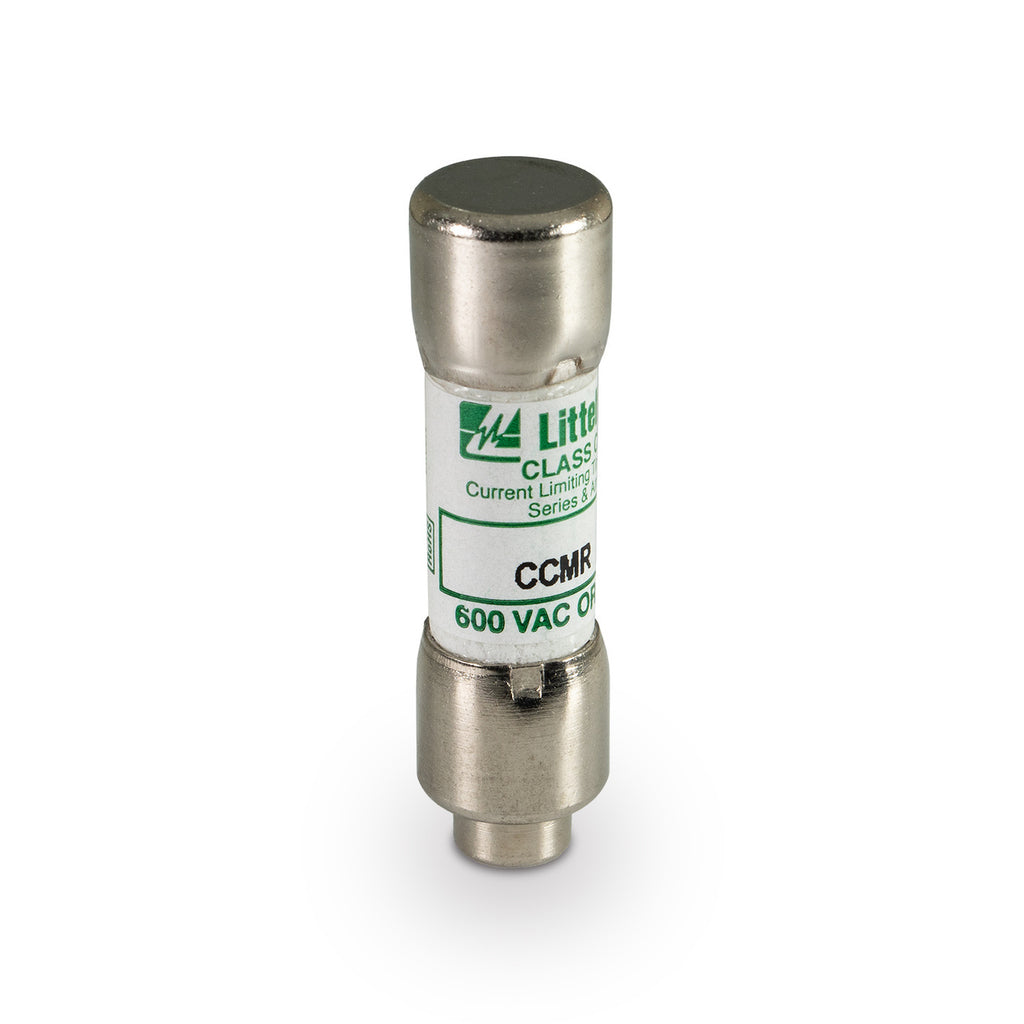

CCMR-.600 is a Littelfuse Class CC time delay fuse designed for reliable motor and branch circuit protection. This dual-element, current-limiting fuse offers superior protection against short-circuit currents and is ideal for small motor applications. The CCMR-.600 features a 0.6A current rating and a 600VAC voltage rating, with a 250VDC rating. It is extremely current-limiting and provides Type 2 "No Damage" protection for both NEMA- and IEC-type motor circuit components. The fuse is designed for easy coordination and offers robust protection for motor circuits, contactors, and general industrial applications.
- 0.6A Current Rating
- 600VAC Voltage Rating
- 250VDC Voltage Rating
- Class CC Fuse Type
- Time Delay Response
- Dual Element Construction
- Interrupting Rating: 200kA at 600VAC
- Interrupting Rating: 20kA at 250VDC
- Extremely Current Limiting
- Type 2 "No Damage" Protection
- POWR-PRO® Technology
- UL 248-4, CSA, CE Certified
Specifications
- Part Number: CCMR-.600
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- Amperage : 6
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- UPC : 079458968095
- GTIN : 00079458968095
- Weight : 2
