Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
CCMR-.200

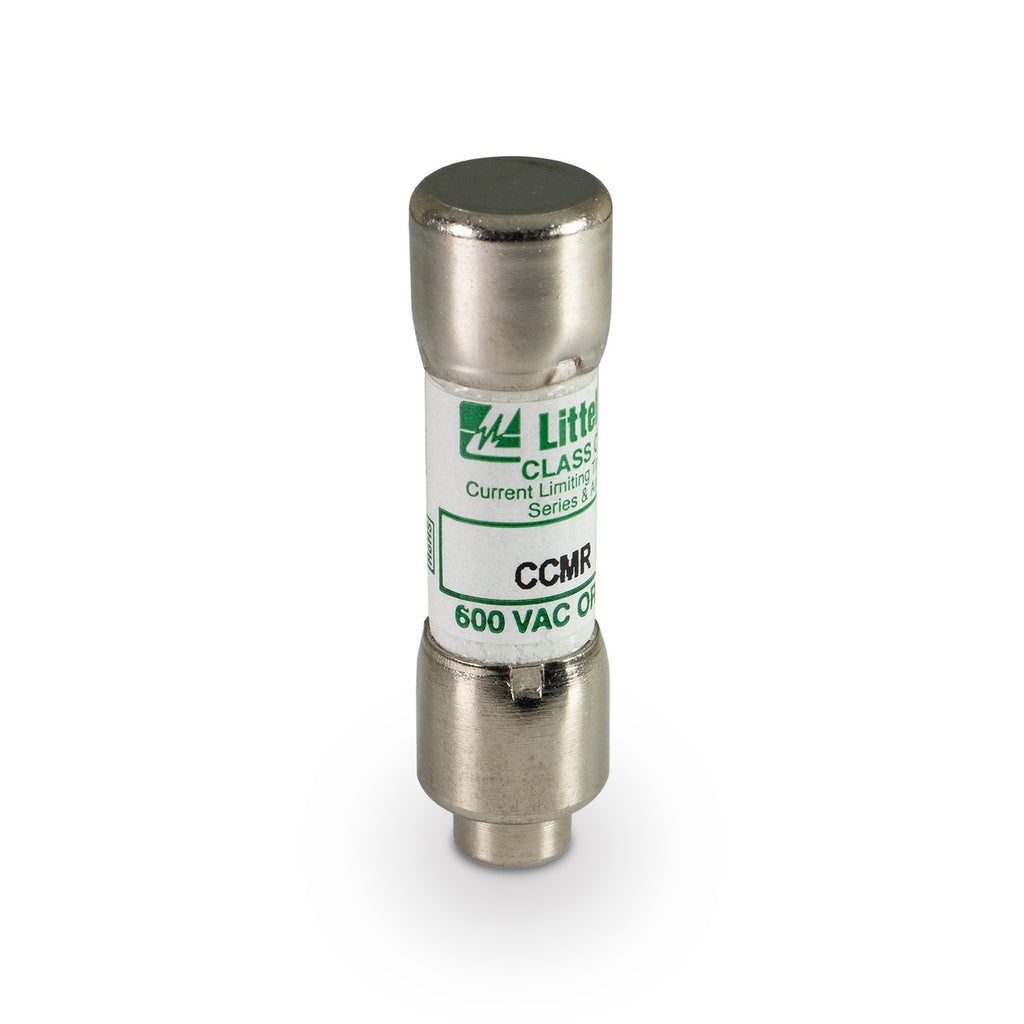

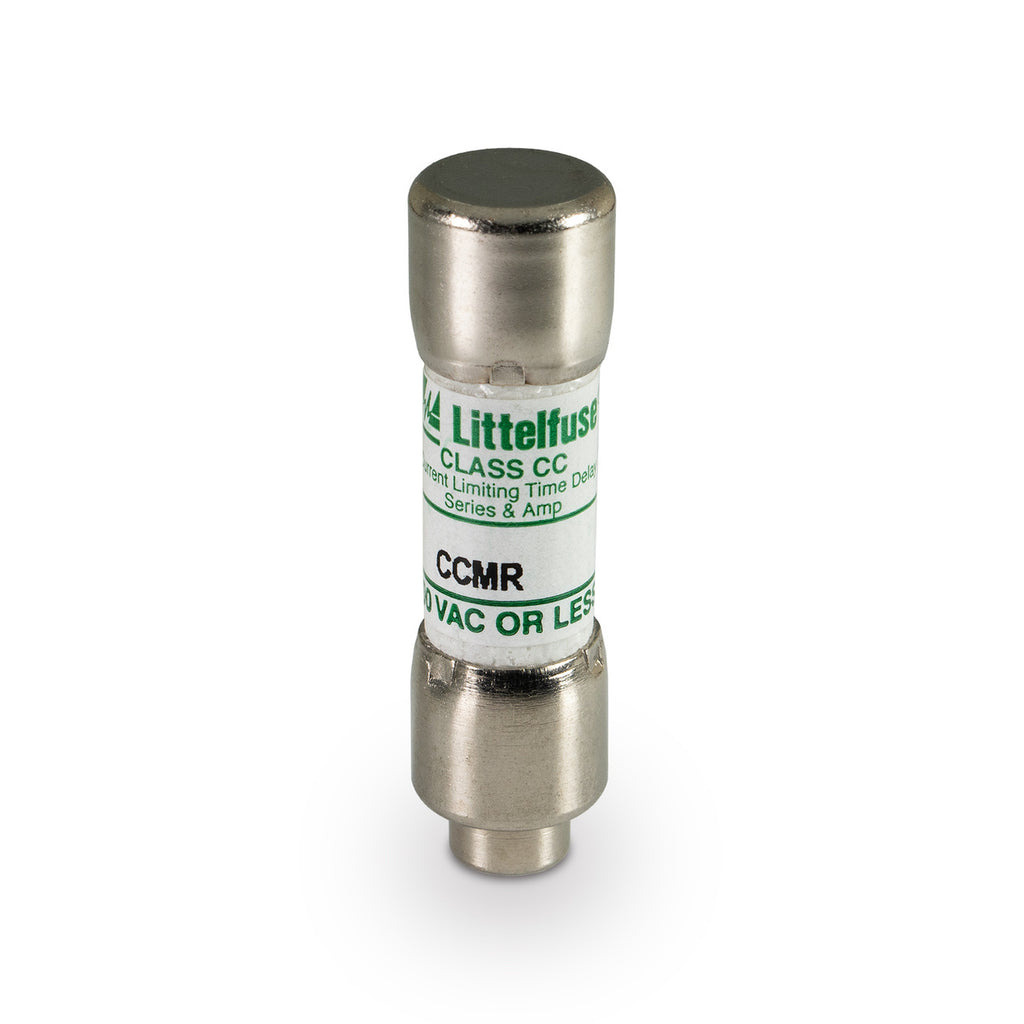

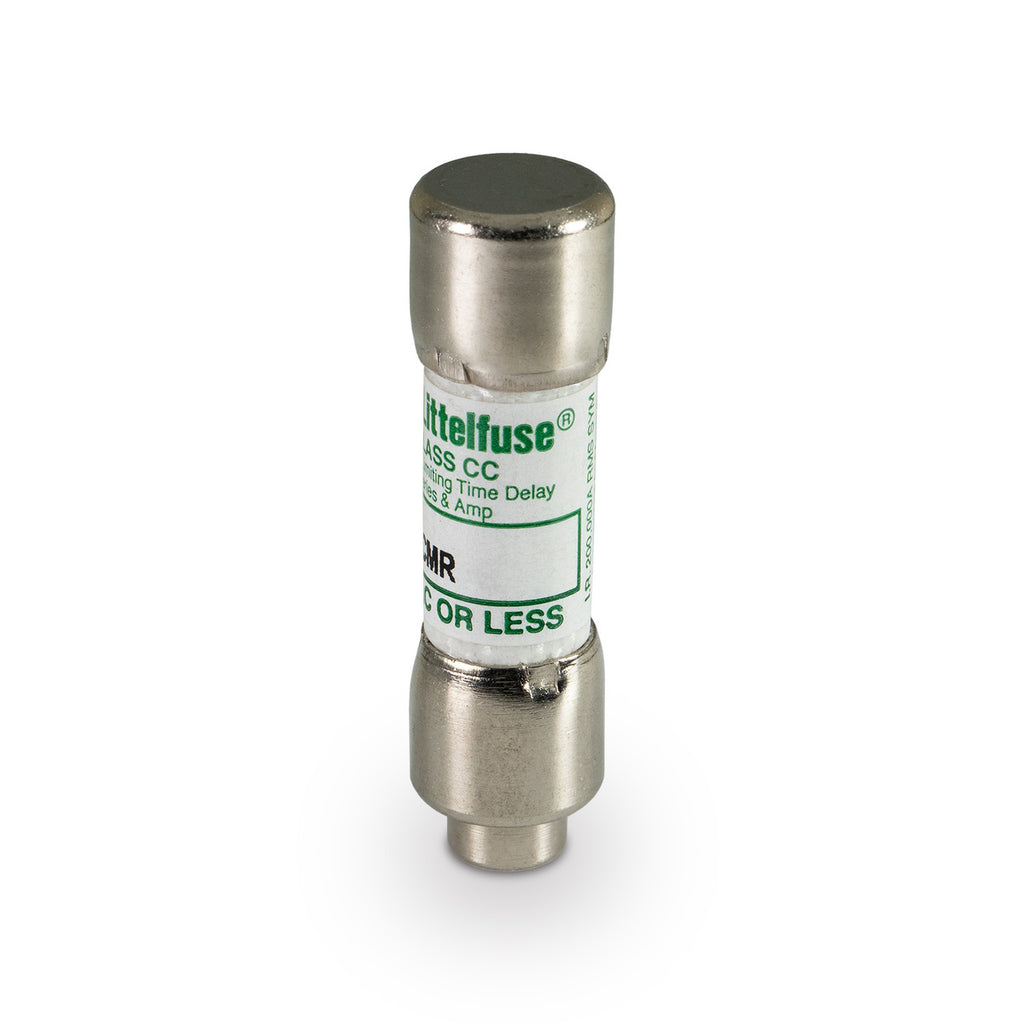

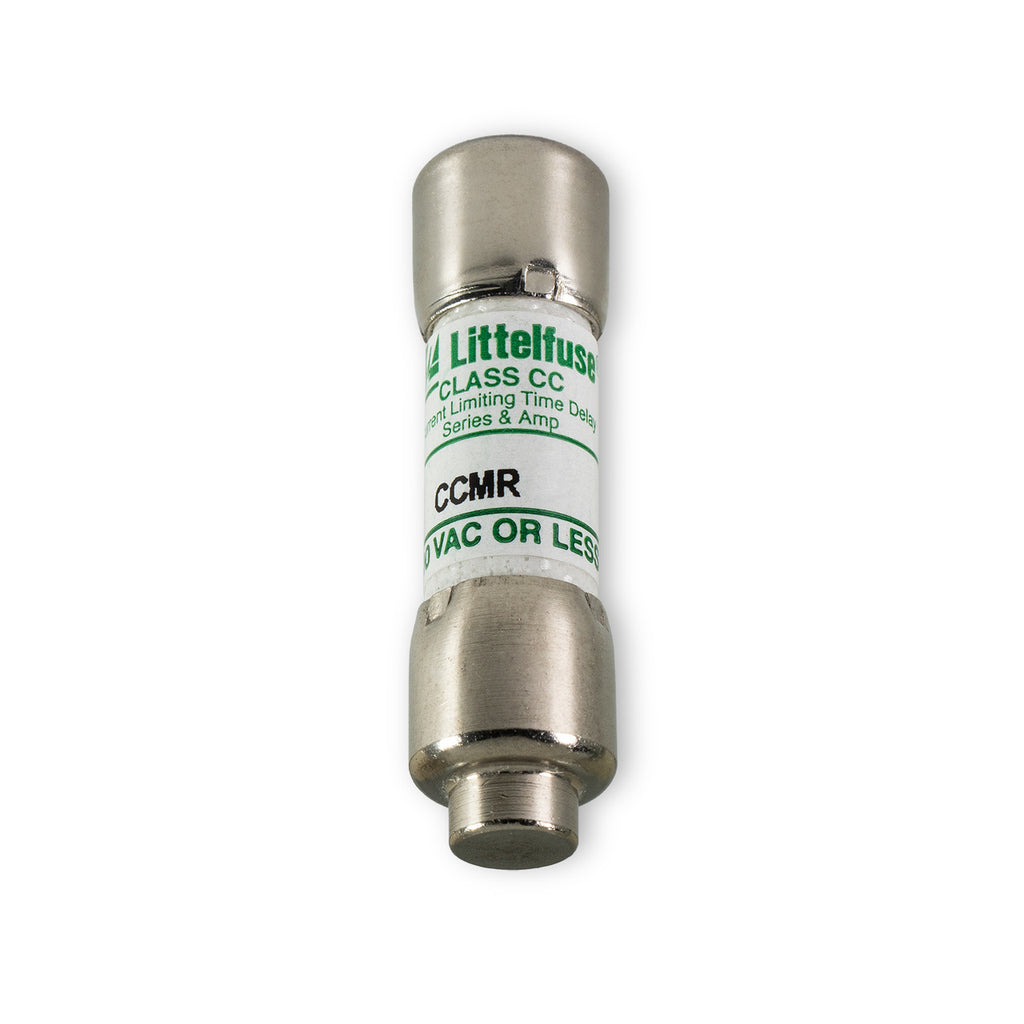

CCMR-.200 is a Littelfuse Class CC time delay fuse rated for 0.2 amperes and 600 volts AC.
This fuse features dual-element construction with POWR-PRO technology for superior small motor protection and reliable time-delay characteristics to prevent nuisance fuse openings. It has an interrupting rating of 200 kA at 600 VAC and 20 kA at 250 VDC, meeting UL 248-4 and CSA standards. The fuse is RoHS compliant and UL and CSA certified, designed for cartridge mounting in Class CC fuse holders.
- Key Specifications
- Amperage: 0.2 A
- Voltage Rating: 600 V AC, 300 V DC
- Class: CC
- Fuse Type: Time Delay / Dual Element
- Interrupting Rating: 200 kA AC, 20 kA DC
- Mounting Type: Cartridge
- Standards: UL 248-4, CSA Certified
- RoHS Compliant
- Series: CCMR
- Country of Origin: Mexico
- Part Number: CCMR-.200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
- UPC : 07945896805
- GTIN : 00079458968057
- Weight : 2
