Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
CCMR-060

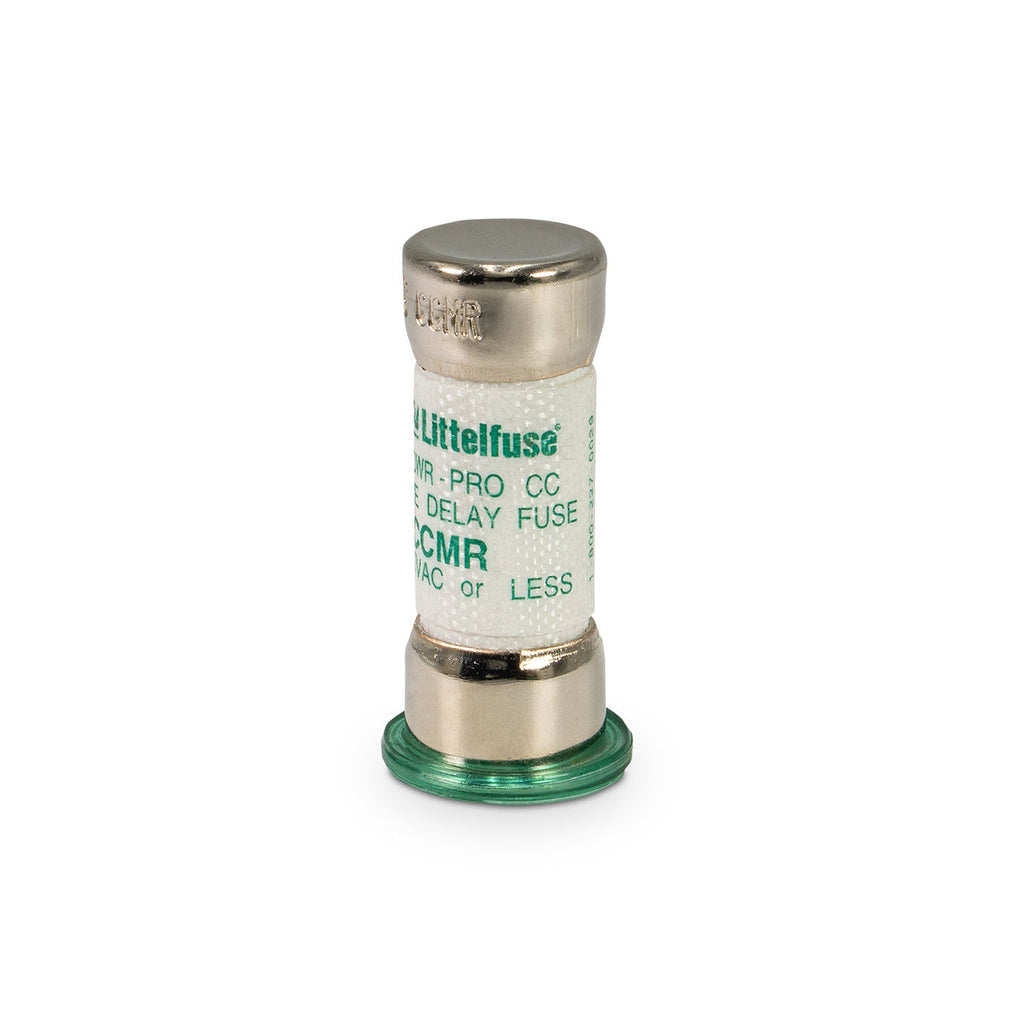

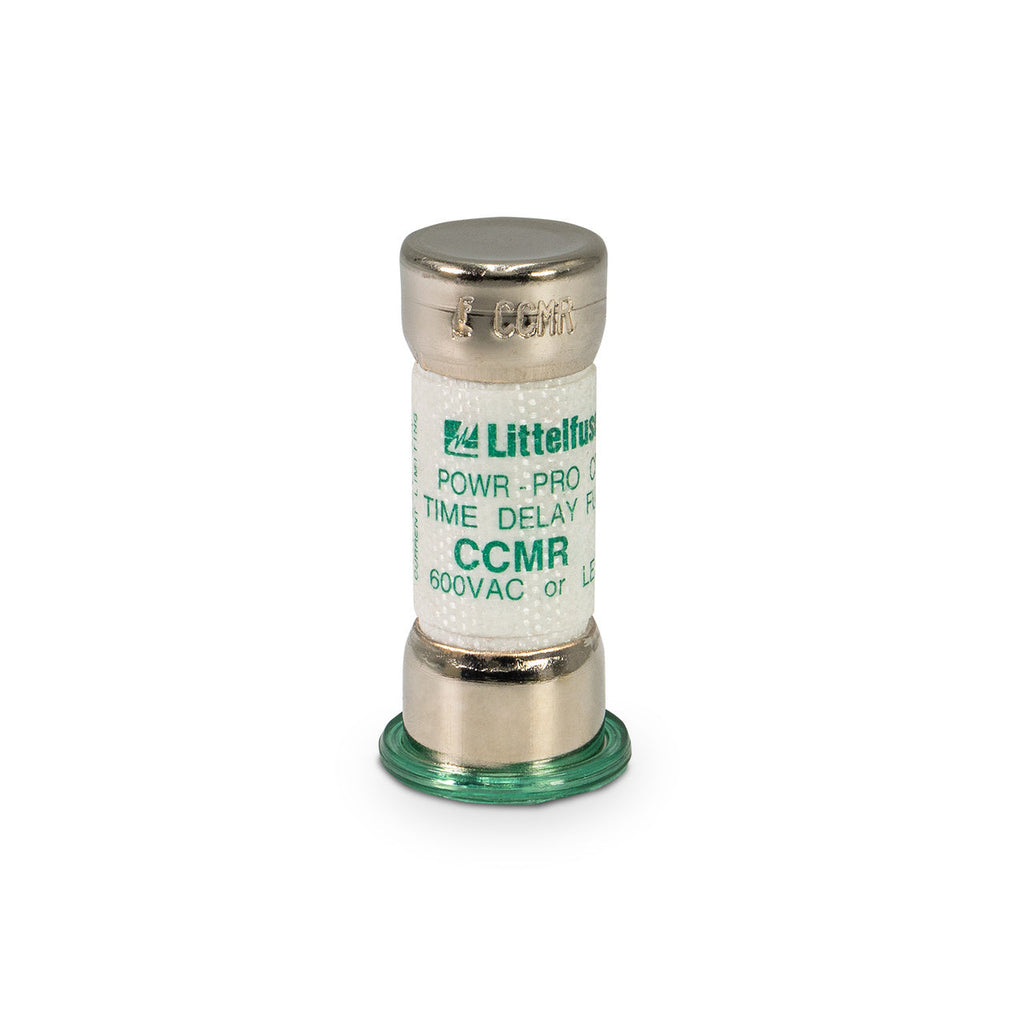

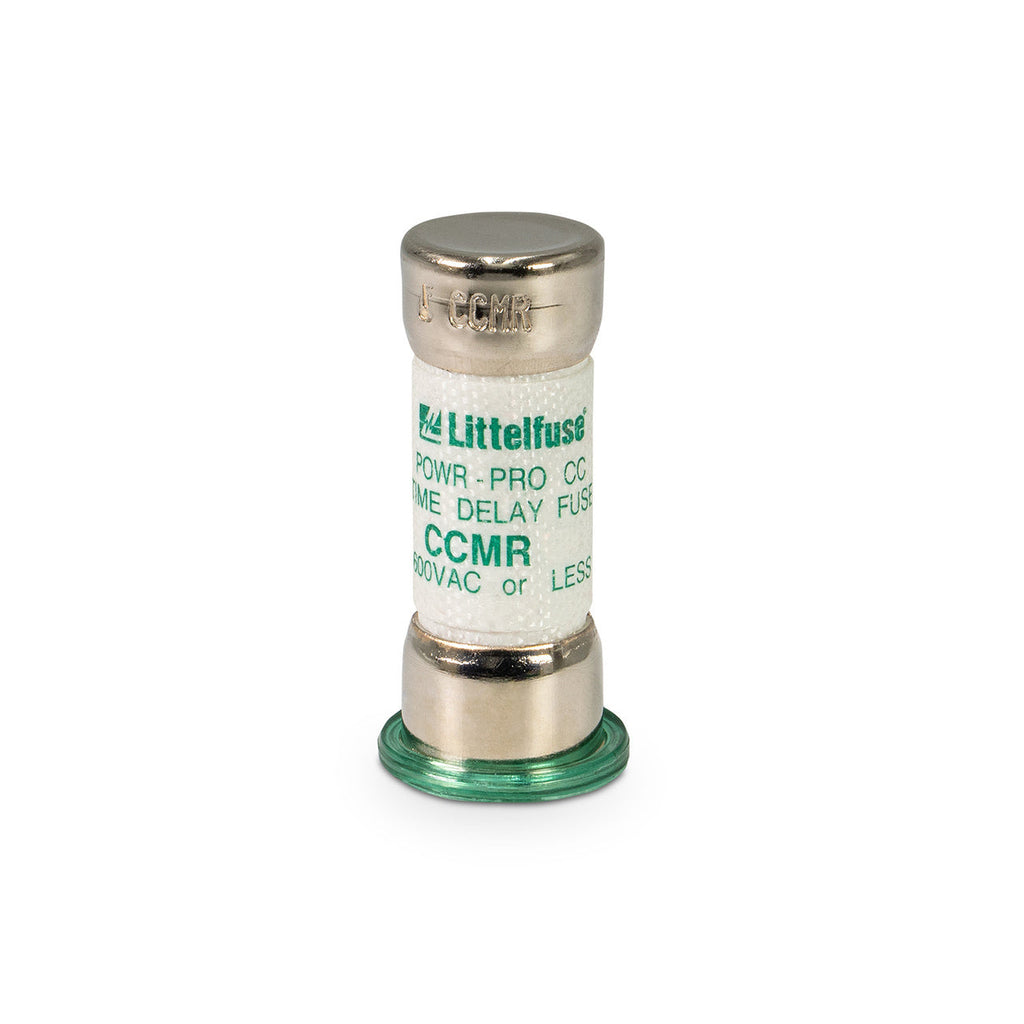

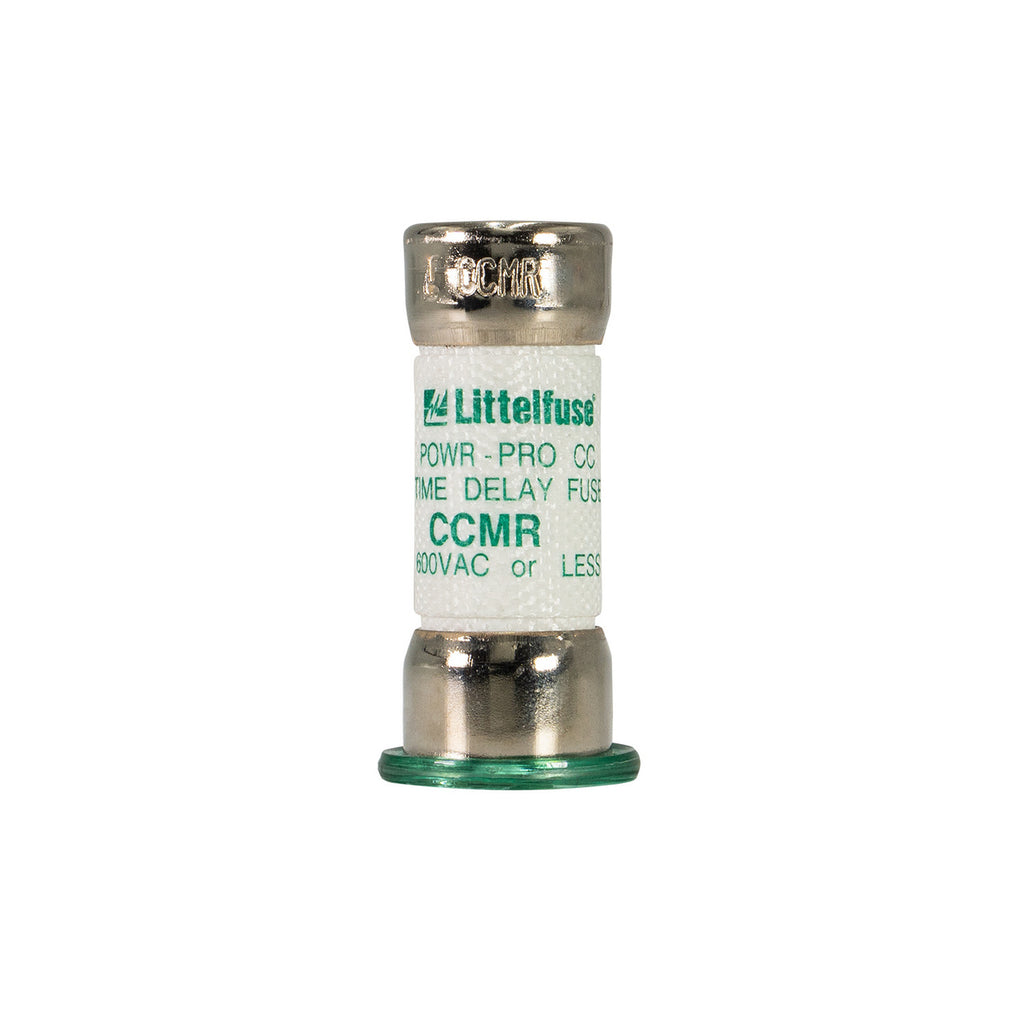

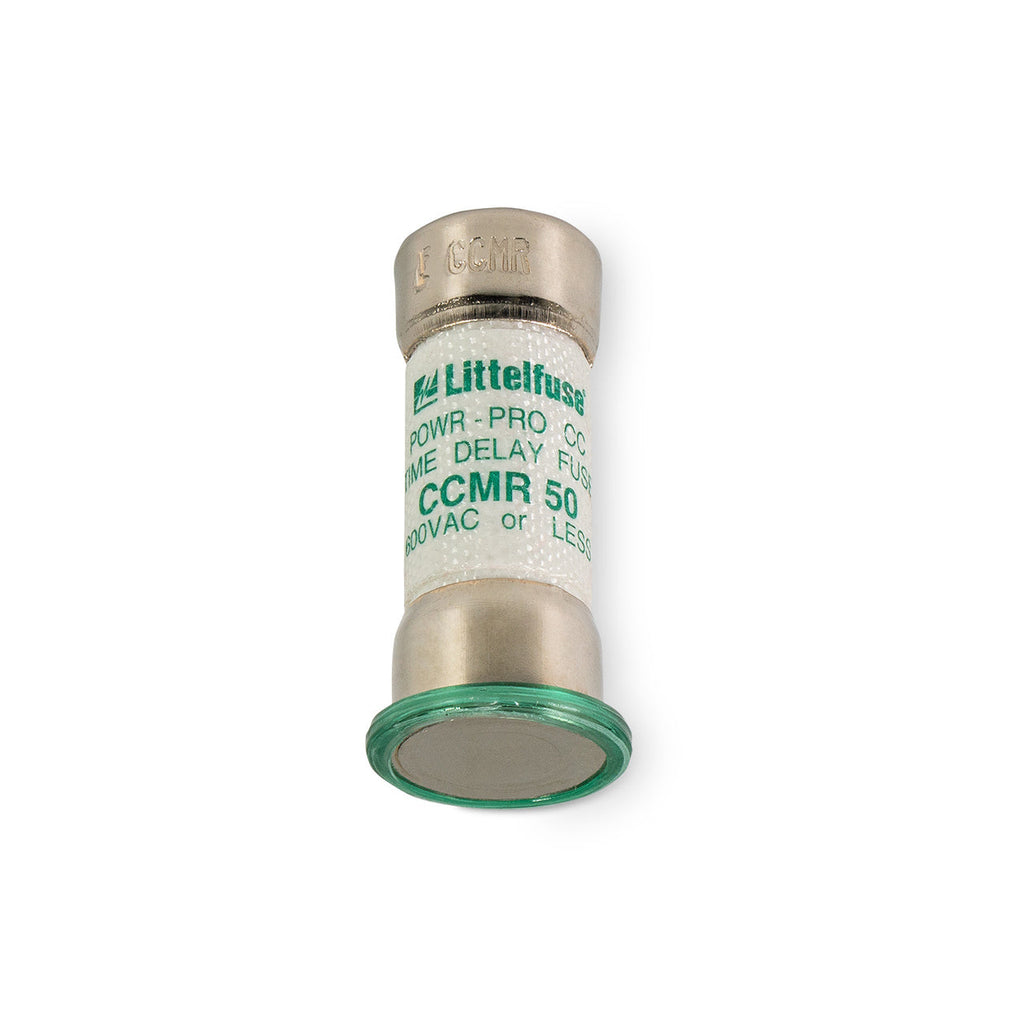

CCMR-060 is a Littelfuse Class CC time delay fuse designed for motor and branch circuit protection. This fuse features a 60A current rating, 600VAC/250VDC voltage rating, and a 200kAIC interrupting rating at 600VAC. It is constructed with a ferrule terminal connection and dual element design for reliable performance in demanding applications. The CCMR-060 is UL and CSA listed, making it suitable for use in a wide range of industrial and commercial power distribution systems. Its compact size and robust construction ensure space-saving installation and long-lasting protection for motor circuits.
- Part Number: CCMR-060
- Manufacturer: Littelfuse
- Series: CCMR
- Amperage: 60A
- Voltage Rating: 600VAC, 250VDC
- Interrupting Rating: 200kAIC at 600VAC
- Mounting Type: Cartridge (Ferrule Terminal)
- Fuse Type: Time Delay (Slow Blow)
- Element Type: Dual Element
- Approvals: UL, CSA, CE
- Physical Size: 0.85" x 1.88"
- Application: Motor and Motor Branch Circuit Protection
Specifications
- Part Number: CCMR-060
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- Amperage : 60
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- UPC : 07945801710
- GTIN : 00079458017106
- Weight : 2
