Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
CCMR-05.6

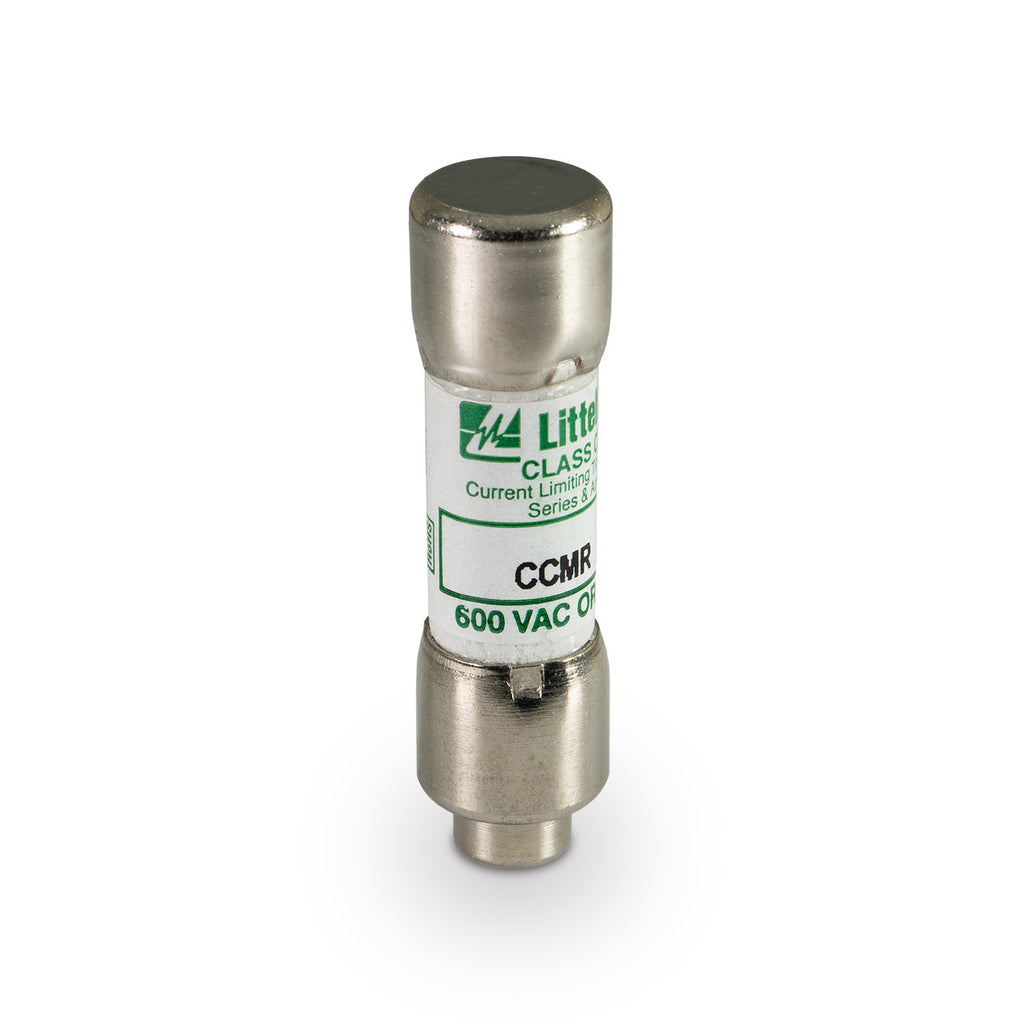

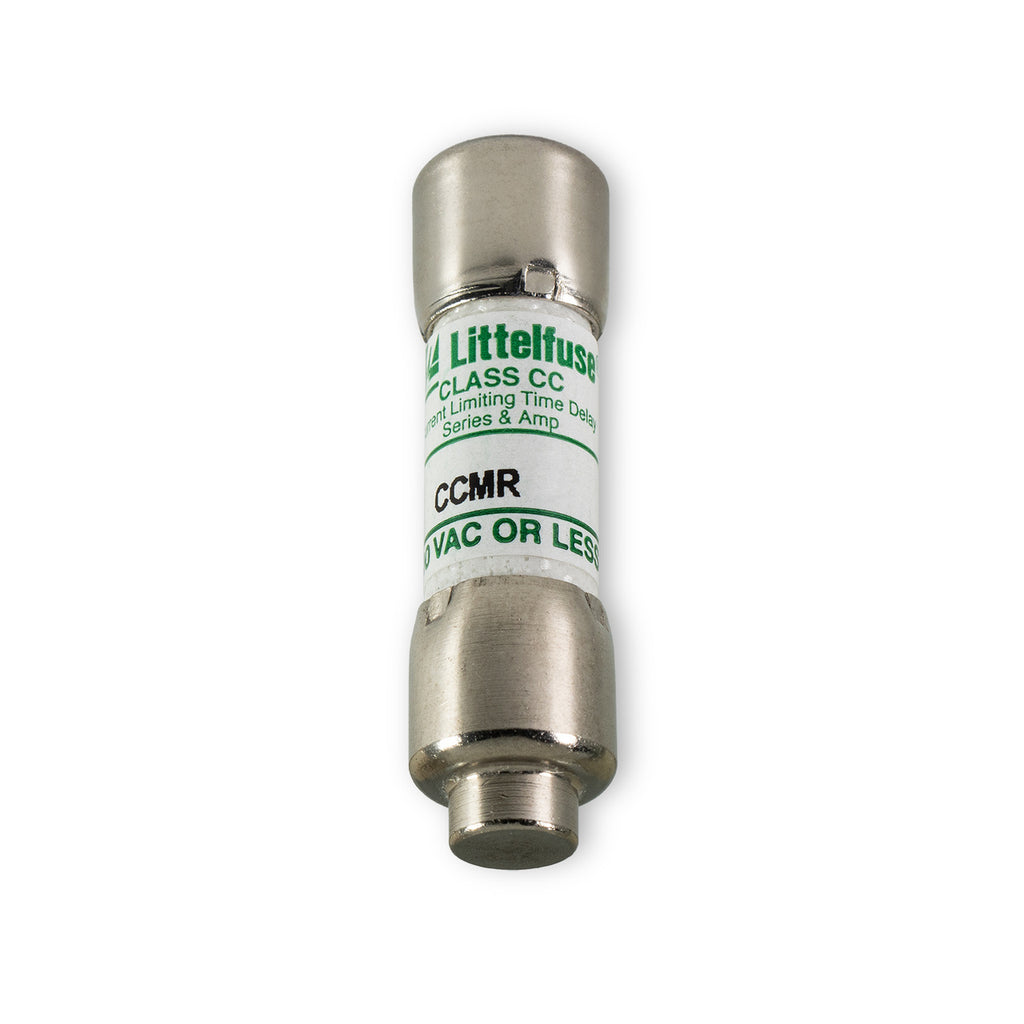

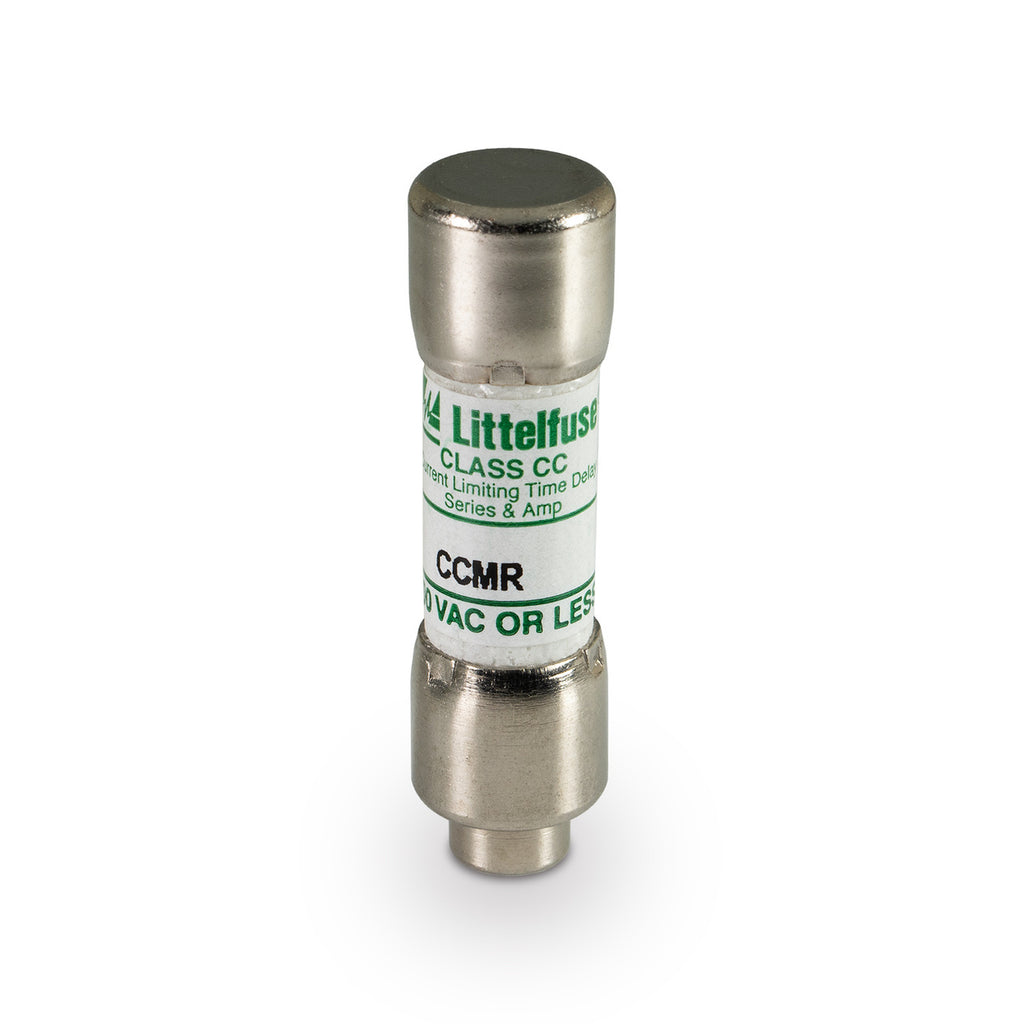

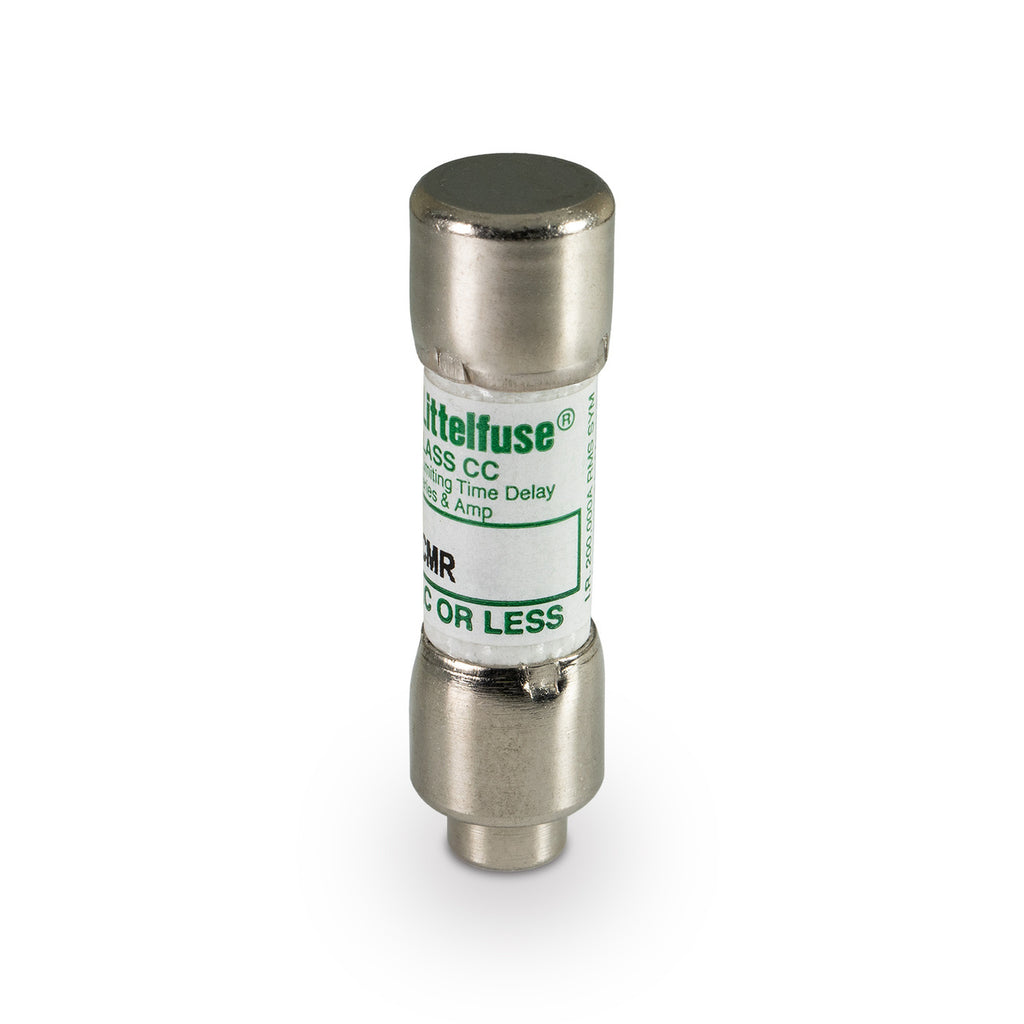

CCMR-05.6 is a Littelfuse Class CC time-delay fuse designed for reliable protection in motor and branch circuits. This dual element, current limiting fuse provides superior performance in residential, commercial, and industrial applications. The CCMR-05.6 features a 600V AC voltage rating, 5.6A current rating, and a 200 kA symmetrical interrupting rating. It is UL Listed, CSA Certified, and CE marked for compliance with safety standards. The fuse is constructed with a melamine body and is RoHS compliant.
- Part Number: CCMR-05.6
- Manufacturer: Littelfuse
- Series: CCMR
- Amperage: 5.6A
- Voltage Rating: 600V AC, 250V DC
- Interrupting Rating: 200 kA symmetrical (AC), 20 kA (DC)
- Class: Class CC
- Speed: Time Delay / Slow Blow
- Element Type: Dual Element
- Current Limiting: Yes
- Mounting Type: 1 Barrel
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
Specifications
- Part Number: CCMR-05.6
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- Amperage : 5.6
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- Weight : 2
