CCMR-045 - Littelfuse 45 Amp 600 Volt Class CC Time Delay Fuse Dual Element

CCMR-045

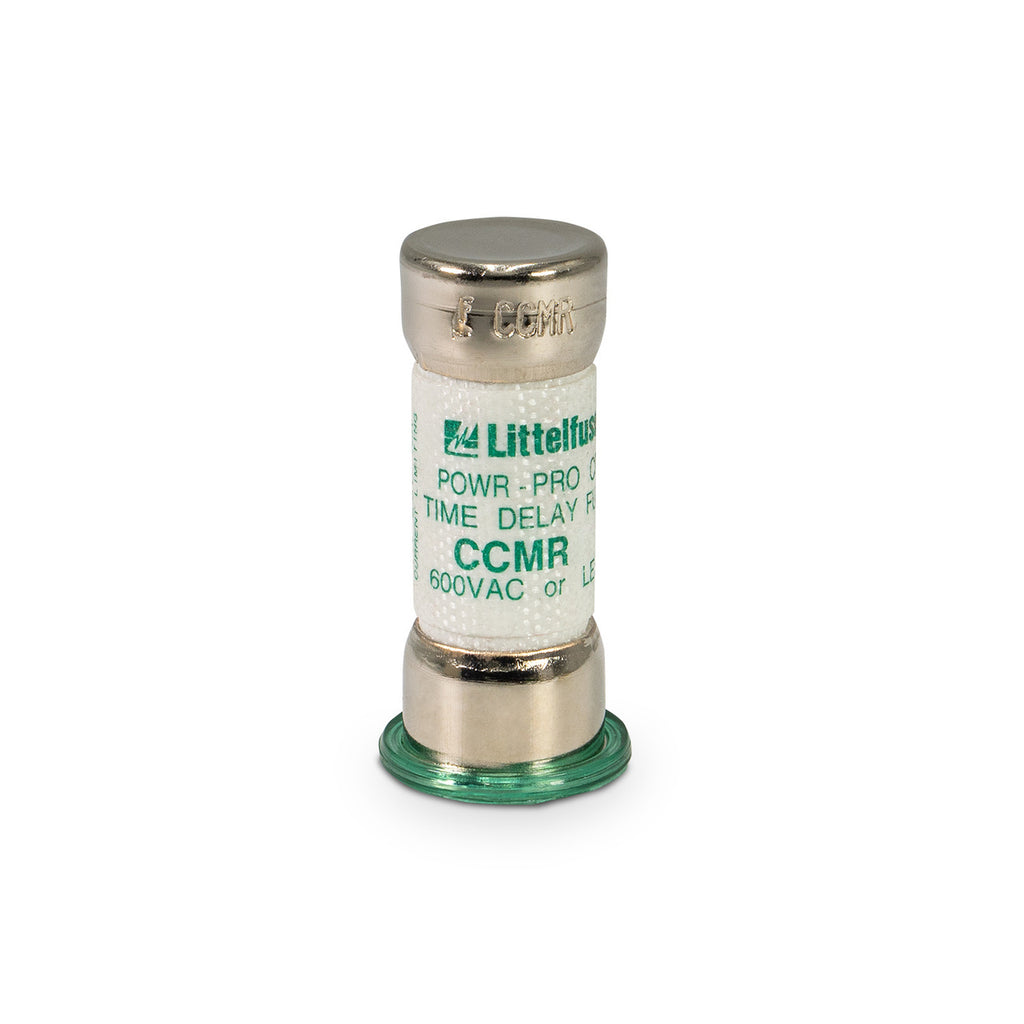

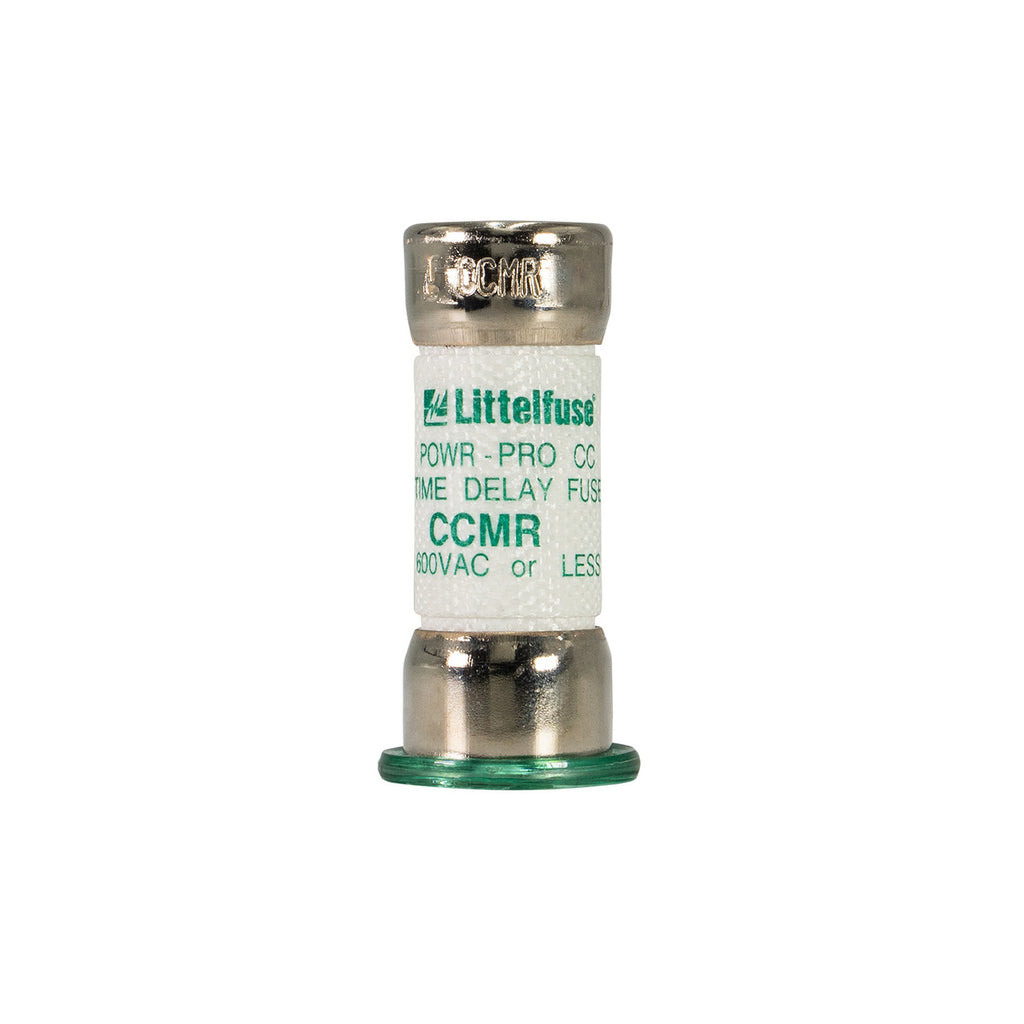

CCMR-045 is a Littelfuse Class CC fuse rated for 45 amps and 600 volts AC, designed for motor and branch circuit protection.This fuse features a time delay (Slo-Blo) dual element design that provides extremely current limiting protection. It has a physical size of 0.85" diameter by 1.88" length, an interrupting rating of 200,000 AIC at 600VAC, and 20,000 AIC at 250VDC. The CCMR-045 is UL listed and suitable for space-saving motor circuit protection up to 40 HP.

Key Specifications
• Amperage: 45 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Fuse Class: UL Class CC
• Time Delay (Slo-Blo) Dual Element
• Interrupting Rating: 200,000 AIC @ 600 VAC
• Physical Size: 0.85" diameter x 1.88" length
• Extremely Current Limiting
• Motor and Motor Branch Circuit Protection
• Certifications: UL Listed, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CCMR-045
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Powr-Gard
• Type : CCMR
• Voltage : 600
• Amperage : 45
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Class Rating : CC/CD
• Barrels : 1



Product Data

• UPC : 007945801708
• GTIN : 00079458017083
• Weight : 2
• Certification : Ul Listed Csa Certified
