Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

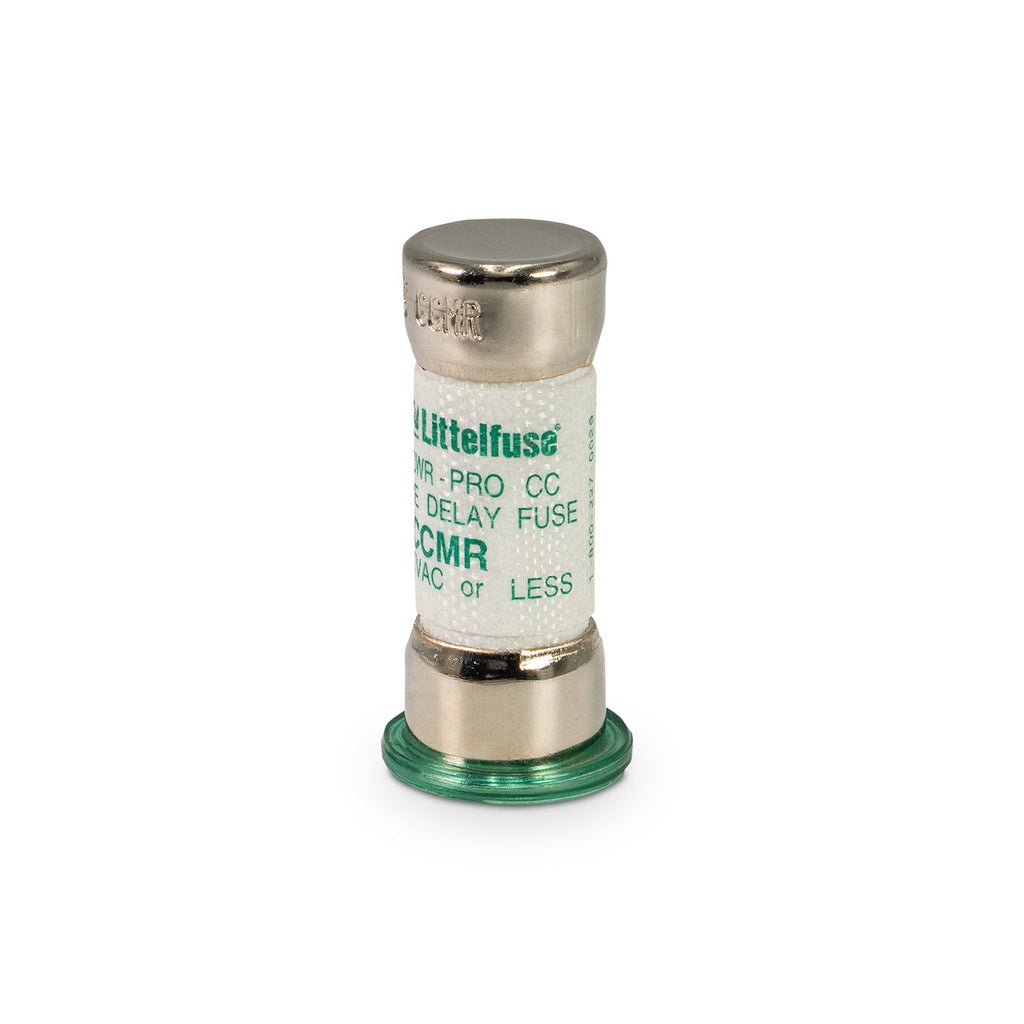

CCMR-040
CCMR-040 is a Littelfuse Class CC, 40A, 600V, dual-element, time-delay fuse designed for motor and branch circuit protection. This fuse features POWR-PRO technology for reliable performance in demanding applications. Engineered for use in motor circuits up to 40 hp, the CCMR-040 provides Type 2 "No Damage" protection and is extremely current limiting. It is suitable for both AC and DC applications, with a robust interrupting rating and compliance with UL and CSA standards.
- Part Number: CCMR-040
- Manufacturer: Littelfuse
- Amperage: 40A
- AC Voltage Rating: 600V
- DC Voltage Rating: 250V
- Interrupting Rating: 200,000AIC @ 600VAC, 20,000AIC @ 250VDC
- Class: CC/CD
- Series: CCMR
- Body Type: Cartridge
- Speed: Time Delay / Slow Blow
- Standards: UL 248-4, UL 248-18, CSA Certified
- RoHS Compliant
Specifications
- Part Number: CCMR-040
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- Amperage : 40
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- UPC : 07945801707
- GTIN : 00079458017076
- Weight : 2 lb
