Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

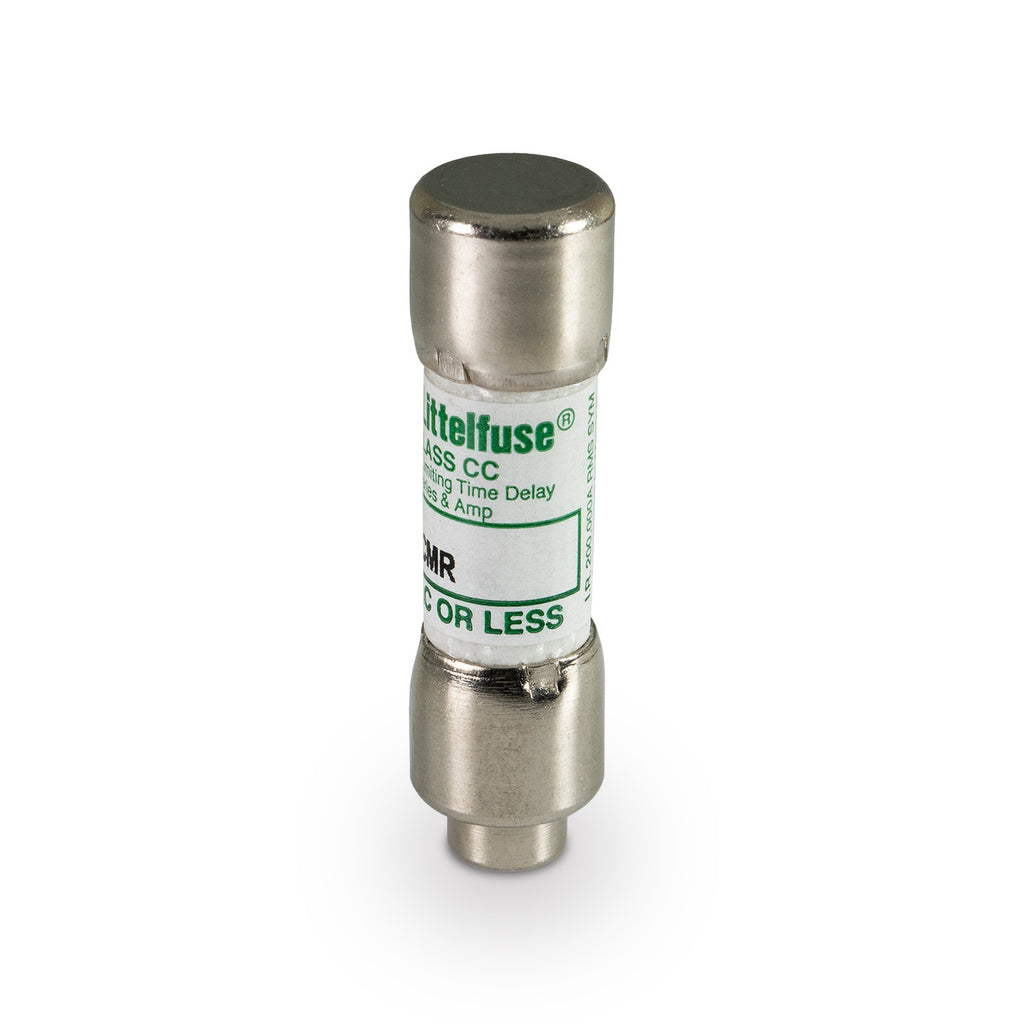

CCMR-035

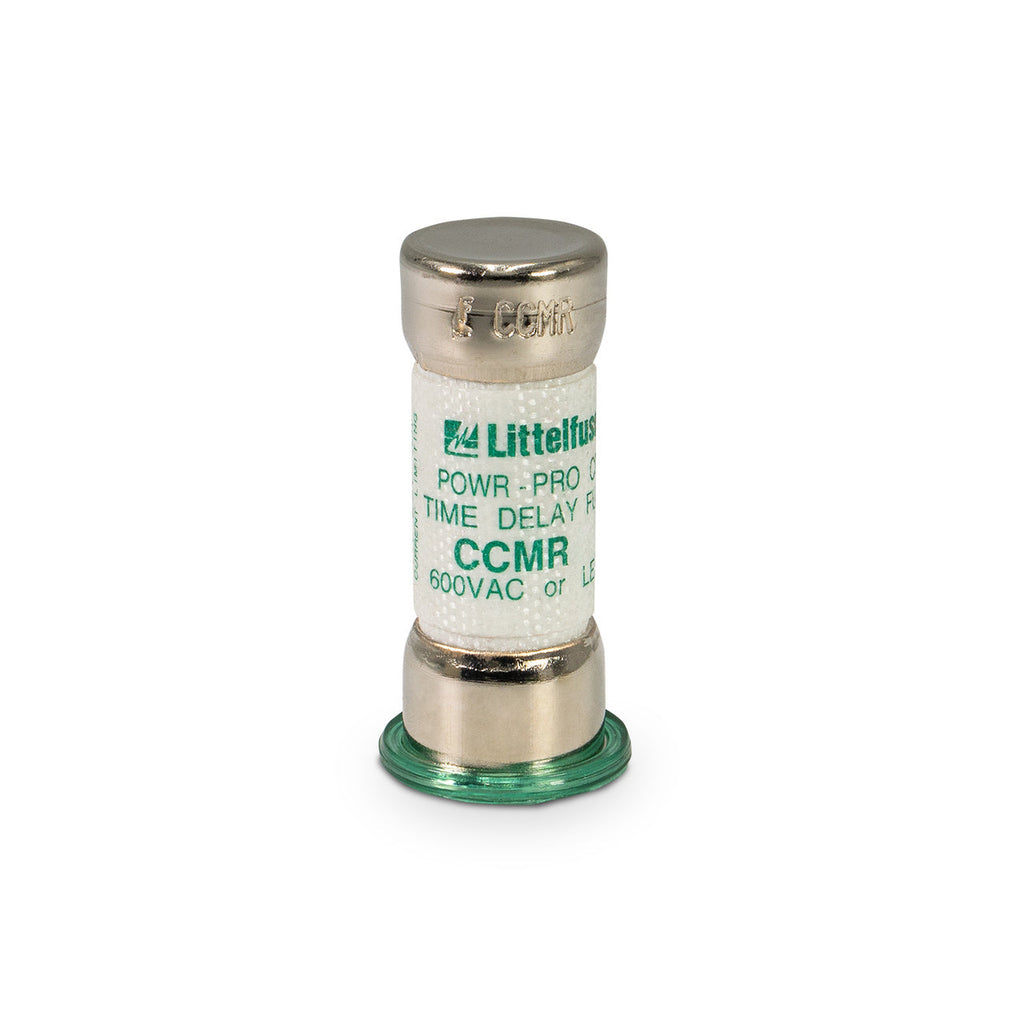

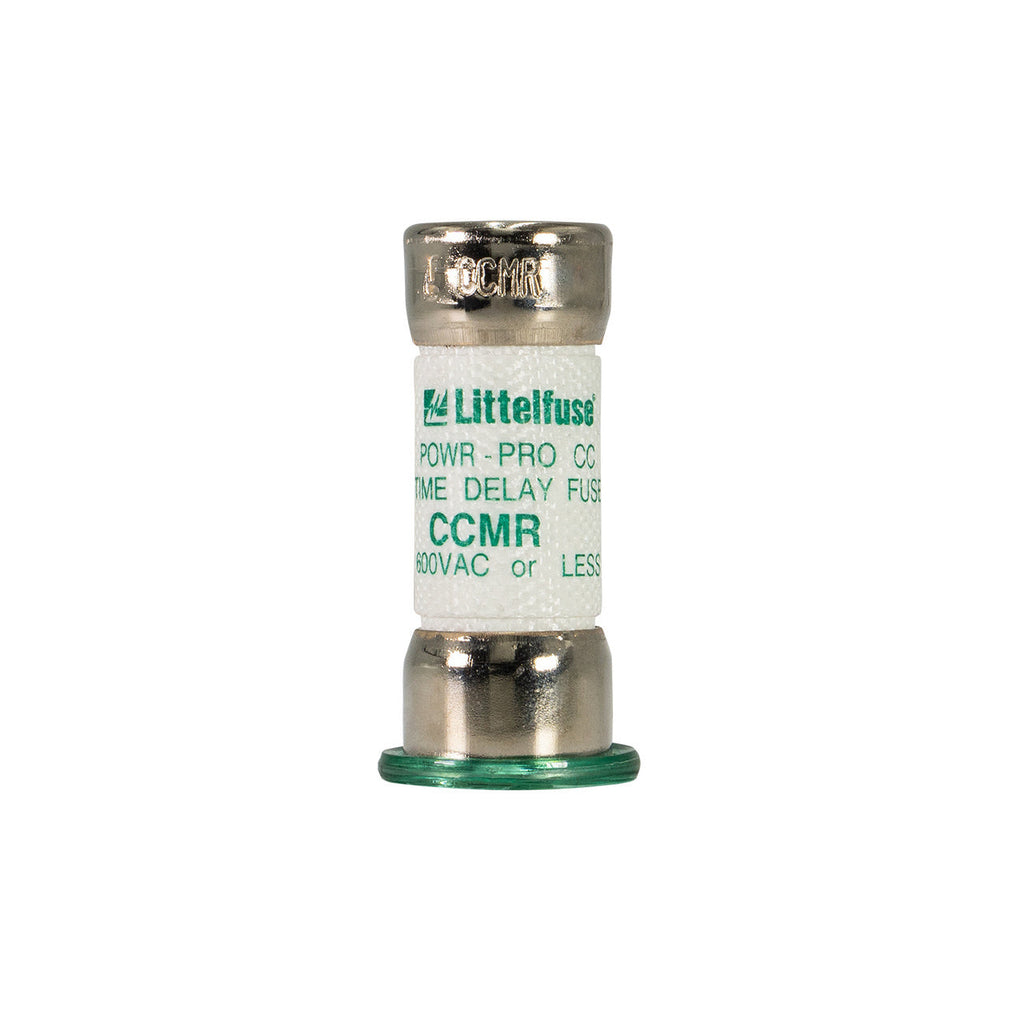

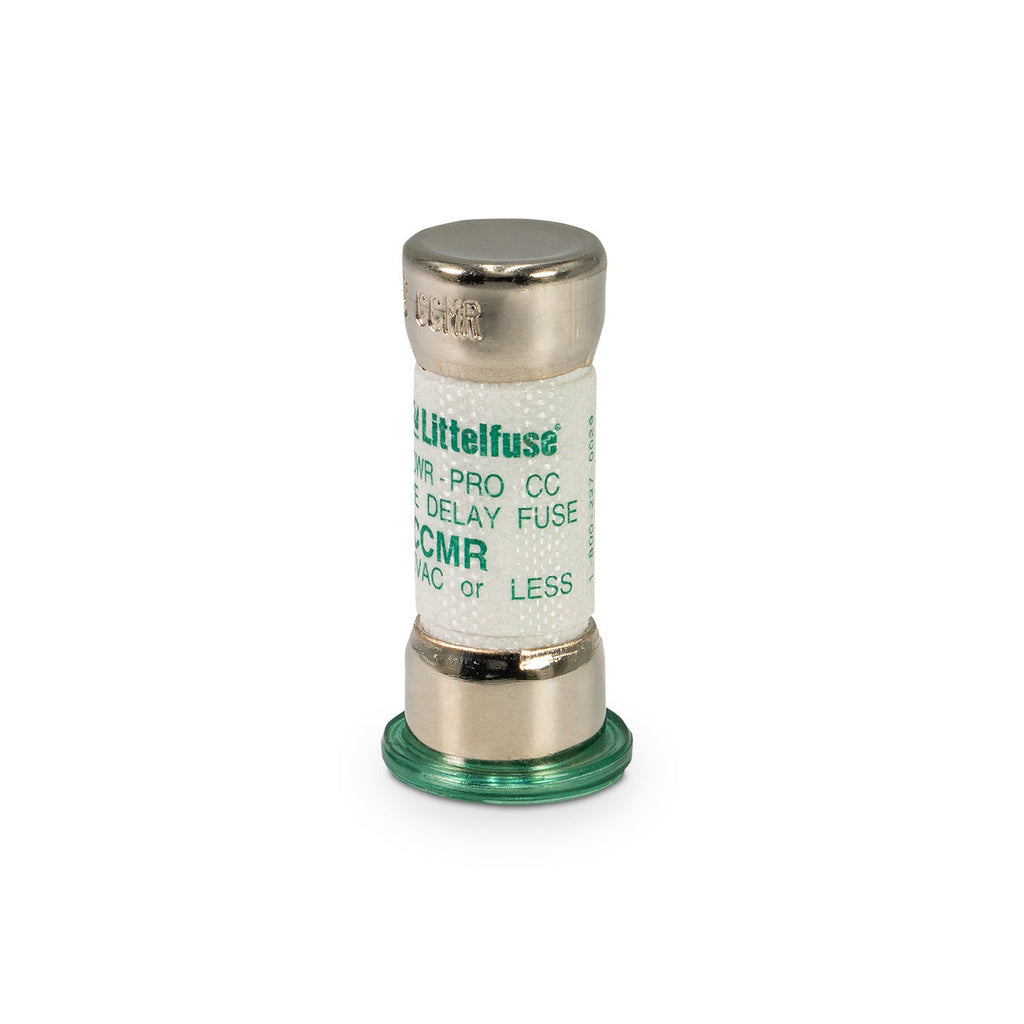

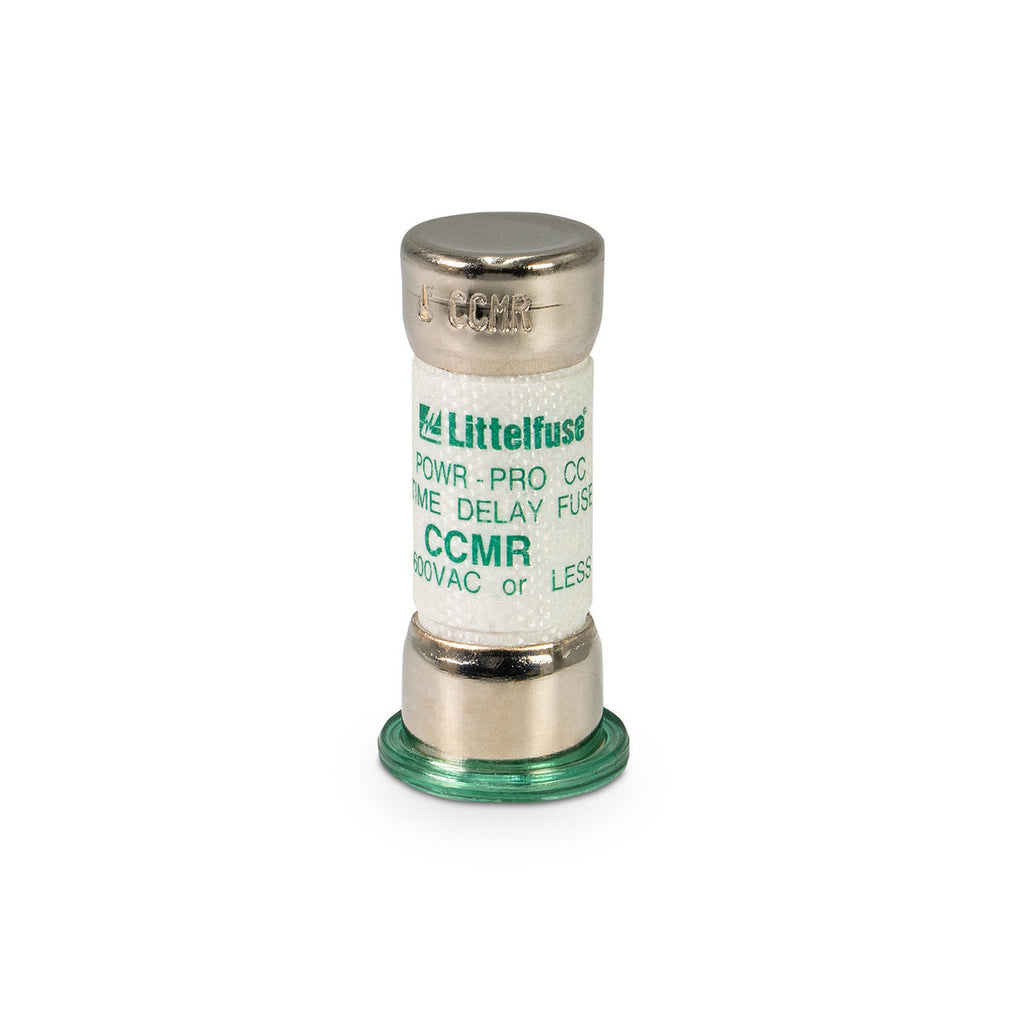

CCMR-035 is a 35 Amp, 600 Volt AC Class CC time delay fuse from Littelfuse designed for motor and branch circuit protection.This dual element fuse features extremely current limiting characteristics, a 200,000 AIC interrupt rating at 600 VAC, and a 20,000 AIC rating at 250 VDC. It is UL and CSA certified and RoHS compliant, suitable for use in industrial and commercial electrical systems requiring reliable overcurrent protection.
- Amperage: 35 Amps
- Voltage Rating: 600 VAC, 250 VDC
- Fuse Class: Class CC
- Time Delay (Dual Element)
- Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 250 VDC
- Size: 0.85" x 1.88" cartridge
- Mounting Type: Cartridge fuse holder
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Application: Motor and motor branch circuit protection
Specifications
- Part Number: CCMR-035
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- Amperage : 35
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- UPC : 07945801706
- GTIN : 00079458017069
- Weight : 2 lb
