Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
CCMR-02.8

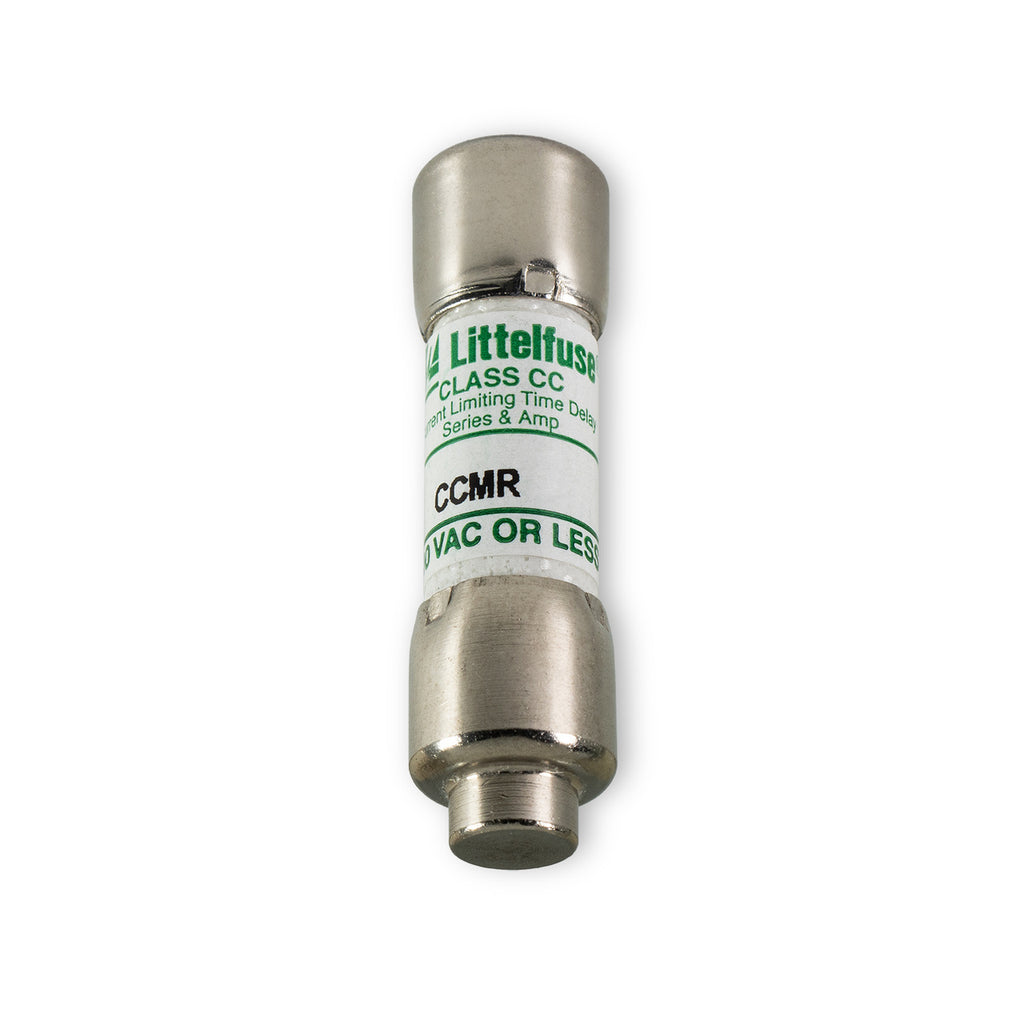

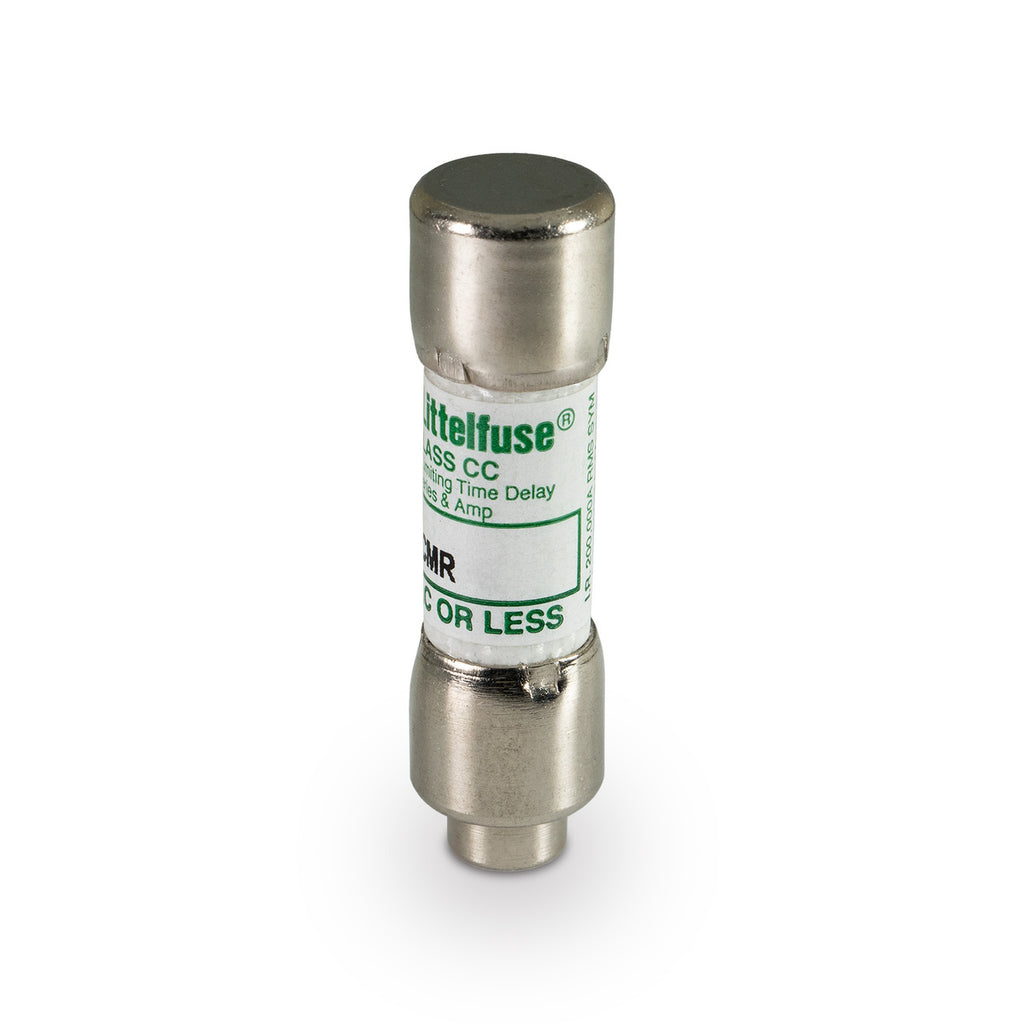

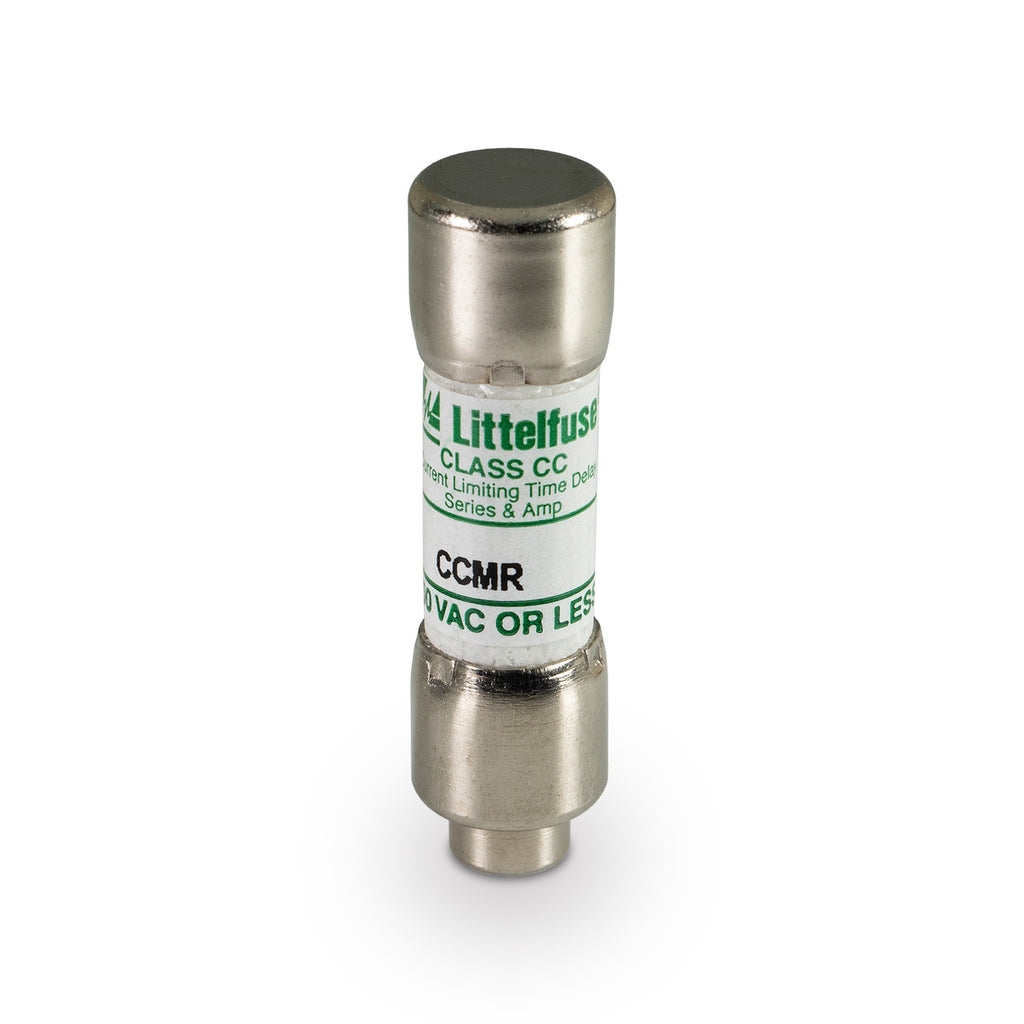

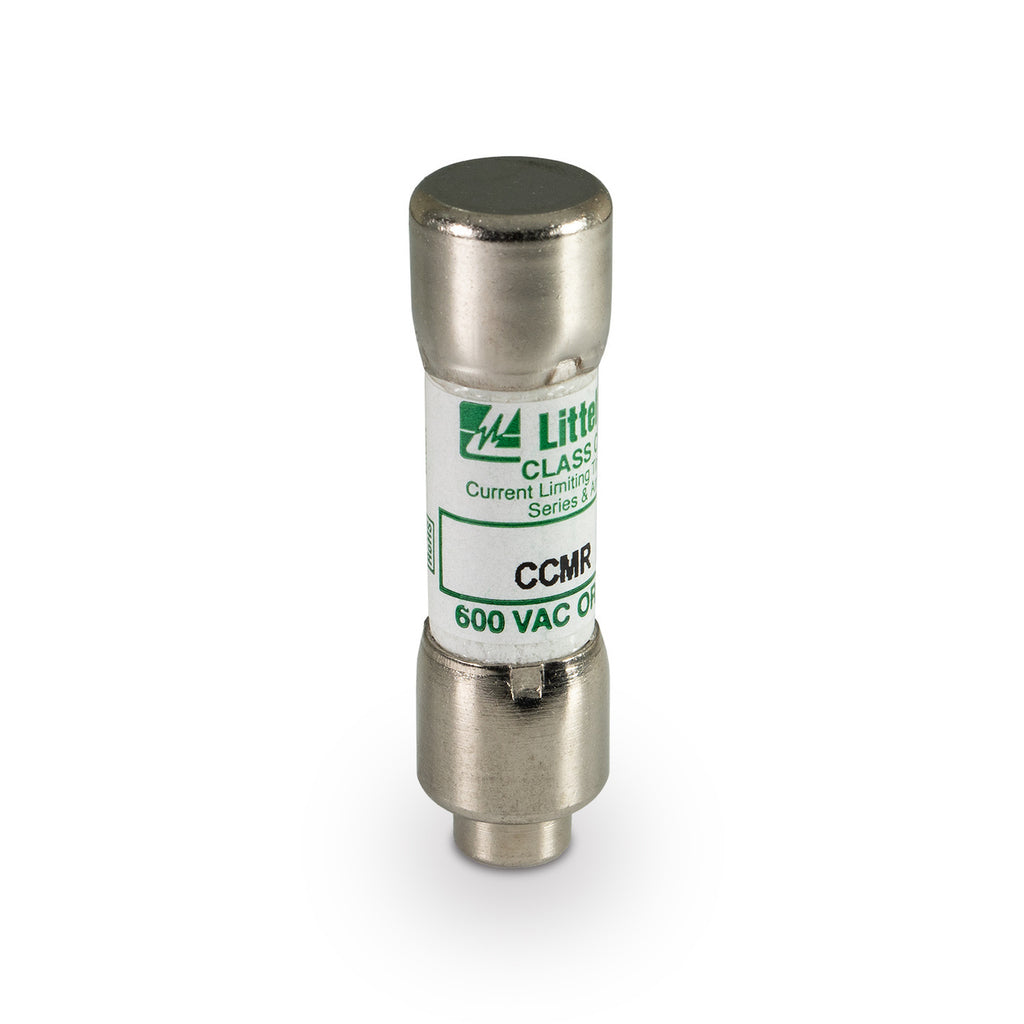

CCMR-02.8 is a Littelfuse Class CC time delay fuse rated for 2.8 amperes and 600 volts AC, designed for motor circuit protection. This fuse features a dual element design providing reliable time-delay characteristics to withstand motor starting currents and prevent nuisance openings. It has a high interrupting rating of 200kA at 600 VAC and 20kA at 250 VDC, meeting UL 248-4 standards and is UL and CSA certified. The fuse is RoHS compliant and manufactured in Mexico.
- Amperage: 2.8 A
- Voltage Rating: 600 VAC, 300 VDC
- Class: CC
- Time Delay (Dual Element)
- Interrupting Rating: 200kA AC, 20kA DC
- Mounting Type: Fuse holder or fuse block (Class CC size)
- UL Listed and CSA Certified
- RoHS Compliant
- Physical Size: 0.41" x 1.5"
- Country of Origin: Mexico
Specifications
- Part Number: CCMR-02.8
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- UPC : 7945801056
- Weight : 2
