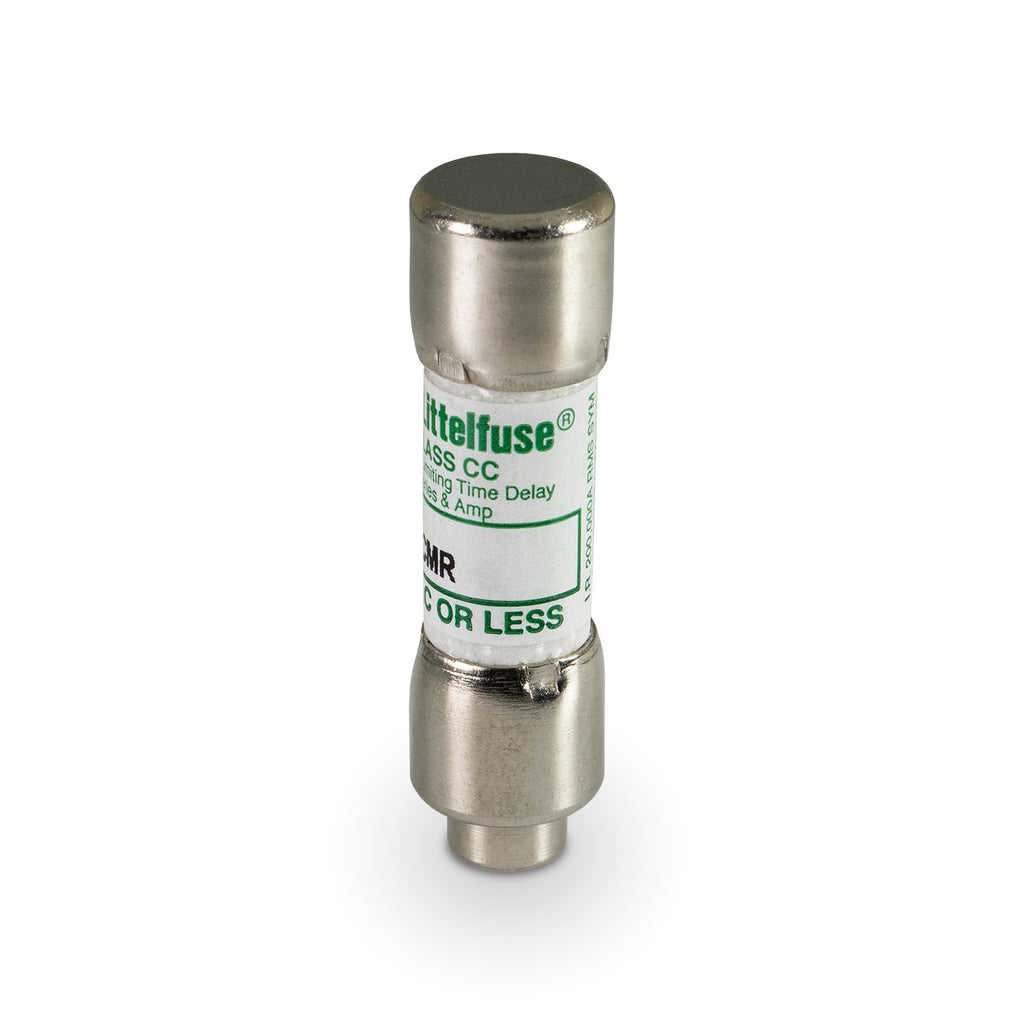

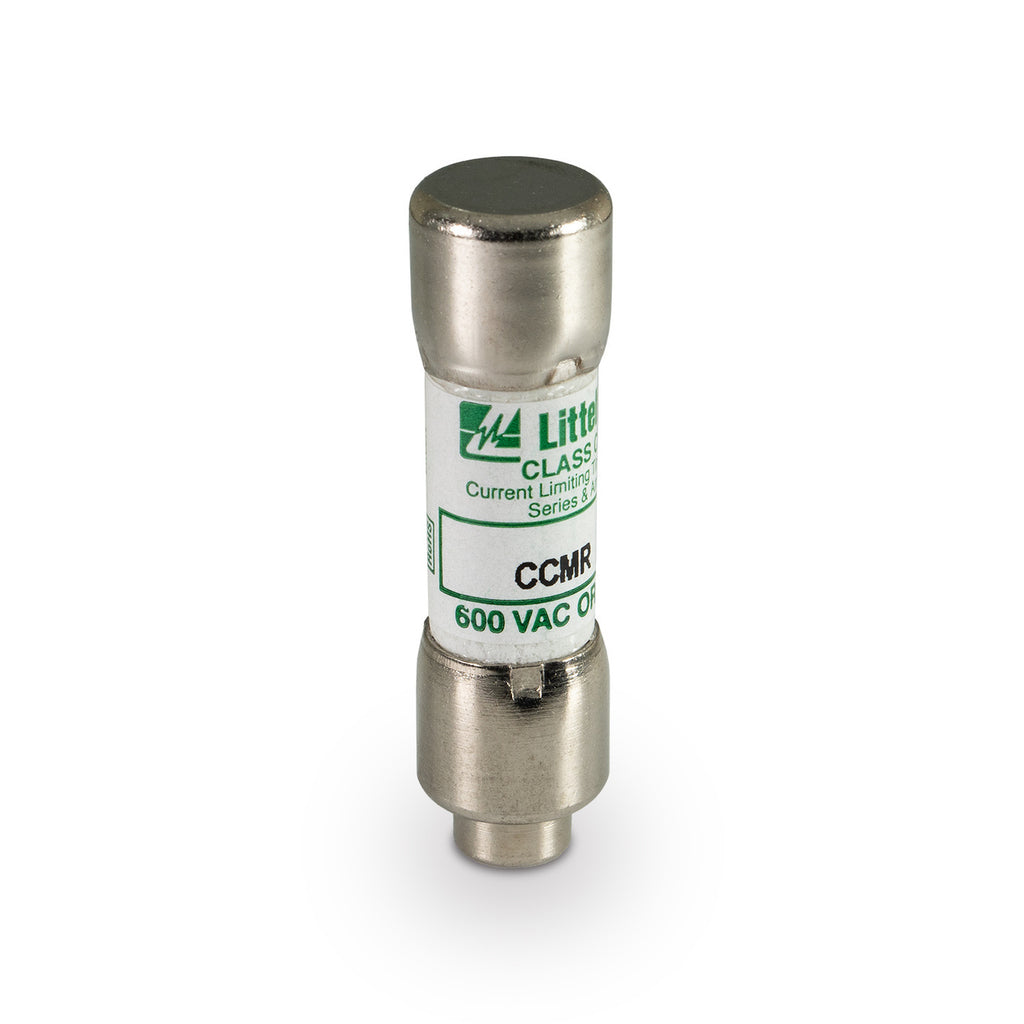

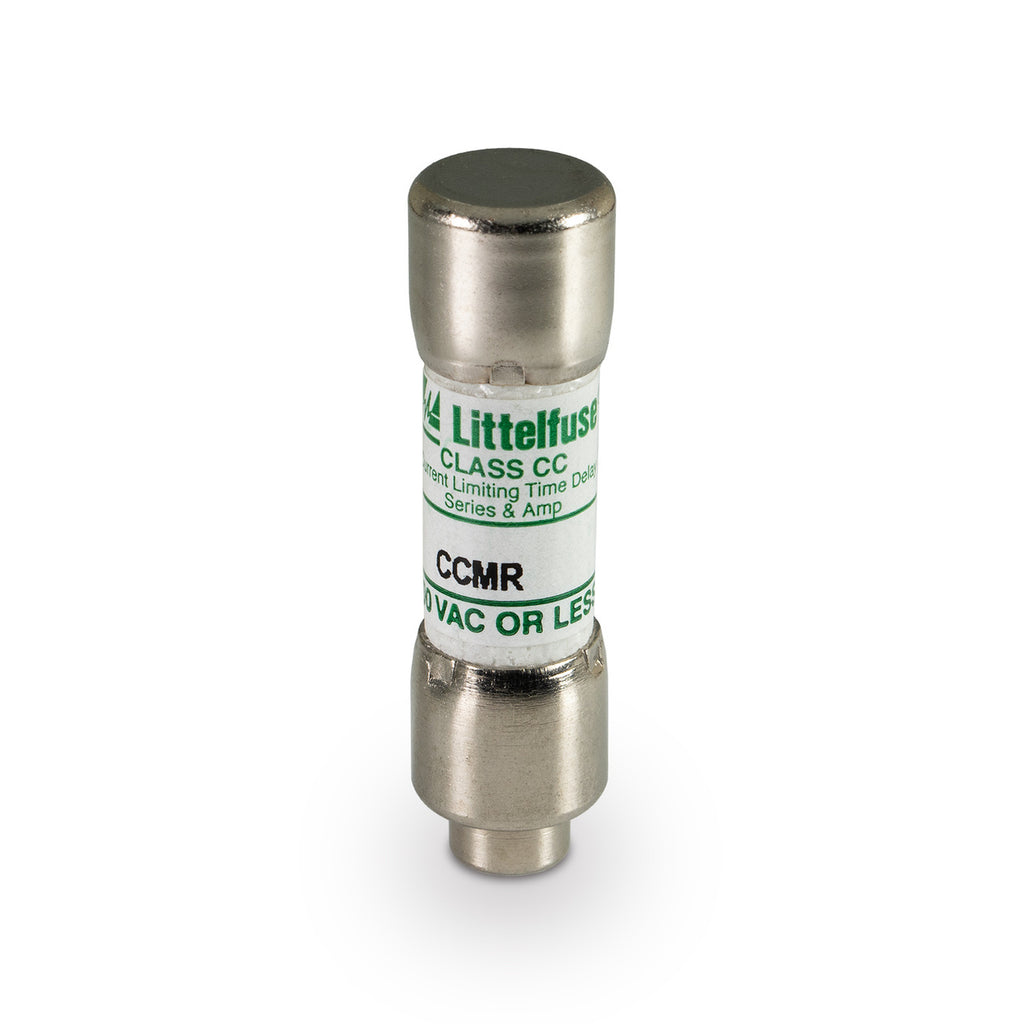

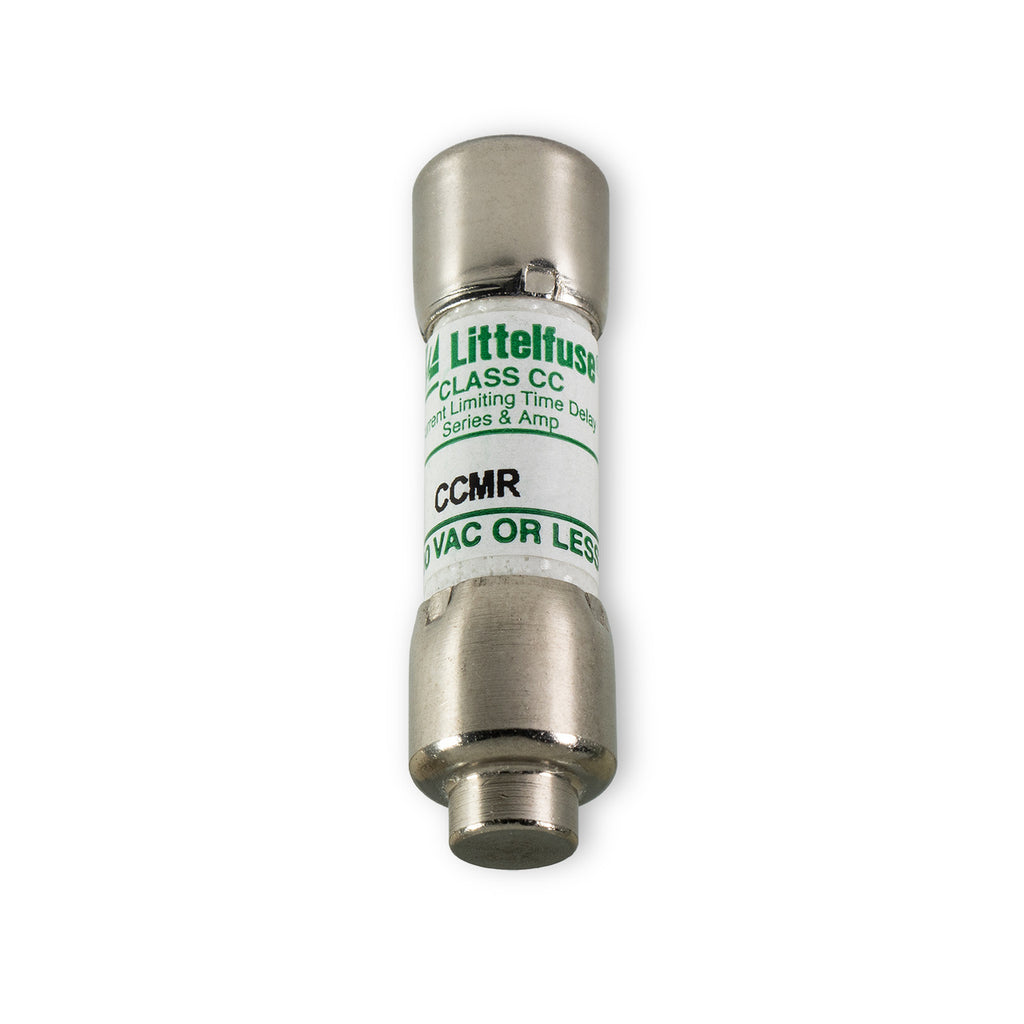

CCMR-02.5 - Littelfuse 2.5A 600V AC Class CC Time Delay Dual Element Fuse

CCMR-02.5

CCMR-02.5 is a Littelfuse Class CC time delay fuse rated for 2.5 amperes and 600 volts AC, designed for motor circuit protection.This CCMR series fuse features a dual element design with time delay characteristics, allowing it to withstand sustained motor starting currents. It has a voltage rating of 600 VAC and 300 VDC, an interrupt rating of 200 kA at 600 VAC and 20 kA at 250 VDC, and a compact size of 13/32 inch by 1 1/2 inch. The fuse is UL Class CC certified and provides extremely current-limiting protection for motor and motor branch circuits.

Key Specifications
• Amperage: 2.5 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 250 VDC
• Fuse Class: Class CC
• Fuse Type: Time Delay, Dual Element
• Dimensions: 13/32 in x 1 1/2 in
• Mounting Type: Rejection Fuse Block Compatible
• UL Listed
• Designed for motor circuit protection up to 40 HP
• Extremely current limiting
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CCMR-02.5
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Powr-Gard
• Type : CCMR
• Voltage : 600
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Class Rating : CC/CD
• Barrels : 1



Product Data

• GTIN : 00079458968194
• Weight : 2 lb
