Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
CCMR-012

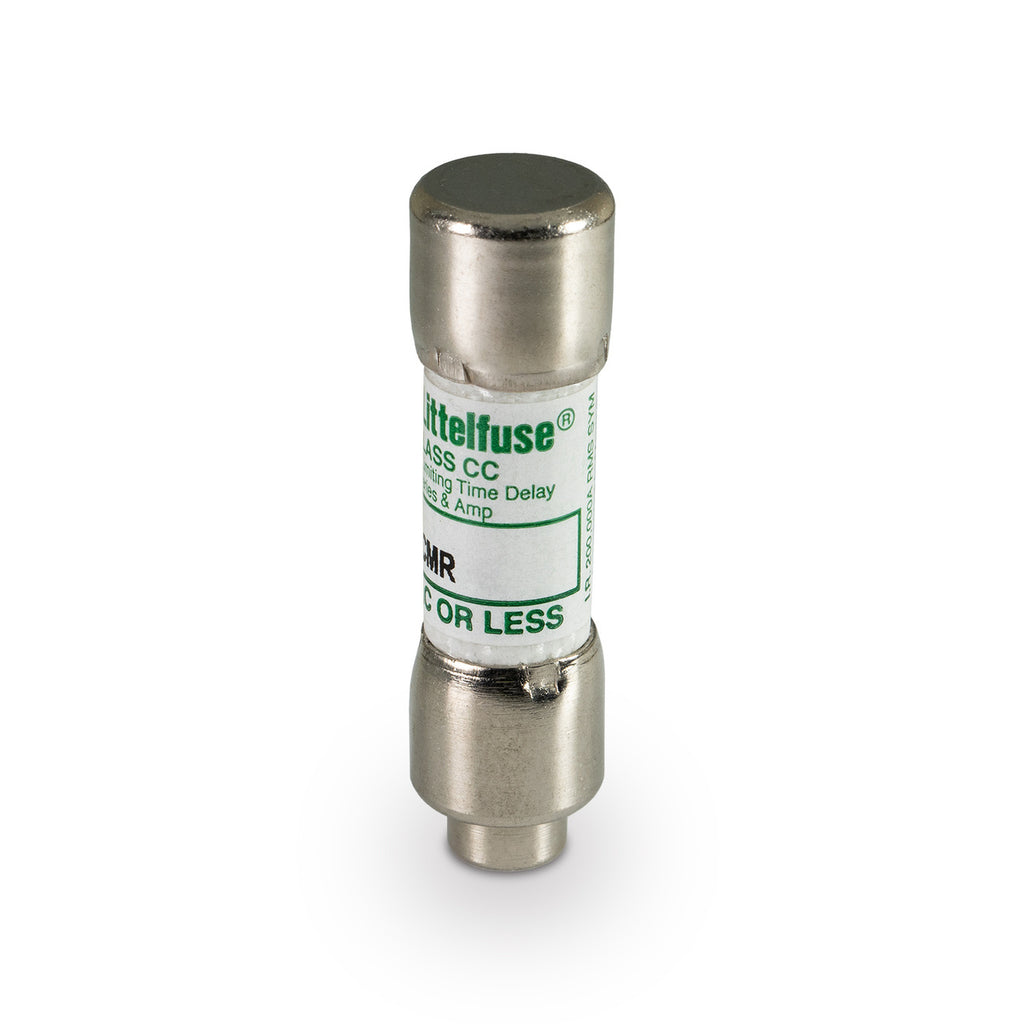

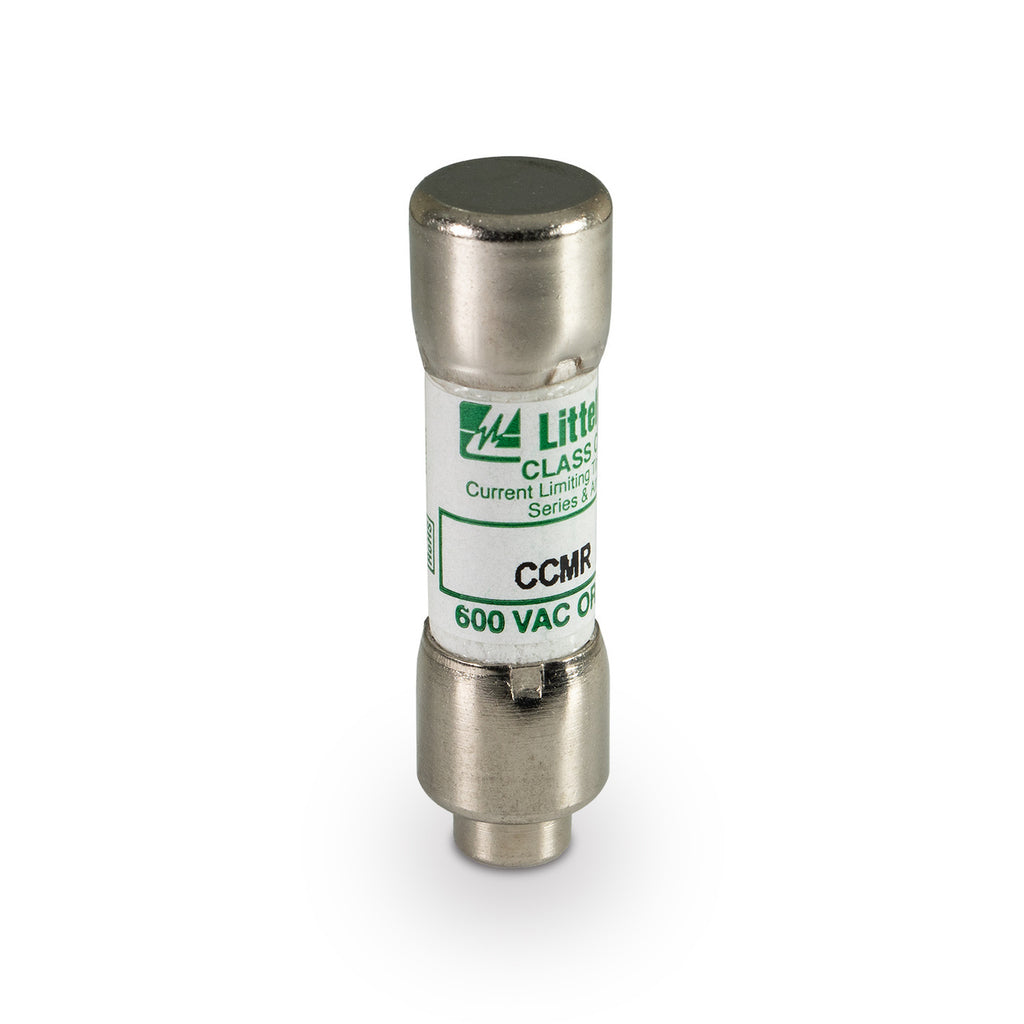

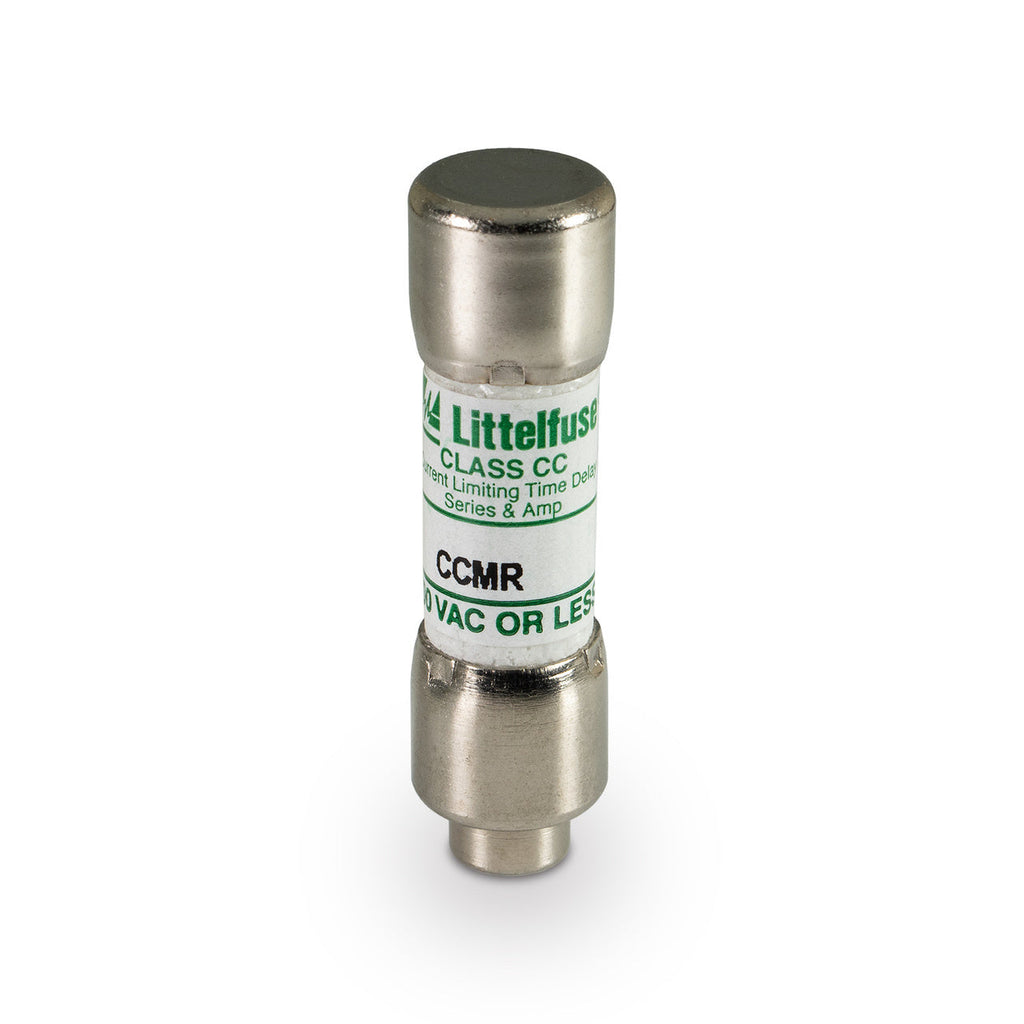

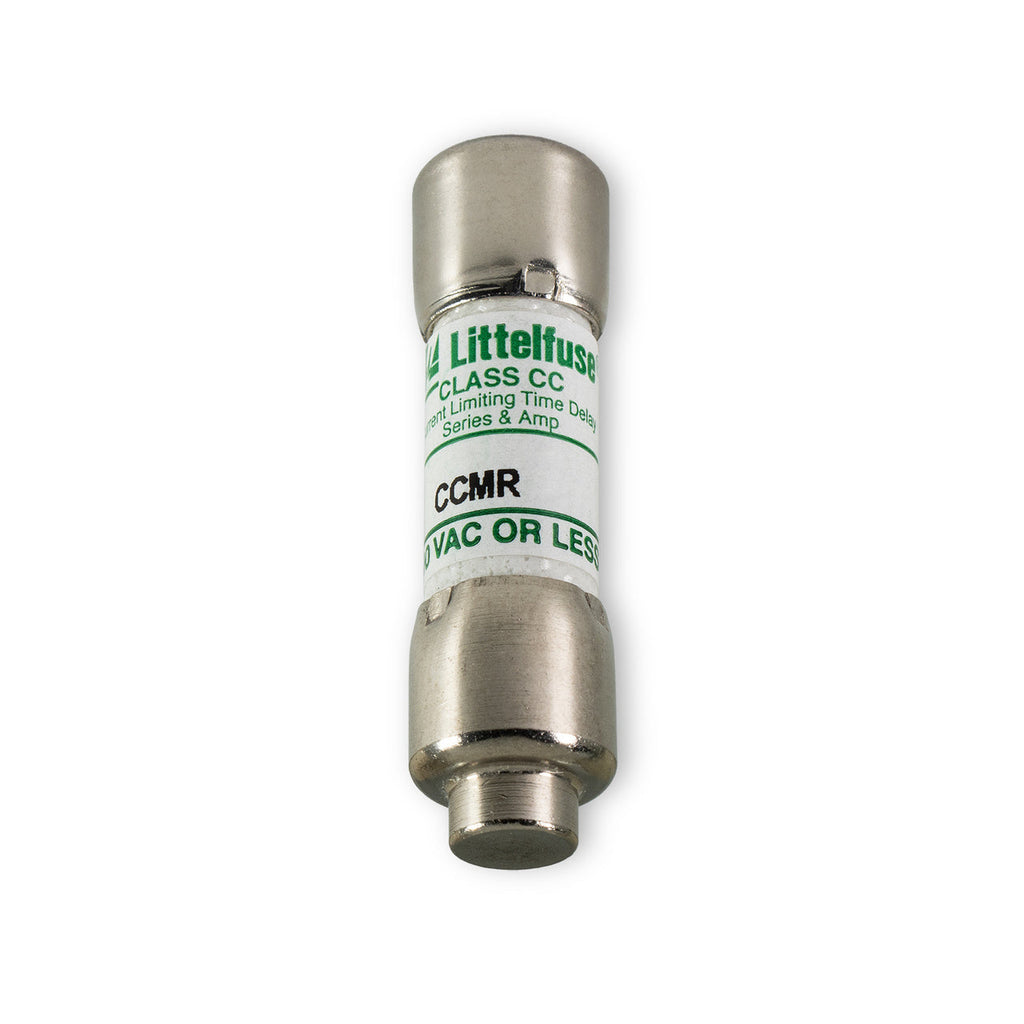

CCMR-012 is a Littelfuse Class CC time-delay fuse designed for reliable circuit protection in demanding applications.
This cartridge fuse features a 12A current rating, 600VAC/500VDC voltage rating, and a high interrupting capacity of 200kA at 600VAC. It is engineered for motor circuit and branch circuit protection, offering excellent current-limiting performance and a ferrule terminal connection for secure installation. The CCMR-012 is UL and CSA approved, ensuring compliance with North American safety standards.
Key Specifications
- Part Number: CCMR-012
- Manufacturer: Littelfuse
- Amperage: 12A
- Voltage: 600VAC, 500VDC
- Poles: 1
- Mounting Type: Ferrule terminal
- Interrupt Rating: 200kA at 600VAC
- Series/Frame: CCMR
- Trip Unit: Time delay (slow blow)
- Certifications: UL, CSA
- Body Size: 0.41" x 1.5"
- Class: CC
- Non-indicating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CCMR-012
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- Amperage : 12
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- UPC : 079458968354
- GTIN : 00079458968354
- Weight : 0.034 lb
