Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
CCMR-006

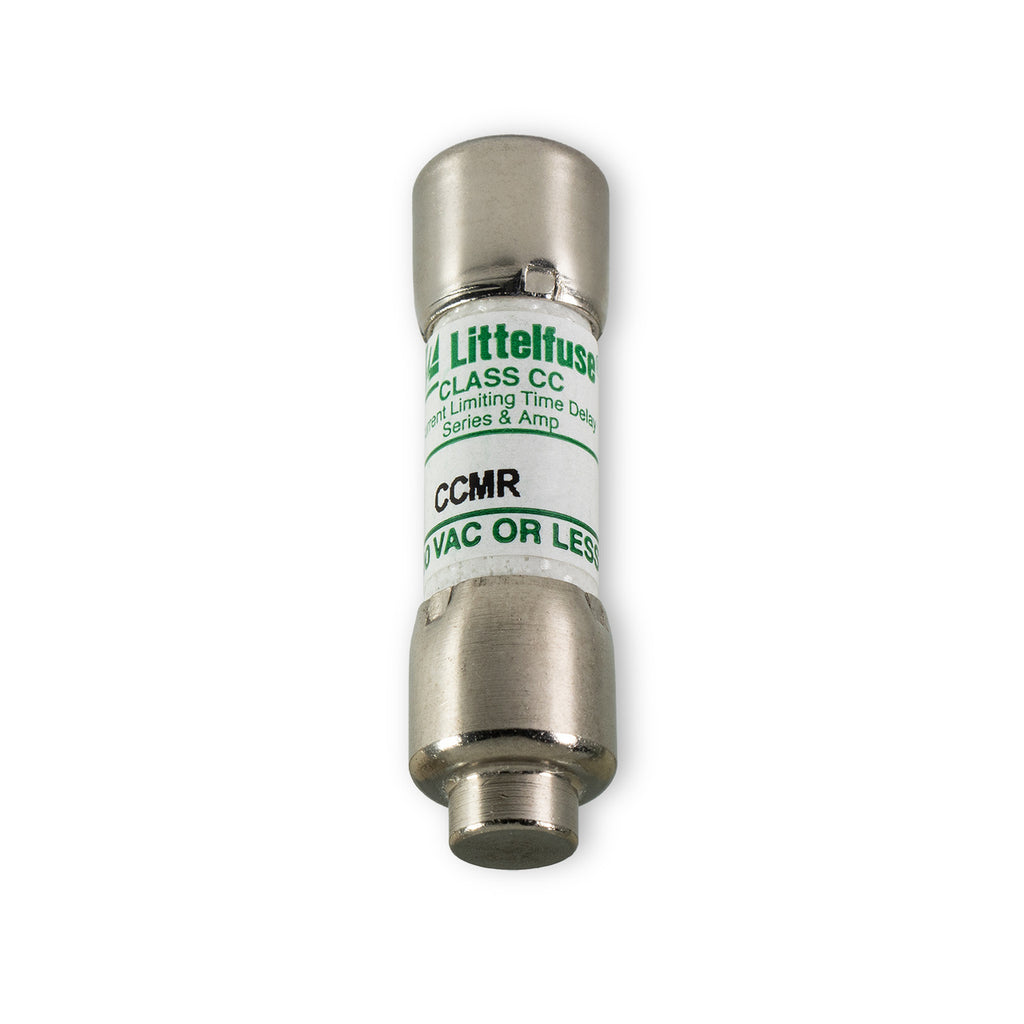

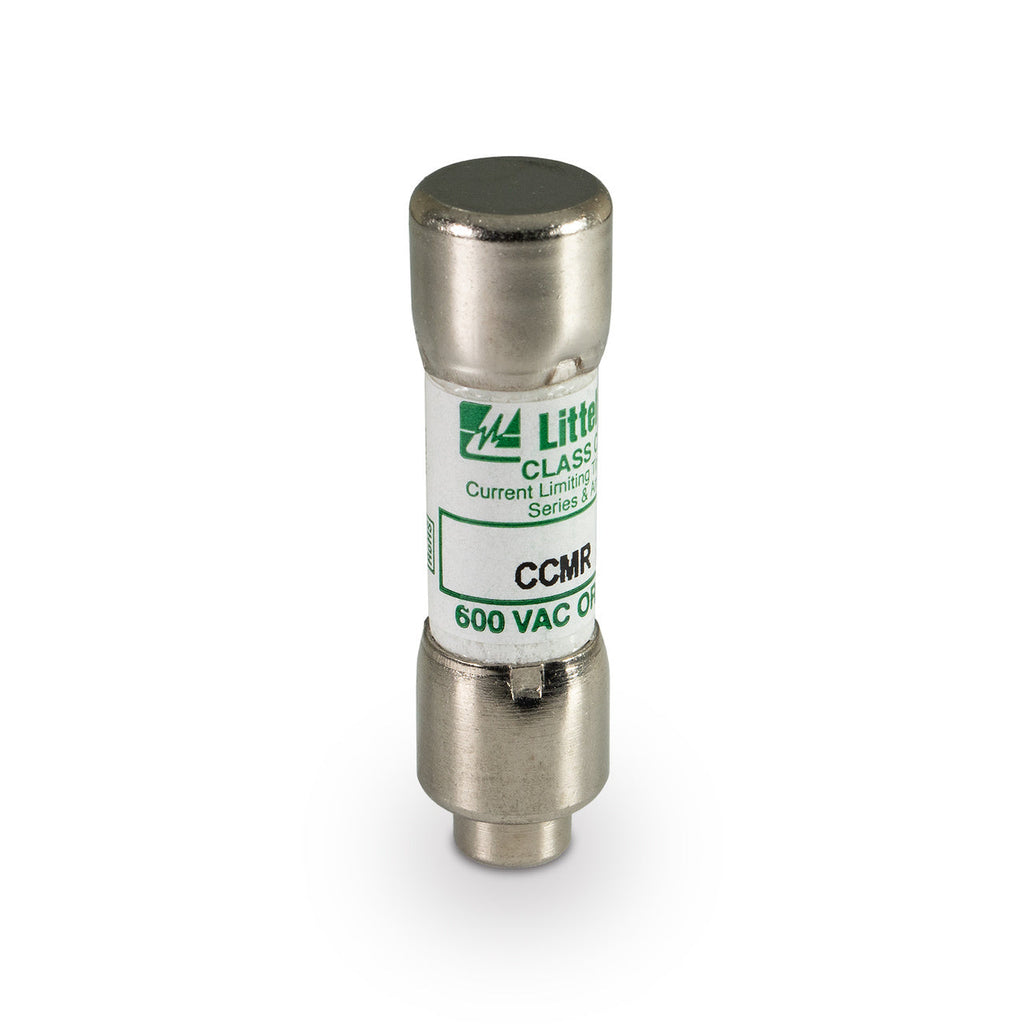

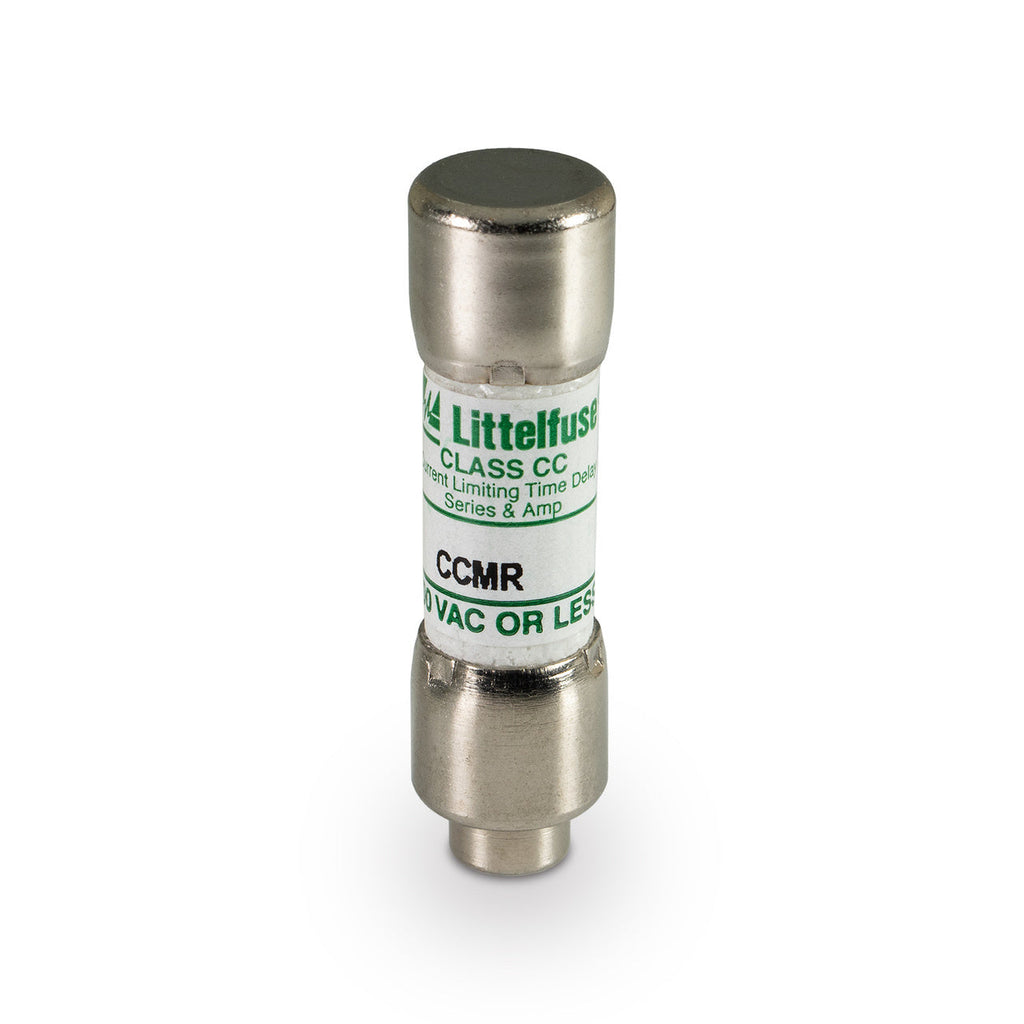

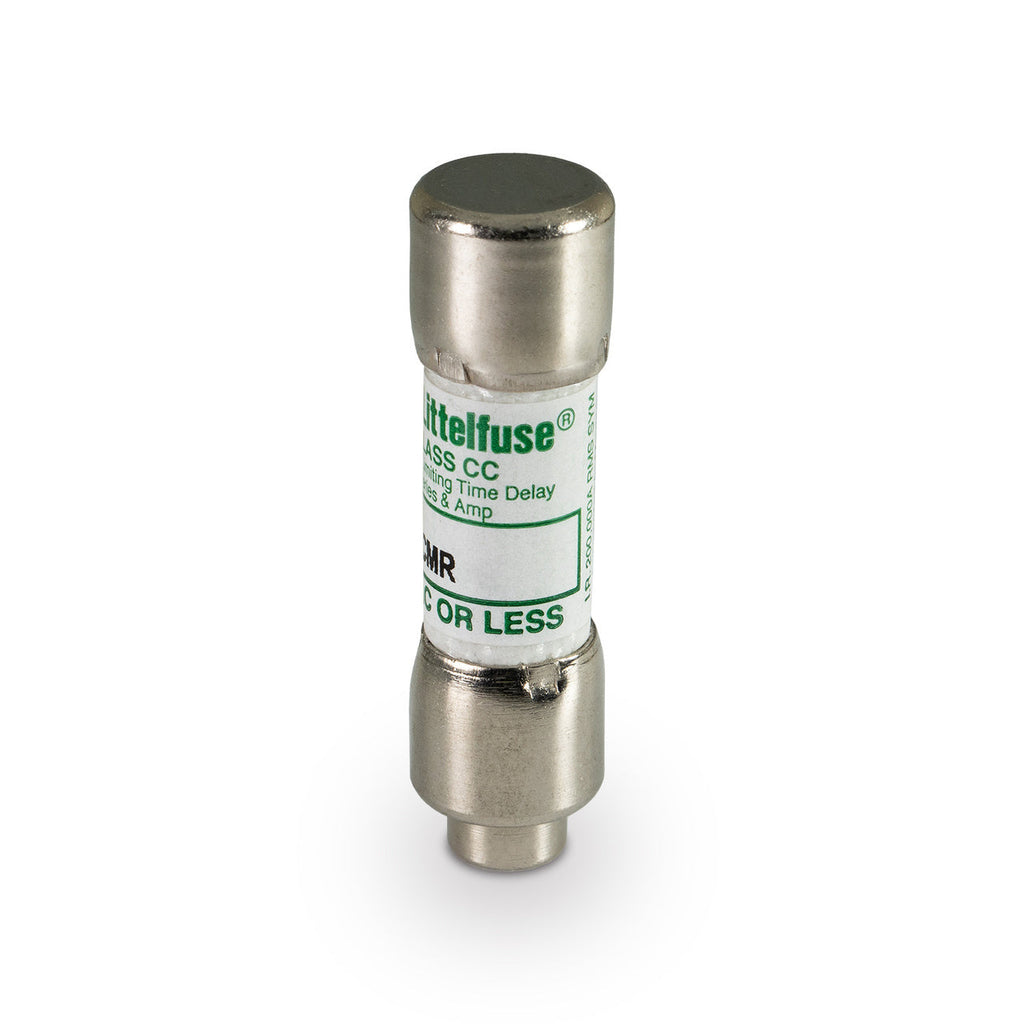

CCMR-006 is a 6 Amp, 600 Volt Class CC time-delay fuse from Littelfuse designed for motor circuit protection.This Littelfuse CCMR Series fuse features dual-element, time-delay technology with POWR-PRO advanced design for superior protection of small motors up to 40 HP. It has a 200kA interrupting rating at 600 VAC and is suitable for use in fuse blocks, clips, or holders. The fuse provides Type 2 "No Damage" protection and complies with UL 248-4 and CSA standards.
- Key Specifications
- Amperage: 6 A
- Voltage Rating: 600 VAC, 300 VDC
- Interrupting Rating: 200 kA at 600 VAC
- Fuse Class: Class CC (Midget)
- Time-Delay (Slo-Blo) Opening
- Mounting: Fuse Block / Clip / Holder
- Series: CCMR Powr-Pro
- UL Listed and CSA Certified
- Dual Element, Current Limiting
- Size: 0.41" x 1.5"
Specifications
- Part Number: CCMR-006
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : CCMR
- Voltage : 600
- Amperage : 6
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC/CD
- Barrels : 1
Product Data
- UPC : 079458968286
- GTIN : 00079458968286
- Weight : 10 lb
