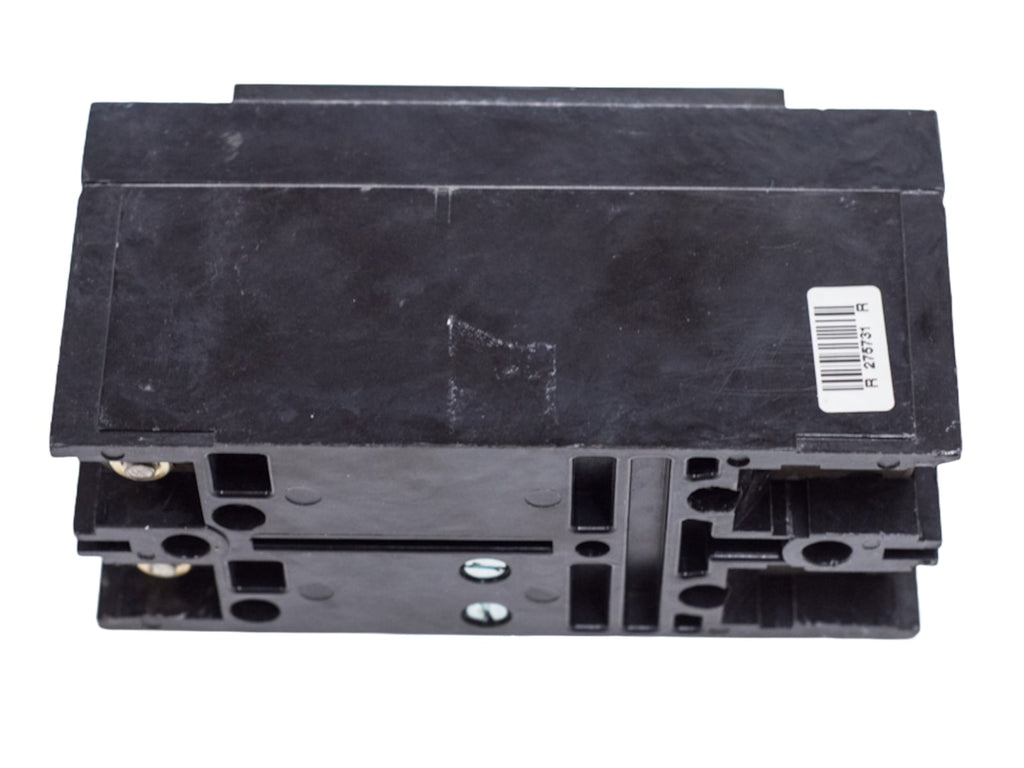

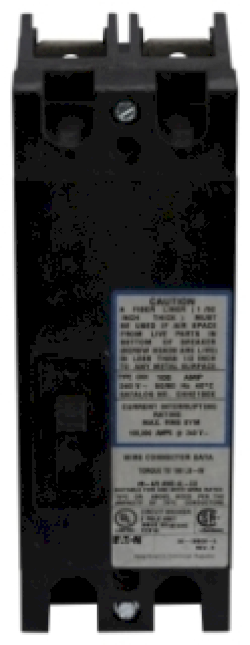

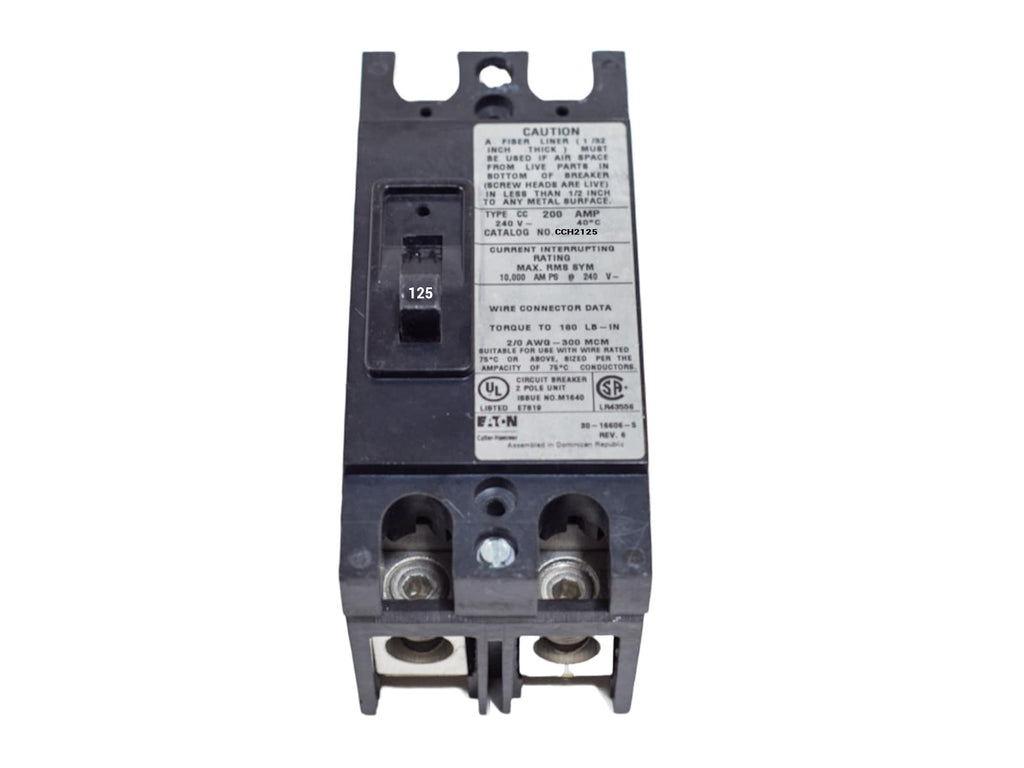

CCH2125 - Cutler Hammer 125 Amp 2 Pole 120/240V Thermal Magnetic Circuit Breaker

CCH2125

CCH2125 is a Cutler Hammer 2 pole thermal magnetic circuit breaker rated for 125 amps and 120/240 volts AC. It features a plug-in mounting type and is designed for reliable protection in electrical distribution systems.CCH2125 provides a 10 kA interrupting rating at 240 volts and includes long-time and instantaneous trip functions for enhanced circuit protection. It is UL and CSA certified and compatible with Type CH loadcenters. This breaker supports #10-1/0 AWG copper or aluminum wiring and requires two 3/4-inch spaces for installation.

• Manufacturer: Cutler Hammer (Eaton)
• Part Number: CCH2125
• Amperage: 125 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10 kAIC at 240 V
• Trip Type: Thermal Magnetic, Common Trip
• Series/Frame: CH
• Certifications: UL 489, CSA
• Wire Size: #10-1/0 AWG Cu/Al
• Dimensions: Approx. 3.75" L x 2.75" H x 2.5" W

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CCH2125
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CCH Series
• Type : CCH
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 785901820970
• Weight : 6
