CC87.7 - Square D Thermal Unit 53.4-66.1A Melting Alloy Overload Relay Class 20 Type S CC Frame

CC87.7

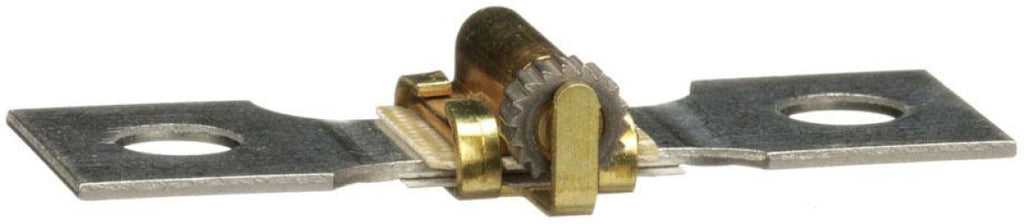

CC87.7 is a Square D thermal unit designed for motor overload protection with a melting alloy sensing method and Class 20 trip rating.This thermal unit fits Type S and Type CC frames, providing reliable motor protection with a full load amperage range of 53.4 to 66.1 amps. It features a melting alloy overload protection type and is compatible with NEMA Size 3 and 4 motor starters. The unit trips within 20 seconds or less to safeguard motors from overcurrent conditions.

• Full Load Amps: 53.4 to 66.1 A
• Overload Protection Type: Melting Alloy
• Trip Class: 20
• Compatible Frame Size: Type S, Type CC
• NEMA Size: 3, 4
• Mounting Type: Plug-on
• Application: Motor overload protection
• Interrupt Rating: Not specified
• Certifications: Manufacturer standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CC87.7
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Heater Element
• Full Load Amps : 53.4 to 66.1

Product Data

• UPC : 785901588139
• GTIN : 00785901588139
• Country of Origin : Mexico
• Dimensions : Length 2.17 in (55 mm) Height 1.18 in (30 mm)
• Weight : 0.07
