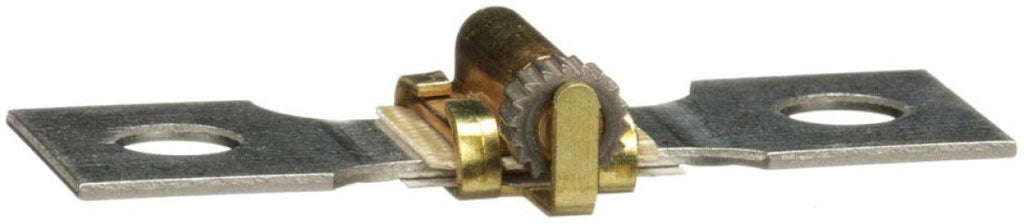

CC81.5 - Square D 50.8-54.9A Class 20 Thermal Unit Plug-In Motor Control

CC81.5

CC81.5 is a Square D thermal unit designed for motor control applications, providing reliable overload protection.CC81.5 is a Type S, Type CC melting alloy thermal unit with a Class 20 trip rating, suitable for plug-in mounting in motor starters. It protects motors by tripping within 20 seconds or less under overload conditions, covering a current range of approximately 50.8 to 54.9 amperes. This unit is compatible with NEMA sizes 3 and 4 frames and supports motor voltages up to 600V.

Key Specifications
• Amperage Range: 50.8 to 54.9 Amps
• Trip Class: 20 (Standard Trip)
• Mounting Type: Plug-In
• Thermal Unit Type: Melting Alloy
• Compatible Frame Sizes: Type CC, Type S
• NEMA Size: 3 and 4
• Voltage Rating: Up to 600V
• Overload Protection: Motor Thermal Overload
• Construction: One-piece heater winding
• Application: Motor Control Overload Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CC81.5
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Heater Element
• Full Load Amps : 49.1 to 61.2

Product Data

• UPC : 078590158812
• GTIN : 00785901588122
• Country of Origin : Mexico
• Weight : 0.07
