Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Heater Element
Description
CC196.0

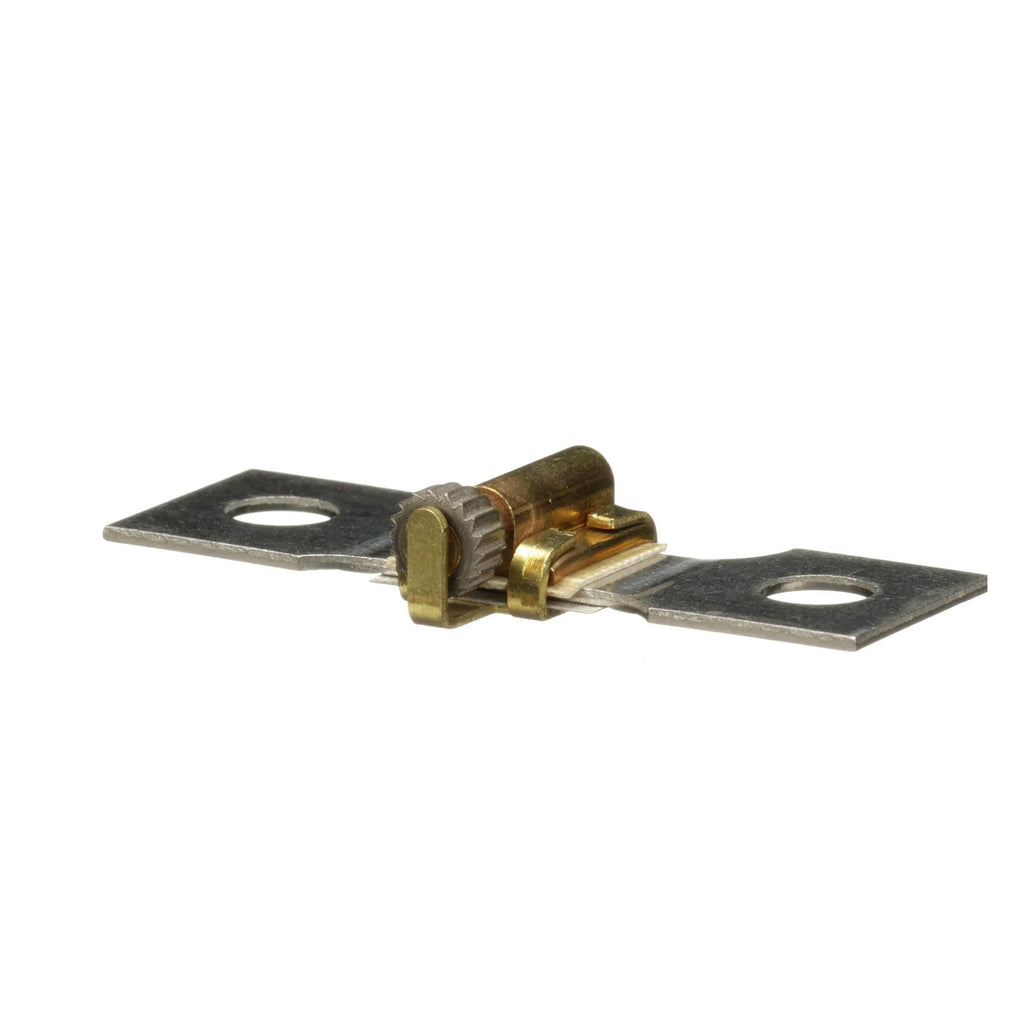

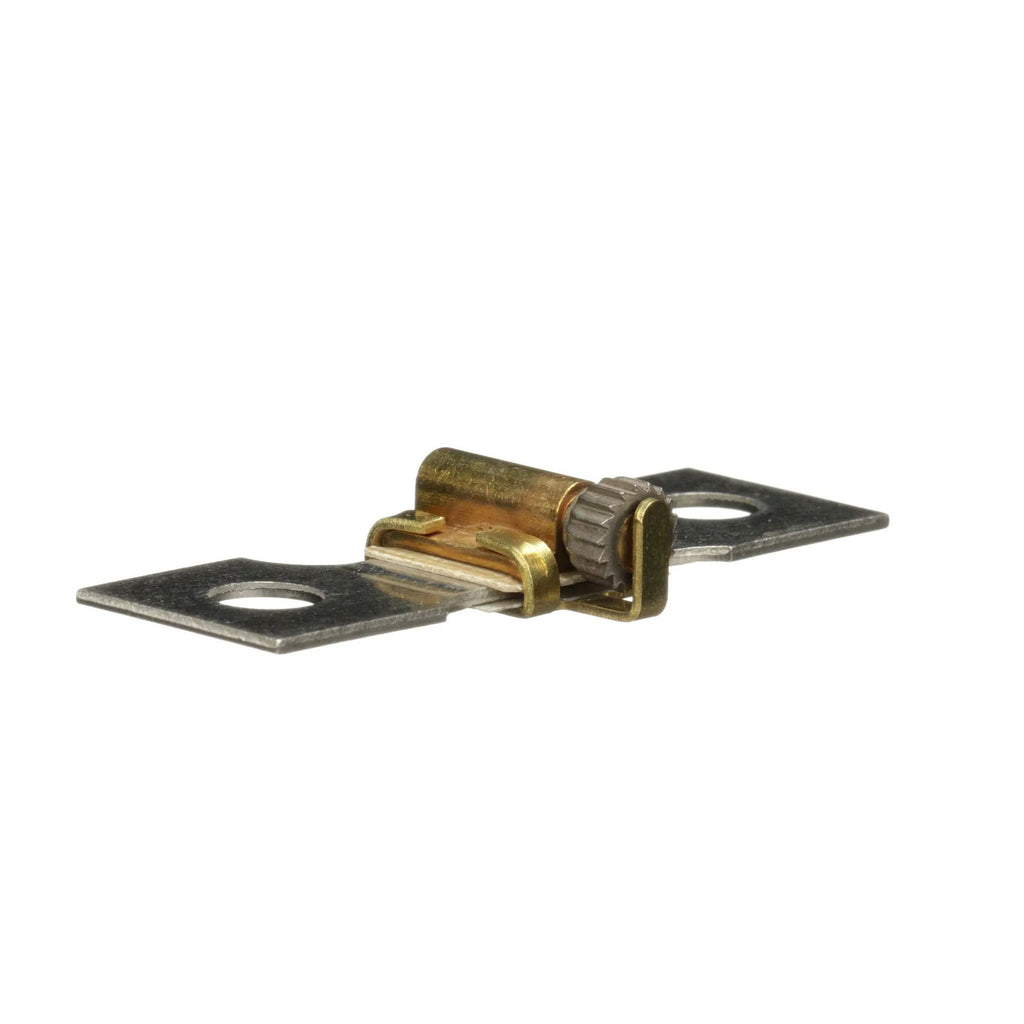

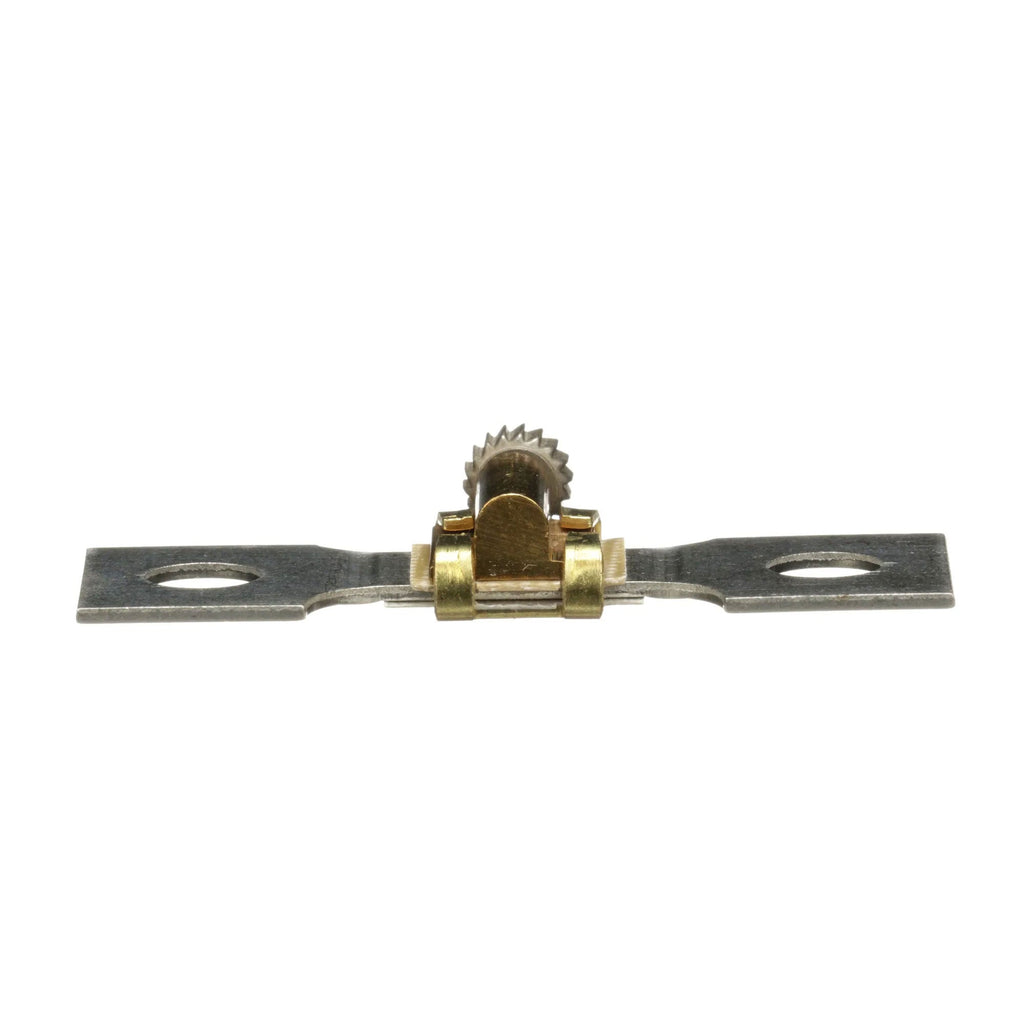

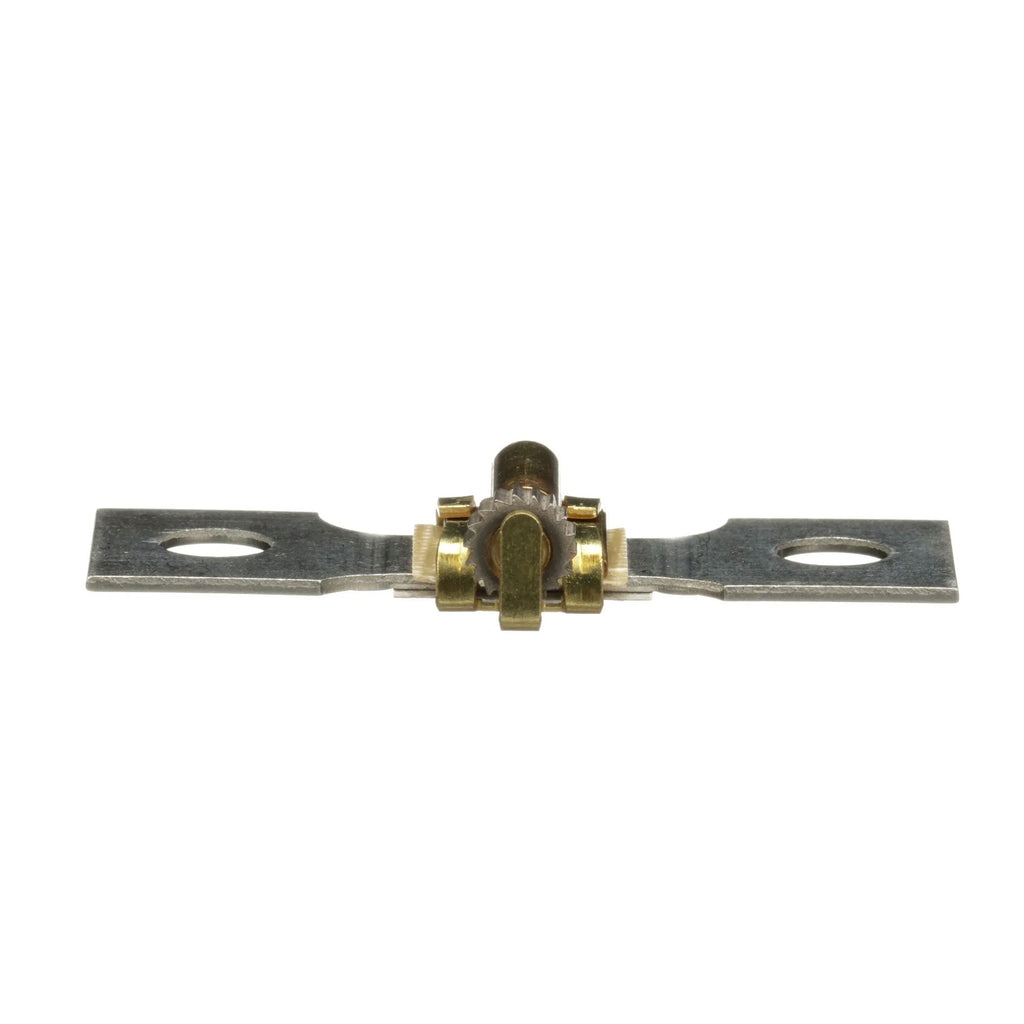

CC196.0 is a Square D thermal unit designed for motor control applications with a 78.5-86 ampere range and Class 20 trip rating.This thermal unit features melting alloy overload protection, plug-on mounting for easy installation, and is compatible with Type CC magnetic contactors. It operates up to 600 VAC and provides reliable motor overload protection with a standard trip unit.
- Amperage range: 78.5 to 86 A
- Voltage rating: Up to 600 VAC
- Trip class: 20 (Class 20)
- Mounting type: Plug-on
- Type: Thermal unit, Type S, Type CC
- Overload protection: Melting alloy
- Compatible with Square D motor starters
- Interrupt rating: Standard for motor control accessories
- Certifications: Meets industry standards for motor protection
Specifications
- Part Number: CC196.0
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Heater Element
- Full Load Amps : 86.0 to 133
Product Data
- UPC : 785901588238
- GTIN : 00785901588238
- Country of Origin : Mexico
- Dimensions : Length 1.69 in (43 mm) Height 1.18 in (30 mm)
- Weight : 0.11
