Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Heater Element
Description

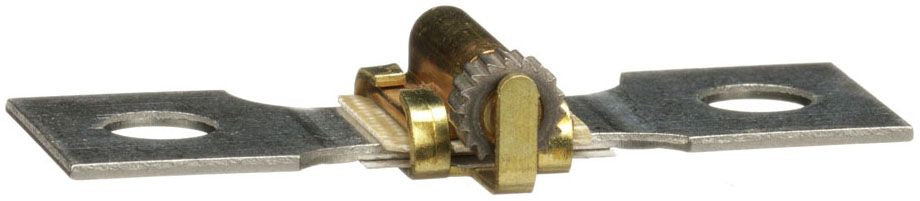

CC156.0
CC156.0 is a Square D thermal unit designed for motor control applications, providing reliable overload protection with a melting alloy thermal overload type.
This thermal unit operates within an amperage range of 71 to 83.1 amps and is compatible with Type CC magnetic motor starters. It features a plug-on mounting type and is rated for up to 600 VAC. The unit has a motor tripping class of 20 and uses a melting alloy element for precise overload protection. It is suitable for use in NEMA size 00-7 overload relays and includes a standard trip feature for dependable motor protection.
- Key Specifications
- Manufacturer: Square D
- Part Number: CC156.0
- Amperage Range: 71 to 83.1 Amps
- Voltage Rating: 600 VAC Maximum
- Mounting Type: Plug-On
- Thermal Overload Type: Melting Alloy
- Motor Tripping Class: 20
- Series/Frame: Type CC
- Contactor Type: Magnetic
- Breaker Feature: Standard Trip
- UPC/GTIN: 785901588207
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CC156.0
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Heater Element
- Full Load Amps : 73.7 to 104
Product Data
- UPC : 785901588207
- GTIN : 00785901588207
- Country of Origin : Mexico
- Weight : 0.12
