Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Heater Element
Description
CC103.0

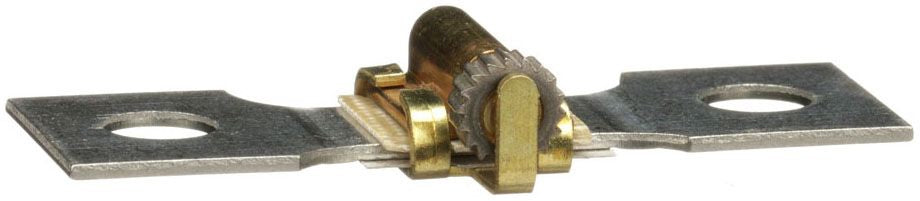

CC103.0 is a Square D thermal unit designed for motor control applications, providing reliable overload protection for electric motors.
This thermal unit features a melting alloy, Class 20 trip characteristic, and is compatible with Type S and Type CC overload relays. It operates up to 600 volts and supports motor currents in the 57.5 to 67.2 amp range. The unit uses a plug-on mounting type and standard trip mechanism to protect motors from prolonged overloads by opening the control circuit contacts when overheating is detected. It is suitable for use with magnetic contactors and complies with industry standards for motor protection.
- Key Specifications
- Amperage Range: 57.5-67.2 Amps
- Voltage Rating: 600 Volts Maximum
- Poles: Compatible with standard motor control poles
- Mounting Type: Plug-On
- Interrupt Rating: Standard trip
- Series/Frame: Type S, Type CC
- Trip Unit: Melting Alloy, Class 20
- Application: Motor overload protection
- Manufacturer: Square D
- Category: Motor Control
- UPC: 785901588153
- Part Number: CC103.0
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Heater Element
- Full Load Amps : 61.3 to 77.0
- UPC : 785901588153
- GTIN : 00785901588153
- Country of Origin : Mexico
- Weight : 0.08
