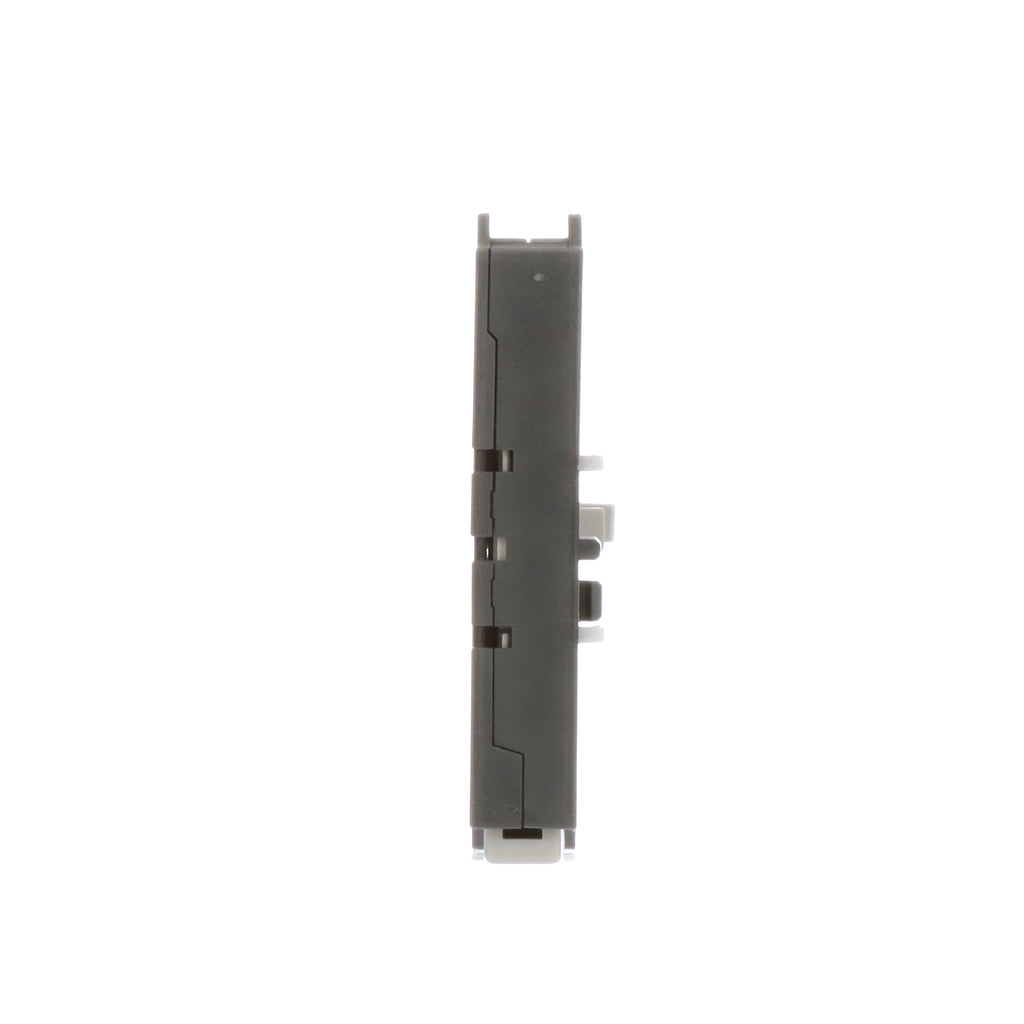

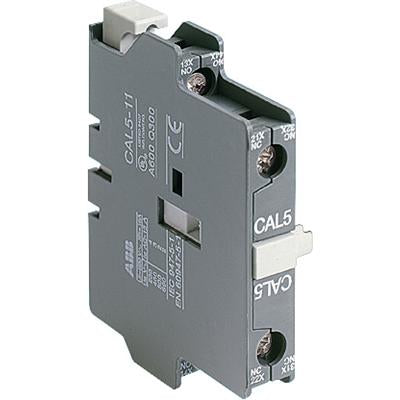

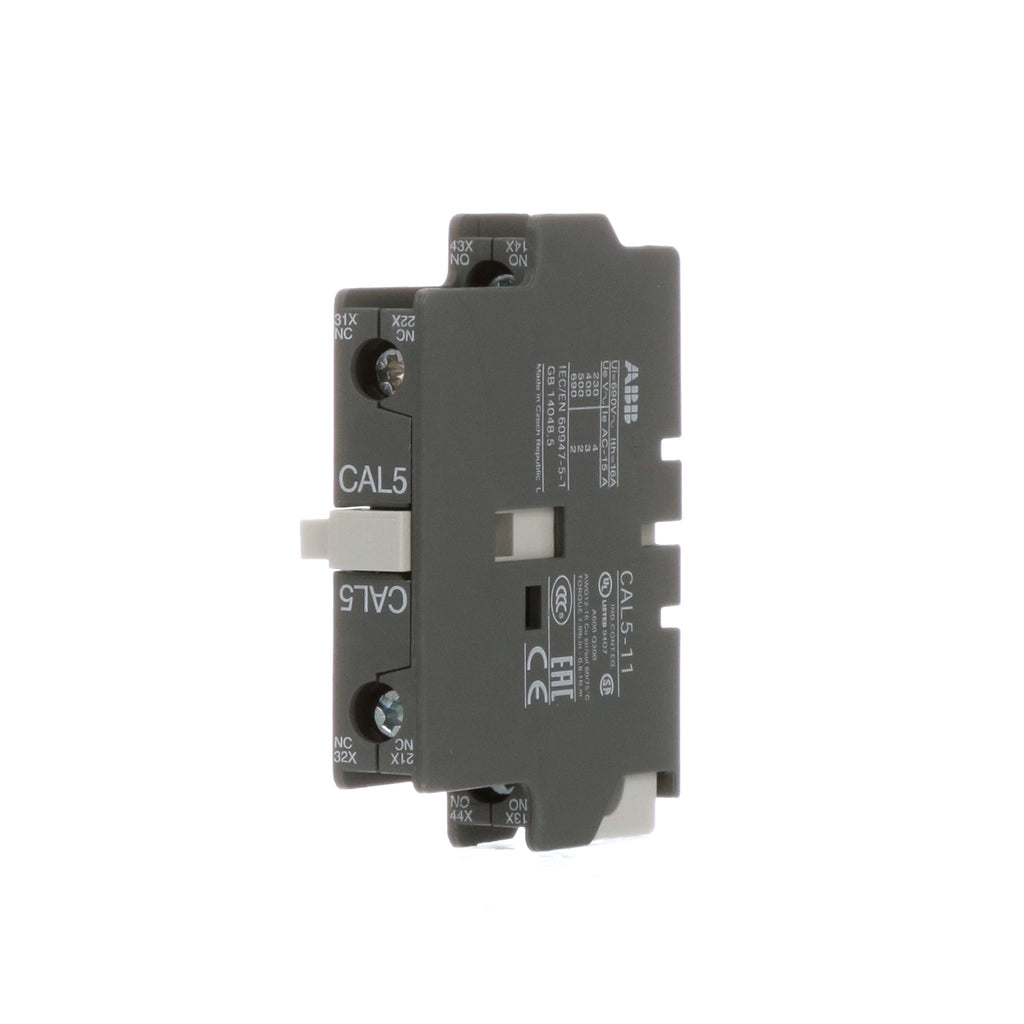

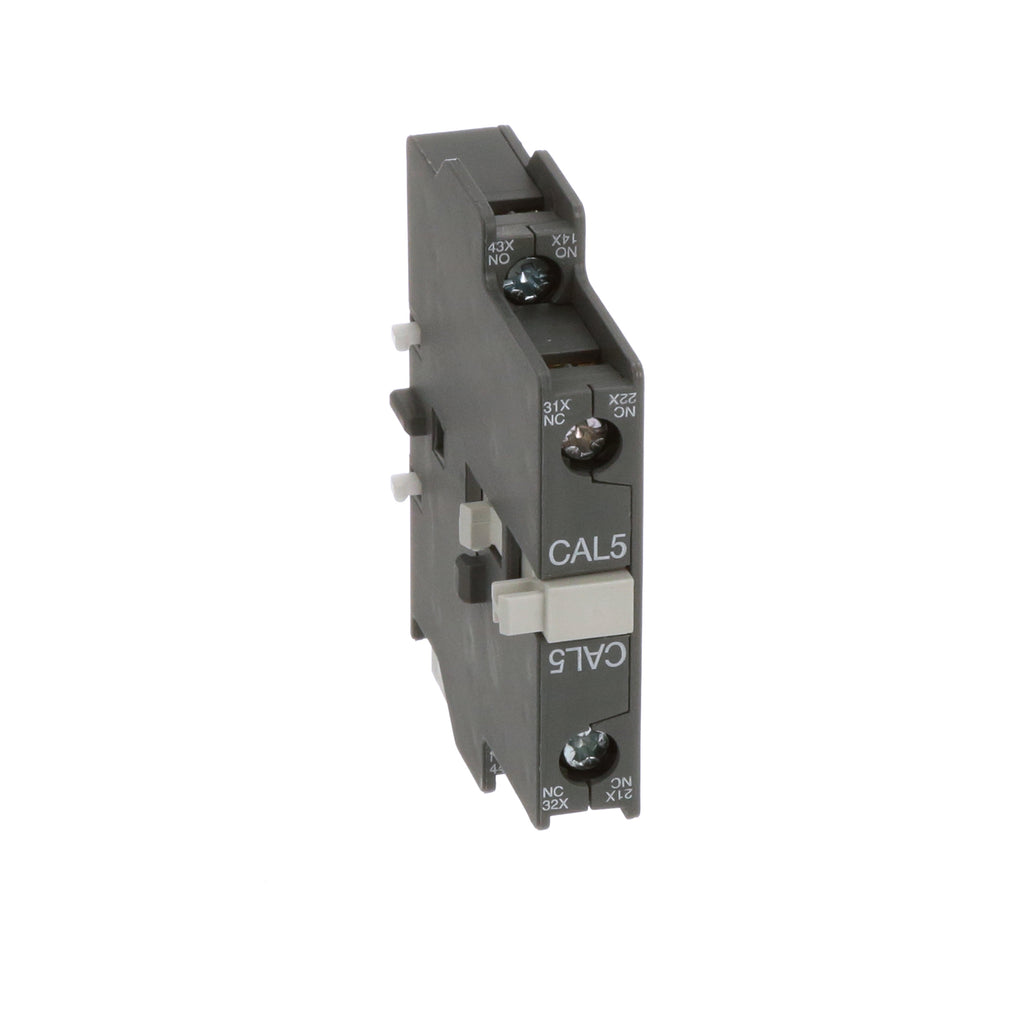

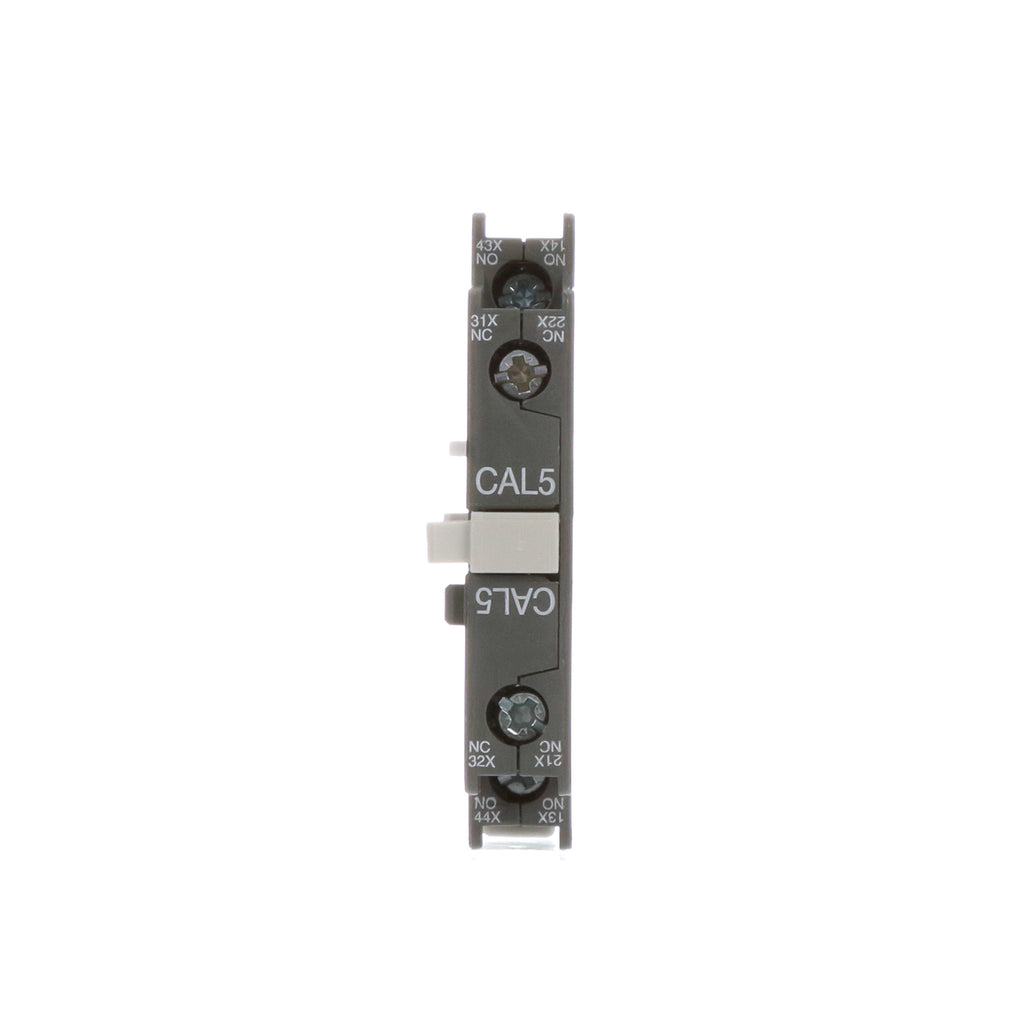

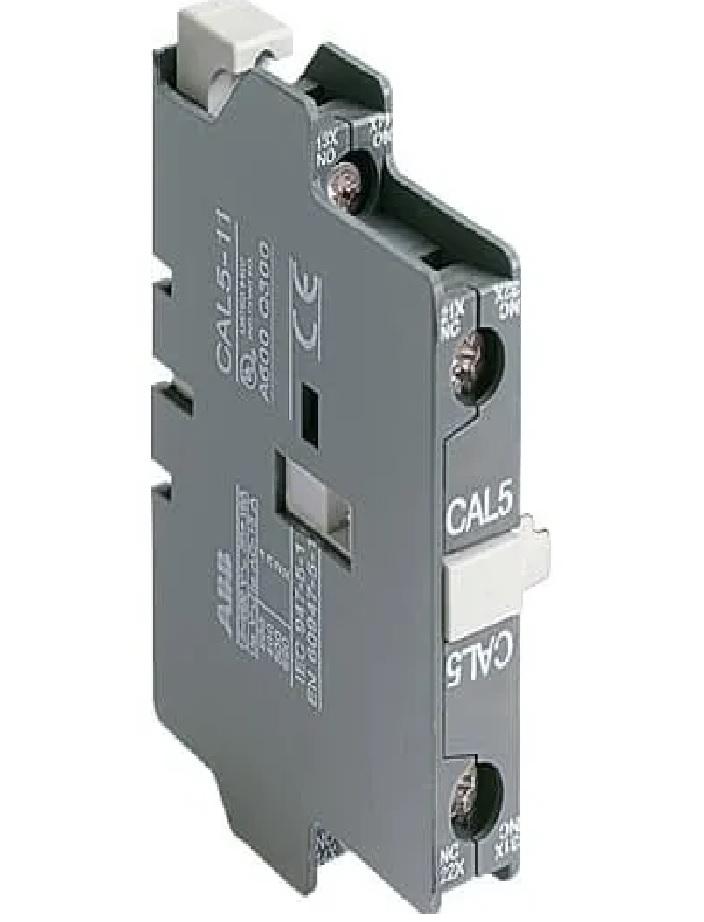

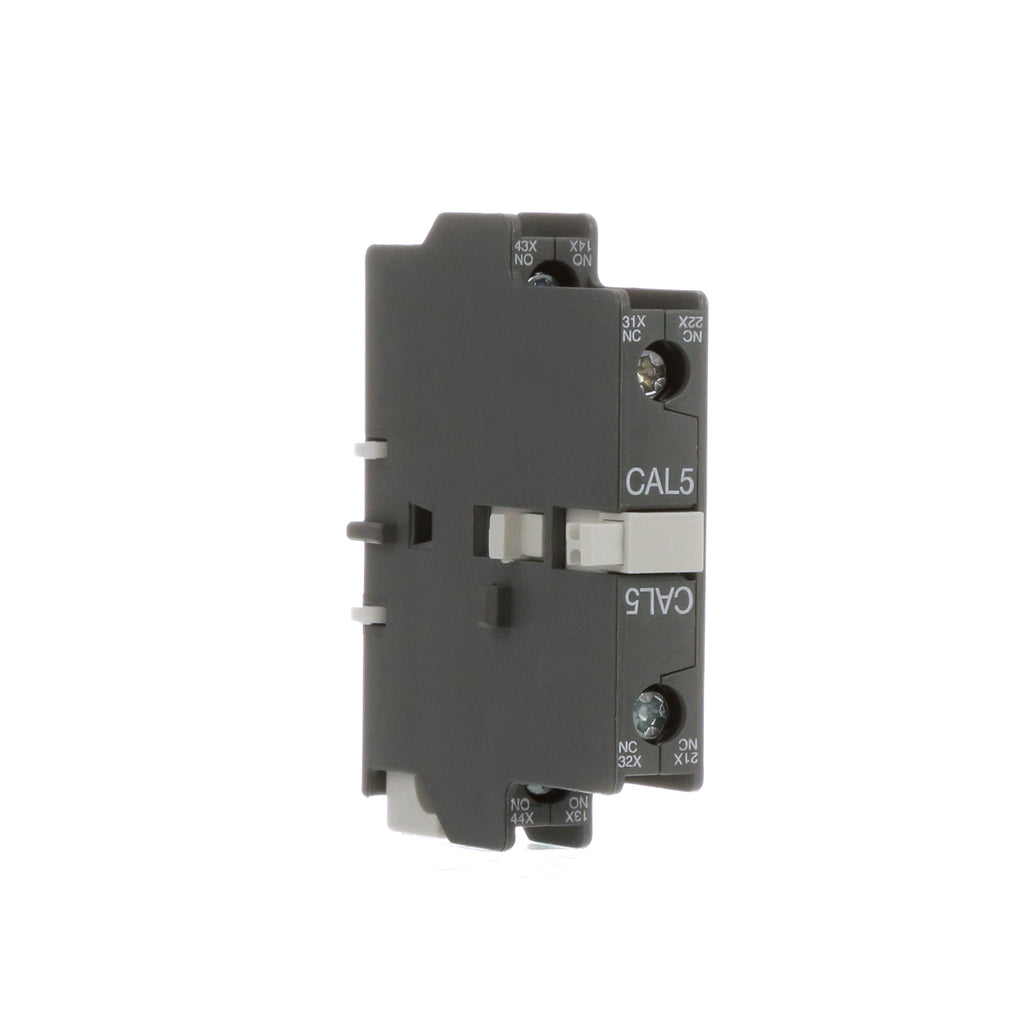

CAL5-11 - ABB Auxiliary Contact Block 1NO/1NC, Side Mount, 690 VAC/250 VDC

CAL5-11

CAL5-11 is an ABB auxiliary contact block designed for motor control applications, providing reliable auxiliary switching with 1 normally open (NO) and 1 normally closed (NC) contact.This side-mounted contact block is compatible with A/AE/AL9-75 contactors and supports operational voltages up to 690 VAC and 250 VDC. It features screw terminals and is rated for AC-15 and DC-13 utilization categories, with operational currents up to 6 A at 240 V AC and 0.25 A at 690 VAC/250 VDC. The block supports a high mechanical switching frequency of up to 3600 cycles per hour and electrical switching frequency of 1200 cycles per hour.

Key Specifications
• Part Number: CAL5-11
• Manufacturer: ABB
• Contact Configuration: 1 NO / 1 NC
• Mounting Type: Side Mount
• Rated Operational Voltage: 690 VAC / 250 VDC
• Rated Operational Current: 6 A (AC-15, ≤240 V), 0.25 A (690 VAC/250 VDC)
• Terminal Type: Screw Terminals
• Mechanical Switching Frequency: 3600 cycles/hour
• Electrical Switching Frequency: 1200 cycles/hour
• Compatible Contactor Series: A/AE/AL9-75
• Utilization Category: AC-15 / DC-13
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CAL5-11
• Manufacturer : ABB
• Brand : ABB
• Category : Motor Control
• Item Subcategory : Auxiliary Contact
• Family : A-Line
• Type : CAL
• Configuration : 1NO/1NC



Product Data

• UPC : 471522121076
• Country of Origin : Czechia
• Dimensions : Depth / Length 62 mm X Height 74 mm X Width 12 mm
• Weight : 0.11 lb
