CAD32UD - Schneider Electric TeSys Deca 5-Pole Control Relay 250V DC 10A 690V

CAD32UD

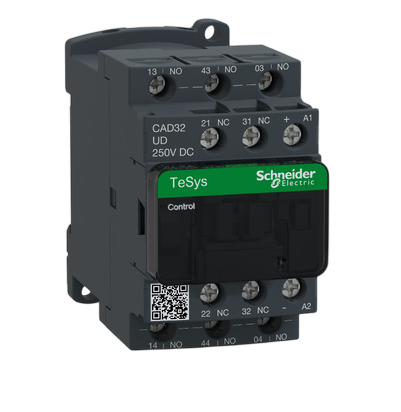

CAD32UD is a Schneider Electric TeSys Deca control relay designed for industrial electromagnetic load control with five poles configured as 3 normally open and 2 normally closed contacts. This relay provides a 250V DC control circuit and supports AC-15/DC-13 duty cycle applications with a 10 ampere load rating at 690 volts AC. The relay features screw clamp terminal connections and can be mounted on 35mm DIN rail or panel-mounted for flexible installation in control cabinets and industrial equipment. It operates reliably at high cycling rates up to 180 cycles per minute across an ambient temperature range of -40 to +60 degrees Celsius.

• Pole Contact Composition: 3NO + 2NC (5 poles total)
• Control Circuit Voltage: 250V DC Standard Coil
• Load Voltage Rating: 690V AC Single Phase
• Load Amperage: 10A at 60 degrees Celsius
• Connection Type: Screw Clamp Terminals

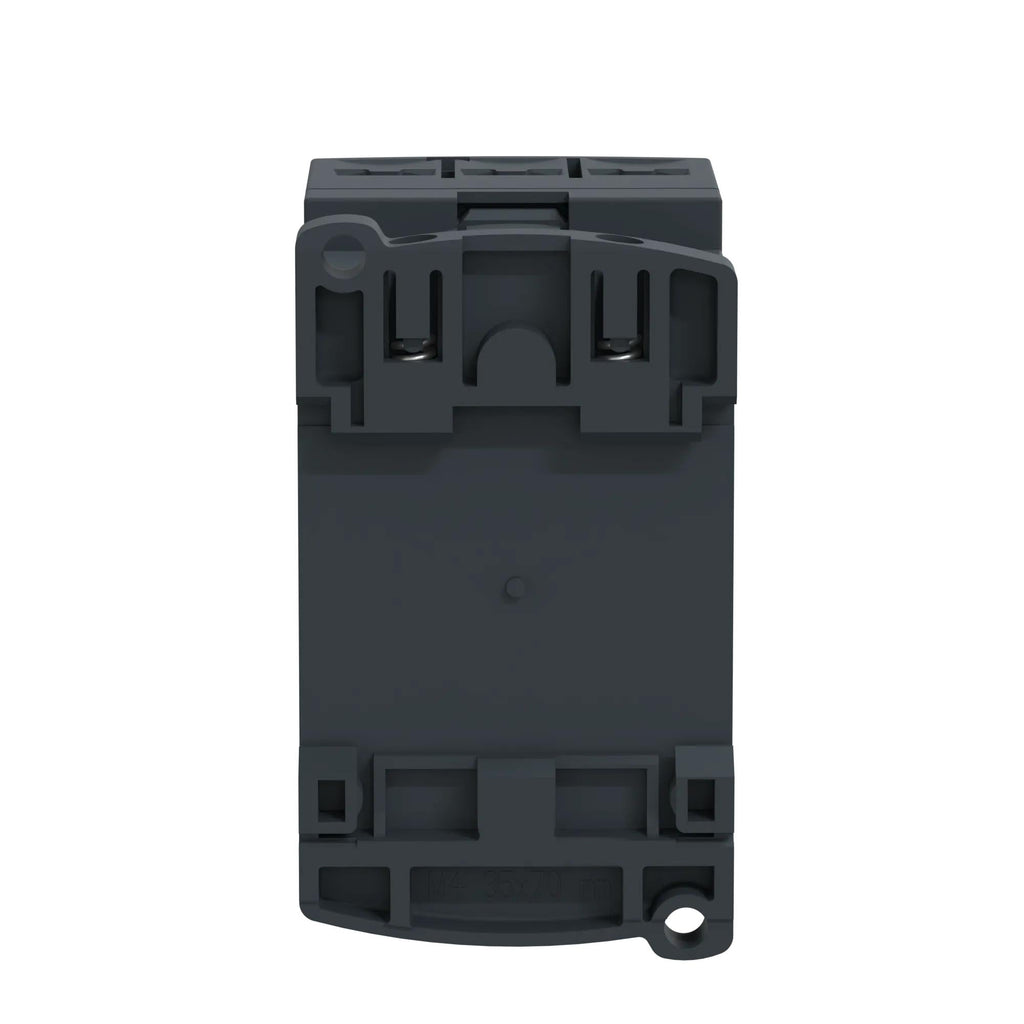

• Mounting: 35mm DIN Rail or Panel Mount
• Operating Cycles: Up to 180 cycles per minute
• Ambient Temperature Range: -40 to +60 degrees Celsius
• Certifications: UL 489 Listed
• Inrush Current: 140A AC per IEC 60947-5-1
• Impulse Withstand Voltage: 6kV per IEC 60947

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CAD32UD
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : control relay

Product Data

• UPC : 785901405399
• GTIN : 00389110405395
• Country of Origin : Indonesia
• Dimensions : 3.03 in (77 mm) x 1.8 in (45 mm) x 3.7 in (93 mm) (Height x Width x Depth)
• Weight : 1.169
• Certification : EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
