CAD32T7 - Schneider Electric TeSys Deca Control Relay, 10A, 690V, 3NO+2NC, 5 Pole, DIN Rail Mount, 480V AC Coil, IEC/EN/NF/VDE Certified

CAD32T7

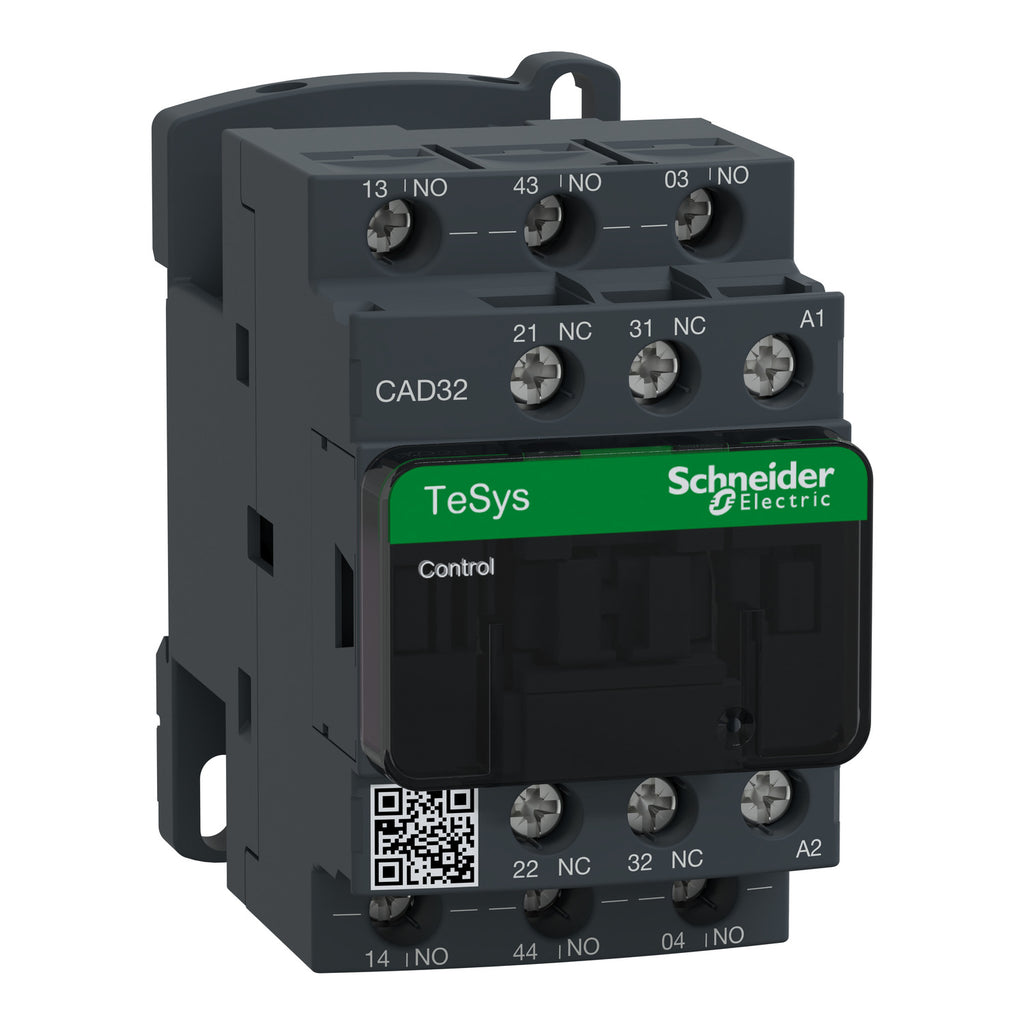

CAD32T7 Schneider Electric TeSys Deca control relay delivers reliable switching for motor and control circuits with a robust 10A, 690V rating.

This 5-pole relay features 3 normally open (NO) and 2 normally closed (NC) contacts, a 480V 50/60Hz AC coil, and is designed for DIN rail mounting. It is suitable for high operating rates up to 180 cycles per minute and operates in a wide ambient temperature range. The CAD32T7 is part of the TeSys Deca series, compatible with international standards, and supports easy integration of auxiliary contacts for expanded functionality.

Key Specifications

• Amperage: 10A
• Voltage: 690VAC max switching, 480V AC coil

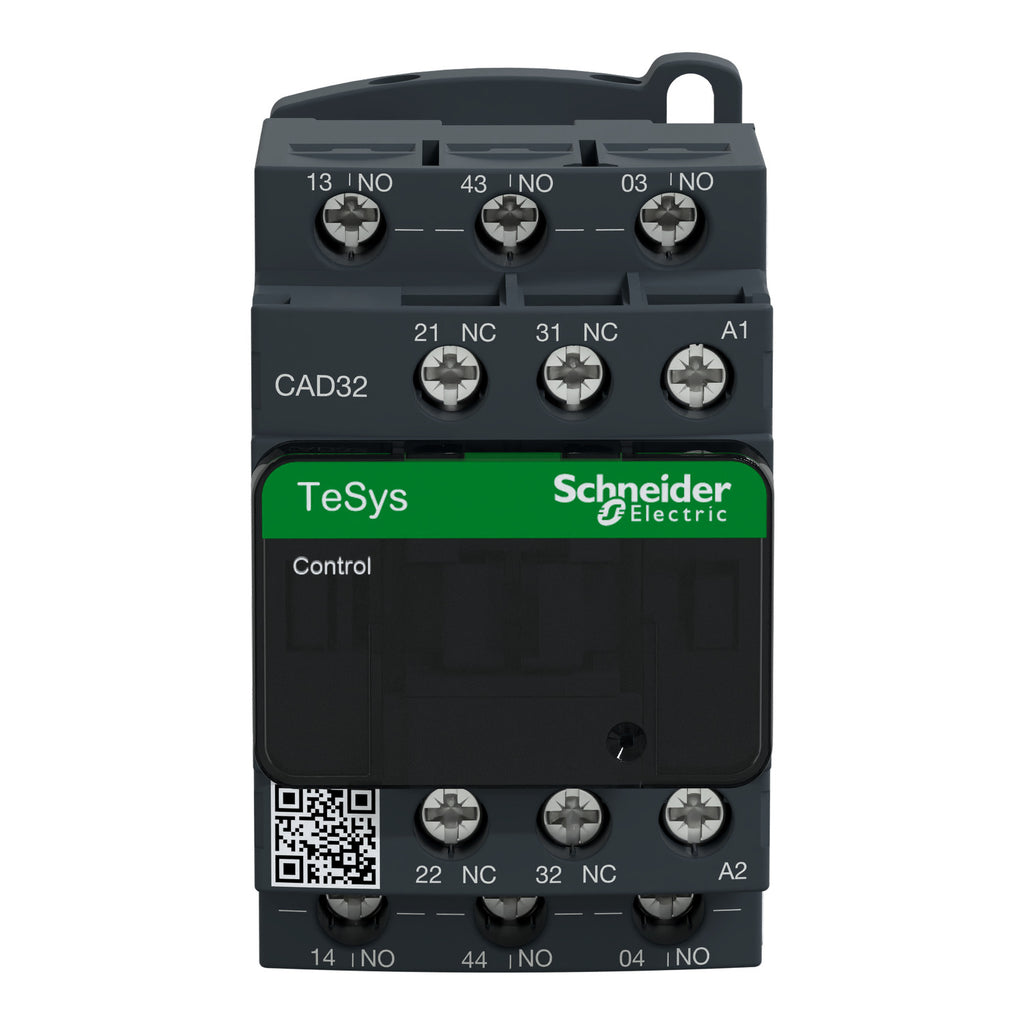

• Poles: 5 (3NO + 2NC)

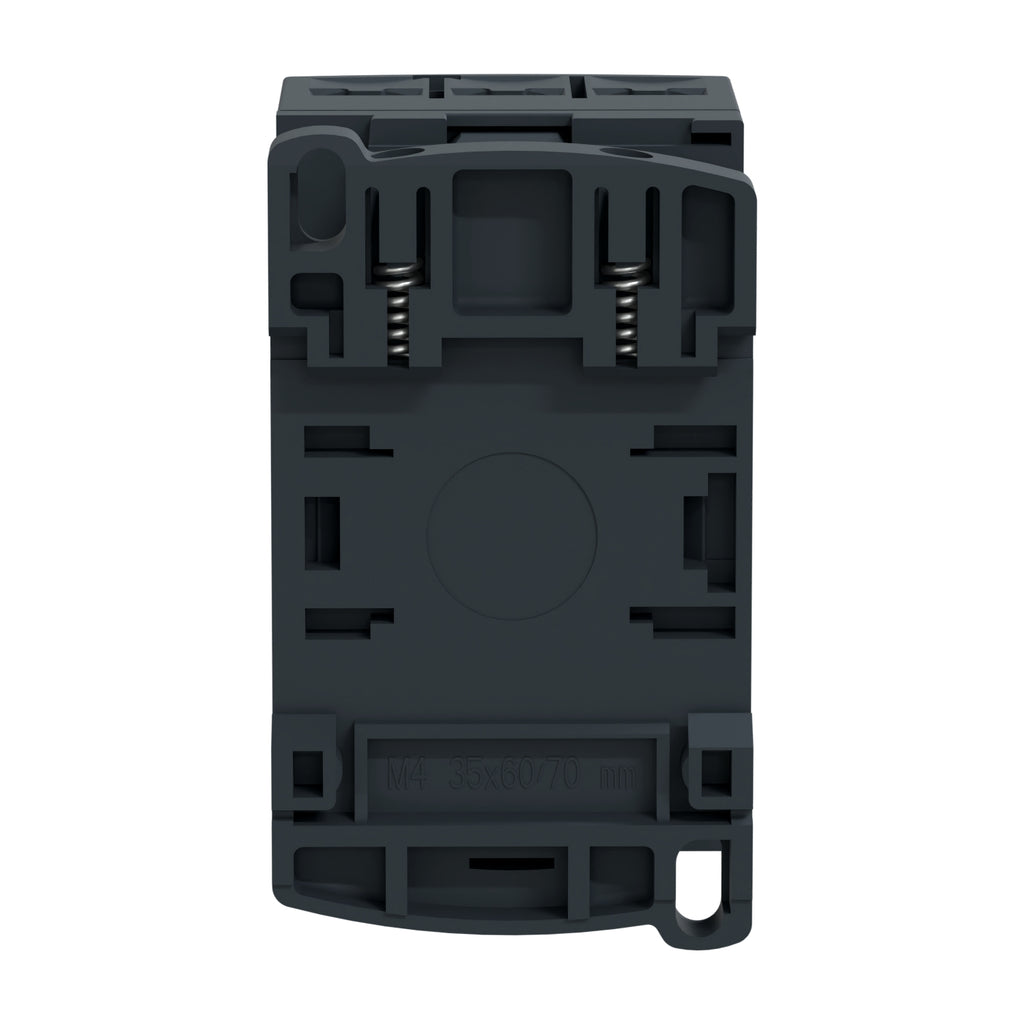

• Mounting Type: DIN rail (35mm), panel mount optional
• Interrupt Rating: 10A at 690VAC
• Series/Frame: TeSys Deca
• Trip Unit: Not applicable (control relay)
• Certifications: IEC 60947-5-1, EN 60947-5, NF C 63-140, VDE 0660, BS 4794
• Control Circuit: 480V 50/60Hz AC
• Connection: Screw clamp terminals
• Operating Rate: Up to 180 cycles/min
• Ambient Temperature: -40°C to +60°C (exact upper limit not specified in sources)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CAD32T7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Overload Relay
• Coil Voltage Maximum : 480V
• Coil Voltage Minimum : 480V

Product Data

• UPC : 038911040236
• GTIN : 03389110402360
• Country of Origin : Indonesia
• Dimensions : 3.03 in (77 mm) x 1.8 in (45 mm) x 3.3 in (84 mm) (Height x Width x Depth)
• Weight : 0.769

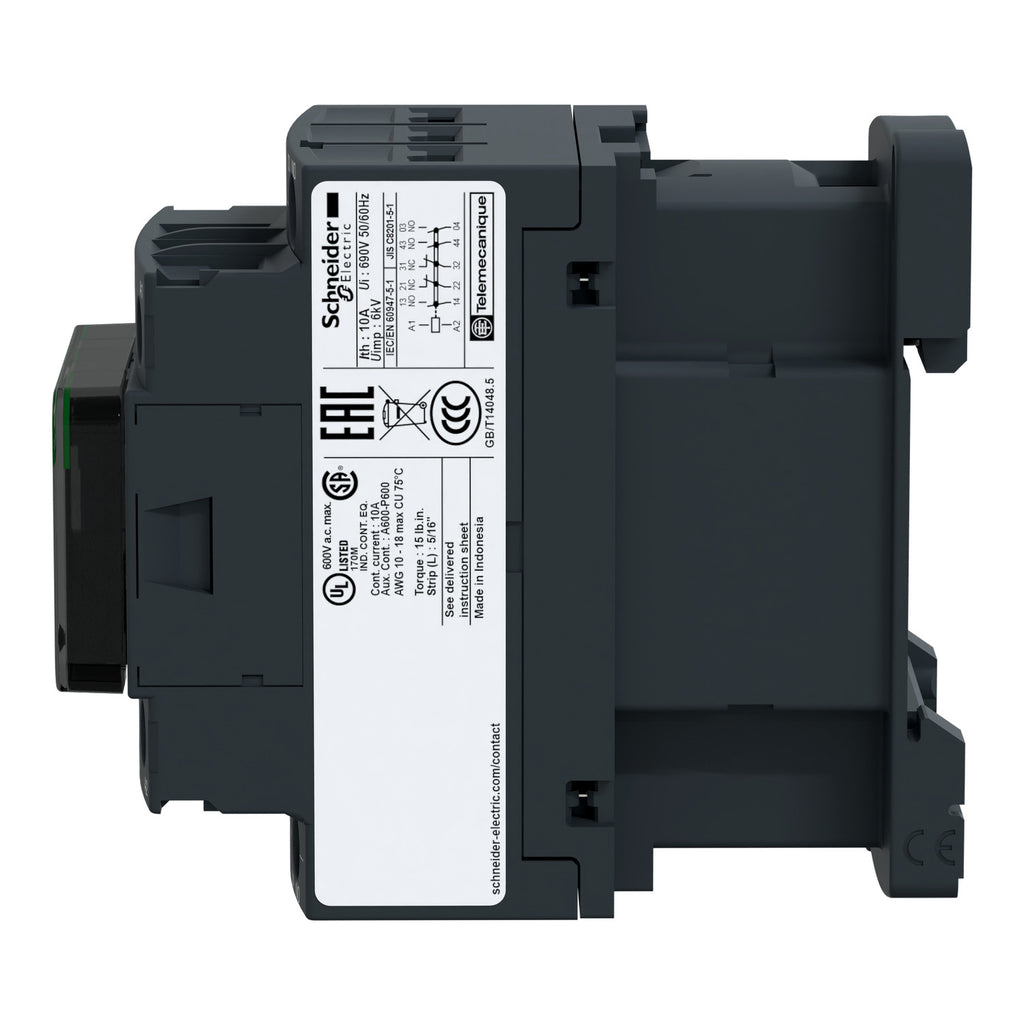

• Certification : CSA Certified, EAC, IEC, RoHS Compliant, UKCA, UL Listed
