CAD32M7 - Square D TeSys D 10A 690V 5-Pole Control Relay 3NO+2NC 220VAC Coil

CAD32M7

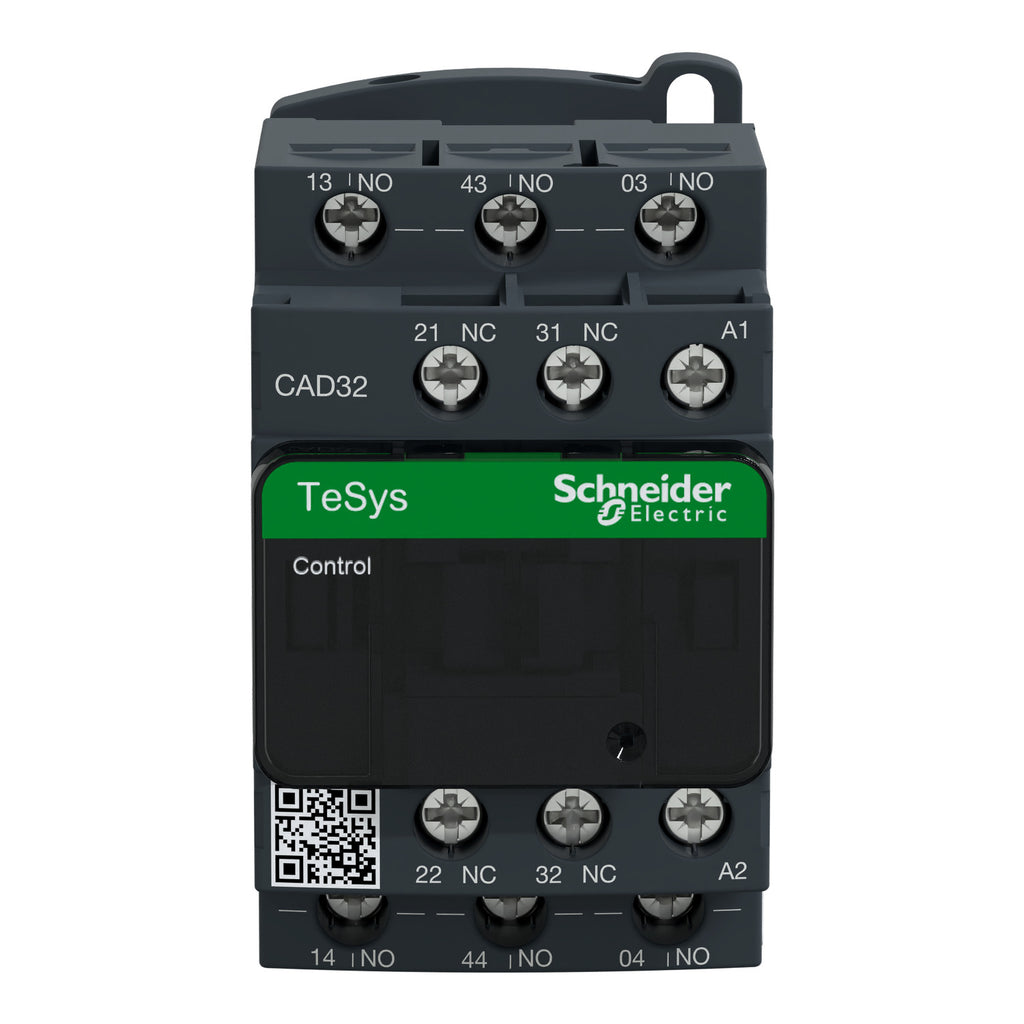

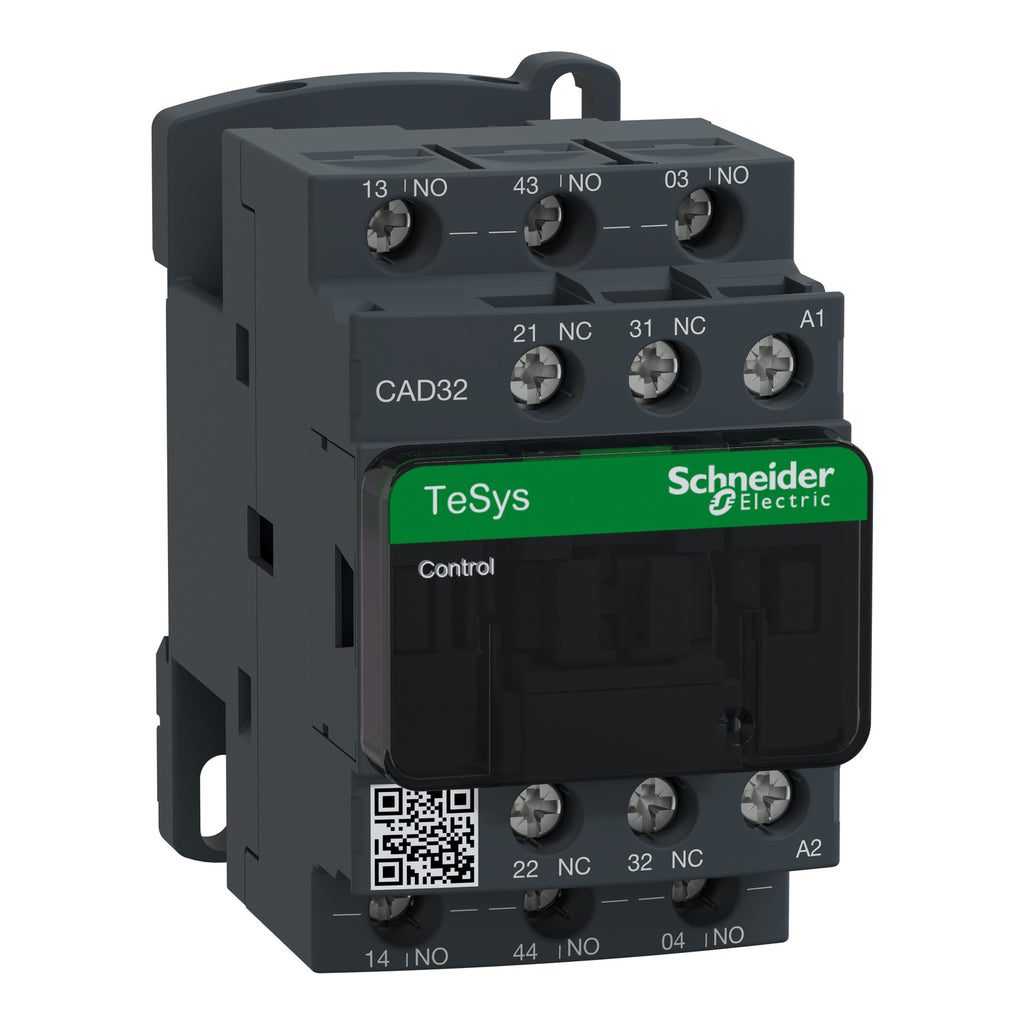

CAD32M7 is a TeSys D 5-pole control relay with 3 normally open and 2 normally closed contacts, designed for reliable control circuit applications. This relay features a 220VAC coil, 10A current rating, and is suitable for use up to 690VAC. It is DIN rail or panel mountable and meets IEC 60947-5-1 standards for industrial control circuits. The CAD32M7 is engineered for electromagnetic load control in AC-15 and DC-13 applications, offering robust performance and easy installation. Its screw clamp terminals support flexible wiring, and it can be expanded with auxiliary contacts for additional functionality. The relay is certified for global use with NEMA A600 and Q600 ratings, as well as UL and CSA approvals.

• Part Number: CAD32M7
• Manufacturer: Square D
• Series: TeSys D
• Current Rating: 10A
• Operational Voltage: 690VAC
• Coil Voltage: 220VAC 50/60Hz
• Pole Configuration: 3NO + 2NC
• Mounting Type: DIN Rail or Panel Mount
• Interrupt Rating: 140A AC, 250A DC
• Certifications: IEC 60947-5-1, UL, CSA, NEMA A600/Q600
• Standards: BS 4794, EN 60947-5, NF C 63-140, VDE 0660
• Application: Control Circuit, Electromagnetic Loads

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CAD32M7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 3389110401424
• GTIN : 03389110401424
• Country of Origin : Indonesia
• Dimensions : 3.03 in (77 mm) x 1.8 in (45 mm) x 3.3 in (84 mm) (Height x Width x Depth)
• Weight : 0.794 lb
• Certification : EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
