CAD32G7 - Square D TeSys D Control Relay 10A 120VAC Coil 3NO 2NC 690V 5-Pole DIN Rail Mount

CAD32G7

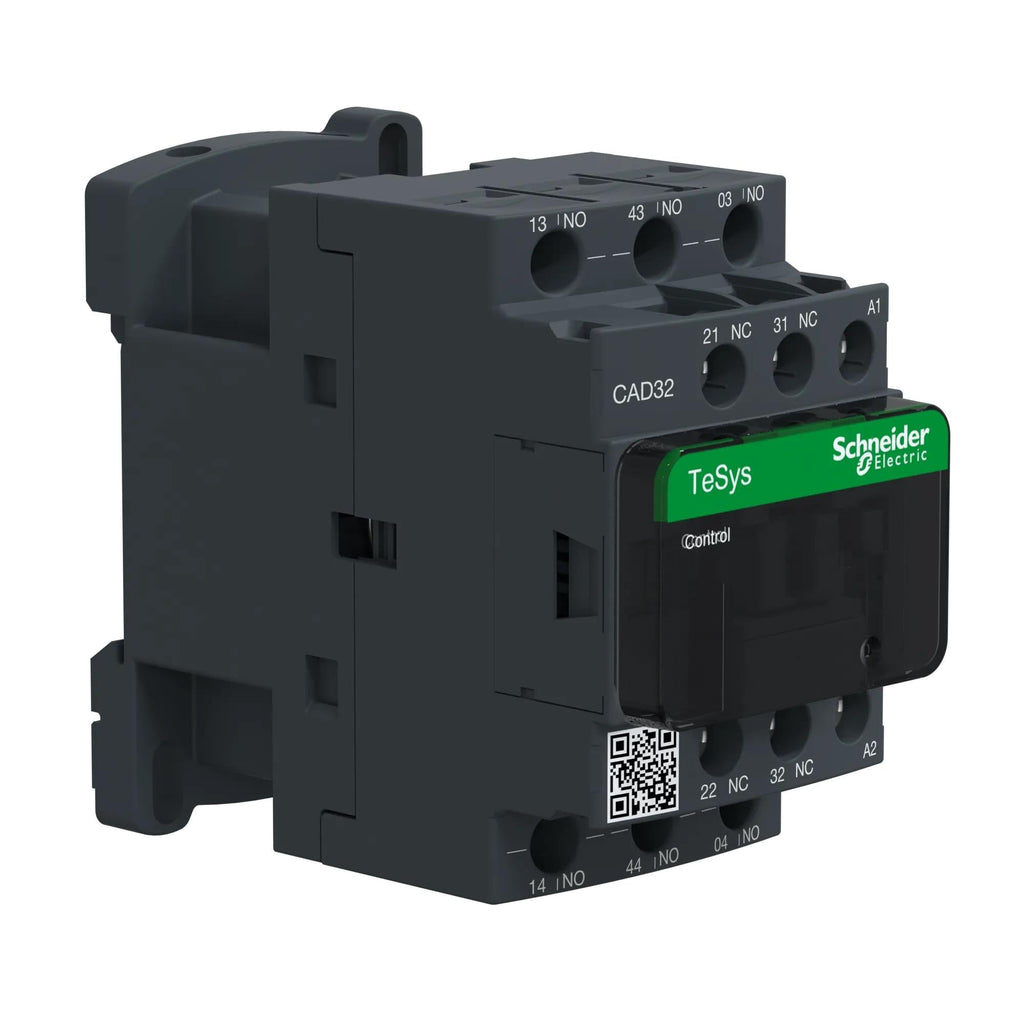

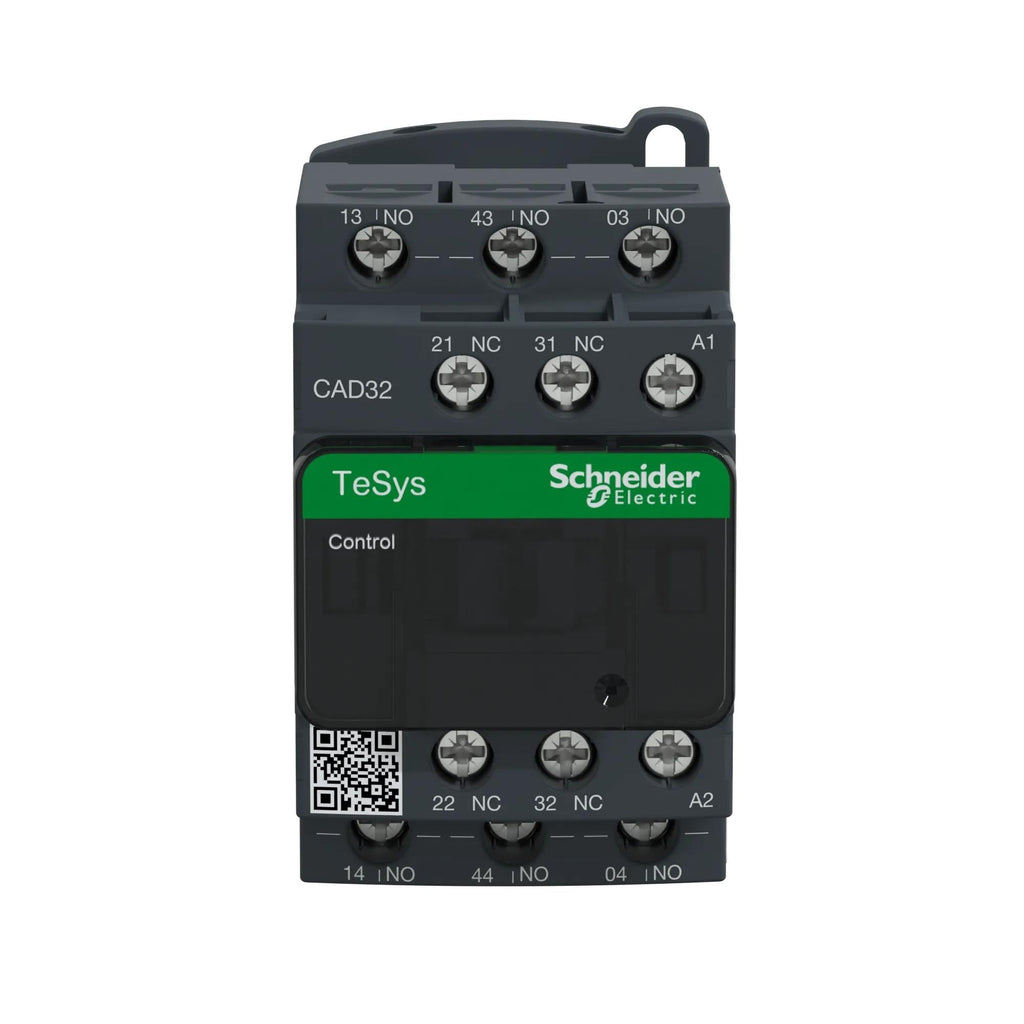

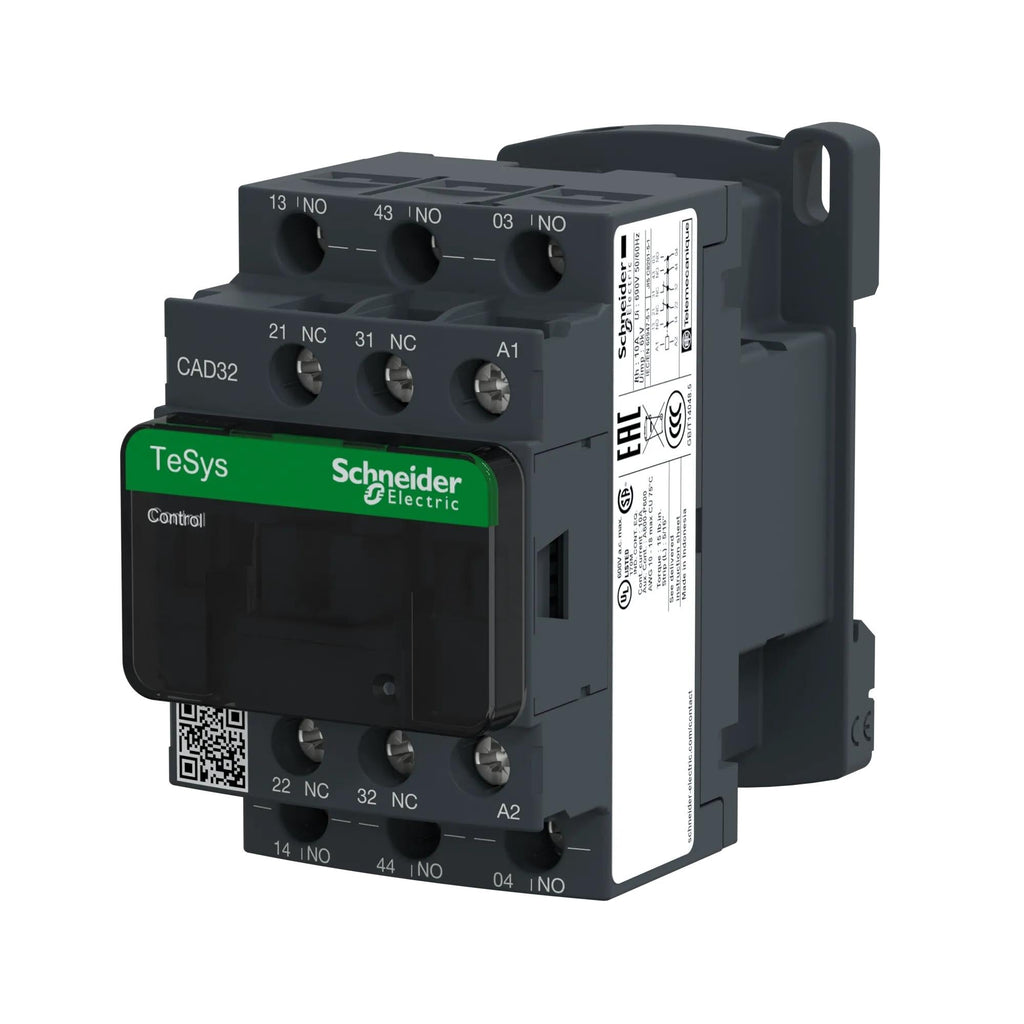

CAD32G7 is a Square D TeSys D control relay featuring 3 normally open (NO) and 2 normally closed (NC) contacts with a 10 amp rating and 120 VAC coil voltage.This control relay is designed for electromagnetic load control with a rated operational voltage up to 690 V AC and a 120 V AC 50/60 Hz coil. It supports high operating rates up to 180 cycles per minute and operates reliably in ambient temperatures from -40 to +60 degrees Celsius. The relay mounts easily on a 35 mm DIN rail or can be panel mounted using screws. It features screw clamp terminals for flexible wiring and meets multiple certifications including IEC 60947-5-1, UL, CSA, and others. The compact design measures approximately 45 mm wide.

Key Specifications
• Amperage: 10 A
• Coil Voltage: 120 VAC 50/60 Hz
• Contact Configuration: 3 NO + 2 NC
• Rated Operational Voltage: Up to 690 V AC

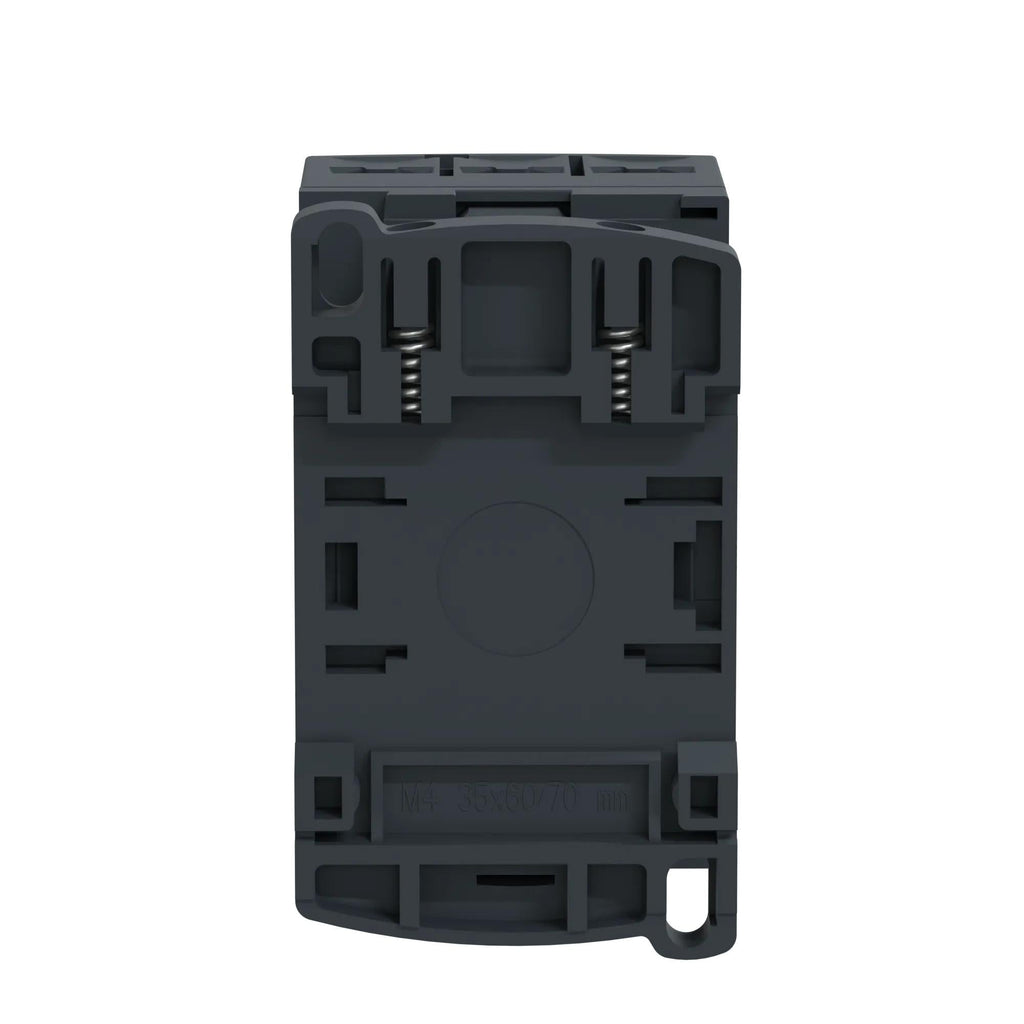

• Mounting Type: DIN rail or panel mount
• Connection Type: Screw clamp terminals
• Operating Temperature Range: -40 to +60 °C
• High Operating Rate: Up to 180 cycles/min
• Standards: IEC 60947-5-1, UL, CSA, CCC, EAC, Marine
• Impulse Withstand Voltage: 6 kV
• Dimensions: Approx. 45 mm width

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CAD32G7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Control Relay
• Family : D Series

Product Data

• UPC : 785901204848
• GTIN : 00389110401366
• Country of Origin : Indonesia
• Dimensions : 3.03 in (77 mm) x 1.8 in (45 mm) x 3.3 in (84 mm) (Height x Width x Depth)
• Weight : 0.772 lb
• Certification : CSA Certified, EAC, IEC, RoHS Compliant, UKCA, UL Listed
