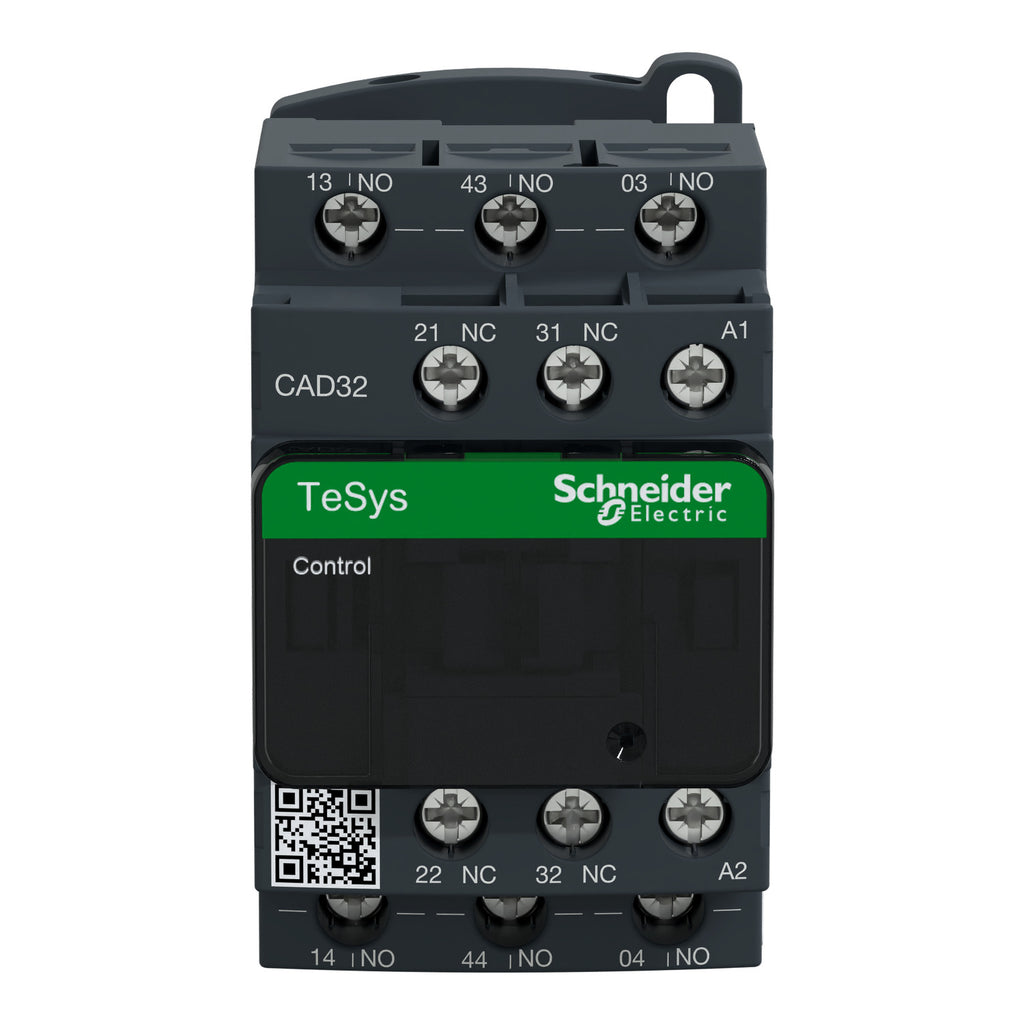

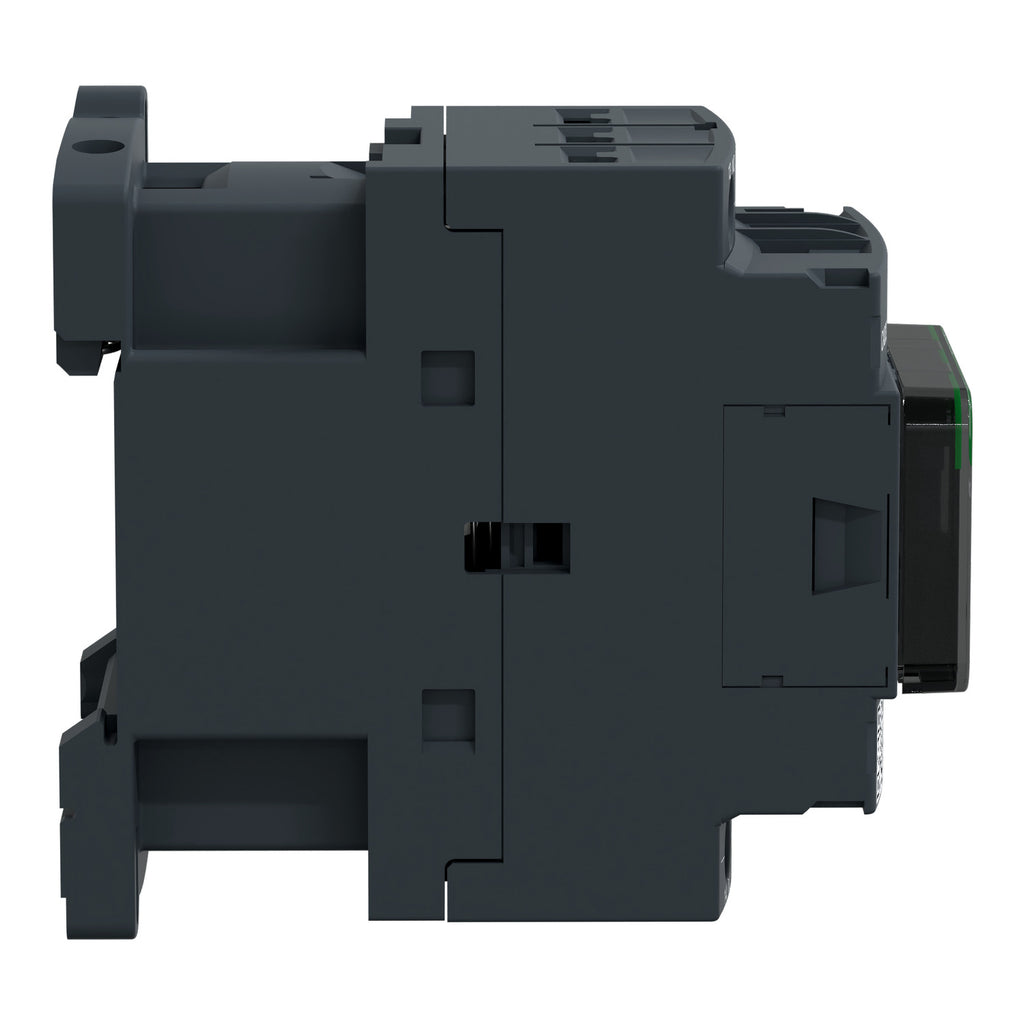

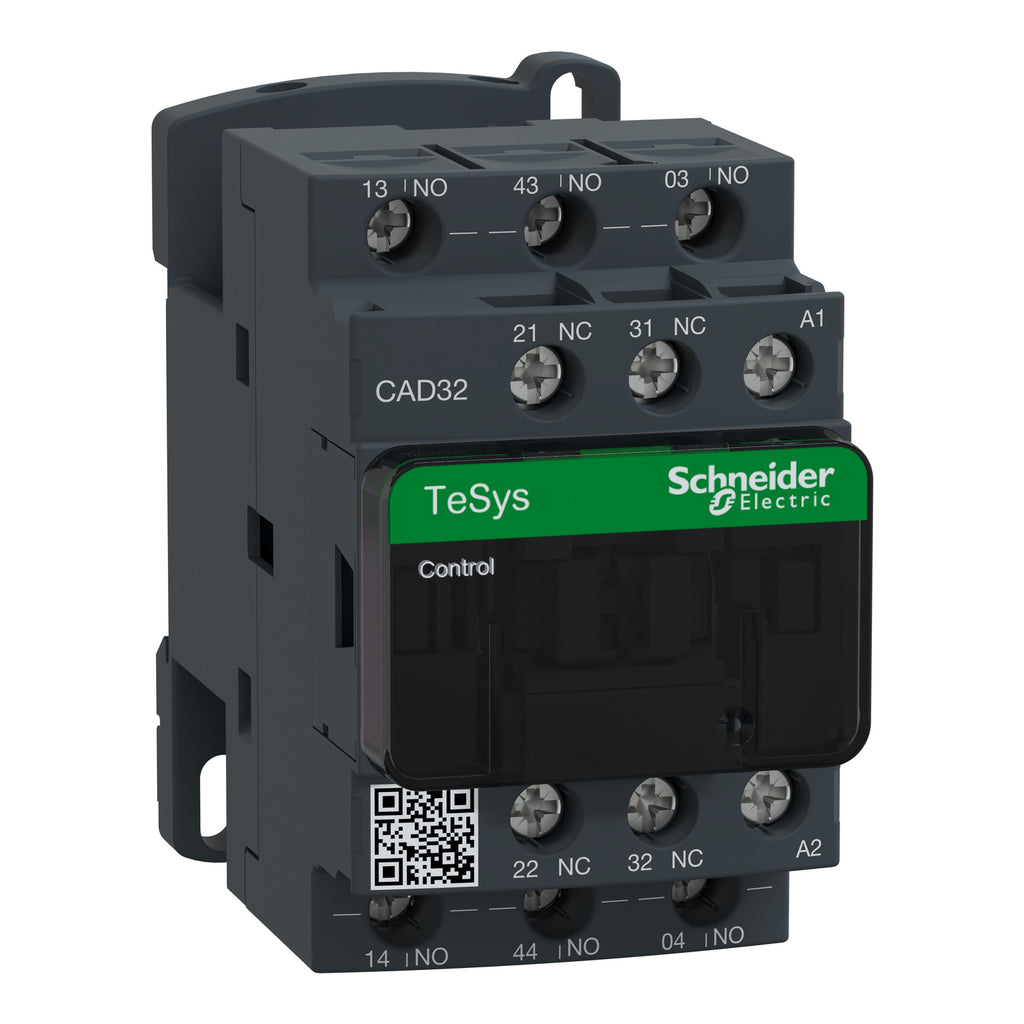

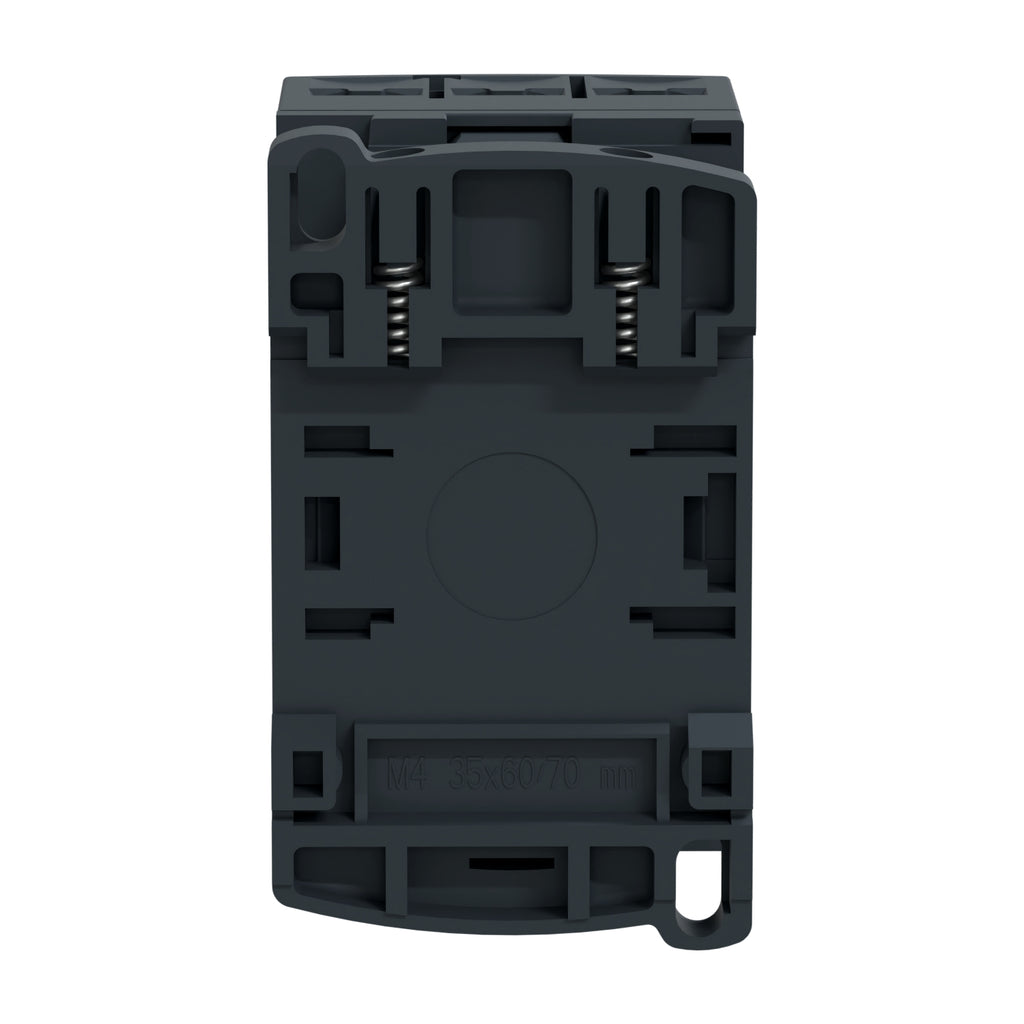

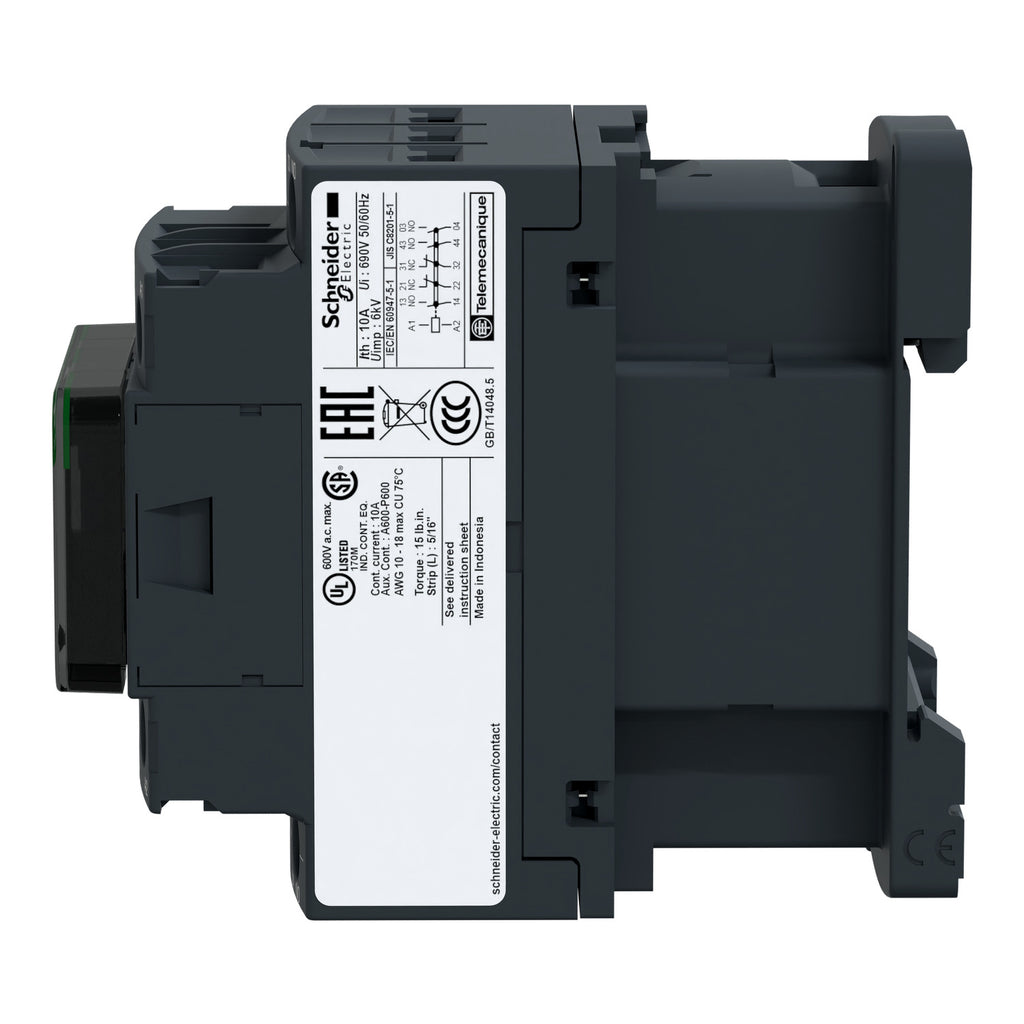

CAD32B7 - Square D 10 Amp 690V 5-Pole Control Relay 24VAC Coil DIN Rail Mount

CAD32B7

CAD32B7 is a Square D TeSys D control relay with a 24VAC coil voltage and a 10 Amp current rating designed for motor control applications.This control relay features 5 poles with 3 normally open (N/O) and 2 normally closed (N/C) contacts, rated for up to 690V AC. It supports electromagnetic load control with AC-15/DC-13 ratings and mounts easily on DIN rails or panels using screw terminals. The relay is compact and durable, suitable for multi-pole switching applications and offers expandability with auxiliary contacts. It meets international standards including IEC 60947-5-1 and has NEMA A600 and Q600 contact ratings.

• Manufacturer: Square D (Schneider Electric)
• Part Number: CAD32B7
• Coil Voltage: 24VAC, 50/60Hz
• Current Rating: 10 Amps
• Voltage Rating: Up to 690V AC
• Contact Configuration: 5 Poles (3 N/O + 2 N/C)
• Mounting Type: DIN Rail or Panel Mount
• Electrical Connection: Screw Terminals
• Standards: IEC 60947-5-1, NEMA A600, Q600
• Duty Cycles: Up to 30,000,000
• Operating Temperature Range: -40 to 70°C
• Dimensions (HxWxD): 77mm x 45mm x 84mm

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CAD32B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 38911039921
• GTIN : 03389110399219
• Country of Origin : Indonesia
• Dimensions : 3.03 in (77 mm) x 1.8 in (45 mm) x 3.3 in (84 mm) (Height x Width x Depth)
• Weight : 0.816 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA Certified, EAC, IEC, RoHS Compliant, UKCA, UL Listed
