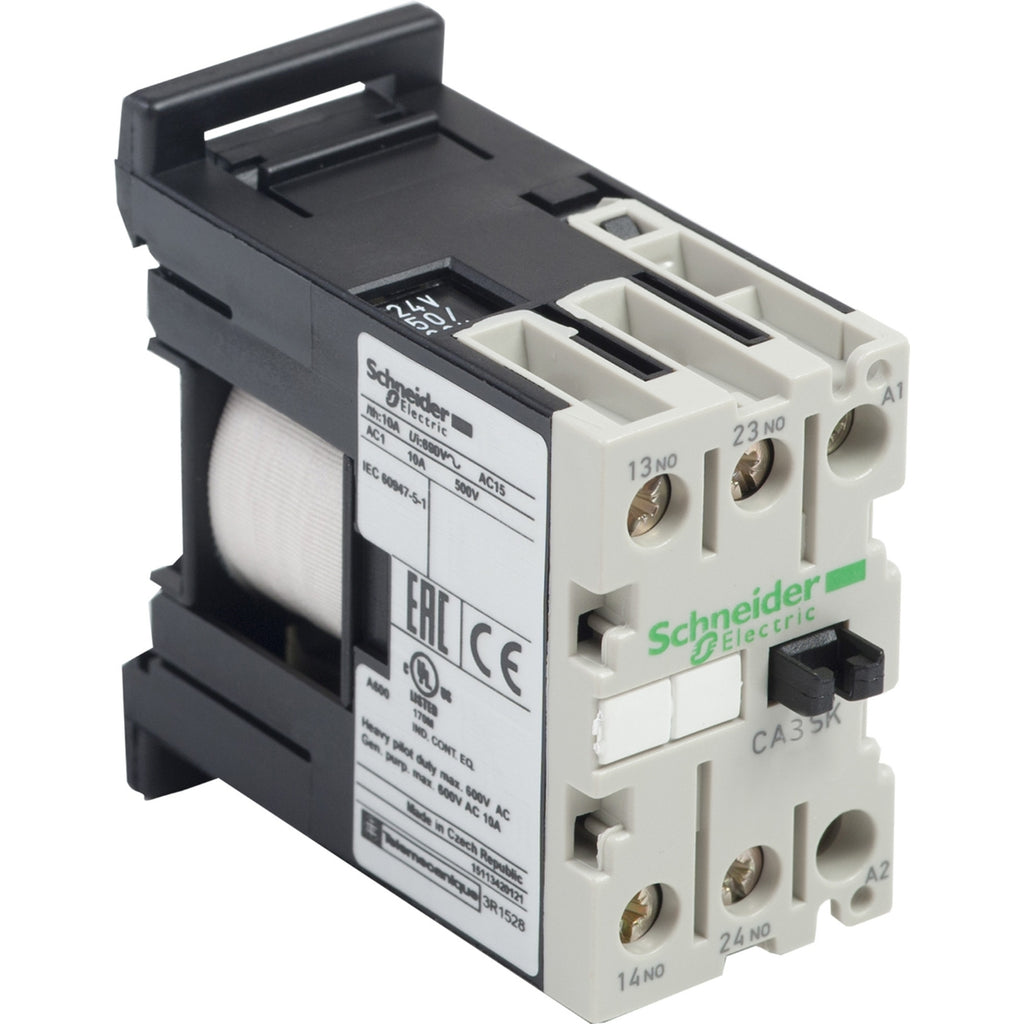

CA3SK20BD - Square D 10A 24VDC 2NO IEC Control Relay, Screw Clamp, Din Rail Mount

CA3SK20BD

CA3SK20BD is a Square D TeSys industrial control relay designed for reliable switching in motor control applications. This relay features a 24VDC control coil, 10A contact rating, and 2 normally open (2NO) contacts for versatile circuit control. It is mounted on a DIN rail and uses screw clamp terminals for secure wiring connections. The relay provides stable performance with no inrush consumption and supports operating rates up to 20 cycles per minute. Suitable for use in industrial environments requiring dependable switching and long service life. Key Specifications

• Part Number: CA3SK20BD
• Manufacturer: Square D
• Series: TeSys
• Control Voltage: 24VDC
• Current Rating: 10A
• Contacts: 2NO (2 Pole)
• Terminal Type: Screw Clamp
• Mounting: DIN Rail
• Operating Rate: 20 cycles/min
• Interrupt Rating: 600VAC
• Ambient Temperature: -25°C to +55°C
• Standards: IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CA3SK20BD
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 783164063004
• GTIN : 00389110564283
• Country of Origin : Czechia
• Dimensions : 2.2 in (56 mm) x 1.06 in (27 mm) x 2.2 in (55.5 mm) (Height x Width x Depth)
• Weight : 0.273 lb
• Certification : CCC, CSA Certified, EAC, IEC, REACH, RoHS Compliant, UL Listed
