- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
CA3KN22BD

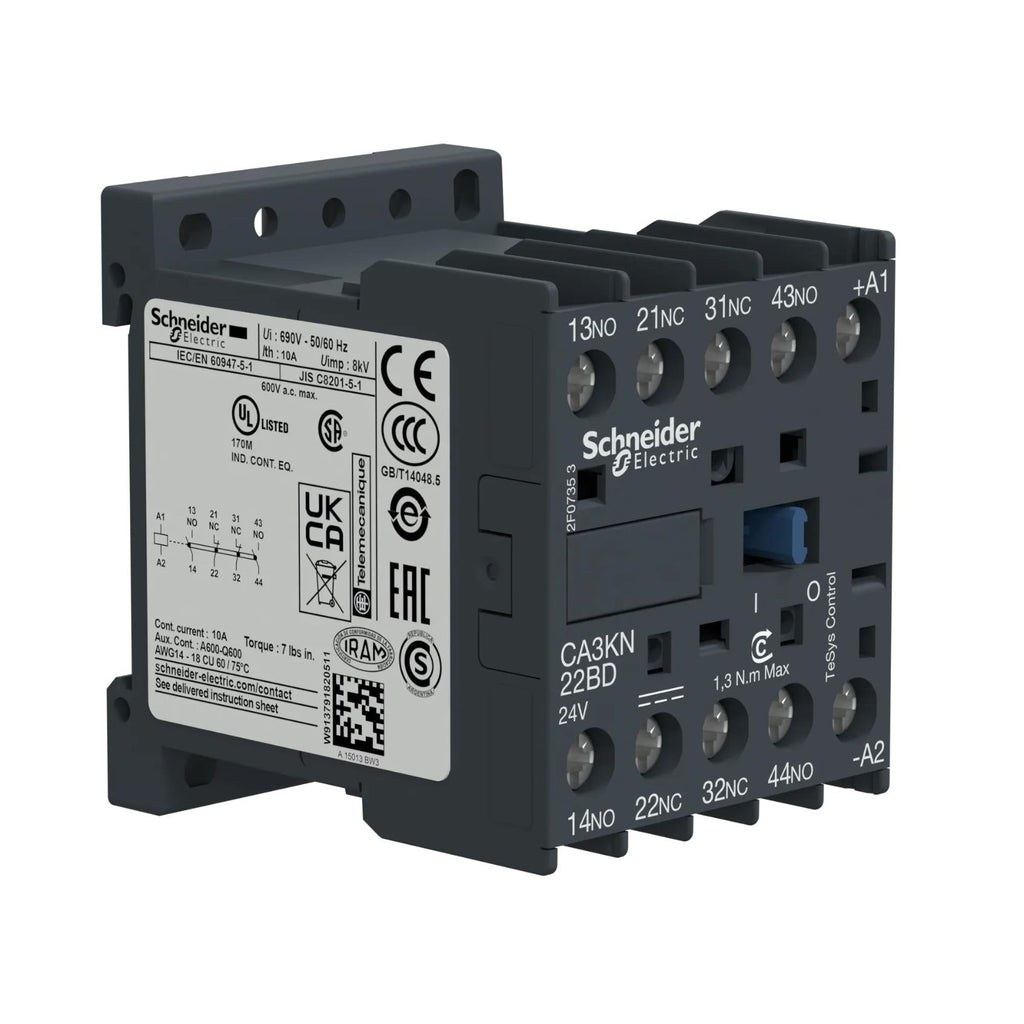

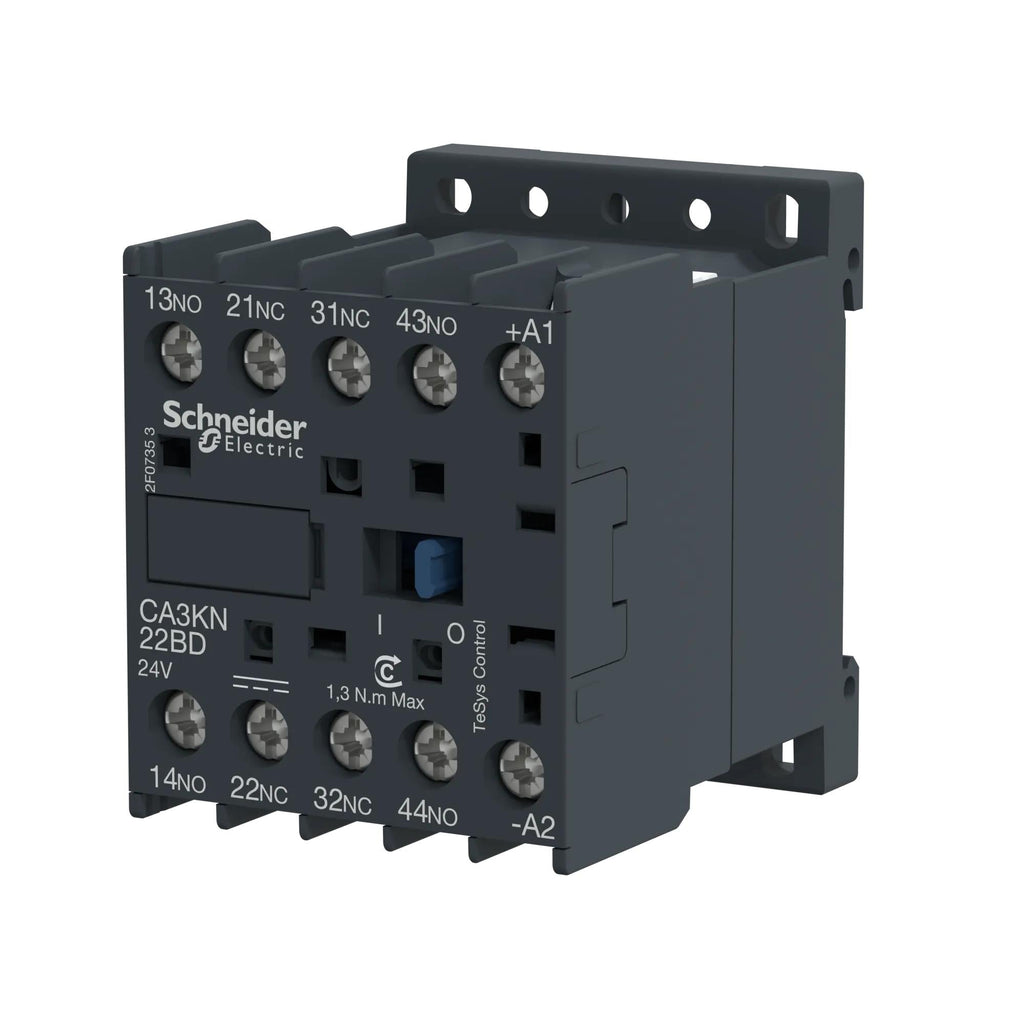

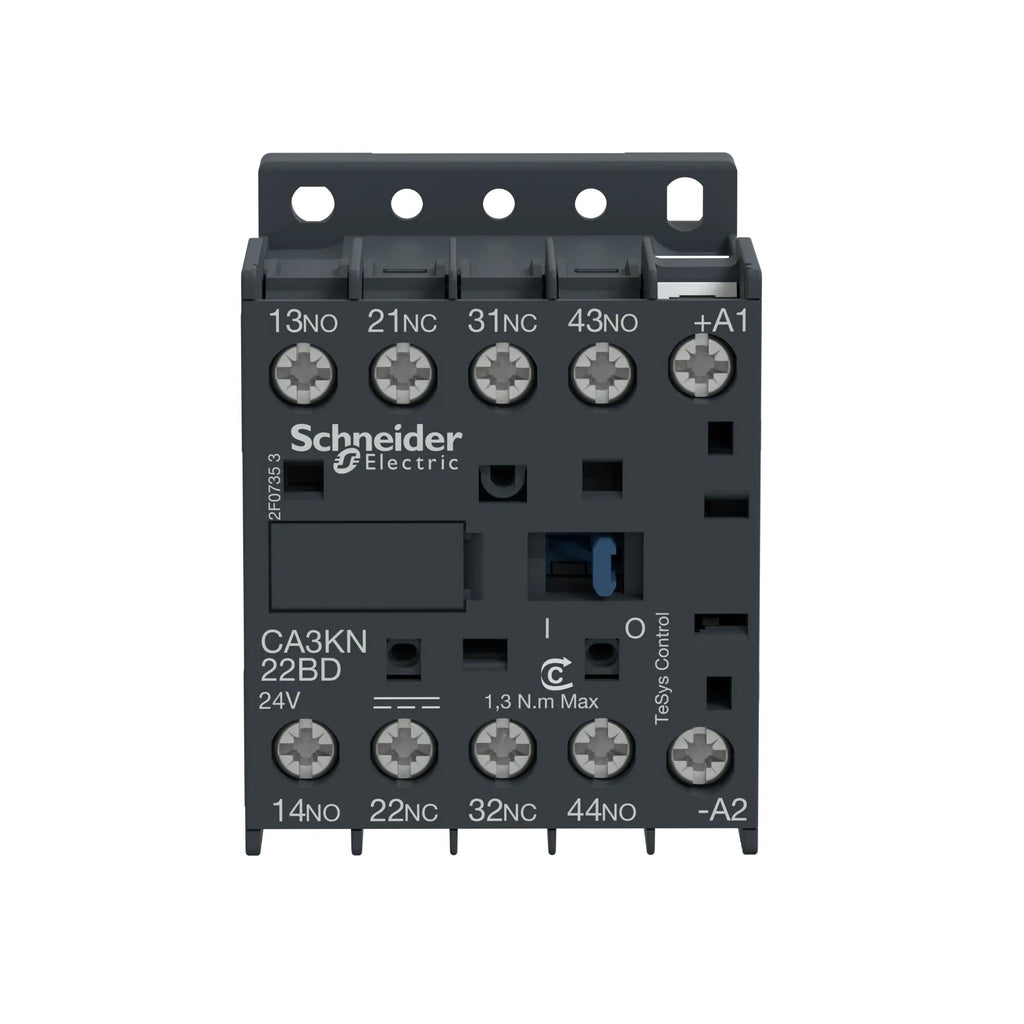

CA3KN22BD is a Square D TeSys K series control relay designed for reliable motor control and electromagnetic load management.This compact control relay features 4 contacts (2 normally open + 2 normally closed) rated for 10A at up to 690V AC, with a 24V DC coil voltage and no inrush current consumption. It supports high operating rates up to 180 cycles per minute and is suitable for mounting on a 35mm DIN rail or panel screw mounting. The relay meets multiple international standards including IEC, UL, CSA, and RoHS compliance, ensuring durability and safety in industrial applications.
- Key Specifications
- Manufacturer: Square D
- Part Number: CA3KN22BD
- Series: TeSys K
- Coil Voltage: 24 VDC
- Contact Configuration: 2 NO + 2 NC
- Contact Rating: 10A at 690V AC

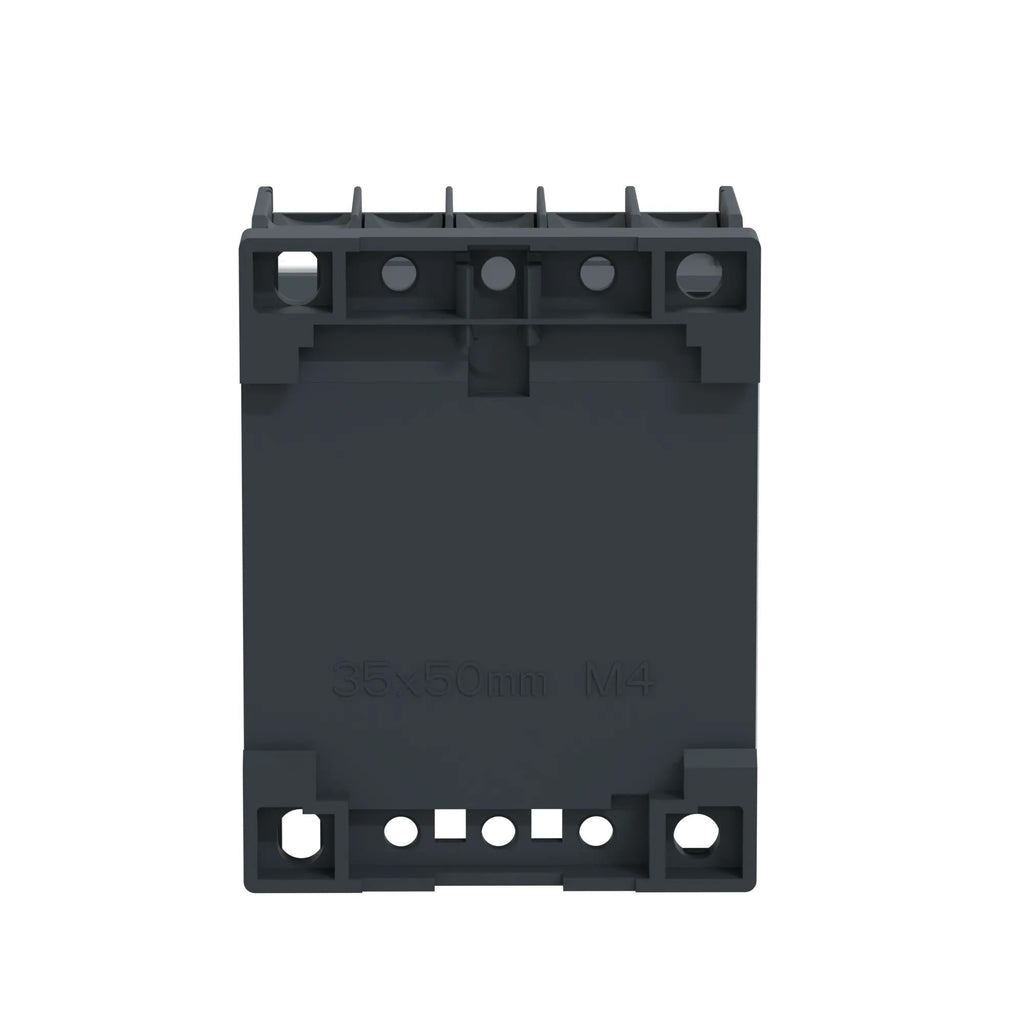

- Mounting Type: 35mm DIN rail or screw mount
- Operating Temperature: -25°C to +50°C
- Standards: IEC, UL, CSA, RoHS, REACh
- Dimensions: 2.08 x 1.77 x 2.24 inches
- Weight: 0.50 lbs
- Part Number: CA3KN22BD
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Relays
- Family : CA3K Series
- Type : CA3KN
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- UPC : 3389110500172
- GTIN : 03389110500172
- Country of Origin : Indonesia
- Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
- Weight : 0.487 lb
- Certification : CCC, CSA Certified, EAC, IEC, REACH, RoHS Compliant, UL Listed
