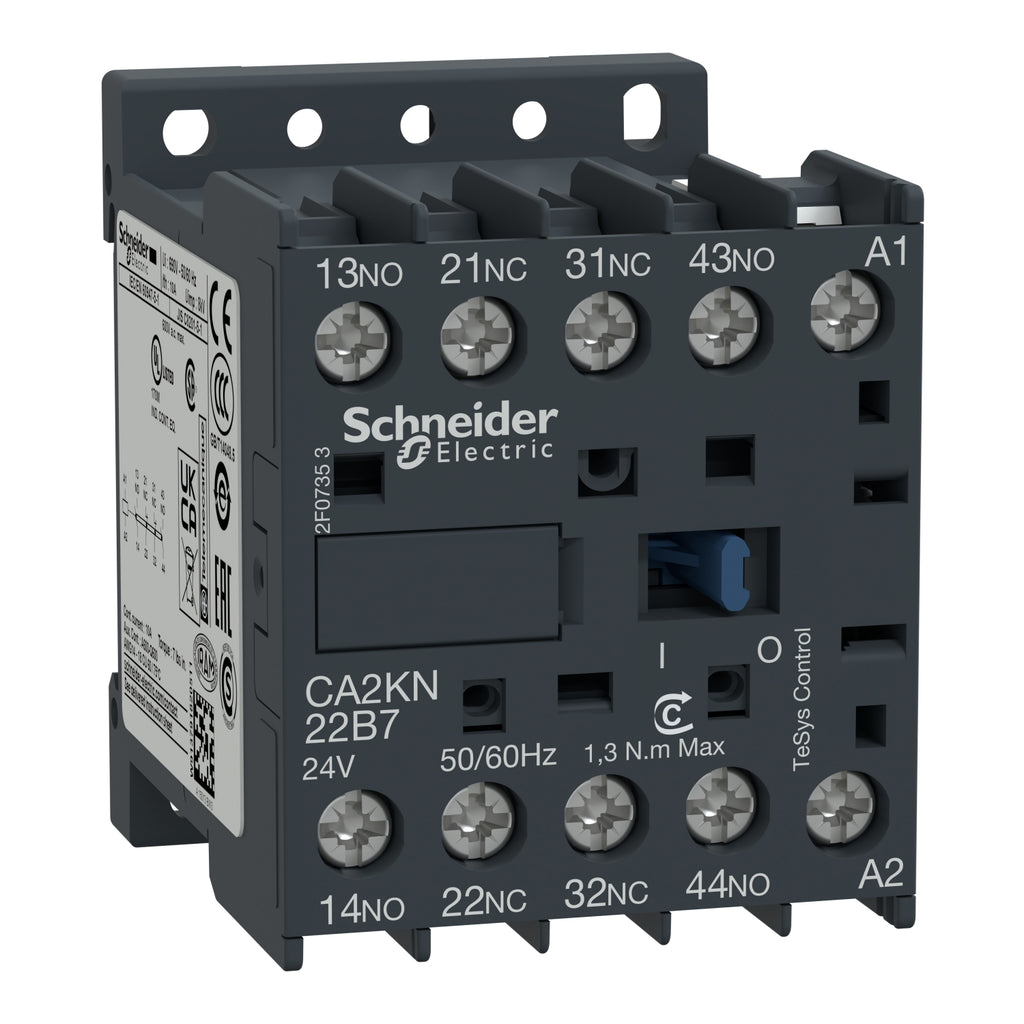

CA2KN22B7 - Square D TeSys K Control Relay 10A 690V 4-Pole 2NO 2NC 24VAC Coil Screw Terminals

CA2KN22B7

CA2KN22B7 is a Square D TeSys K control relay featuring 2 normally open (NO) and 2 normally closed (NC) contacts, rated for 10 amps at up to 690 volts with a 24VAC coil.CA2KN22B7 offers reliable control of electromagnetic loads with a 24VAC 50/60Hz coil and screw clamp terminals for secure connections. It supports DIN rail or panel mounting and provides mechanical durability up to 10 million cycles with an operating rate of 10,000 cycles per hour. The relay complies with IEC 60947 and other international standards, ensuring robust performance in industrial motor control applications.

Key Specifications
• Contact Configuration: 2 NO + 2 NC
• Rated Operational Voltage: ≤ 690 V
• Coil Voltage: 24 VAC, 50/60 Hz
• Current Rating: 10 A thermal current at ≤ 50 °C
• Mounting Type: DIN Rail or Panel Mount
• Terminal Type: Screw Clamp Terminals
• Mechanical Durability: 10 million cycles
• Operating Rate: 10,000 cycles/hour
• Standards: IEC 60947, BS 5424, VDE 0660
• Operating Temperature Range: -25 to 50 °C
• Dimensions (HxWxD): 58 mm x 45 mm x 57 mm
• Weight: 0.18 kg (0.40 lbs)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CA2KN22B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 3389110500271
• GTIN : 03389110500271
• Country of Origin : Indonesia
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.392 lb
• Certification : CCC, CSA Certified, EAC, IEC, REACH, RoHS Compliant, UL Listed
