Description
C3R363612HCR

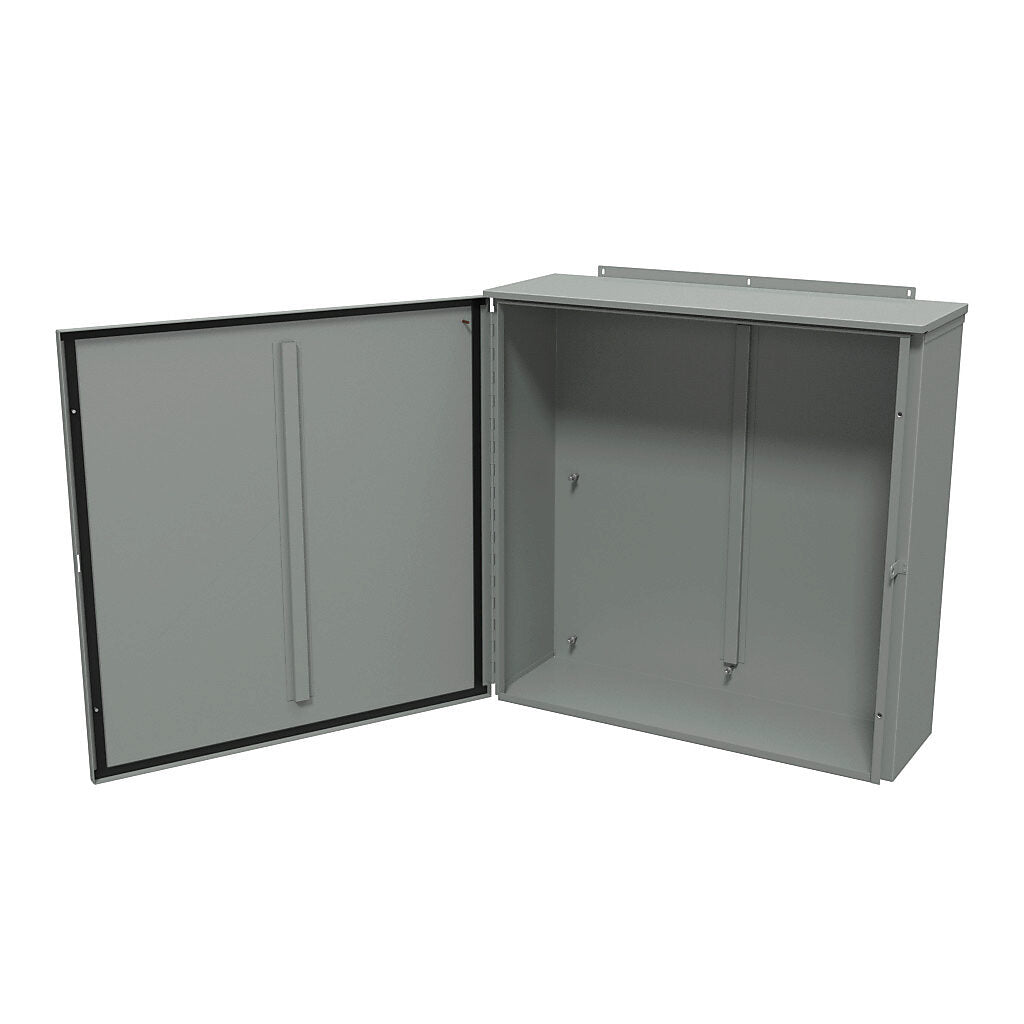

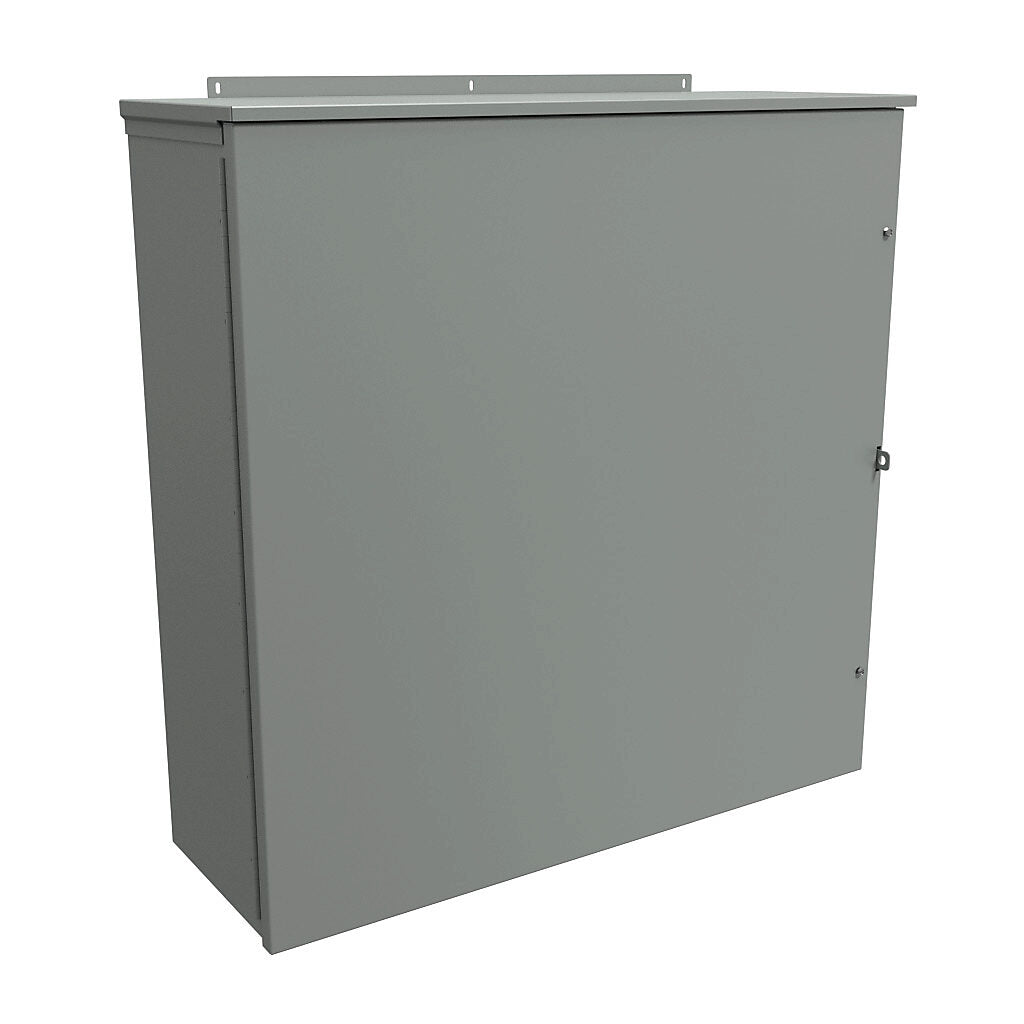

C3R363612HCR is a Hammond Manufacturing circuit breaker enclosure designed for robust protection in industrial environments.This enclosure features a Type 3R rating, constructed from galvanized steel with a powder-coated ANSI 61 gray finish. It measures 36 inches high by 36 inches wide by 12 inches deep and includes a hinged cover for easy access. The enclosure is wall-mountable and suitable for outdoor or indoor use where protection against rain, sleet, and external ice formation is required. The panel is not included.
- Key Specifications
- Dimensions: 36in H x 36in W x 12in D
- Material: Galvanized Steel
- Finish: Powder Coated, ANSI 61 Gray
- Mounting Type: Wall Mount
- Cover Type: Hinged
- NEMA Rating: 3R
- Panel: Not Included
- Standards: UL 50 Compliant
- Part Number: C3R363612HCR
- Manufacturer : Hammond
- Brand : Hammond Mfg
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- UPC : 62398036209
- GTIN : 00623980362090
- Country of Origin : Canada
- Dimensions : 36 in x 36 in x
- Weight : 3
- Certification : UL-50 Type 3R; CSA Type 3R Complies with NEMA Type 3R IEC 60529, IP24; Complies with; NEMA Type 3R; IEC 60529, IP24
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
