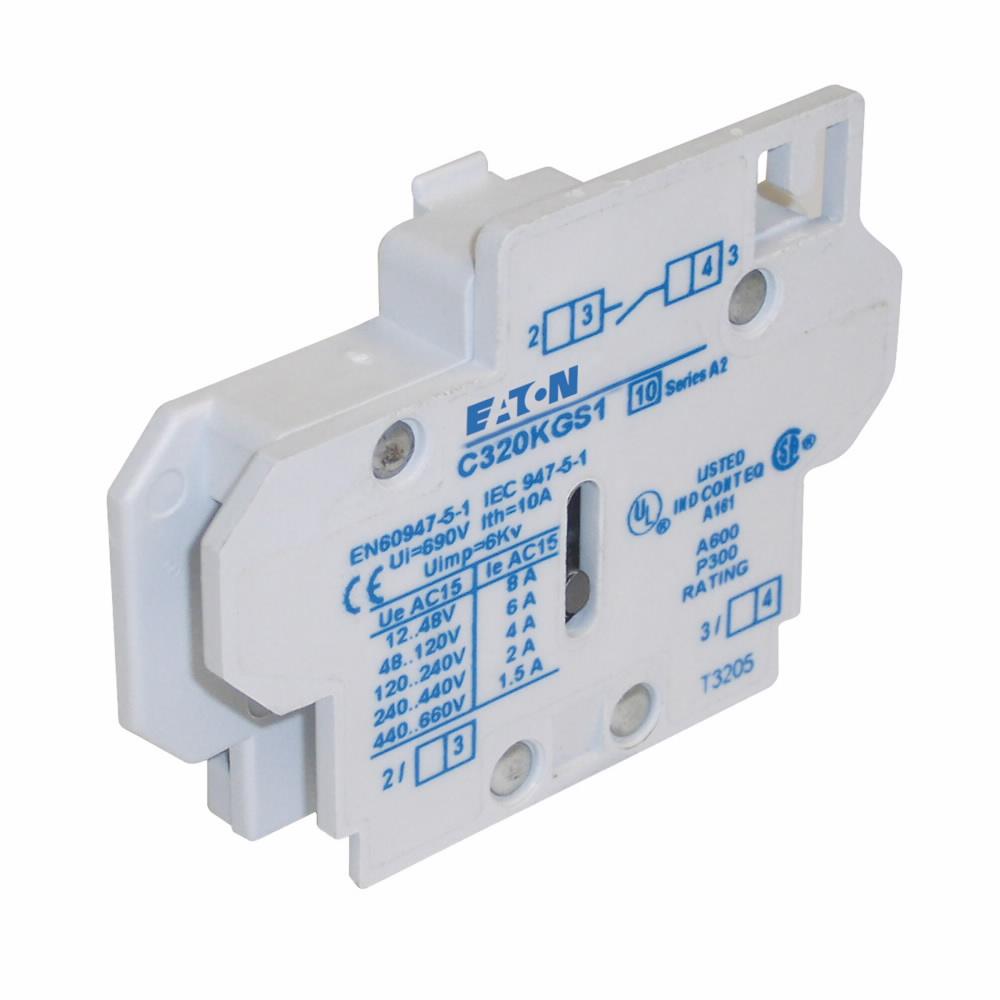

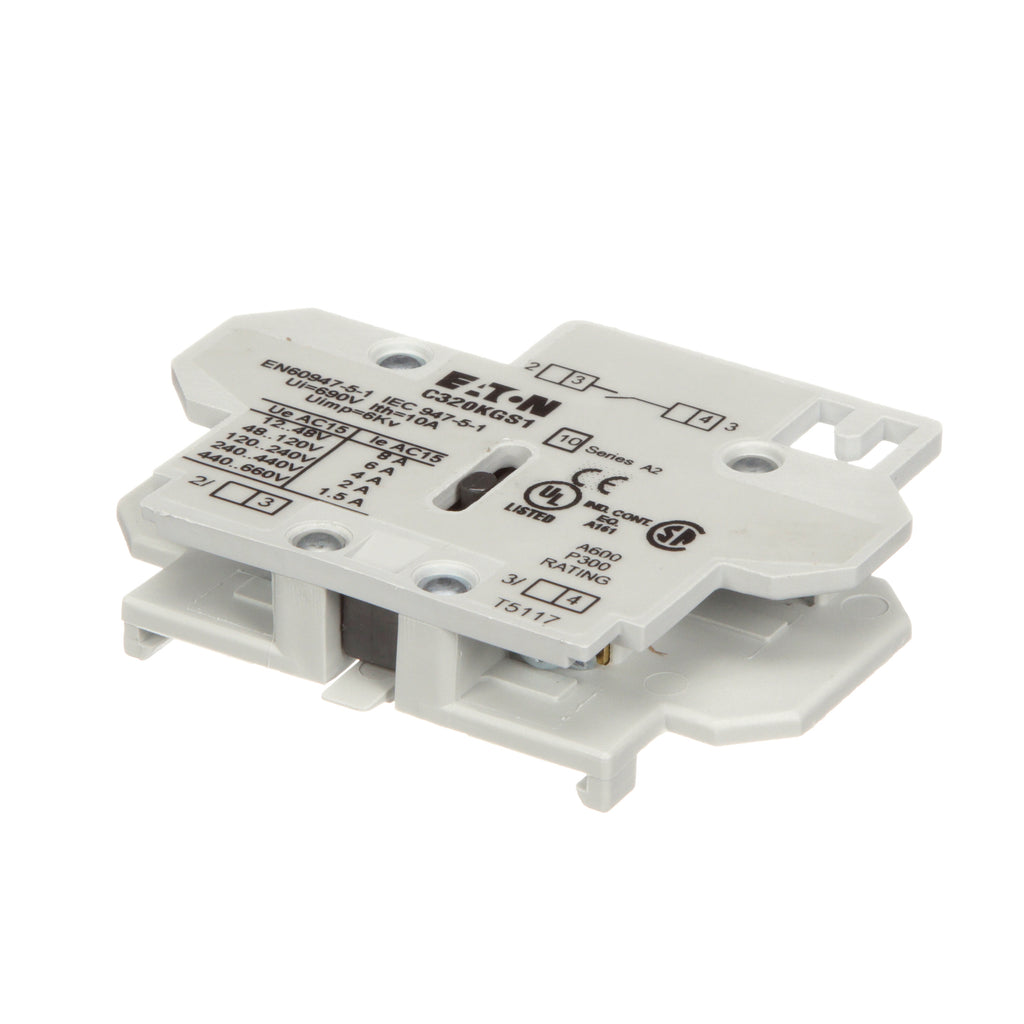

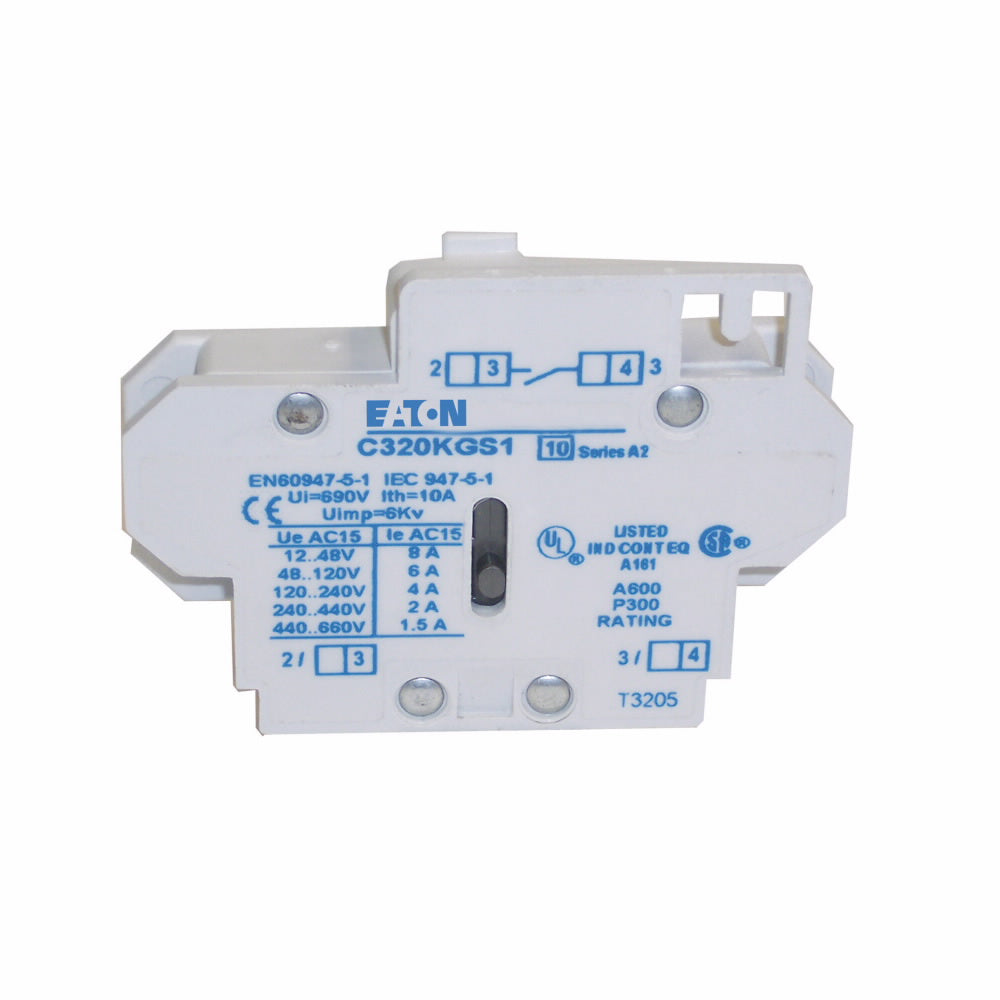

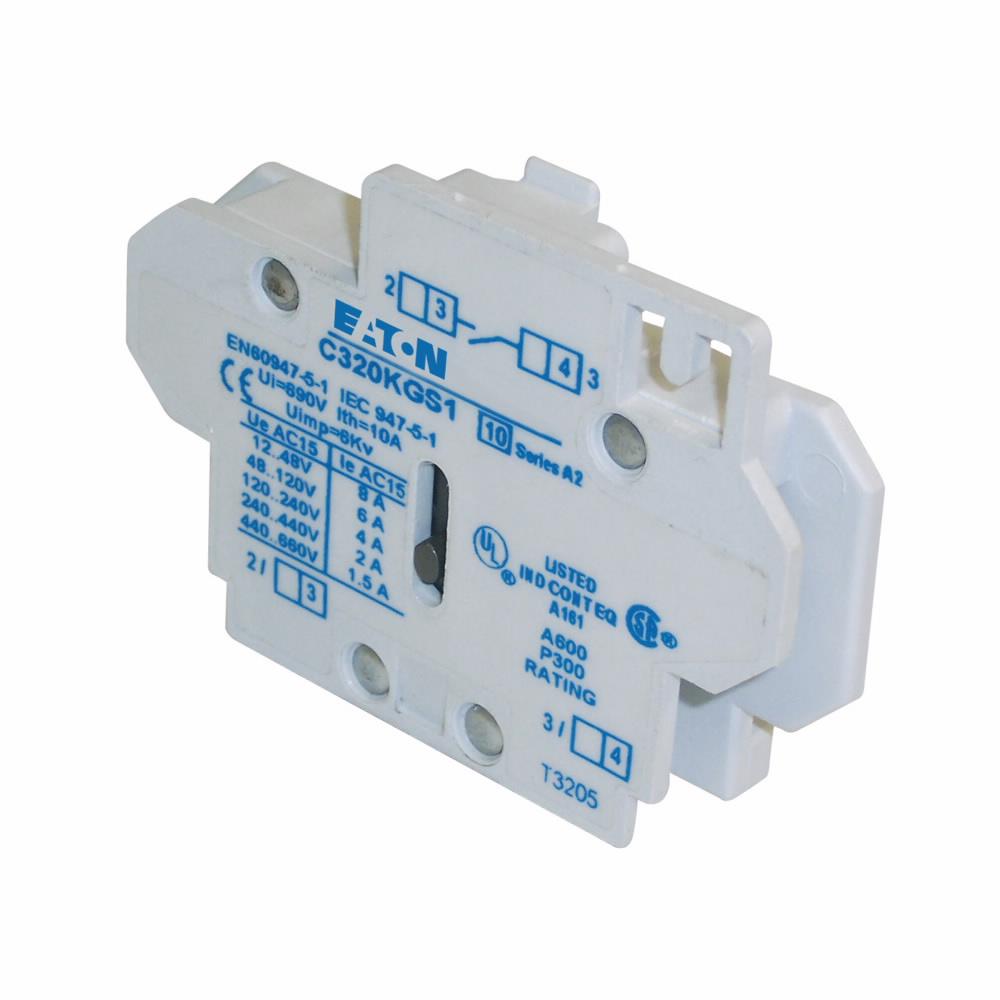

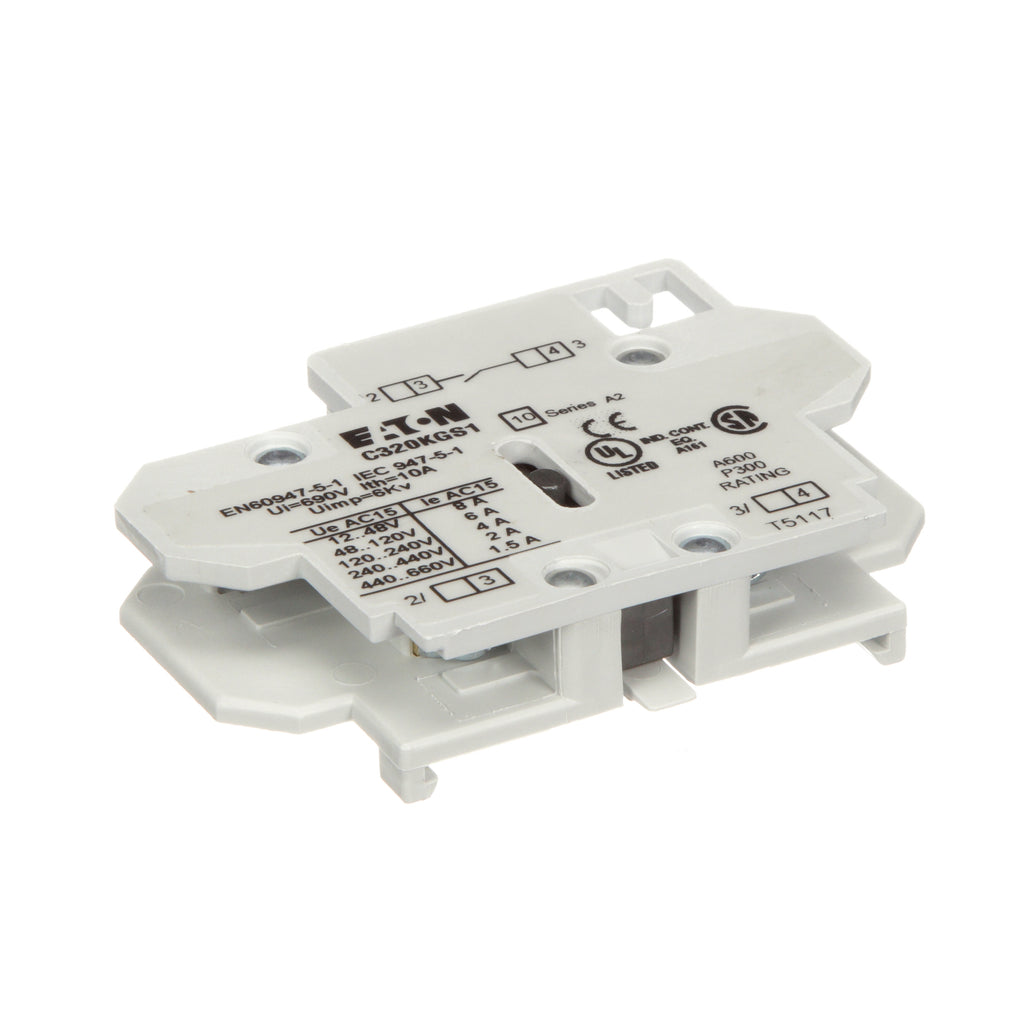

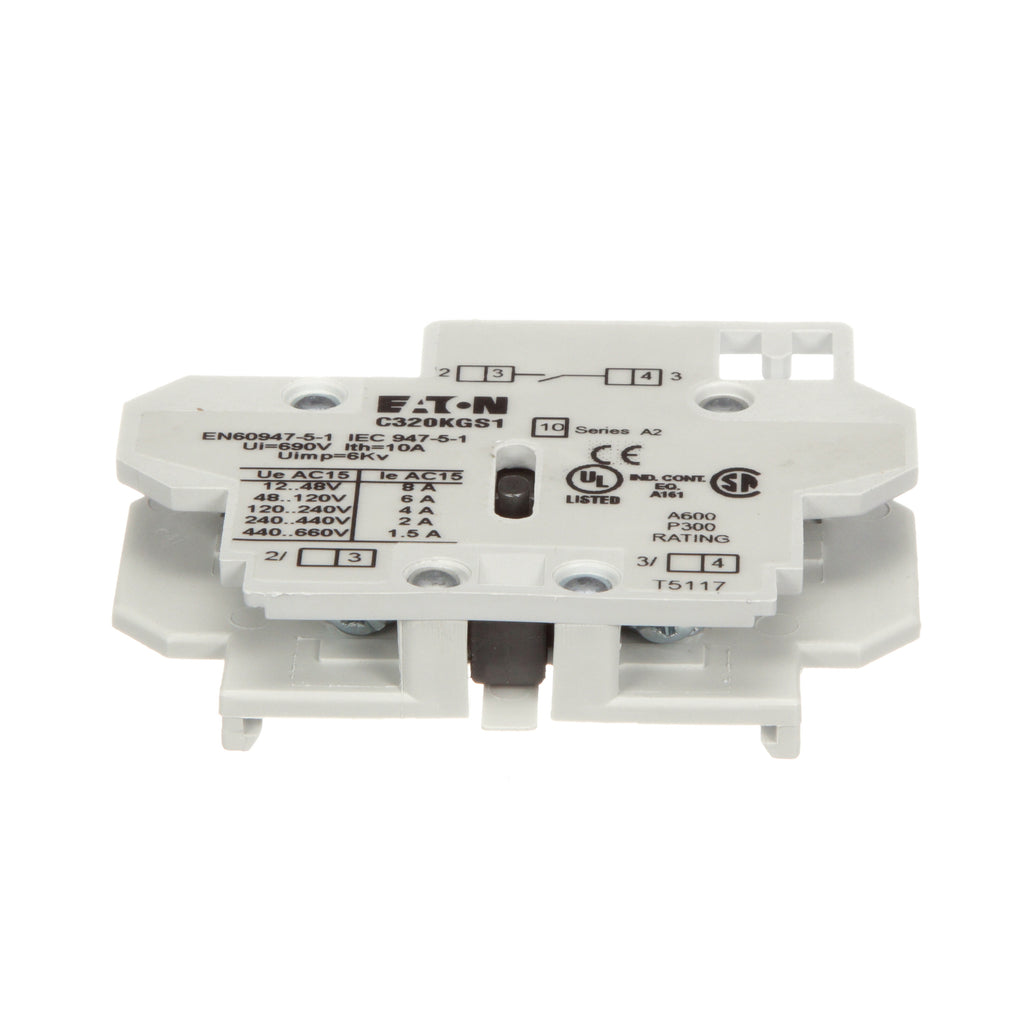

C320KGS1 - Cutler Hammer Auxiliary Contact Block 10A 600VAC 1NO Side Mount Freedom Series

C320KGS1

C320KGS1 is a Cutler Hammer auxiliary contact block designed for motor control applications, providing a reliable 1 normally open (1NO) contact configuration.

This side-mounted auxiliary contact snaps onto the side of Freedom Series starters and contactors, supporting up to 10 amps at 600VAC/VDC. It features screw terminals for secure wiring and is UL recognized, CSA certified, and compliant with IEC and EN 60947-4-1 standards. The compact design fits sizes 00 to 2 NEMA starters and is RoHS compliant.

Key Specifications
• Part Number: C320KGS1
• Manufacturer: Cutler Hammer (Eaton)
• Contact Configuration: 1 Normally Open (1NO)
• Current Rating: 10 Amps
• Voltage Rating: 600 VAC/VDC
• Mounting Type: Side Mount
• Compatible Series: Freedom Series Starters and Contactors
• Terminal Type: Screw Terminals
• Certifications: UL Recognized, CSA Certified, IEC 60947-4-1, EN 60947-4-1, CE Mark
• RoHS Compliant
• Dimensions: 2" x 2.5" x 3.5"
• Weight: 48 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C320KGS1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Family : Freedom Series
• Type : C320
• Voltage : 120/600 AC
• Configuration : 1NO

Product Data

• UPC : 782113413488
• GTIN : 00782113413488
• Country of Origin : Dominican Republic
• Dimensions : 3.5 in x 2 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 0.1 lb
• Certification : cUL Listed
