C2M0500MQMJ Hammond 500VA Molded Control Transformer, 240x480V Primary to 120x240V Secondary

C2M0500MQMJ

C2M0500MQMJ Hammond 500VA Molded Control Transformer, 240x480V Primary to 120x240V Secondary

The C2M0500MQMJ is a 500VA molded style control transformer manufactured by Hammond Power Solutions, rated for 240x480V primary and 120x240V secondary voltage at 50/60 Hz, single phase. It is UL Listed (File E50394), CSA certified, CE marked, and RoHS compliant, with a 130 deg C insulation class and an 80 deg C temperature rise.

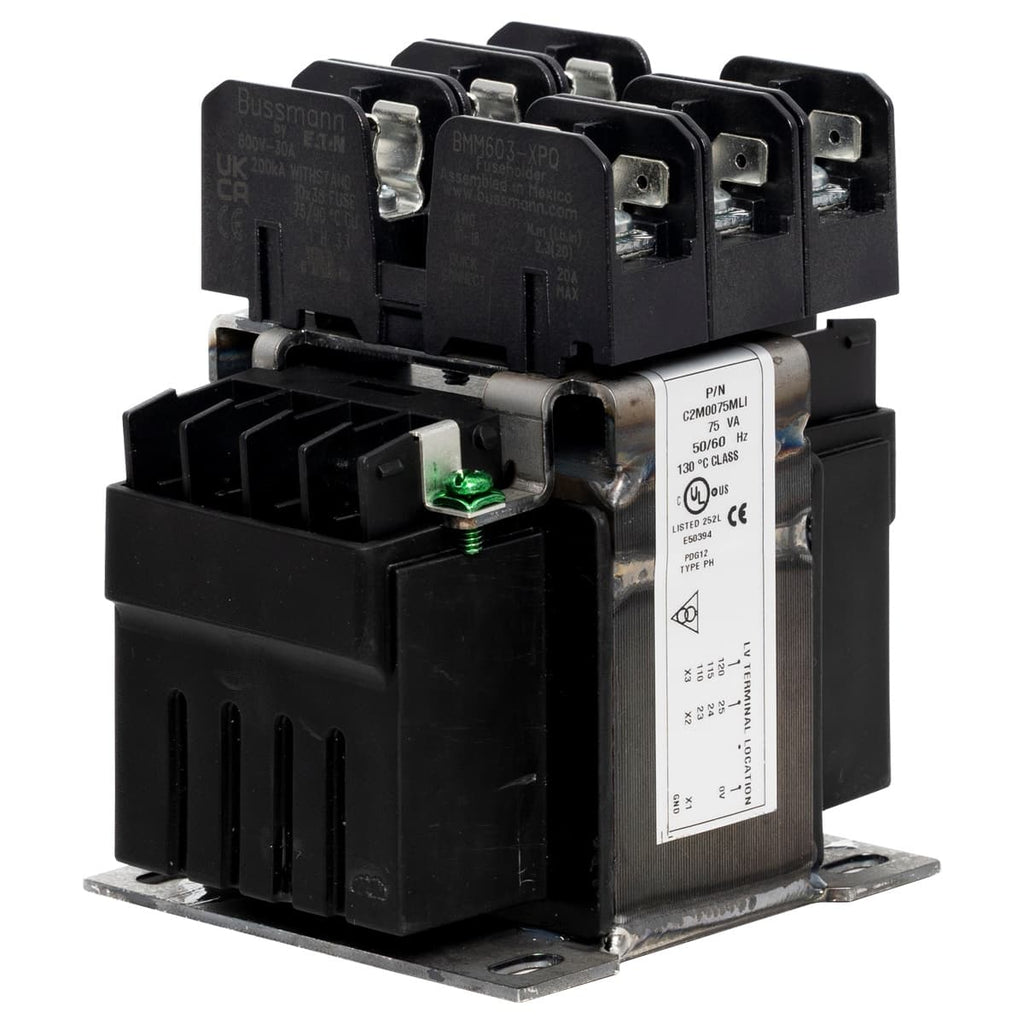

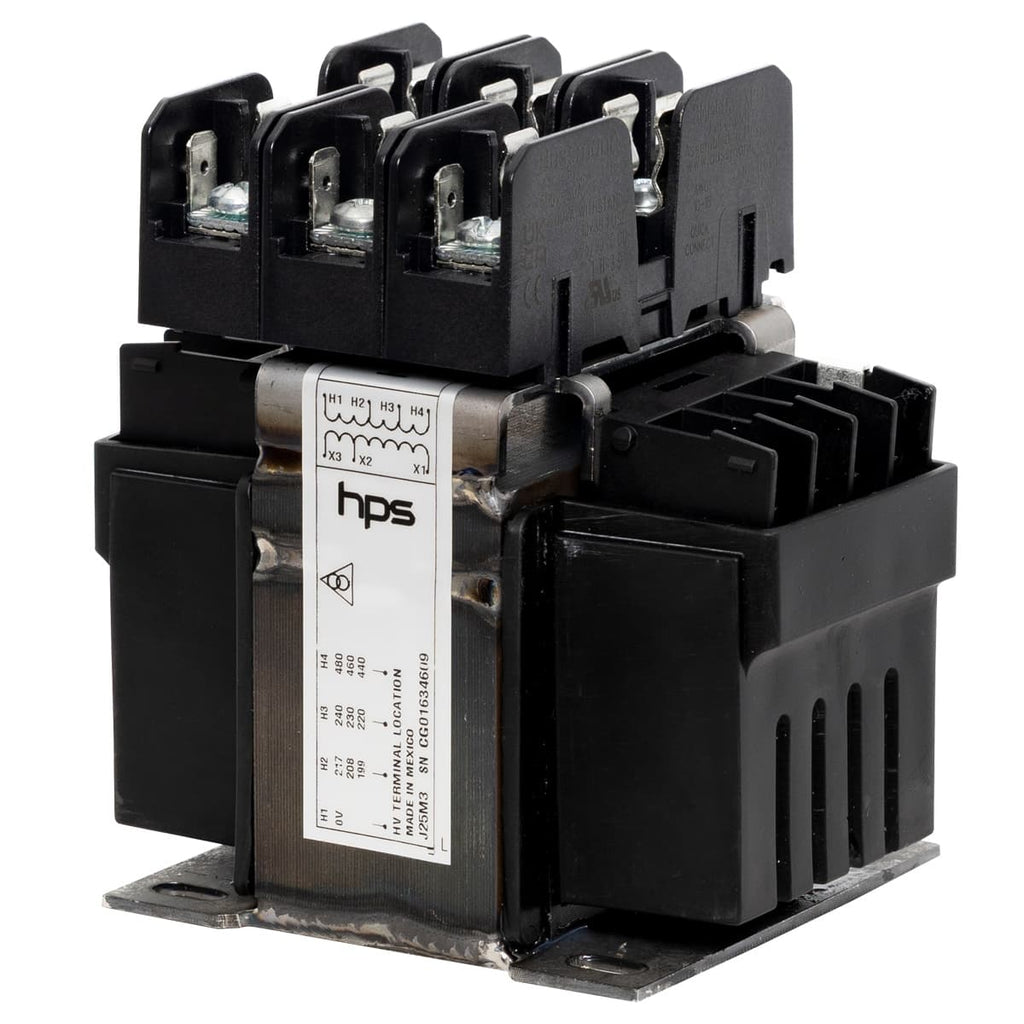

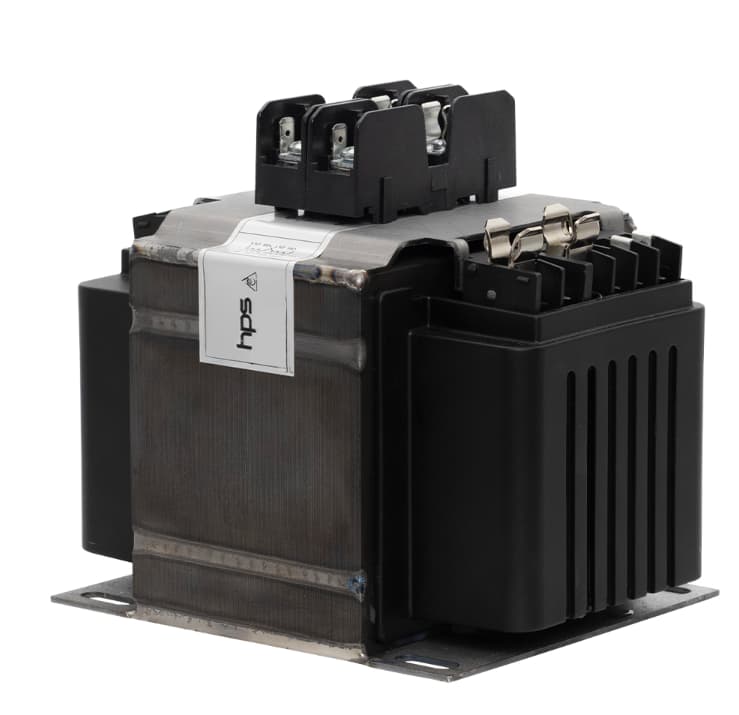

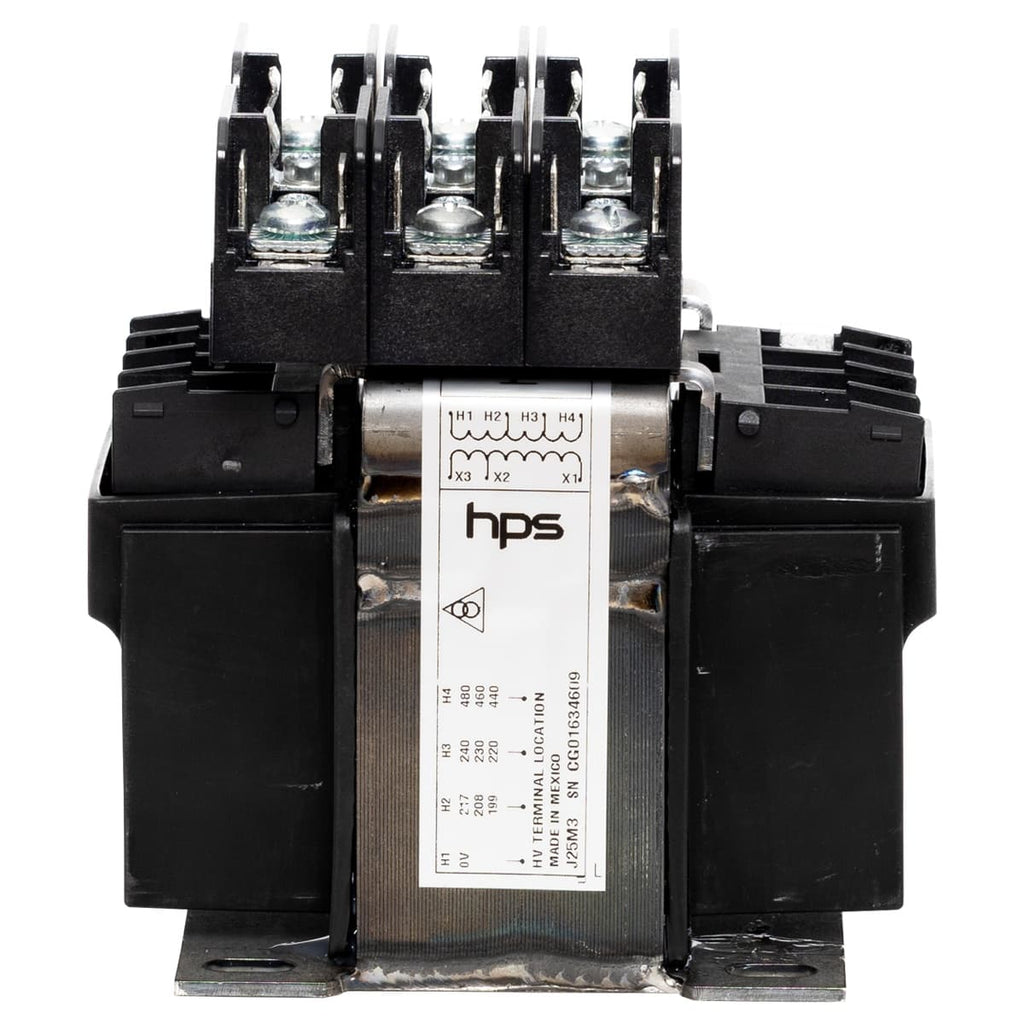

Construction features copper-wound coils on a welded core and base, terminal block connections, and a single-point grounding provision. The unit is built for high inrush loads such as relays, solenoids, and magnetic motor starters, with a full load watts loss rating of 43.4 watts.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Motor control centers and machine automation panels
• HVAC control panels
• Process control systems
• Panel shop and control board builds
• Power timers, solenoids, and controllers
• Battery storage system controls

Key Features

• High inrush design: Rated for relays, solenoids, and magnetic motor starters without nuisance tripping.
• Copper-wound coils: Silicon steel laminations support stable secondary voltage and long life.
• Welded core and base: Mechanical strength for mounting and shipping durability.
• Single-point grounding: Simplifies code-compliant grounding during installation.
• Terminal block termination: Speeds wiring on both primary and secondary.
• Lifetime warranty: Hammond backs molded style control transformers for life.

Specifications

• VA Rating: 500VA
• Phase: 1 (Single Phase)
• Frequency: 50/60 Hz
• Primary Voltage: 240x480V
• Secondary Voltage: 120x240V
• Secondary Amps: 4.17/2.08 A
• Connection (Pri/Sec): Parallel x Series (Vx2V)
• Termination: Terminal Block (Pri/Sec)
• Temperature Rise: 80 deg C
• Insulation Class: 130 deg C
• Full Load Watts Loss: 43.4 Watts
• Winding Material: Copper
• Construction: Core and Coil, Molded Style
• Certifications: UL Listed (File E50394), CSA Certified, CE Marked, RoHS Compliant

Product Identification

• Country of Origin: Mexico
• Dimensions: 4.22 in H x 4.75 in W x 5.34 in D
• Weight: 10.6 lbs
• UPC: 803423216221

FAQ

What is the C2M0500MQMJ used for? A 500VA control transformer that steps 240x480V primary pow

Specifications

• Part Number: C2M0500MQMJ
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer

Product Data

• UPC : 803423216221
• Dimensions : 4.22 in H x 4.75 in W x 5.34 in D
• Weight : 10.6 lb
