Product Info
- Manufacturer:Hammond Power Solutions
Description
C2M0350MQMJ

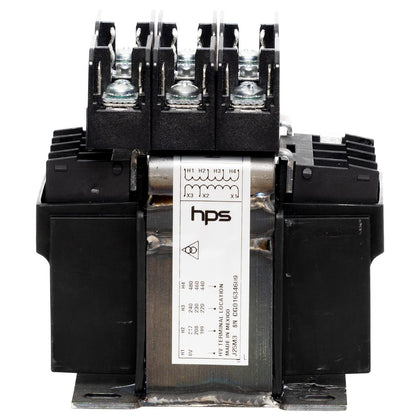

C2M0350MQMJ is a Hammond Power Solutions control transformer. This molded-style, single-phase transformer is rated 350 VA and is listed with 240 x 480 V primary and 120 x 240 V secondary voltages, 50/60 Hz operation, terminal block connections, panel mounting, and molded enclosure. Key Specifications
- Part Number: C2M0350MQMJ
- Manufacturer: Hammond Power Solutions
- Power Rating: 350 VA
- Primary Voltage: 240 x 480 V
- Secondary Voltage: 120 x 240 V
- Phase: 1
- Frequency: 50/60 Hz
- Amperage: 2.92/1.46 A
- Connection: Terminal Block
- Mounting: Panel Mounting
- Enclosure: Molded
- Insulation Temp: 130 C
Specifications
- Part Number: C2M0350MQMJ
- Manufacturer : Hammond Power Solutions
- Brand : Hammond Power Solutions
- Category : Transformer
- Amperage : 2.92/1.46 A
- Phase : 1
- Connection : Terminal Block
- Temp Rating : 80 C
- Enclosure : Molded
- Insulation Temperature : 130 C
- Mounting : Panel Mounting
- Hz : 50/60 Hz
- KVA Rating : 350 VA
- Primary Voltage : 240 x 480 V
- Secondary Voltage : 120 x 240 V
- Material : Copper
- Watts Loss (NPL) : 37.7 W
Product Data
- Temp Rating : 80 C
