Product Info
- Manufacturer:Hammond Power Solutions
Description
C2M0250MQMJ

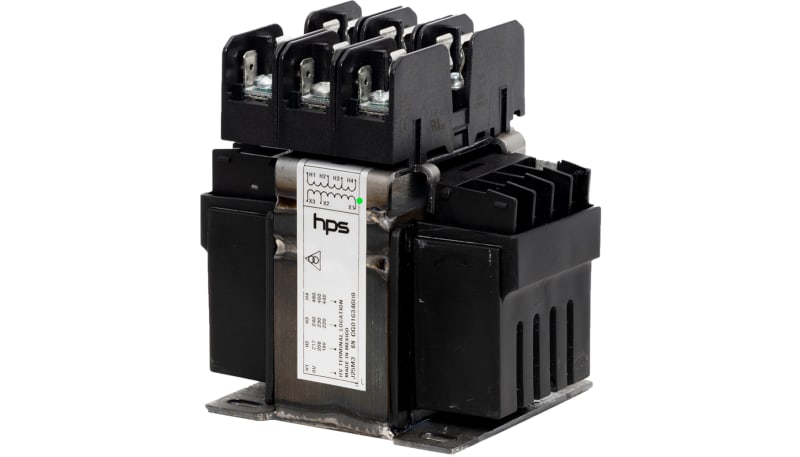

C2M0250MQMJ is a Hammond Power Solutions molded style control transformer. It is rated 250VA with single-phase operation and is intended for control applications with 240x480V primary and 120x240V secondary voltages. This model uses terminal block terminations on both primary and secondary sides, has 130°C insulation class, and is listed with 50/60 Hz frequency operation. The published dimensions are 5.0 in high, 4.5 in wide, and 4.5 in deep, with a weight of 5.7 lb. Key Specifications
- Part Number: C2M0250MQMJ
- Manufacturer: Hammond Power Solutions
- Type: Molded Style Control
- Phase: 1
- Frequency: 50/60 Hz
- Primary Voltage: 240x480 V
- Secondary Voltage: 120x240 V
- Temperature Rating: 130°C
- Connection: Parallel x Series (Vx2V)
- Connection: Parallel x Series (Vx2V)
- Mounting: Core & Coil
- Insulation Temp: 130°C
- Full Load Watts Loss: 28.7 Watts
Specifications
- Part Number: C2M0250MQMJ
- Manufacturer : Hammond Power Solutions
- Brand : Hammond Power Solutions
- Category : Transformer
- Type : Molded Style Control
- Phase : 1
- Connection : Parallel x Series (Vx2V)
- Temp Rating : 130°C
- Insulation Temperature : 130°C
- Mounting : Core & Coil
- Hz : 50/60 Hz
- Primary Voltage : 240x480 V
- Secondary Voltage : 120x240 V
- Temperature Rise : 80°C
- Watts Loss (NPL) : 28.7 Watts
Product Data
- Temp Rating : 130°C
