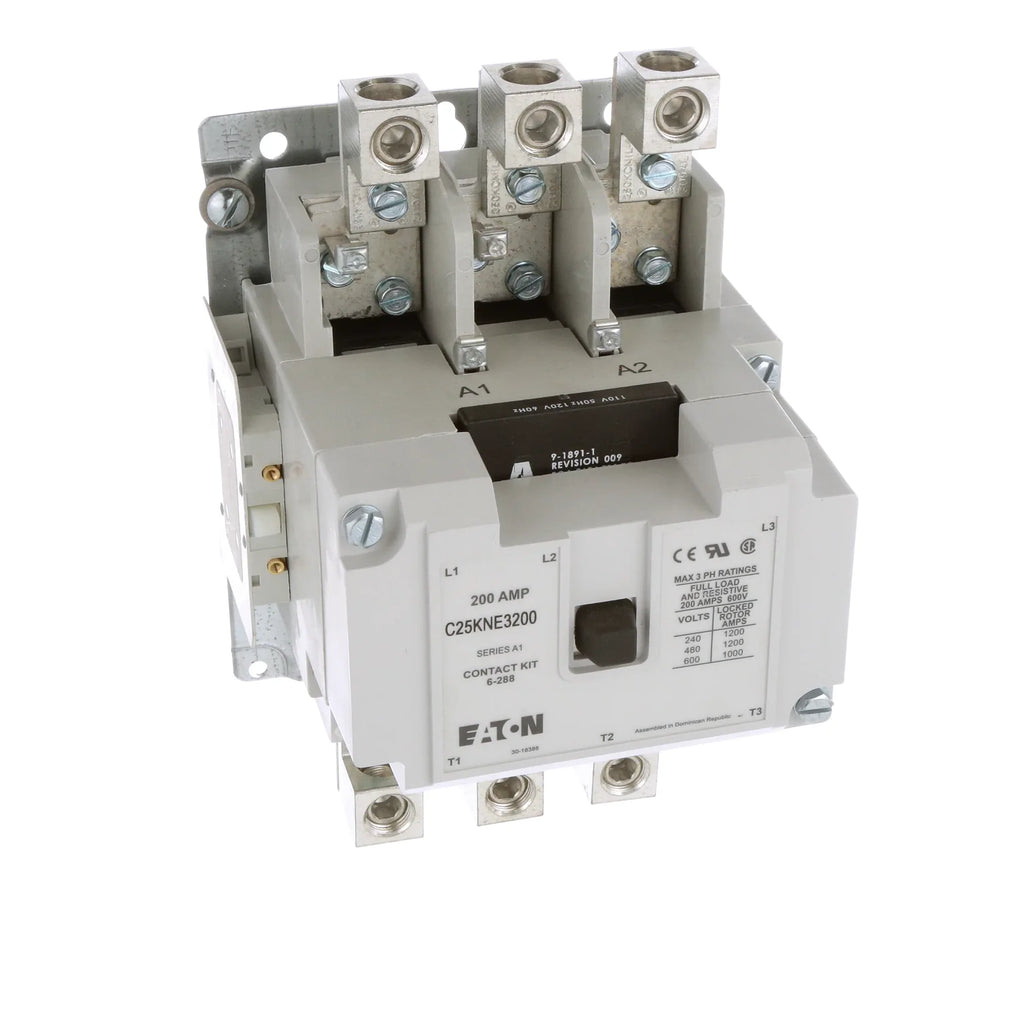

Eaton C25KNE3200AC Definite Purpose Contactor, 3-Pole, 200A, 120V Coil, Box Lug, 1NO/1NC Aux

Eaton C25KNE3200AC — 200A 3-Pole Definite Purpose Contactor

The Eaton C25KNE3200AC is a heavy-duty definite purpose contactor engineered for reliable switching of three-phase loads in HVACR, industrial, and commercial electrical applications. Part of Eaton's proven C25 Freedom Series, this contactor delivers 200-amp performance with built-in auxiliary contacts for control circuit flexibility.

Key Specifications

• Part Number: C25KNE3200AC
• Manufacturer: Eaton (Cutler-Hammer)
• Series: C25 Freedom Series
• Poles: 3-Pole (3NO)
• Inductive / Resistive Current Rating: 200A
• Coil Voltage: 110–120VAC, 50/60 Hz
• Termination: Box Lug
• Auxiliary Contacts: 1NO + 1NC
• Enclosure: Open
• Frame Size: K
• Locked Rotor Rating: 1,200A @ 240/480V; 1,000A @ 600V
• Dimensions (H × W × D): 9.3" × 9.5" × 16"
• Weight: ~20 lbs
• Approvals: UL Listed, CSA Certified, RoHS Compliant

Applications

Designed for low-cycle duty switching of single and three-phase loads, the C25KNE3200AC is well-suited for:

• HVACR systems — air conditioning, refrigeration, and ventilation equipment
• Motor control and pump applications
• Industrial machinery and commercial electrical panels
• Lighting and heating load control

Why Choose the C25KNE3200AC?

The integrated 1NO/1NC auxiliary contact block eliminates the need for separate add-on accessories in most installations, saving both time and cost. The open-frame construction allows easy inspection and servicing, while UL and CSA certification ensures compliance with North American electrical codes.

Also known as: CUTC25KNE3200AC | 782114183687
