Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description

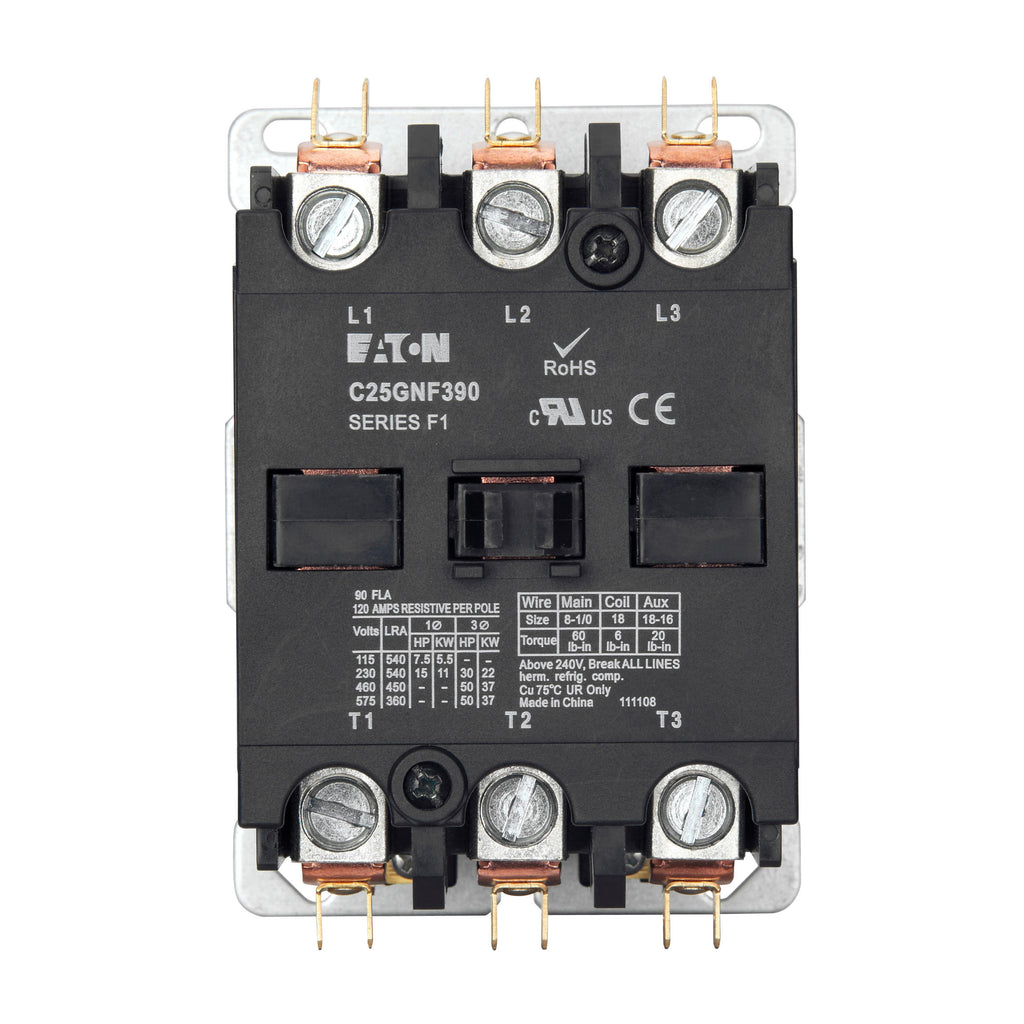

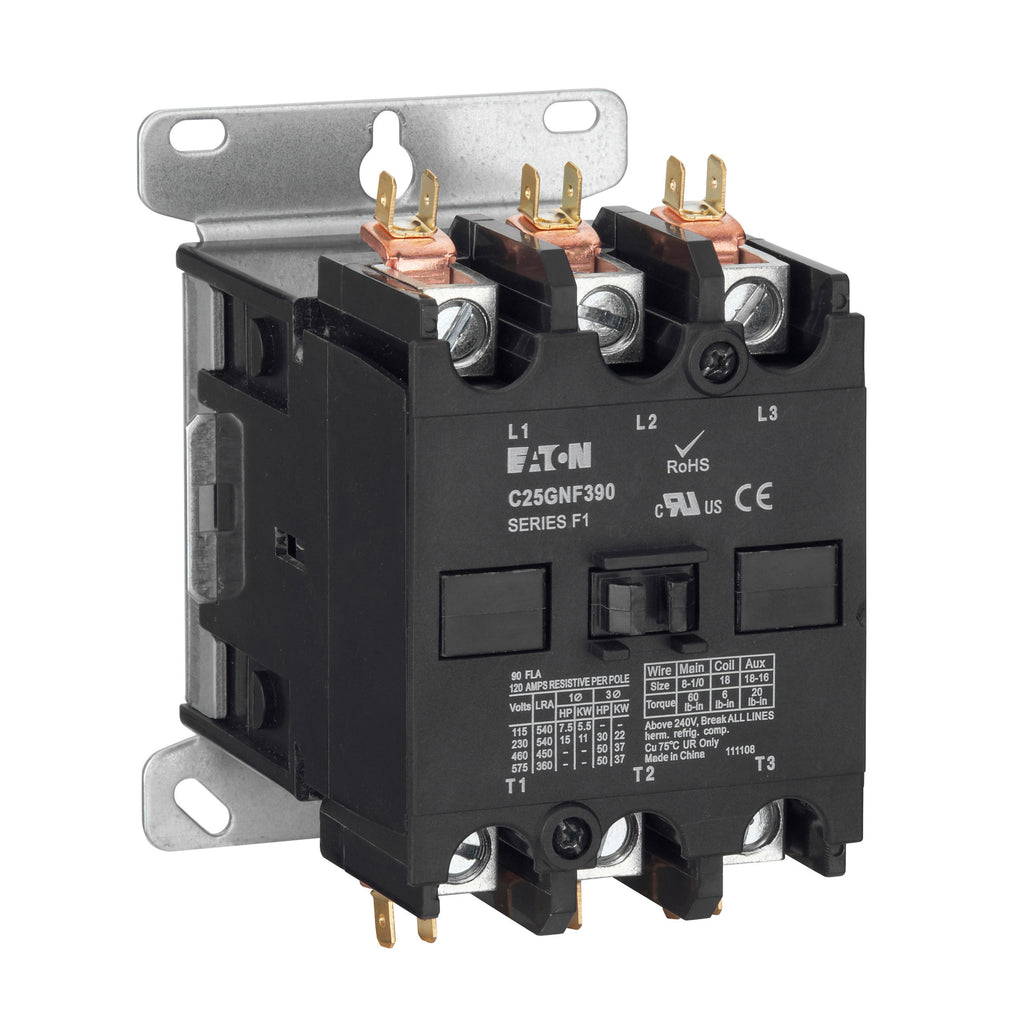

C25GNF390T
C25GNF390T is a Cutler Hammer C25 Series definite purpose contactor designed for reliable motor control applications.
This non-reversing, three-pole contactor features a 24VAC coil, open enclosure with metal mounting plate, and is engineered for high-performance switching of resistive and inductive loads. It is ideal for HVAC, refrigeration, and industrial equipment requiring robust, certified components.
-
Key Specifications
- Amperage: 90A maximum load current (120A inductive full load, 140A resistive load)
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Open with metal mounting plate
- Interrupt Rating: Not specified in available data
- Series/Frame: C25 Series, Frame F1
- Trip Unit: Not applicable (contactor, not circuit breaker)
- Certifications: CSA Certified, UL Listed (file E1491, Guide Number NLDX2), UL Recognized, CE Marked, RoHS Compliant
- Coil Voltage: 24VAC, 50/60 Hz
- Contact Configuration: 1 NO, 1 NC auxiliary contacts
- Terminals: Box lugs (posidrive setscrew), quick connect
- Dimensions: 3.75" H x 2.63" W x 3.97" D
- Weight: 3 lb
- Warranty: 1 year from installation or 18 months from shipment
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This Definite Purpose Contactor includes a 24 VAC coil.
Specifications
- Part Number: C25GNF390T
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C25 Series
- Type : C25
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- Configuration : Non-Reversing
- Coil Voltage Maximum : 24
- Full Load Amps : Full Load Amps-Inductive 90A Full Load Amps-Resistive 120A
- Coil Voltage Minimum : 24
- Frequency : 50 Hz
Product Data
- UPC : 782114100196
- GTIN : 00782114100196
- Country of Origin : China
- Dimensions : 3.97 in x 3.75 in x 2.63 in (Length/Depth x Height x Width)
- Weight : 3 lb
- Certification : CE, CSA, RoHS, UL Listed, UL E1491 (Guide NLDX2)
