Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
C25DRD330A

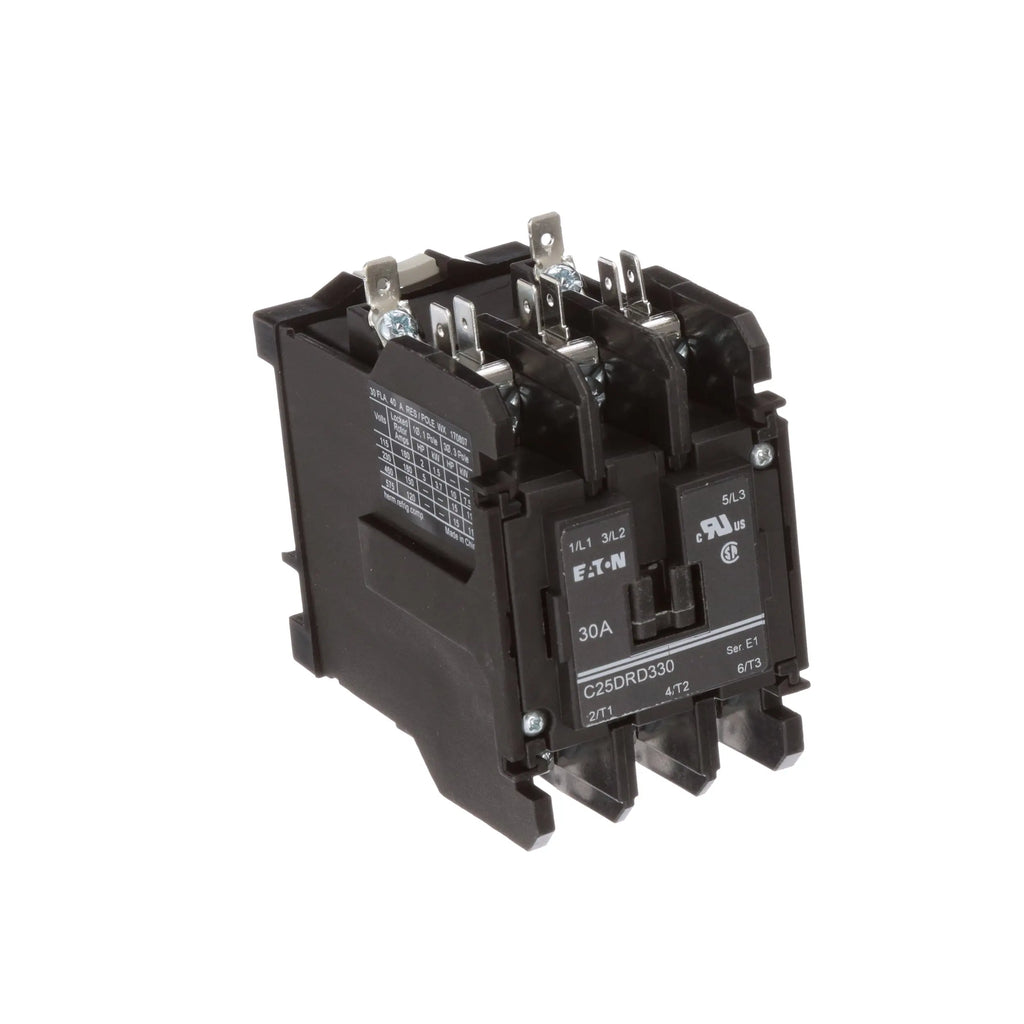

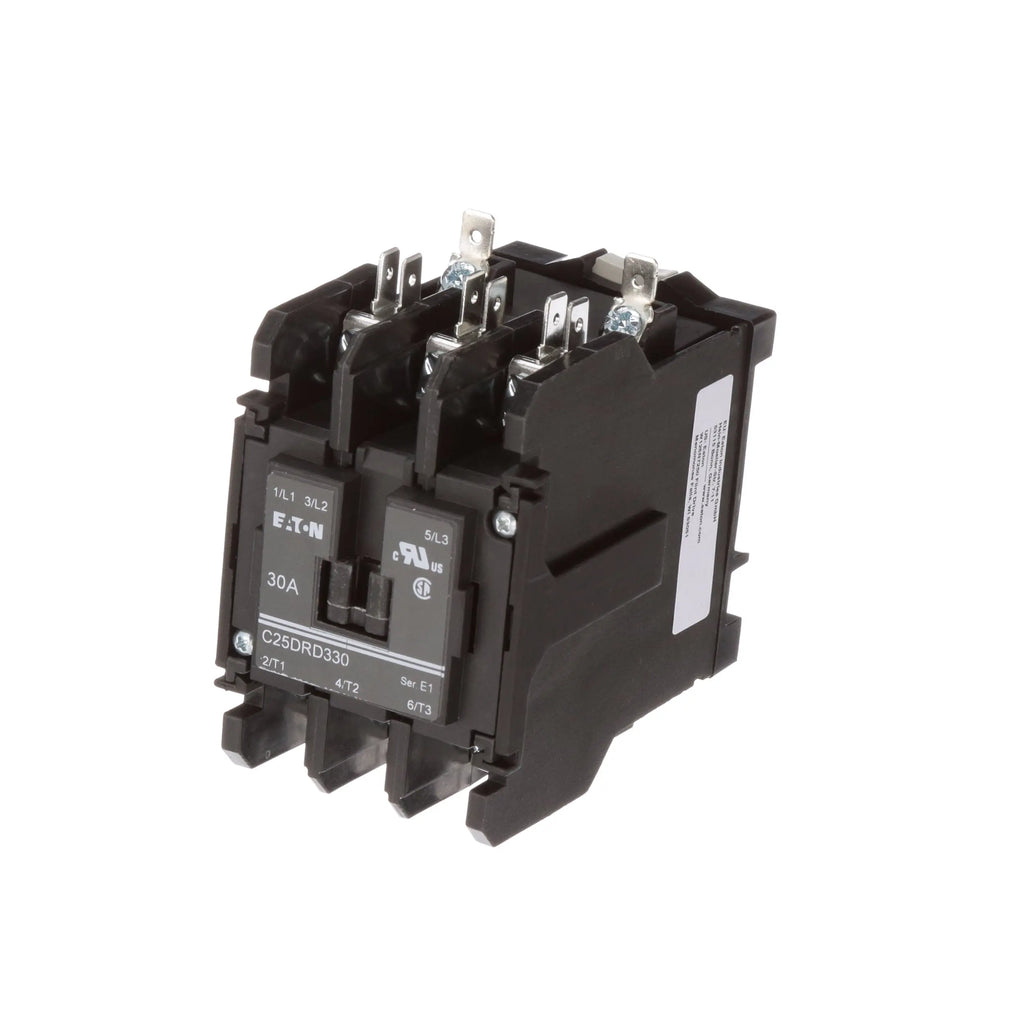

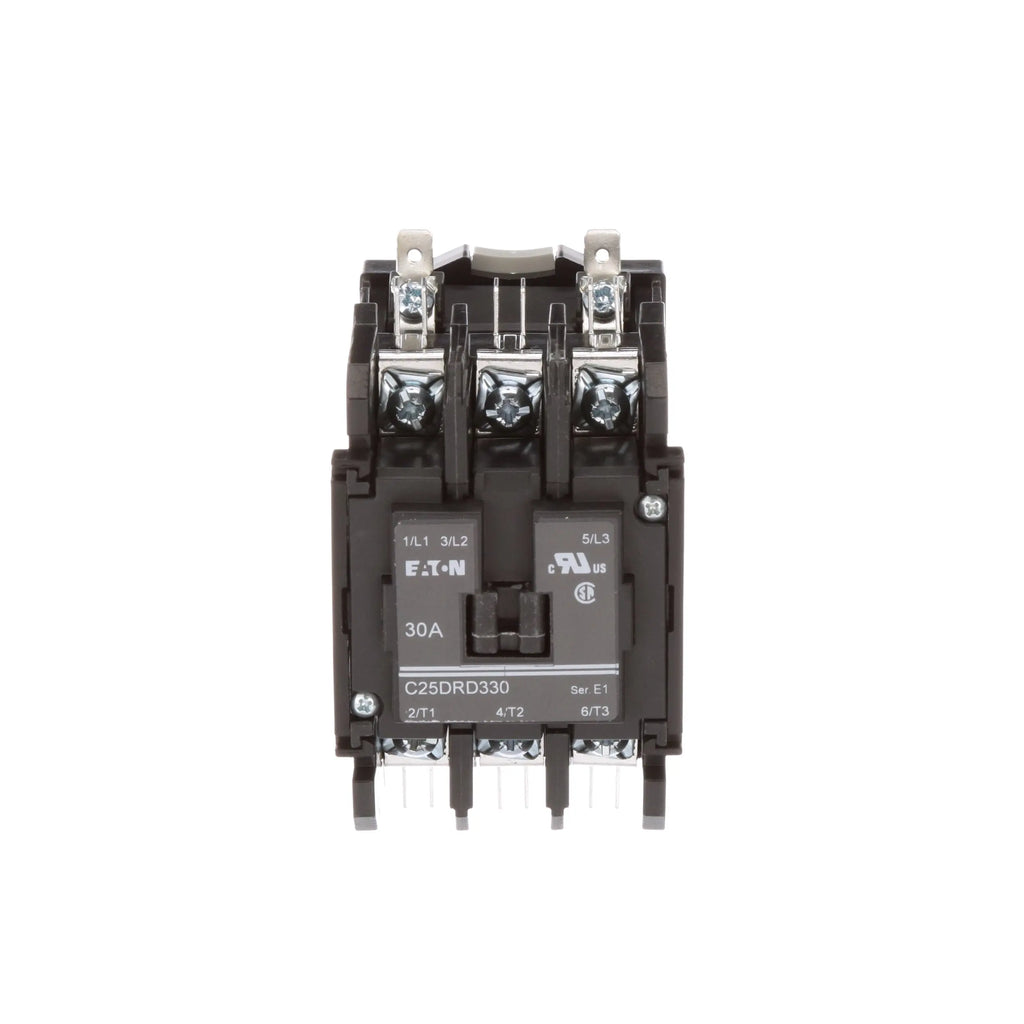

C25DRD330A is a Cutler Hammer definite purpose contactor designed for motor control applications with a 30 amp rating and 3 poles.This contactor operates at 600 volts AC and features a 110-120 VAC coil voltage with a 24 VAC coil option, suitable for 50/60 Hz operation. It includes a DIN rail mounting adapter for easy installation and quick connect terminals with pressure plate side-by-side connections. The device is UL listed, CSA certified, and RoHS compliant, ensuring reliable and safe performance in industrial environments.
- Key Specifications
- Amperage Rating: 30A inductive full load, 40A resistive load
- Voltage Rating: 600V AC
- Number of Poles: 3 poles
- Coil Voltage: 110-120 VAC and 24 VAC options, 50/60 Hz

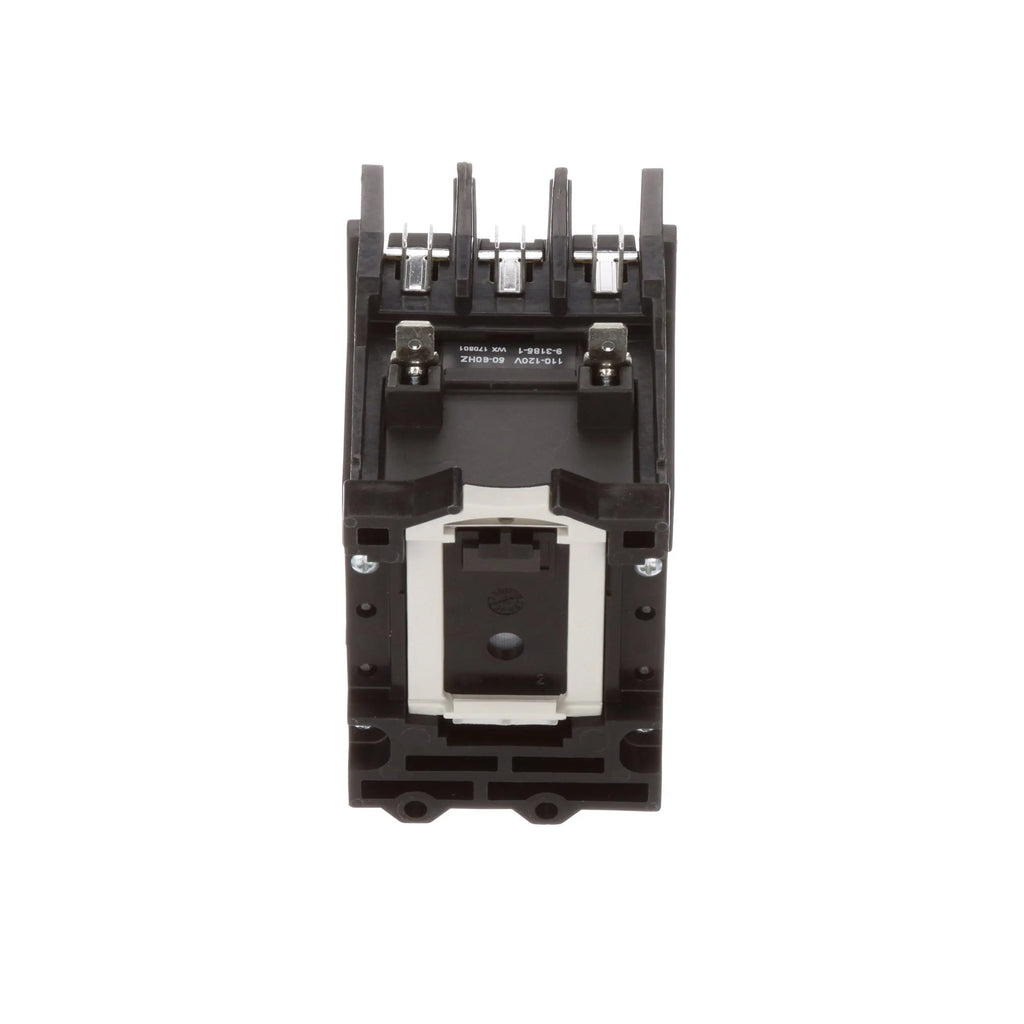

- Mounting Type: DIN rail mounting adapter included
- Connection Type: Quick connect with pressure plate side-by-side terminals
- Interrupt Rating: Suitable for definite purpose motor control
- Series/Frame: C25 Series, Frame size 15-50A
- Certifications: UL Listed, UL Recognized, CSA Certified, RoHS Compliant
- Enclosure: Open type with DIN rail adapter
- Auxiliary Contacts: Pressure plate quick connect
- Weight: Approximately 1.19 lb
- Part Number: C25DRD330A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C25 Series
- Type : C25
- Voltage : 600
- Amperage : 30A
- Phase : 3
- Poles : 3
- Configuration : Non-Reversing
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 110
- Frequency : 50 Hz
- UPC : 782116483792
- Country of Origin : United States
- Dimensions : 3.35 in x 3.75 in x 2.4 in (Length/Depth x Height x Width)
- Weight : 1.19
- Certification : CSA Certified UL Recognized UL Listed file E1491 (Guide Number NLDX2)
Additional Information
This Definite Purpose Contactor includes a 24 VAC coil.
