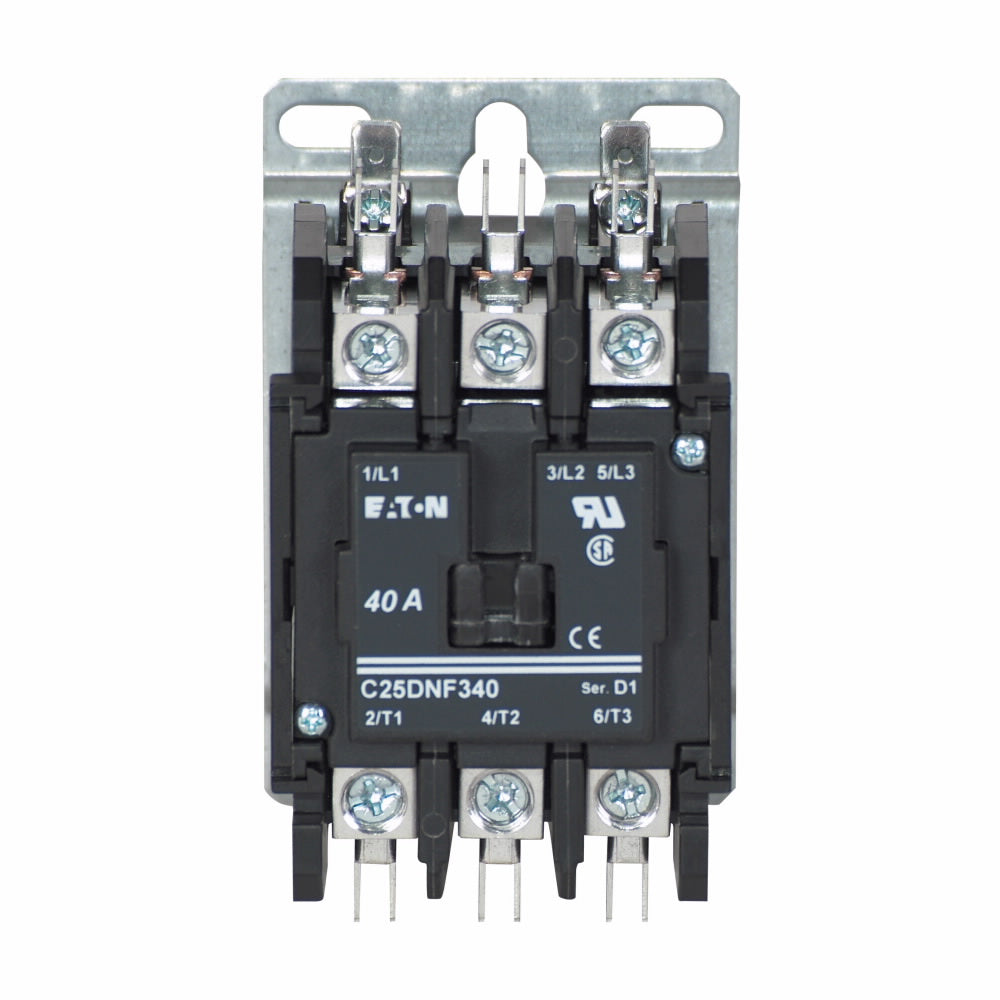

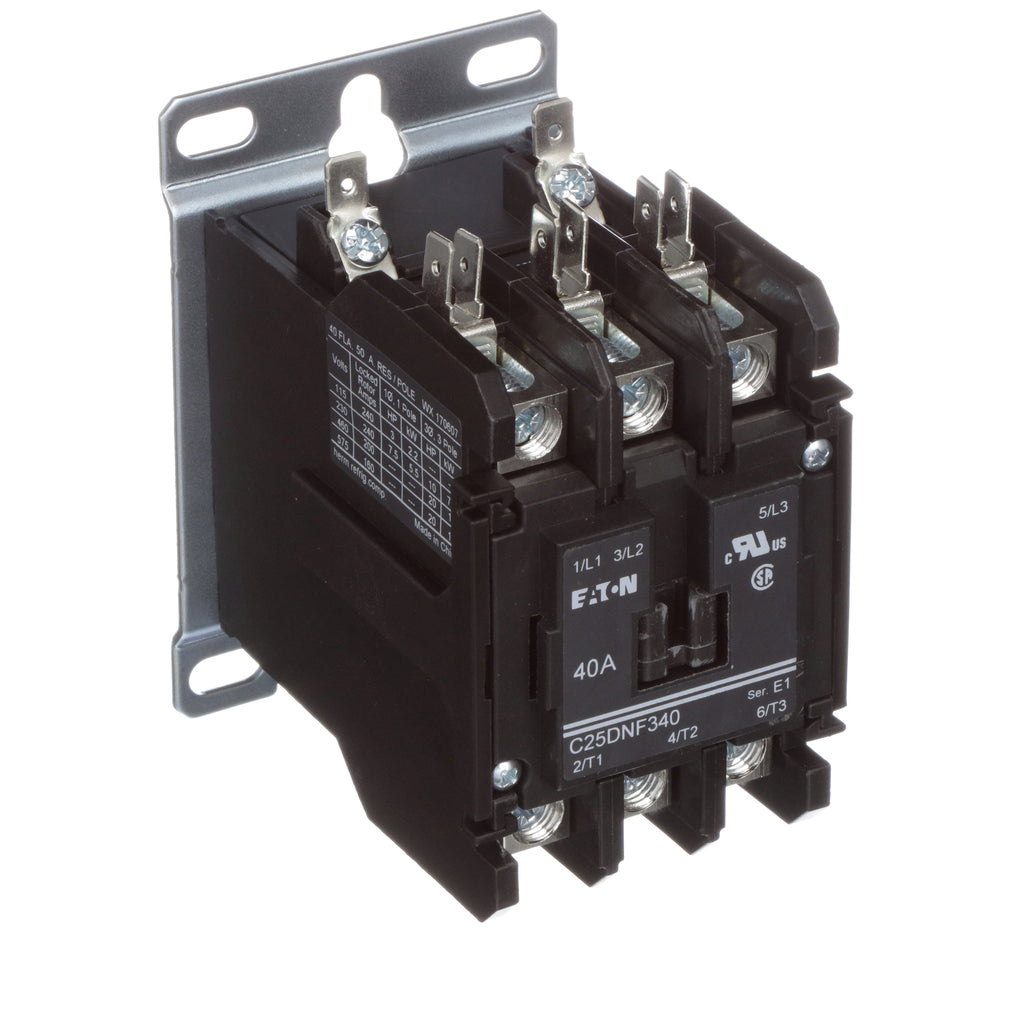

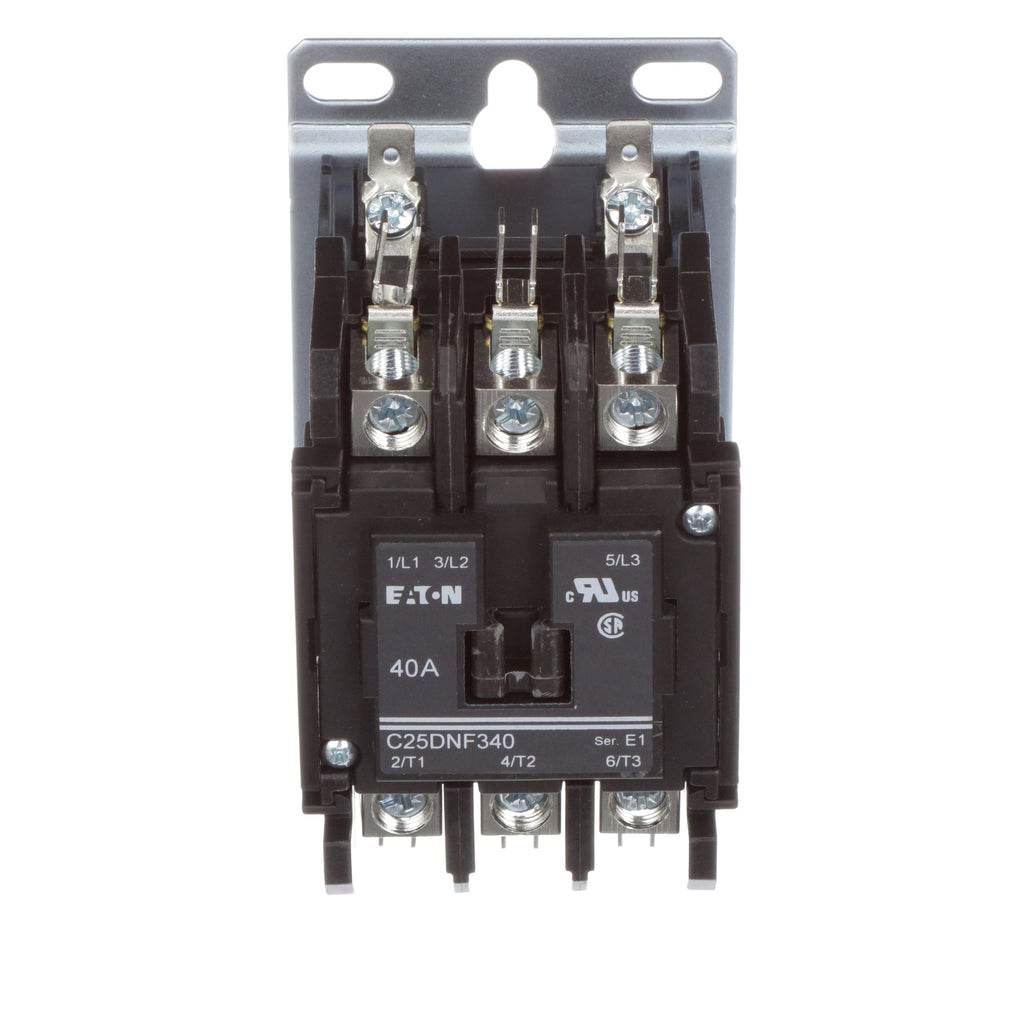

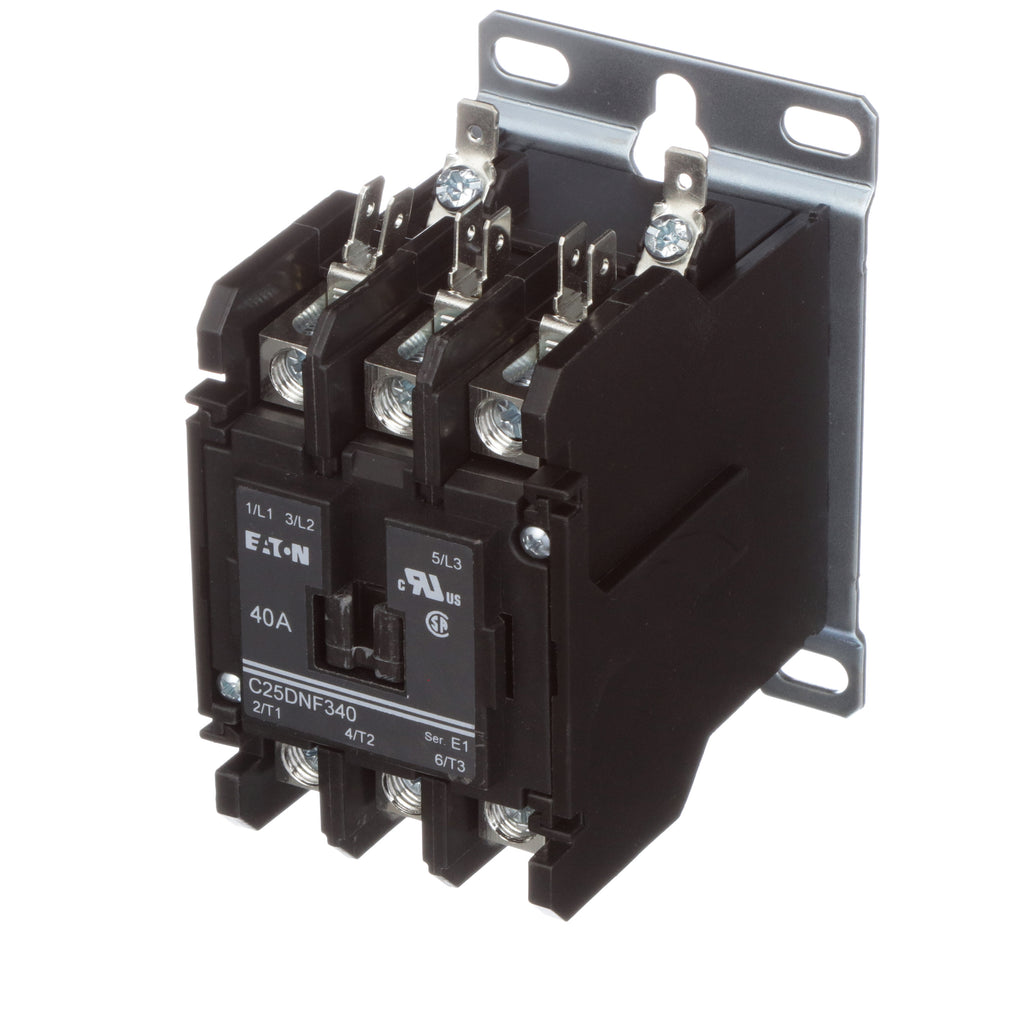

C25DNF340T - Cutler Hammer 40A 3-Pole Definite Purpose Contactor 24V AC Coil Metal Mounting Plate

C25DNF340T

C25DNF340T is a Cutler Hammer definite purpose contactor rated for 40 amps with a 3-pole configuration and a 24 volt AC coil, designed for reliable motor control applications.This contactor features a metal mounting plate, quick connect terminals, and is suitable for HVAC, refrigeration, and other industrial uses. It is UL recognized, CSA certified, RoHS compliant, and meets IEC standards. The device supports inductive loads up to 40A and resistive loads up to 50A, with a locked rotor current rating of 240A. Its compact design and versatile mounting options make it a dependable choice for various control systems.

Key Specifications
• Amperage Rating: 40A inductive, 50A resistive
• Number of Poles: 3
• Coil Voltage: 24V AC, 50/60 Hz

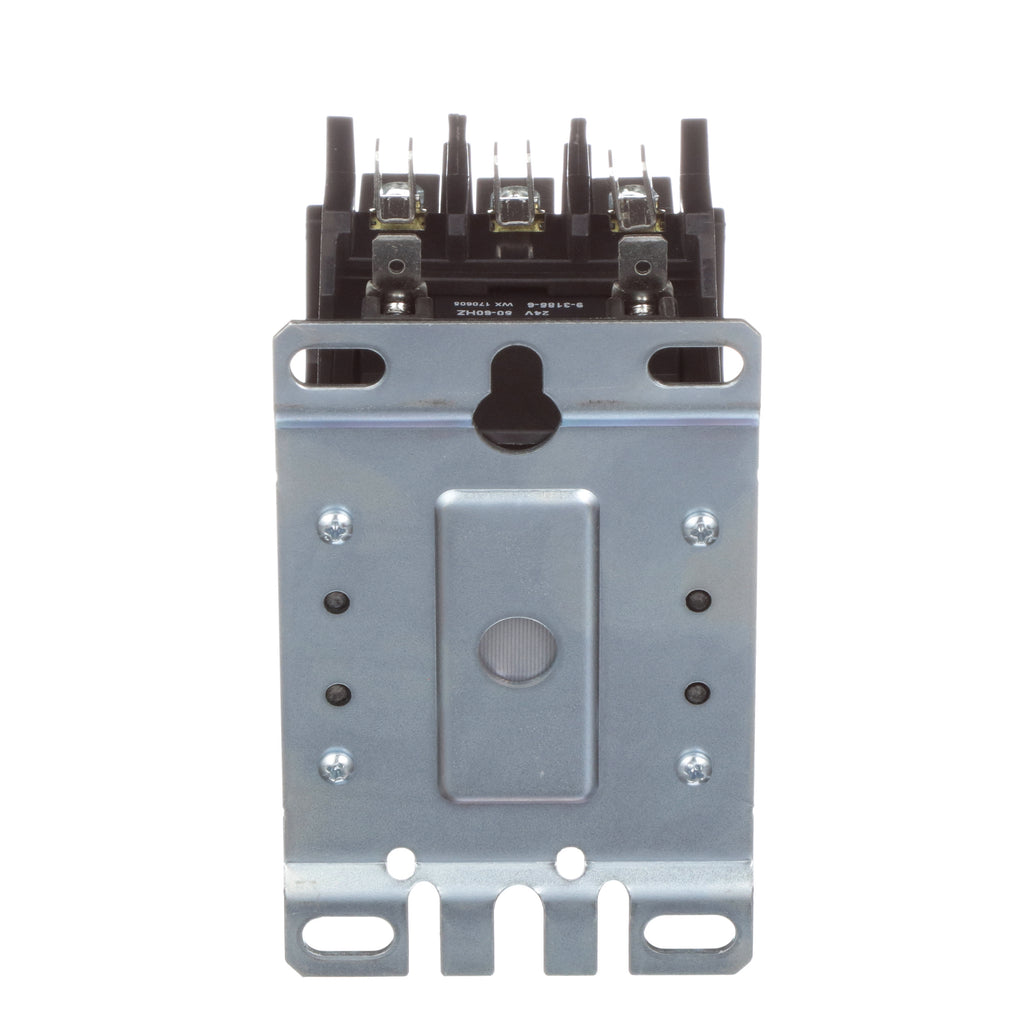

• Mounting Type: Metal mounting plate
• Interrupt Rating: Locked rotor 240A
• Terminals: Double quick connect and box lugs
• Certifications: UL Recognized, CSA Certified, RoHS Compliant, CE Mark
• Standards: IEC 60947-4-1, EN 60947-4-1
• Enclosure: Open type
• Non-reversing contactor
• Weight: Approximately 1.05 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 24 VAC coil.

Specifications

• Part Number: C25DNF340T
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
• Coil Voltage Minimum : 24
• Frequency : 50 Hz

Product Data

• UPC : 782116300709
• GTIN : 00782116300709
• Country of Origin : China
• Dimensions : 3.35 in x 2.3 in x 2.4 in (Length/Depth x Height x Width)
• Weight : 1.05 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA Certified UL Recognized
