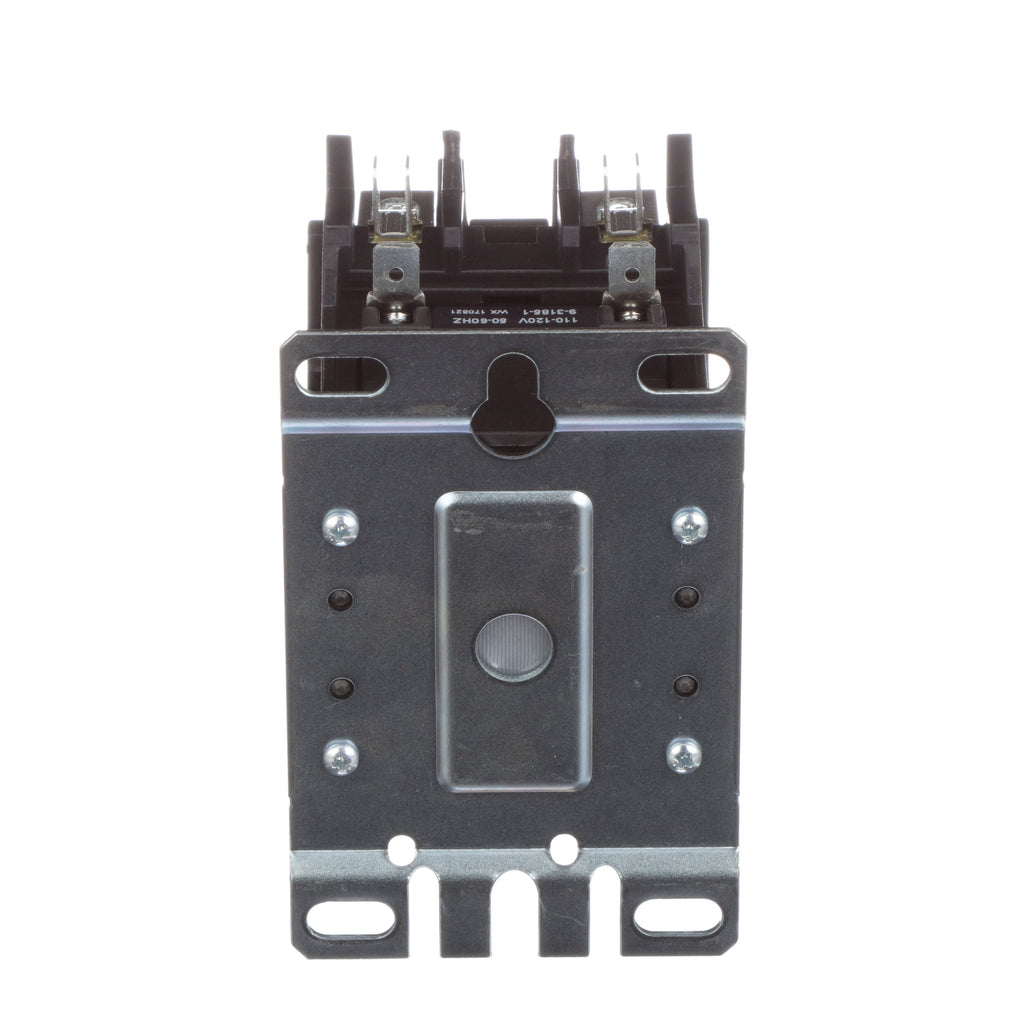

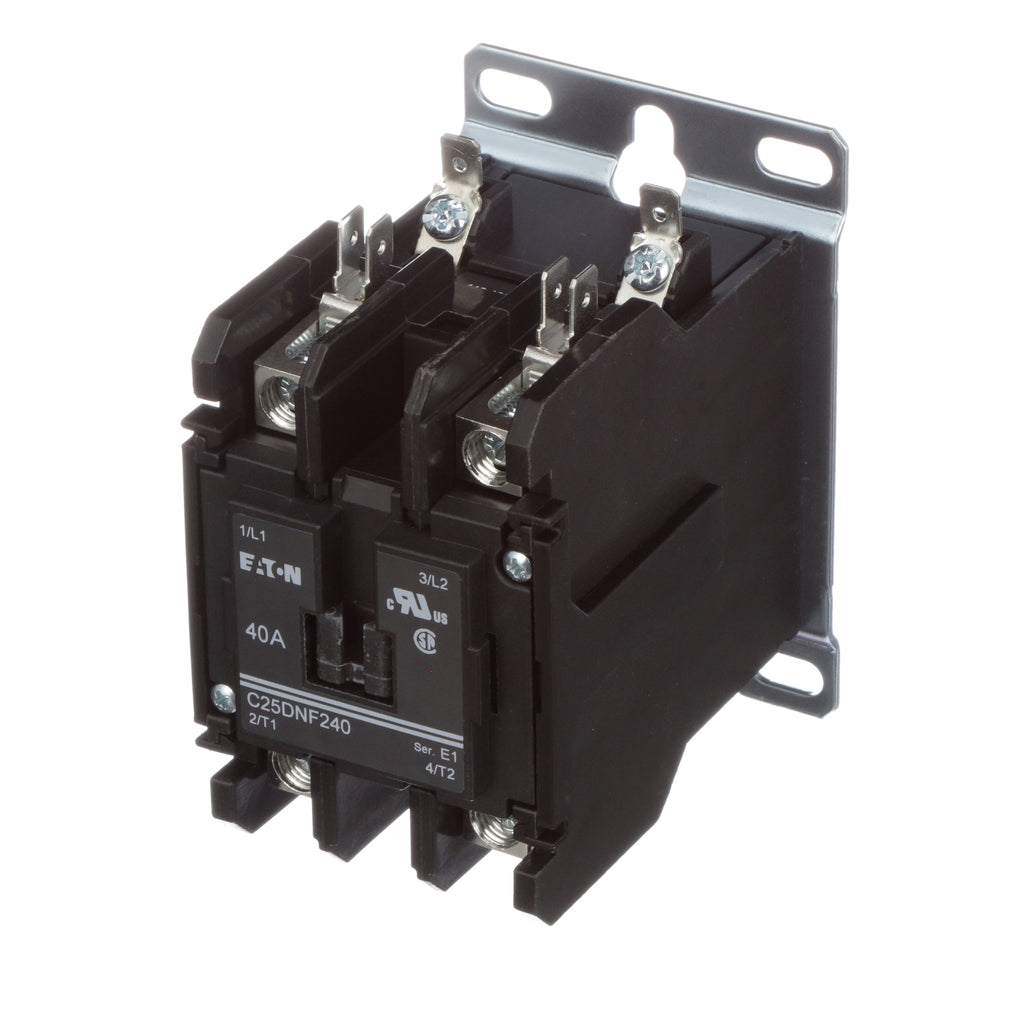

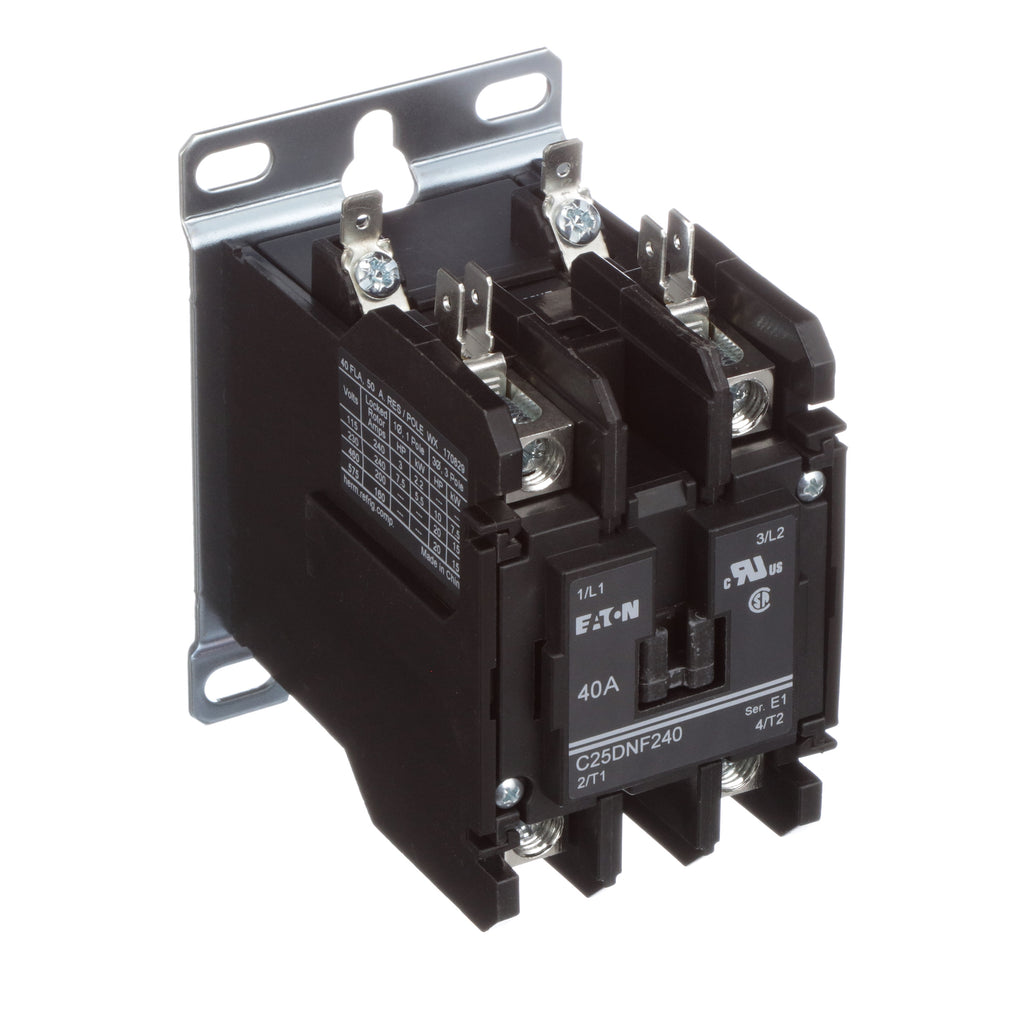

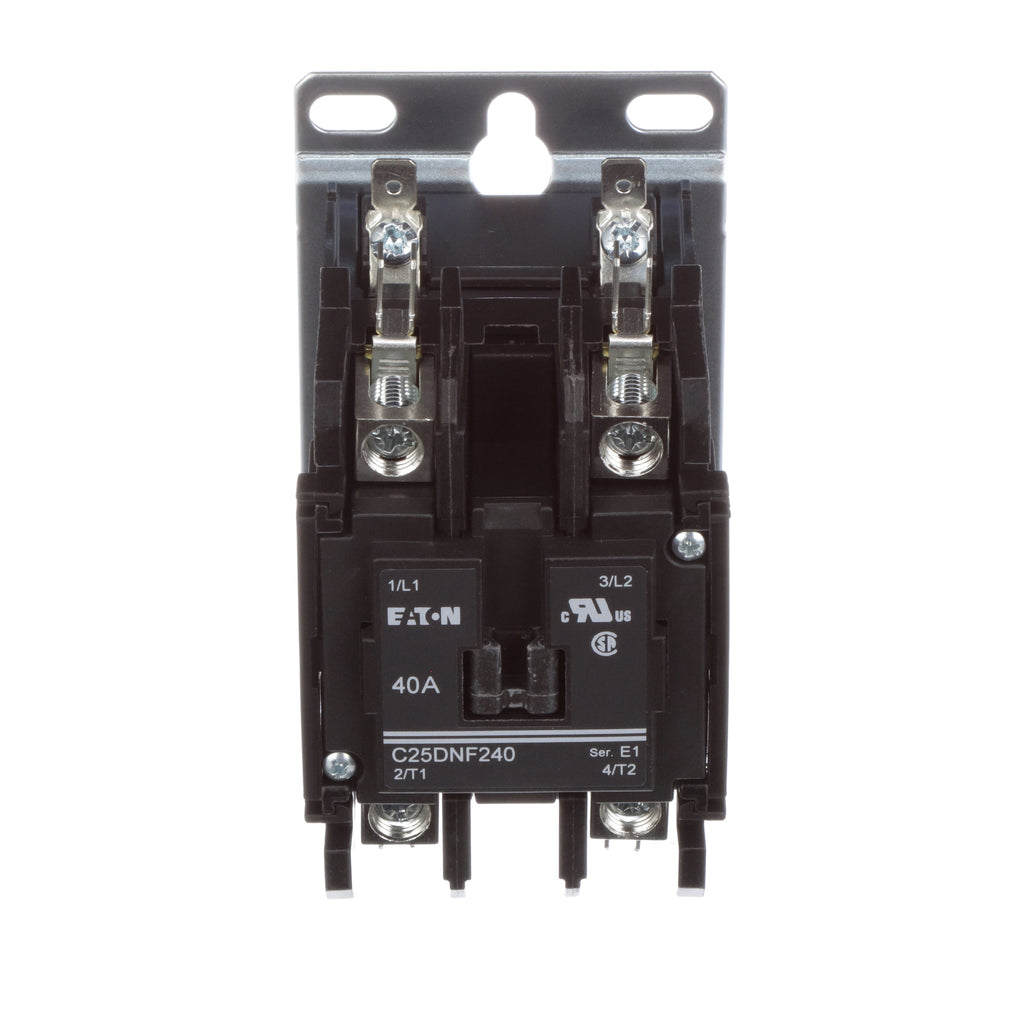

C25DNF240A - Cutler Hammer 40A 2-Pole Definite Purpose Contactor 120VAC Coil, C25 Frame

C25DNF240A

C25DNF240A is a Cutler Hammer definite purpose contactor rated for 40 amps with a 2-pole configuration and a 120 volt AC coil.This contactor features a compact C25 frame, non-reversing type, and is designed for reliable motor control applications such as HVAC, refrigeration, and cranes. It includes quick connect terminals and a metal mounting plate for easy installation. The unit is UL recognized, CSA certified, RoHS compliant, and suitable for use in North America and Europe.

• Amperage Rating: 40A inductive, 50A resistive
• Number of Poles: 2 (two-pole)
• Coil Voltage: 110/120 VAC, 50/60 Hz
• Type: Non-reversing definite purpose contactor
• Frame Size: C25 (15-50A range)
• Terminals: Double quick connect and box lugs with posidrive setscrew
• Mounting: Metal mounting plate, open enclosure
• Interrupt Rating: Locked rotor amps 240A
• Certifications: UL Recognized, CSA Certified, RoHS Compliant, CE Mark
• Weight: Approximately 1.19 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 48 VDC coil.

Specifications

• Part Number: C25DNF240A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 40A
• Phase : 1
• Poles : 2
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : 50 Hz

Product Data

• UPC : 782116300396
• GTIN : 00782116300396
• Country of Origin : China
• Dimensions : 3.35 in x 3.75 in x 2.4 in (Length/Depth x Height x Width)
• Weight : 1.19 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL Recognized CSA Certified
