C25DND230H - Cutler Hammer 30A 2 Pole Definite Purpose Contactor 277V Coil

C25DND230H

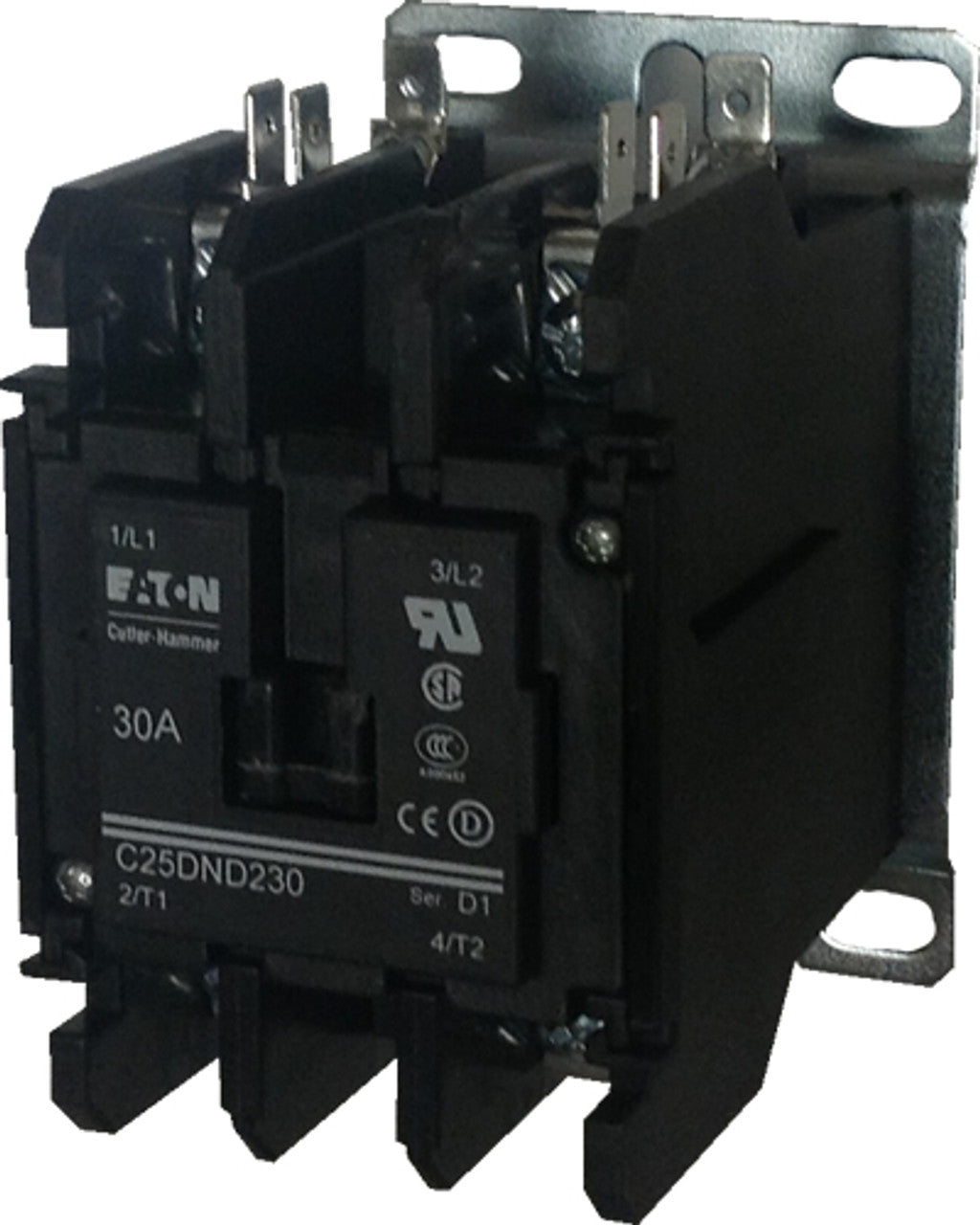

C25DND230H is a Cutler Hammer definite purpose contactor rated for 30 amps with a 277 volt AC coil and 2 poles.

This Eaton Cutler Hammer C25DND230H contactor features a 30A inductive rating, 40A resistive rating, and 180 locked rotor amps. It includes double quick connect terminals and mounts on a metal base plate. Designed for HVAC and motor control applications, it is a direct replacement for Siemens/Furnas 42BF15AG contactors. The compact C25D series offers reliability and versatility with optional side-mounted auxiliaries. This contactor is UL recognized, CSA certified, and RoHS compliant for North American and European use.

• Amperage: 30A inductive, 40A resistive
• Voltage: 277V AC coil
• Poles: 2
• Mounting: Metal base plate
• Interrupt Rating: 180 Locked Rotor Amps
• Series/Frame: C25D Series
• Terminals: Double Quick Connect
• Certifications: UL recognized, CSA certified, RoHS compliant
• Application: Definite purpose contactor for HVAC and motor control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 12 VAC coil.

Specifications

• Part Number: C25DND230H
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• Configuration : Non-Reversing
• Coil Voltage Maximum : 277
• Coil Voltage Minimum : 277
• Frequency : 50 Hz

Product Data

• UPC : 782116308071
• GTIN : 00782116308071
• Country of Origin : China
• Dimensions : 3.35 in x 3.75 in x 2.4 in (Length/Depth x Height x Width)
• Weight : 1.19 lb
• Certification : UL Recognized CSA Certified
