2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
C25DGD330A

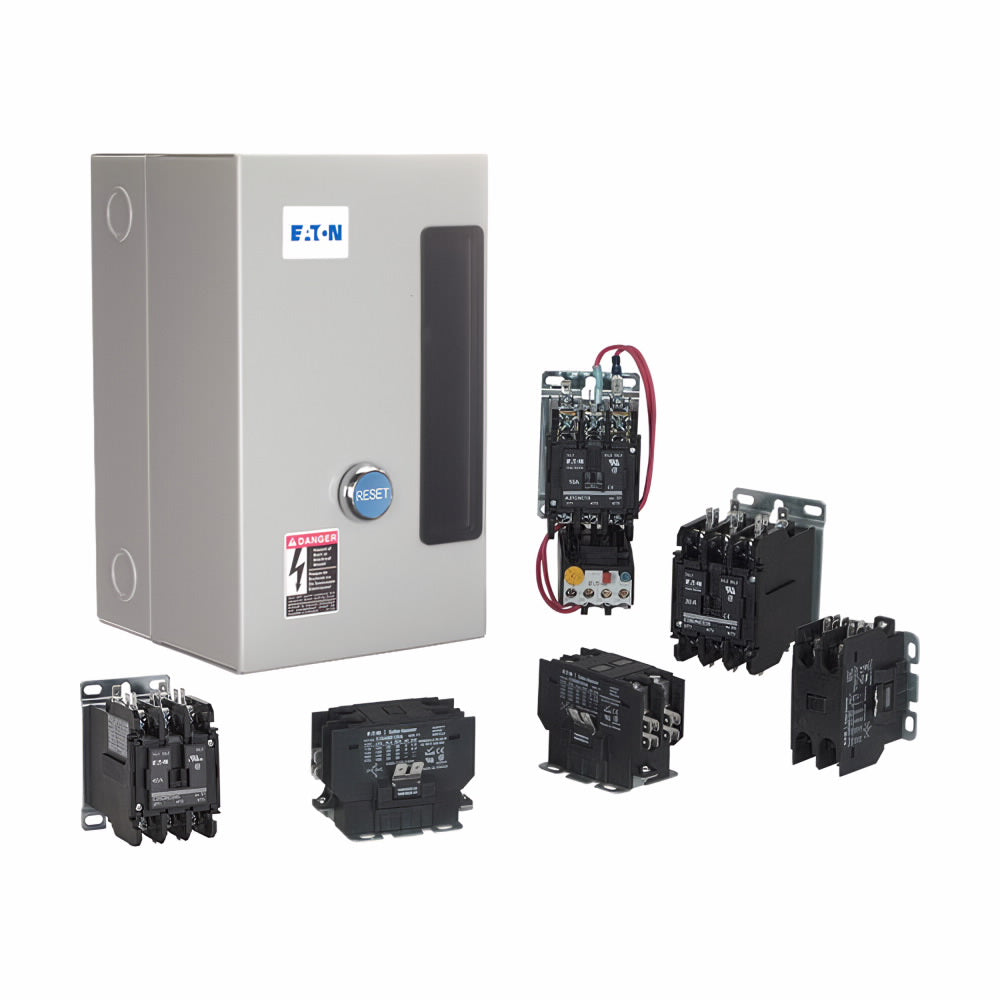

C25DGD330A is a Cutler Hammer Eaton definite purpose contactor designed for motor control applications.This three-pole, non-reversing contactor features a 30 ampere rating and operates with a 110-120 VAC coil at 50/60 Hz. It is enclosed in a NEMA Type 1 housing suitable for general-purpose indoor use. The contactor is part of Eaton's C25 series and is engineered for reliable switching in motor control circuits.
- Amperage Rating: 30A
- Number of Poles: Three-pole
- Coil Voltage: 110-120 VAC, 50/60 Hz
- Type: Non-reversing
- Enclosure: NEMA Type 1 enclosed
- Series: C25
- Mounting: Screw/Pressure Plate
- Certifications: UL Listed, CSA Certified
Additional Information
This Definite Purpose Contactor includes a 24 VDC coil.
Specifications
- Part Number: C25DGD330A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C25 Series
- Type : C25
- Voltage : 600
- Amperage : 30A
- Phase : 3
- Poles : 3
- Configuration : Non-Reversing
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
- Coil Voltage Minimum : 120
Product Data
- UPC : 782113379890
- GTIN : 00782113379890
- Country of Origin : United States
- Dimensions : 3.5 in x 6.75 in x 4.1 in (Length/Depth x Height x Width)
- Weight : 2.7 lb
- Certification : CSA Certified UL Recognized
