Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
C25BNF230A

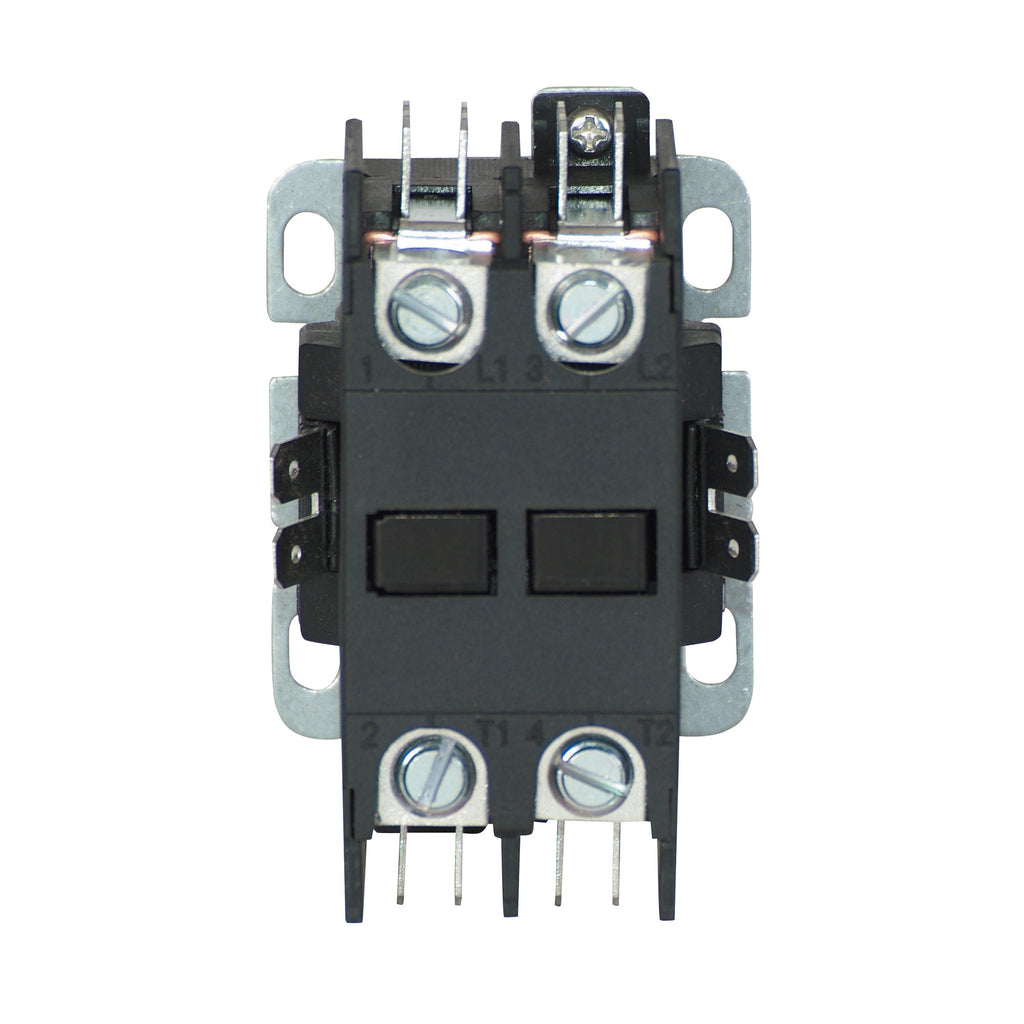

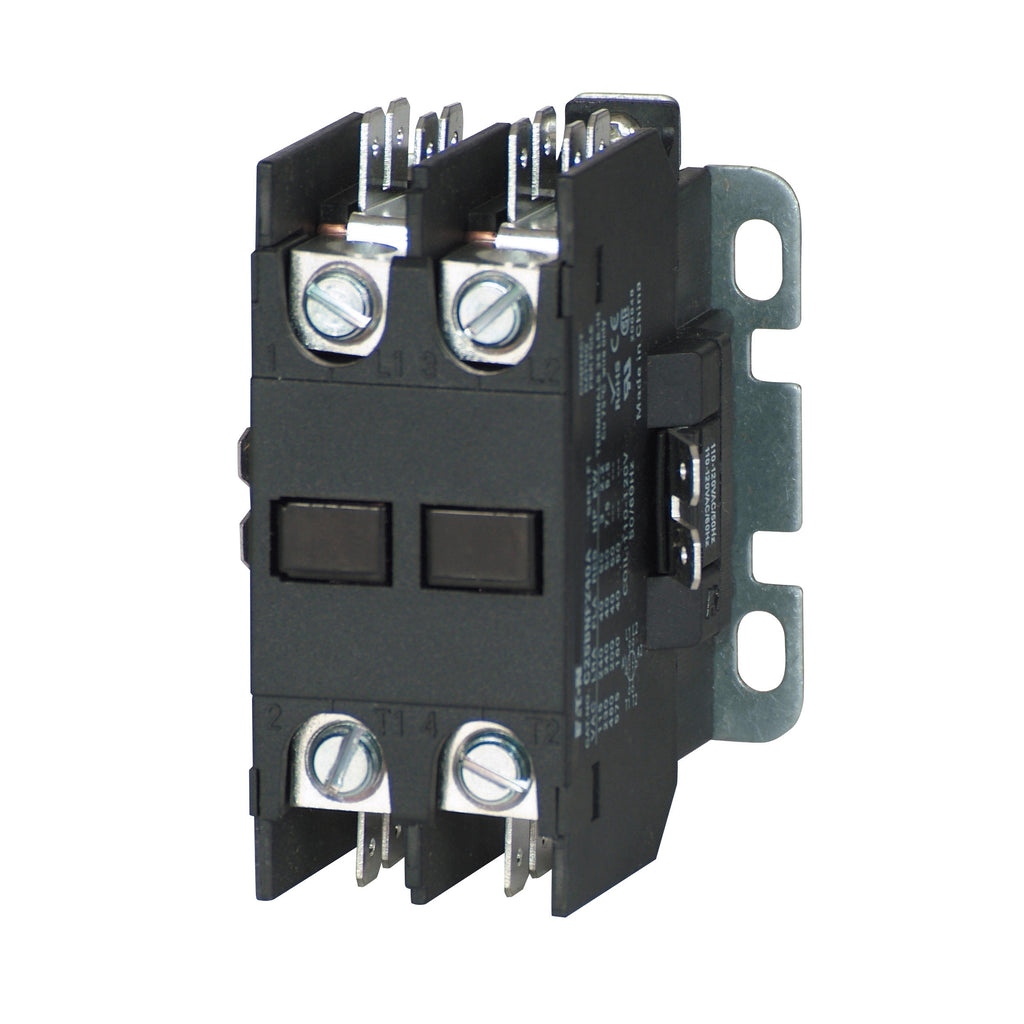

C25BNF230A is a Cutler Hammer definite purpose contactor designed for motor control applications with a 30 amp rating and 2 poles.
This contactor features a 120V coil voltage and supports a maximum operating voltage of 277V. It is a non-reversing type from the C25 series, with quick connect terminals and an open design including a metal mounting plate for easy installation.
- Key Specifications
- Amperage Rating: 30A
- Number of Poles: 2 (Two-pole)
- Coil Voltage: 110-120 VAC, 50/60 Hz
- Maximum Voltage: 277V
- Type: Non-reversing definite purpose contactor
- Mounting: Open with metal mounting plate
- Series: C25
- Connection: Quick connect terminals
- Dimensions: Approx. 3.19" L x 2.32" W x 1.97" H
- Part Number: C25BNF230A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C25 Series
- Type : C25
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- Configuration : Non-Reversing
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- Frequency : 60 Hz
- UPC : 786685116129
- GTIN : 00786685116129
- Country of Origin : China
- Dimensions : 2.32 in x 3.19 in x 1.97 in (Length/Depth x Height x Width)
- Weight : 0.6 lb
- Certification : UL Recognized,CSA Certified,RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This Definite Purpose Contactor includes a 277 VAC coil.
