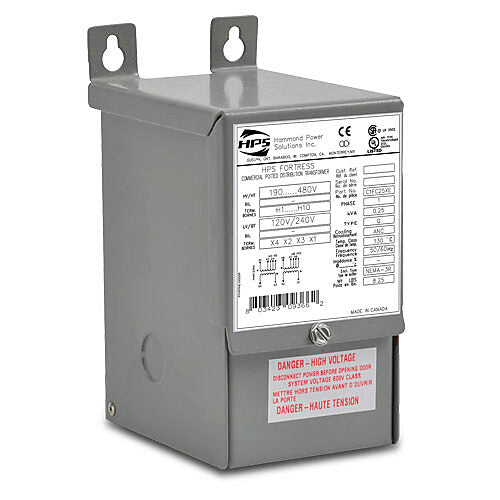

Hammond Power Solutions C1FC50XE - Single-Phase Transformer 500VA (Type 3R/IP24)

C1FC50XE

Hammond Power Solutions C1FC50XE is a general duty single-phase transformer designed for industrial power distribution applications. This 500VA copper-wound transformer features flexible primary voltage inputs (120/240V, 130/262V) and secondary outputs (120/240V, 130/262V) with parallel/series connection options. The compact Type 3R/IP24 enclosure measures 7.19"×4.31"×5.56" (183×110×142mm) and features ANSI 61 grey finish with UL50 certification, operating with 95°C temperature rise and 130°C insulation class. Compliant with IBC 2018 seismic standards (Sds=2.0, z/h=1, lp=1.5) and maintaining 45dBA sound levels per NEMA ST-20, the transformer delivers reliable performance across 50/60Hz frequencies with 1-5% standard impedance. Typical applications include industrial control systems, machinery power supplies, and commercial electrical distribution where robust construction and seismic resilience are required. Key Features & Specifications

• Type: Single-phase general duty transformer
• Voltage: Primary 120/240V, 130/262V; Secondary 120/240V, 130/262V
• Current: 500VA capacity
• Frequency: 50/60Hz operation
• Material: Copper wound construction
• Enclosure: Type 3R/IP24, ANSI 61 Grey
• Temperature: 95°C rise, 130°C insulation class
• Dimensions: 7.19" H × 4.31" W × 5.56" D (183×110×142mm)
• Standards: IBC 2018 seismic, UL50, NEMA ST-20
• Impedance: 1-5% standard
• Sound Level: 45dBA maximum

Specifications

• Part Number: C1FC50XE
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 500VA 220x440,208x416,200x400,190x380V-120/240V 50/60Hz CU
• Duty : General Duty
• Frequency : 50/60Hz,60Hz(1)
• Primary Voltage : 120/240,130/262(1)
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240,130/262(1)
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 95°C
• Insulation Class : 130°C
• EKVA : 0.5
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ1-N3R
• Enclosure Dimensions : 7.19in/183mm(H), 4.31in/110mm(W), 5.56in/142mm(D)
• Nameplate : Standard
• Standard kVA : 0.5
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No
• Primary Termination (Std) : Wire Leads, Wire Leads, Wire Leads, Wire Leads, Wire Leads

Product Data

• UPC : 803423093679
• Weight : 14
• Certification : CSA, UL, CE
