Hammond Power Solutions C1FC50WE - 500VA Transformer 120/240V Output

C1FC50WE

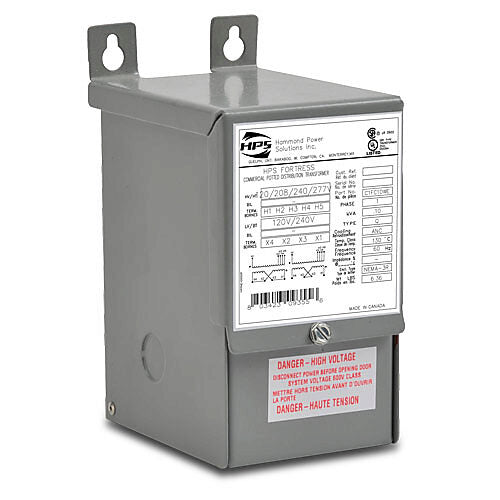

Hammond Power Solutions C1FC50WE is a general duty transformer designed for industrial power distribution applications. This single-phase 500VA unit features versatile primary voltage compatibility (277V, 240V, 208V, 120V) with a secondary output of 120/240V, constructed with copper windings for reliable performance. The transformer is housed in a compact Type 3R/IP24 enclosure measuring 9.3" x 5.06" x 4.56" with ANSI 61 grey finish, providing outdoor protection against rain and sleet. It complies with IBC 2018 seismic standards (Sds=2.0, z/h=1, lp=1.5) and operates at a quiet 45dBA sound level per NEMA ST-20. Typical applications include industrial control systems, machinery power supplies, and commercial electrical distribution where reliable voltage transformation is required. Key Features & Specifications

• Type: Single Phase General Duty Transformer
• Voltage: Primary 277/240/208/120V, Secondary 120/240V
• Current: 500VA Capacity
• Frequency: 60Hz
• Material: Copper Windings
• Temperature Rise: 95°C
• Insulation Class: 130°C
• Enclosure: Type 3R/IP24, ANSI 61 Grey
• Dimensions: 9.3" H x 5.06" W x 4.56" D
• Impedance: 1% - 5%
• Sound Level: 45dBA
• Seismic Compliance: IBC 2018

Specifications

• Part Number: C1FC50WE
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 500VA 277,240,208,120V-120/240V 60Hz CU
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 277, 240, 208, 120
• Primary Connection : Series (V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 95°C
• Insulation Class : 130°C
• EKVA : 0.5
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ2-N3R
• Enclosure Dimensions : 9.3in/237mm(H), 5.06in/129mm(W), 4.56in/116mm(D)
• Nameplate : Standard
• Standard kVA : 0.5
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423092498
• Weight : 14
• Certification : CSA, UL
