C1F1C0XES - Hammond Power Solutions 1 kVA 1-Phase Encapsulated Transformer NEMA 3R 190-480VAC Primary 120/240VAC Secondary

C1F1C0XES

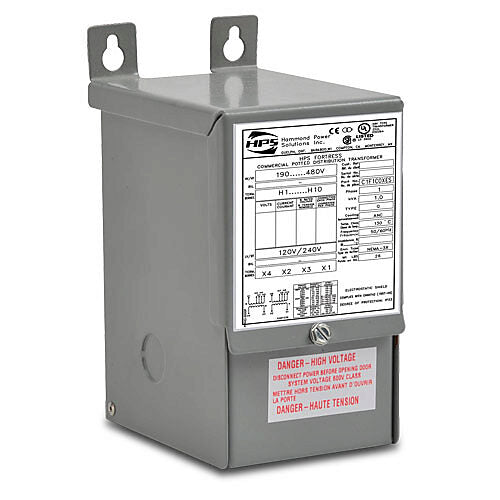

C1F1C0XES is a Hammond Power Solutions HPS Fortress Series 1 kVA single-phase encapsulated transformer designed for commercial and industrial applications. This transformer features a NEMA 3R enclosure, copper windings, and wall-mount configuration for reliable power distribution. The C1F1C0XES transformer supports a selectable primary voltage range of 190-480 VAC and provides a 120/240 VAC secondary output, operating at 50/60 Hz. Its encapsulated core construction ensures durability and safety in demanding environments. The unit is suitable for wall mounting and includes standard side and rear knock-outs for easy installation.

• 1 kVA capacity
• Single-phase
• 190-480 VAC primary voltage (selectable)
• 120/240 VAC secondary voltage
• 50/60 Hz frequency
• Copper windings
• NEMA 3R enclosure
• Wall mount
• HPS Fortress Series
• UL Listed
• CSA Certified
• Standard side and rear knock-outs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C1F1C0XES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 1kVA 220x440,208x416,200x400,190x380V-120/240V 50/60Hz CU
• Duty : General Duty
• Frequency : 50/60Hz,60Hz(1)
• Primary Voltage : 120/240,130/262(1)
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240,130/262(1)
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 95°C
• Insulation Class : 130°C
• EKVA : 1
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ3-N3R
• Enclosure Dimensions : 10.56in/269mm(H), 5.88in/150mm(W), 5.19in/132mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 1
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423090883
• Weight : 26
• Certification : CSA, UL, CE
