Hammond Power Solutions C1F025LES - Transformer 25kVA 240x480V-120/240V

C1F025LES

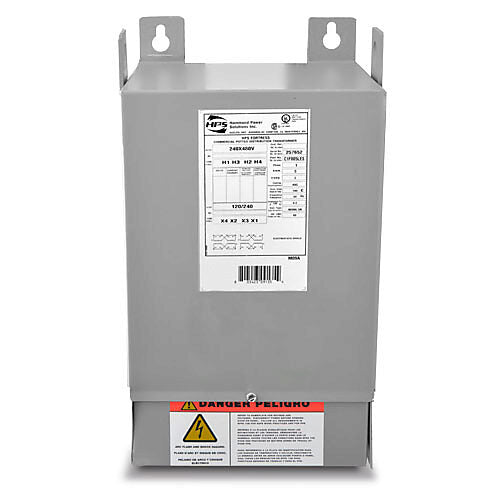

Hammond Power Solutions C1F025LES is a single-phase general duty transformer designed for industrial power distribution applications. This 25 kVA unit features versatile voltage conversion with primary inputs of 240x480V and secondary outputs of 120/240V at 60Hz frequency, constructed with aluminum windings rated for 135°C temperature rise and 180°C insulation class. The transformer is housed in a Type 3R/IP24 rated enclosure with ANSI 61 grey finish, measuring 27.38 inches high by 14.5 inches wide by 10.75 inches deep, and operates at a quiet 50 dBA sound level while meeting IBC 2018 seismic standards with Sds=2.0, z/h=1, and lp=1.5 parameters. Compliant with UL50 and NEMA ST-20 standards, this transformer is suitable for commercial buildings, industrial facilities, and equipment power supply applications requiring reliable voltage transformation with mechanical lug terminations and electrostatic shielding. Key Features & Specifications

• Type: Single-Phase General Duty Transformer
• Voltage: 240x480V Primary, 120/240V Secondary
• Current: 25 kVA Capacity
• Frequency: 60Hz
• Material: Aluminum Windings
• Temperature Rise: 135°C
• Insulation Class: 180°C
• Enclosure: Type 3R/IP24, ANSI 61 Grey
• Dimensions: 27.38" H × 14.5" W × 10.75" D
• Sound Level: 50 dBA
• Impedance: 1% - 5%
• Seismic Compliance: IBC 2018 (Sds=2.0)

Specifications

• Part Number: C1F025LES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 25kVA 240x480V-120/240V 60Hz AL
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 240x480
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : 2x2.5%
• Primary FCBN (NPL) : 4x2.5%
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Aluminum
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 25
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 50dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Mechanical Lugs
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ8-N3R
• Enclosure Dimensions : 27.38in/696mm(H), 14.5in/369mm(W), 10.75in/274mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 25
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423091392
• Weight : 346
• Certification : CSA, UL
