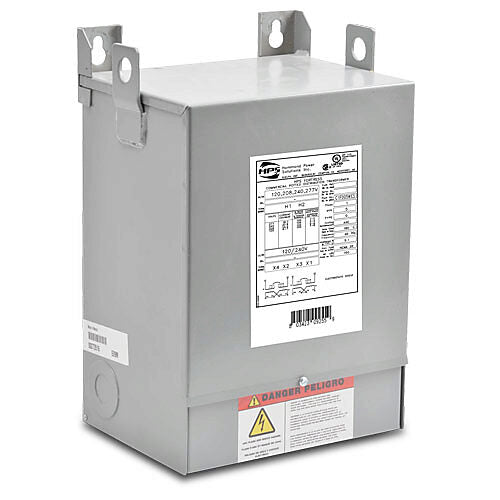

Hammond Power Solutions C1F005WES - Transformer 5kVA 120/240V (Type 3R Enclosure)

C1F005WES

Hammond Power Solutions C1F005WES is a general duty single-phase transformer designed for industrial power distribution applications. This 5 kVA unit features versatile primary voltage compatibility with 277V, 240V, 208V, and 120V inputs, delivering secondary outputs of 120/240V through parallel/series-N connections. Constructed with aluminum windings and housed in a Type 3R/IP24 rated enclosure measuring 17.25" x 10" x 7.75" with ANSI 61 grey finish, the transformer operates with 135°C temperature rise and 180°C insulation class. It complies with IBC 2018 seismic standards (Sds=2.0, z/h=1, lp=1.5) and maintains a quiet 45 dBA sound level per NEMA ST-20. Typical applications include industrial control systems, machinery power supplies, and commercial electrical distribution where reliable voltage transformation is required. Key Features & Specifications

• Type: Single-Phase General Duty Transformer
• Voltage: Primary 277/240/208/120V, Secondary 120/240V
• Current: 5 kVA Capacity
• Frequency: 60 Hz
• Impedance: 1% - 5.1%
• Enclosure: Type 3R / IP24, ANSI 61 Grey
• Dimensions: 17.25" H × 10" W × 7.75" D
• Temperature Rise: 135°C
• Insulation Class: 180°C
• Material: Aluminum Windings
• Sound Level: 45 dBA
• Seismic Compliance: IBC 2018

Specifications

• Part Number: C1F005WES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 5kVA 277,240,208,120V-120/240V 60Hz AL
• Duty : General Duty
• Frequency : 60Hz
• Primary Voltage : 277, 240, 208, 120
• Primary Connection : Series (V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Aluminum
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 5
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5.1%
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ5-N3R
• Enclosure Dimensions : 17.25in/439mm(H), 10in/254mm(W), 7.75in/197mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 5
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No
• Primary Termination (Std) : Wire Leads, Wire Leads, Wire Leads, Wire Leads

Product Data

• UPC : 803423092559
• Weight : 150
• Certification : CSA, UL
