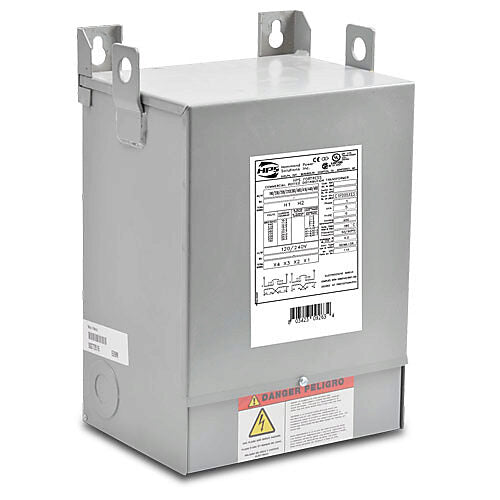

Hammond Power Solutions C1F003XES - Single-Phase Transformer 3kVA (Type 3R/IP24)

C1F003XES

Hammond Power Solutions C1F003XES is a general duty single-phase transformer designed for industrial power distribution applications. This 3kVA transformer features versatile voltage configurations with primary voltages of 120/240V or 130/262V and secondary voltages of 120/240V or 130/262V, operating at 50/60Hz frequency with copper windings and 1-5% impedance. The unit is housed in a Type 3R/IP24 rated enclosure with ANSI 61 Grey finish, measuring 17.25 inches high by 10 inches wide by 7.75 inches deep, and features a 135°C temperature rise with 180°C insulation class. Compliant with IBC 2018 seismic standards (Sds=2.0, z/h=1, lp=1.5) and UL50 requirements, it maintains a low 45dBA sound level per NEMA ST-20. Typical applications include industrial control systems, machinery power supplies, and commercial electrical distribution where reliable voltage transformation is required. Key Features & Specifications

• Type: Single-Phase General Duty Transformer
• Voltage: Primary 120/240V, Secondary 120/240V
• Current: 3kVA Capacity
• Frequency: 50/60Hz
• Material: Copper Windings
• Enclosure: Type 3R/IP24, ANSI 61 Grey
• Temperature Rise: 135°C
• Insulation Class: 180°C
• Dimensions: 17.25" H × 10" W × 7.75" D
• Sound Level: 45dBA
• Impedance: 1-5%
• Seismic Compliance: IBC 2018

Specifications

• Part Number: C1F003XES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 3kVA 220x440,208x416,200x400,190x380V-120/240V 50/60Hz CU
• Duty : General Duty
• Frequency : 50/60Hz,60Hz(1)
• Primary Voltage : 120/240,130/262(1)
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240,130/262(1)
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 3
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ5-N3R
• Enclosure Dimensions : 17.25in/439mm(H), 10in/254mm(W), 7.75in/197mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 3
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No
• Primary Termination (Std) : Wire Leads, Wire Leads, Wire Leads, Wire Leads, Wire Leads

Product Data

• UPC : 803423090913
• Weight : 65
• Certification : CSA, UL, CE
