C1F002XES - Hammond Power Solutions 2 kVA 1-Phase NEMA 3R Wall Mount Transformer 190-480 VAC Primary 120/240 VAC Secondary

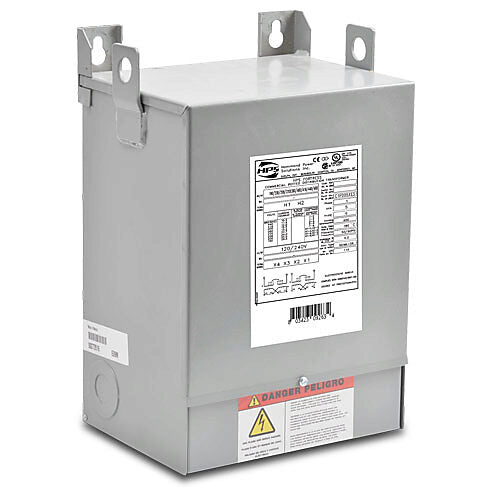

C1F002XES

C1F002XES is a general purpose encapsulated core transformer designed for commercial and industrial applications. This unit features a robust NEMA 3R enclosure and is suitable for wall mounting, providing reliable power distribution in demanding environments. The C1F002XES transformer is built with a copper winding and includes an electrostatic shield for improved noise reduction and safety. It supports a wide range of primary voltages and delivers a stable 120/240 VAC secondary output, making it versatile for various electrical systems. The unit is rated for 50/60 Hz operation and is designed for single-phase service.

• 2 kVA power rating
• 1-phase configuration
• Primary voltage: 190-480 VAC selectable
• Secondary voltage: 120/240 VAC
• Frequency: 50/60 Hz
• Mounting type: Wall mount
• Enclosure: NEMA 3R
• Electrostatically shielded
• Copper winding
• Dimensions: 11.75 in H x 7 in W x 6.5 in D
• UL, CSA, CE certified
• Impedance: Typically 4 to 8%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C1F002XES
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : Standard
• Fortress : 1ph 2kVA 220x440,208x416,200x400,190x380V-120/240V 50/60Hz CU
• Duty : General Duty
• Frequency : 50/60Hz,60Hz(1)
• Primary Voltage : 120/240,130/262(1)
• Primary Connection : Parallel x Series (Vx2V)
• Primary FCAN (NPL) : None
• Primary FCBN (NPL) : None
• Secondary Voltage : 120/240,130/262(1)
• Secondary Connection : Parallel/Series-N (V/2V)
• Material : Copper
• Temperature Rise : 135°C
• Insulation Class : 180°C
• EKVA : 2
• Efficiency Regulation : No Efficiency Specification
• Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Sound Level : 45dBA (NEMA ST-20)
• Impedance (Std) : 1% - 5%
• Secondary Termination (NPL) : Wire Leads
• Enclosure Type : Type 3R / IP24
• Enclosure Finish : ANSI 61 Grey, UL50
• Enclosure PN (NPL) : NQ4-N3R
• Enclosure Dimensions : 11.75in/299mm(H), 7.06in/180mm(W), 6.25in/159mm(D)
• Electrostatic Shield : Single
• Nameplate : Standard
• Standard kVA : 2
• Vector Configuration : 0°
• Seismic Standard Value : IBC 2018
• OSHPD : No
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Enclosure IR Window : No

Product Data

• UPC : 803423090906
• GTIN : 00803423090906
• Weight : 52
• Certification : CSA, UL, CE

Documentation and Resources

• Engineering Drawing (PDF)
• Brochure
• Hammond Product Application Videos
• Frequently Asked Questions
• Troubleshooting Guide
• Enclosure CAD Drawing (PDF)
